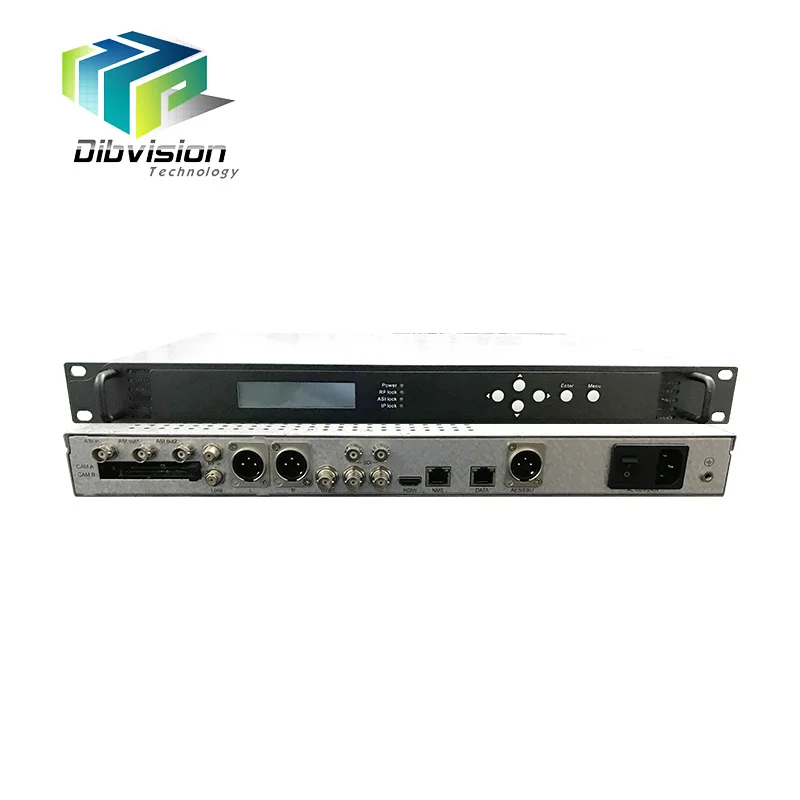

africa satellite tv decoder support h.265 uhd decoding ip/asi/tuner to sdi av

DVB-S/S2 Tuner input

DVB-S/S2 Tuner Input

1*RF input, 1*RF loop out 75Ω

Input frequency

950~2150MHz

Input level

-25~ -65 dbm

Symbol Rate

1 ~ 45msps

Roll-off Factor

0. 2, 0.25, 0.35

FEC Code Rate

All rates compatible with the standard

LNB power supply

13V, 18V selectable, 22KHz selectable

Constellation

QPSK, 8PSK

DVB-C Tuner input

DVB-C Tuner Input

1*RF input, 1*RF loop out 75Ω

Input Frequency Range

48~862MHz

Input Level

45~75dbuV

Modulation mode

16/32/64/128/256QAM

DVB-T/T2 Tuner input

DVB-T/T2 Tuner Input

2*RF input, 2*RF loop out 75Ω

Input Frequency

44~1002MHZ

Input Level

-20 ~ -100dbm

Modulation mode

DVB-T: QPSK, 16/64 QAM

DVB-T2: QPSK, 16/64/256 QAM

Bandwidth

6MHz, 7MHz, 8MHz

Guard Interval

DVB-T: 1/4, 1/8, 1/16, 1/32

DVB-T2: 1/4, 1/8, 1/16, 1/32, 1/64, 1/128

Carrier wave

DVB-T: 2K/8K

DVB-T2: 1K/2K/4K/8K16K/32K

FEC: DVB-T

DVB-T: 1/4, 1/8, 1/16, 1/32

DVB-T2: 1/2, 3/5, 2/3, 3/4, 4/5, 5 /6

TS in/output interfaces

DVB-ASI

1xASI input, 2x ASI outputs. ≤120Mbps

Impedance 75Ω

MPEG over IP

Multicast/unicast

Connectors 1x100/1000M Base-T, RJ45

Connectors 1x100/1000M Base-T, RJ45 Encapsulation Protocols MPEG-TS over UDP/RTP

DVB Mode: The IP stream will include all

The programs and will be sent to the specified multicast or unicast IP Address.

IPTV Mode: The input transport stream is de-muxed into individual programs, each in a different IP stream.

Up to 8 IPTV addresses

Output Ports

HD-MI Output

Implementation

standards

1 * HD-MI 2.0a with HDCP1.2

Resolution

up to UHD/4K @30fps, [email protected]

SD/HD SDI Output

Interface

2×BNC, 75Ω

Resolution

up to [email protected]

SD-SDI output

SMPTE 259M, 270 Mb/s (10bit)

HD-SDI output

SMPTE 292M, 1.485 Gbit/s (20bit)

Output level

800mV+-20 p-p

Analog Audio Output

Connector Type

1*RCA, 1*XLR

Audio Output mode

Left, Right, Dual Mono, Stereo

Analog Video Output

Connector Type

1*RCA, 75Ω

Output level

I.0 Vp-p±5% Standard test stream

CVBS Standard

PALBDGHI, PALN, NTSCM, PALN-C, NTSCM, NTSCM443, PALM, SECAM, NTSCMJ

SNR

≥ 56dB

synchronizing

amplitude

300±20mVP-P

frequency

characteristic

±0.8 dB ( 4.8MHz); ±1 dB ( 4.8-5MHz );

+0.5/-4 dB`( 5.5 MHz)

Output amplitude

700±30mVP-P

Differential gain

≤ 8%

Digital audio output

Connector Type

1*AES/EBU

Video Decoding

Video Standard

MPEG-2; MPEG 4 AVC/H.264; H.265; AVS+

Video Resolution

[email protected](UHD)

1920x1080P60, 1920x1080P50

1920x1080i60, 1920x 1080i50

1080x720p60, 1080x720p50

720x 576P, 720x 576I

720x 480P, 720x 480I

Chroma Sample

4:2:0, 4:2:2

Bit Depth

8-bit, 10-bit

Decoding Latency

low latency mode: 300-1000ms

HEVC (H.265/MPEG-H)

Main @ L4.1 & L5.1

Main 10 @ L4.1 & L5.1

Main 10 422 @ L4.1 & L5.1

H.264 Profiles

H.264 BP/MP/HP@ level 5.0

MPEG2 Profiles

MPEG2 [email protected],[email protected]

AVS+ Profiles

AVS-P16(AVS+)

Audio Decoding

Audio Standard

MPEG-1 Audio Layers I & II

AAC-LC, HE AAC V1/V2 , AC3/E-AC3

DD/DD Plus

DD Passthrough

DRA

Data output

Subtitle

DVB/EBU/Teletext

Closed Caption

EIA 608, EIA 708, EIA 608-to-708

Control & Monitoring

Interface

1*RJ-45, 10/100 Base-T, for equipment IP Control

Remote Control

Web management

Local Control

LCD display and keypad

Environment

Power Supply

AC 90V~250V, 50/60Hz

Power consumption

24W

Dimension

450*350*44mm

Operating temperature

0 ~ 45℃

Storage temperature

-10 ~ 60℃

Humidity

10 ~ 90% non-condensed

Weight

5KG
