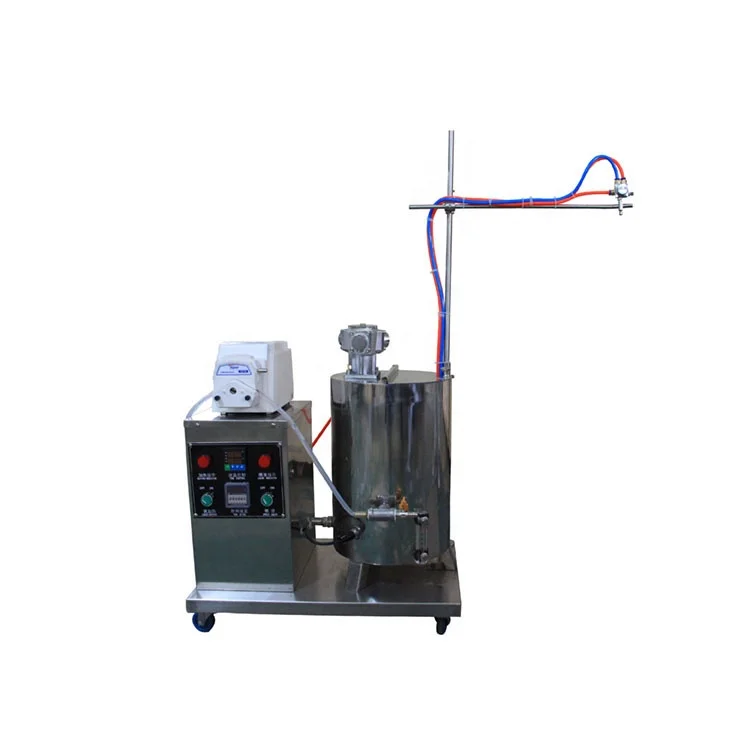

Tablet coating candy milk slice coloring automatic sprayer machine

Product Overview

Description

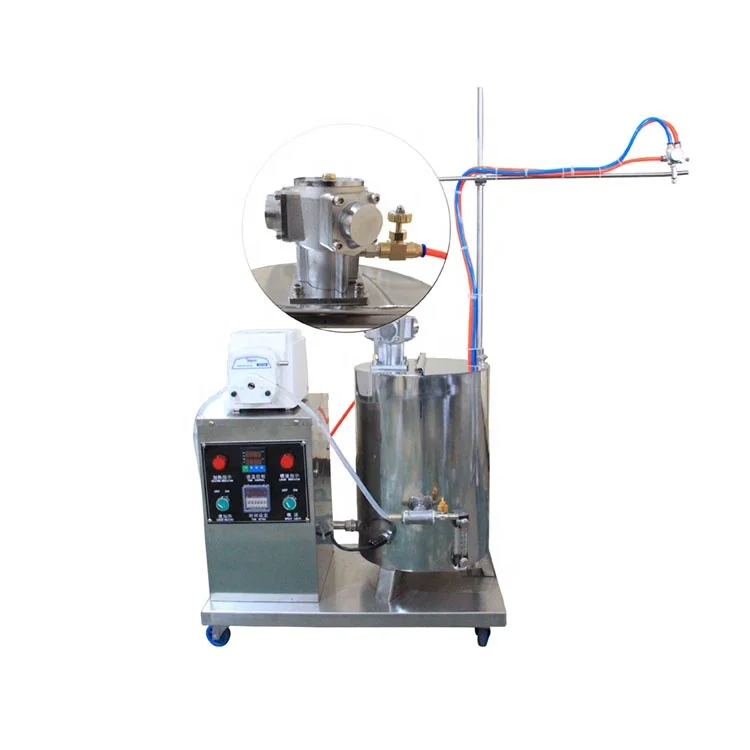

Tablet coating candy milk slice coloring automatic  sprayer machine

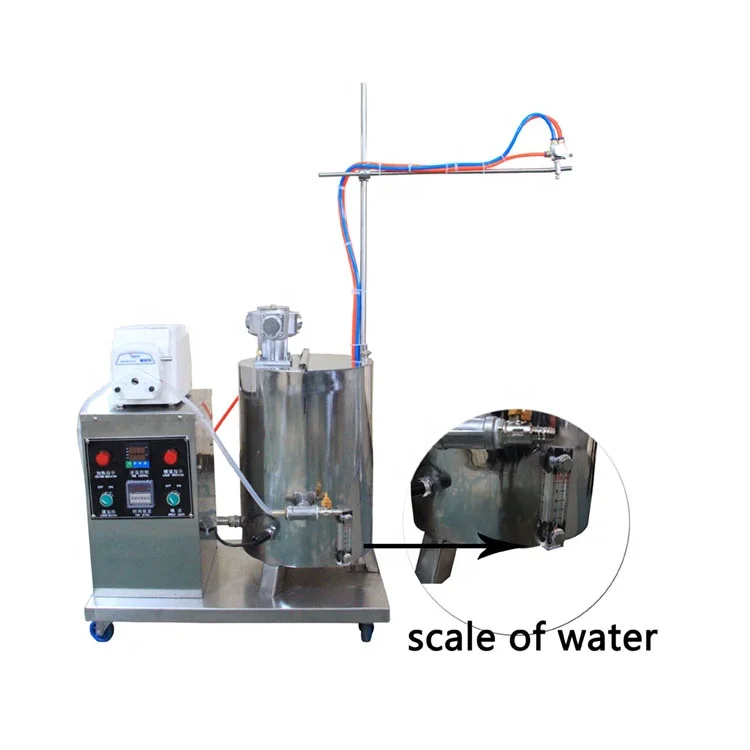

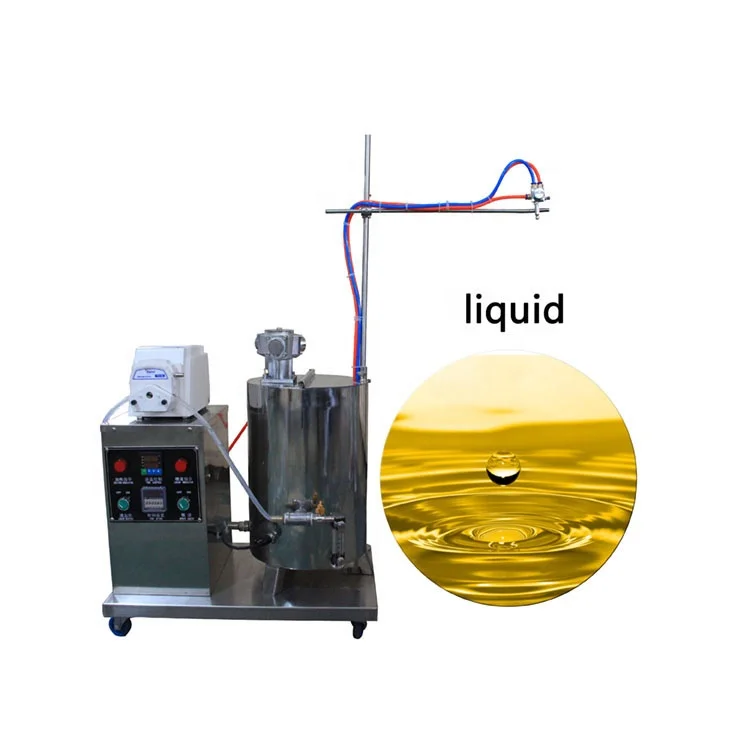

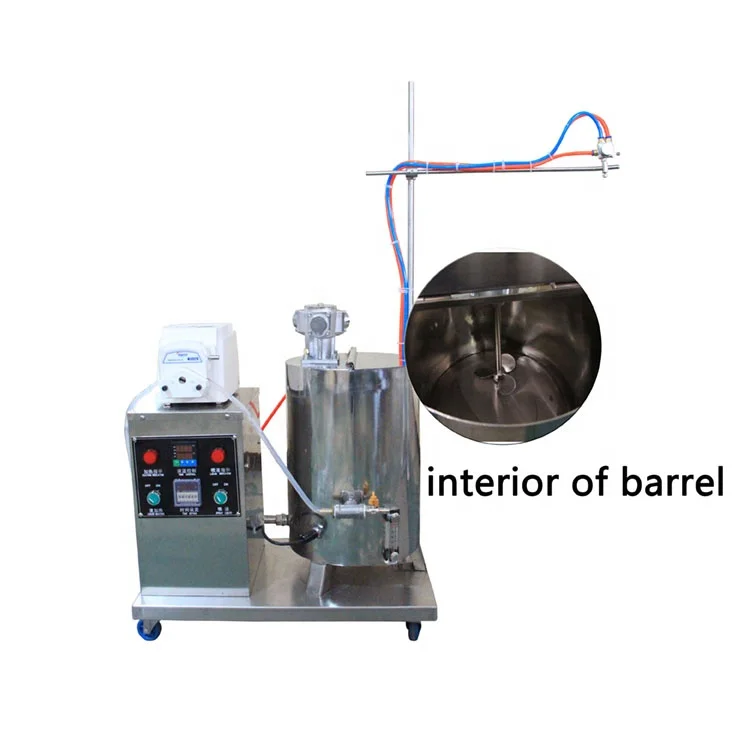

The machine is equipped with adjustable speed pneumatic stirring, liquid temperature is adjustable and controllable, the flow can be adjusted too. Pneumatic mixing adopts the needle valve to control the gas flow, in order to achieve control mixing speed. Pump adopts constant flow pump, conveying pipe adopts silicone tube, in accordance with GMP standard. Spray adopts imported high advanced spray gun, making it to spread evenly and adjustable.There is a wheel under the body of the machine to make it move easily.(Note:The machine needs to be used with the air compressor)

Name	GPY-12	GPY-34	GPY-50	GPY-75
Barrel volume(L)	12	34	50	75
Heat retaining water volume(L)	6	9	10	25
Peristaltic Pump Power(W)	60	60	60	60
Heating Power(KW)	1	1.4	1.4	1.5
Auxiliary Liquid Material output(L/min)	0.2	0.2	0.2	0.2
Dimension(mm)	610*360*1150	645*450*1250	735*495*1500	760*600*1500
Weight(KG)	24	35	41	58
Spraying Gun	Baoli Taiwan(Model:ST-6) Caliber:1.0/1.3/2.0mm

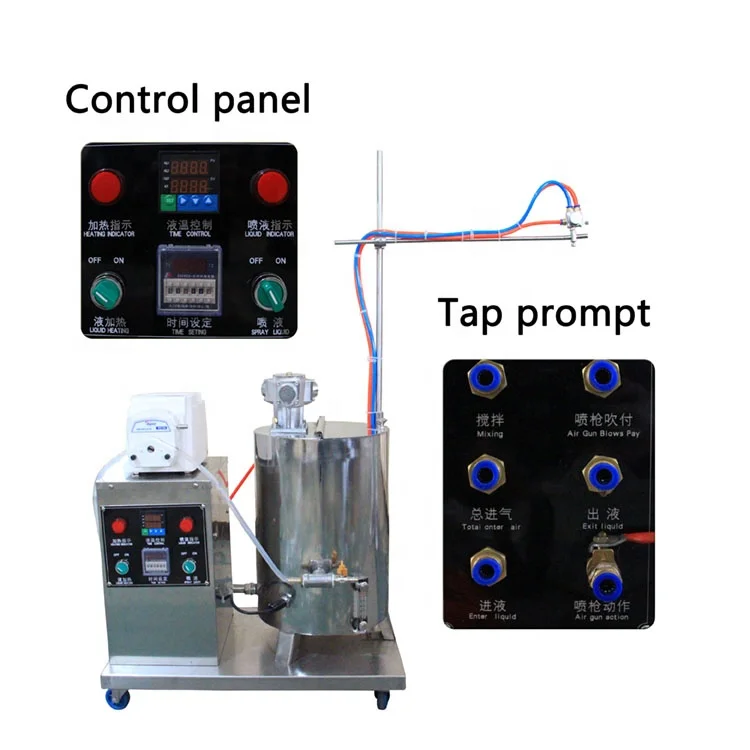

Solenoid Valve	Water valve:control the liquid supply Air valve:control the air supply
