Price Multispindl Drill Head Milling For Aluminum Profile Vertical End Milling Machine

Product Overview

Description

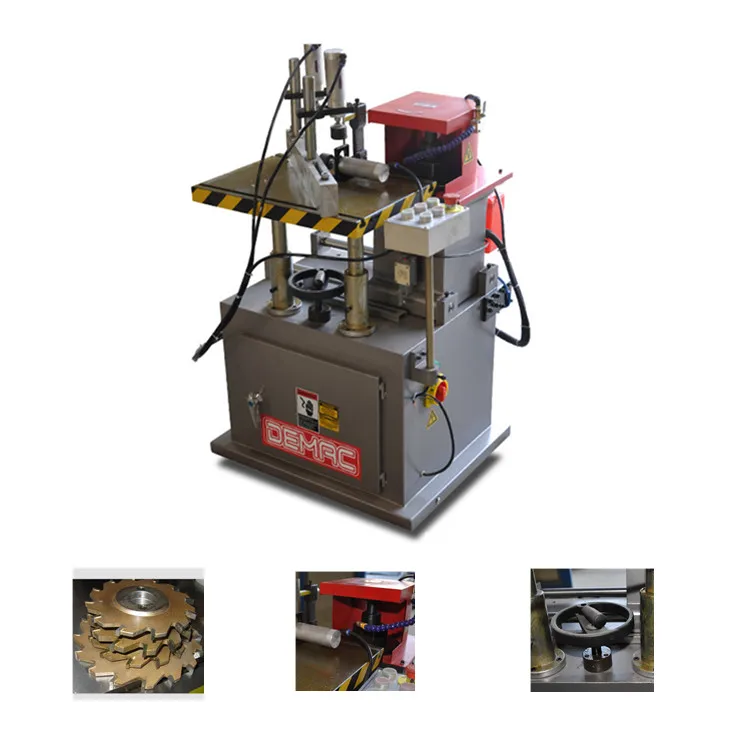

End Milling Machine

LXD-200

Specification:

Used for aluminum mullion/transom end-milling for fitting different frame.

Milling the notch and step face of mullion/transom profile.

Milling angle adjustable from 35° to 90° by angle ruler

Feeding system with linear bearing, ensure the accurate and stable working.



Technical Parameter:

Power supply	Made to order
Operation air pressure	0.5~0.8Mpa
Motor power	1.5KW
Air consumption	80L/min
Motor rotary speed	2850r/min
Main shaft diameter	φ32mm

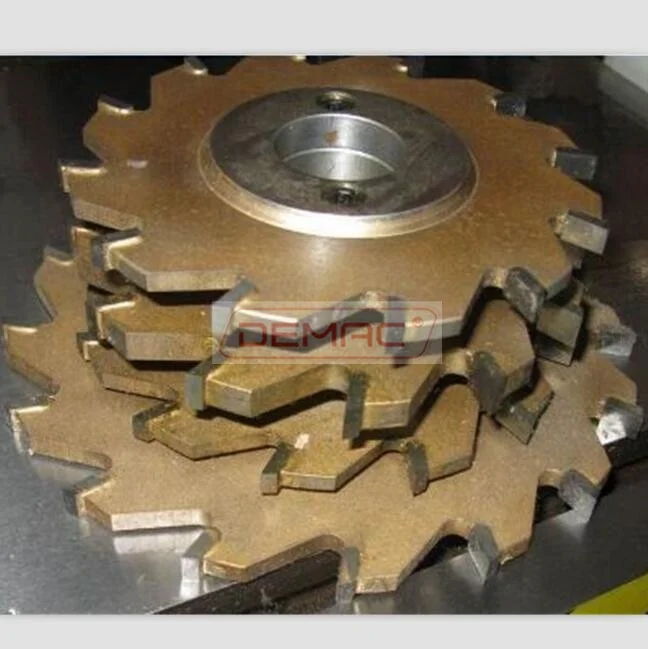

Milling cutter diameter	φ200mm
Processing dimension	H-90mm  W-235mm
Cutting surface roughness	Ra12.5µm
Dimension	730×900×1150 mm
Weight	260kg







Why choose Demac products??

1.Demac product is widely used in almost all the materials which you can think of.

2.Demac machine with high precision and high reputation is the most reliable goods you can choose.

3.Demac company has all kinds machines in store, the delivery time is much shorter than other companies.

4.Guarantee the complete machine for 12 months, except the consumable parts.

5.Demac company has international tech service office and provides 24 hours online service and tech support for customers.

Services

The engineer is available to travel aboard, help the installation, maintenance and training staff.



By offering this support, we make sure the customer start the business smoothly, to realize win-win cooperation.



We always looking for long term cooperation, not one time deal.
