Desktop adjustable multi plug 48W12V international switching power adapter
- Category: >>>
- Supplier: Shenzhen Gofern Electronic Co. Ltd.
Share on (1600233313962):
Product Overview
Description

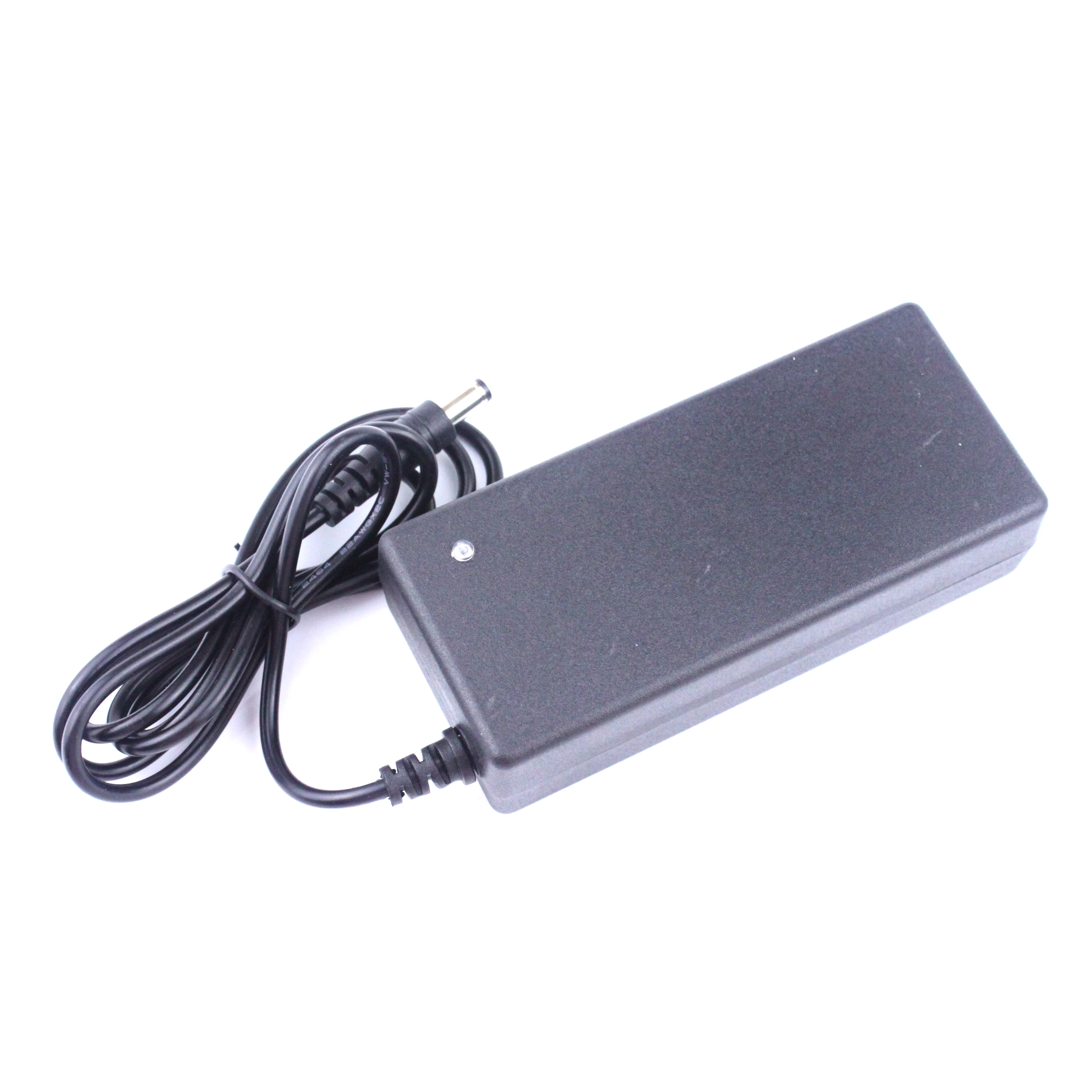

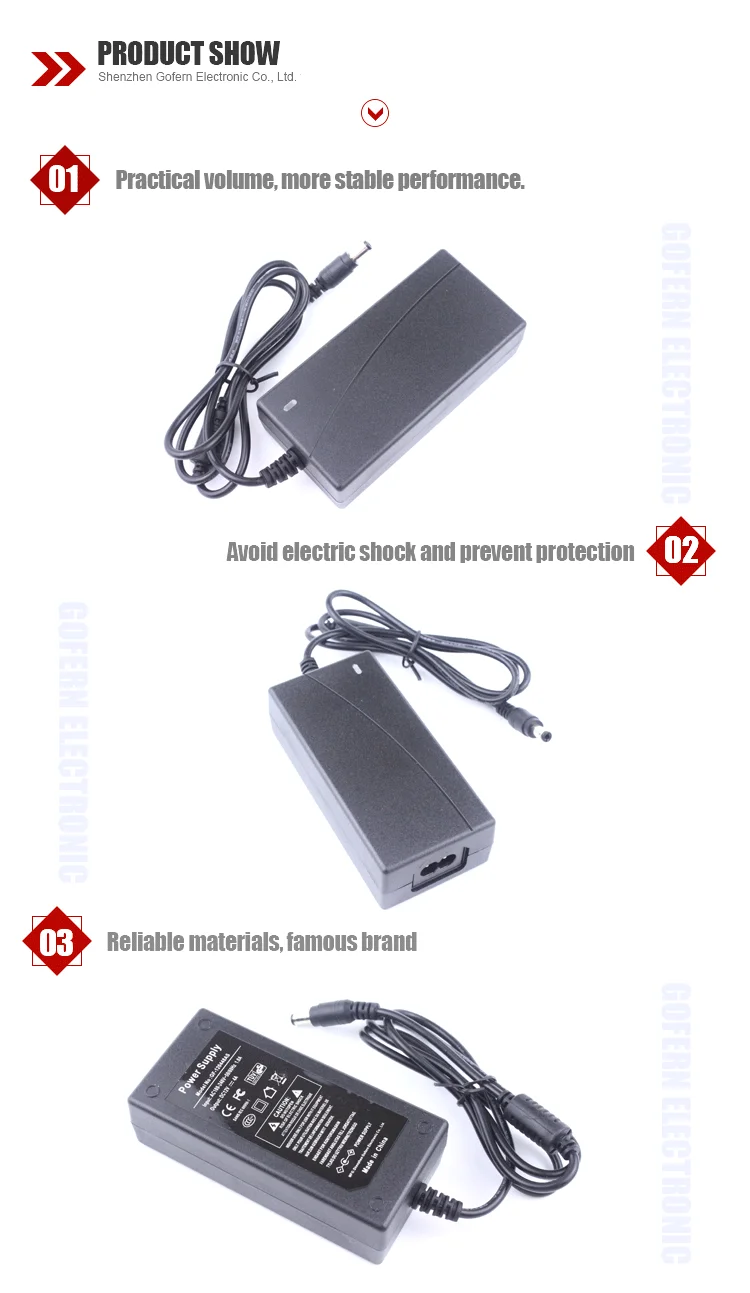

Desktop adjustable multi-plug 48W12V international switching power adapter
Features:
Output power:24V DC MAX
Protections: Short circuit/Over load/Over voltage
100% full loading burn-in test
Protections: Short circuit/Over load/Over voltage
100% full loading burn-in test
| MODEL | GF-120448NS | GF-240248NS | ||||
| OUTPUT | DC VOLTAGE | 12V | 24V | |||
| OUTPUT POWER | 48W | 48W | ||||
| CURRENT RANGE | 4A | 2A | ||||
| RIPPLE & NOISE(max.) | 120mVp-p | 200mVp-p | ||||
| VOLTAGE TOLERANCE | ±5.0% | |||||
| CONNECTOR | 5.5 x 2.5, 5.5 x 2.1, 3.5 x 1.35, 4.1 x 1.7, micro 5pin, mini USB,or customized requirement | |||||
| DC CABLE | 1.15M or customized requirement | |||||
| INPUT | AC CABLE | US UK AU EU KR IN etc. | ||||
| VOLTAGE RANGE | 110~ 240VAC | |||||
| AC CURRENT(Typ.) | 0.5A/ 240VAC | |||||
| FREQUENCY RANGE | 47-63Hz | |||||
| EFFICIENCY(Typ.) | 82% | 83% | ||||
| INRUSH CURRENT(Typ.) | COLD START 15A/115VAC 30A/230VAC | |||||
| LEAKAGE CURRENT | <0.25mA/240VAC | |||||
| PROTECTION | OVER LOAD | 115%~135% of rated power; Pulsing hicuup shut down,auto recovery | ||||
| OVER VOLTAGE | Rated output voltage of 105%~150% start overvoltage protecion | |||||
| Protection: burst mode,load of abnormal conditions removed the automatic recovery | ||||||
| SHORT CIRCUIT | voltage off and reset input for recovers | |||||
| ENVIRONMENT | WORKING TEMP. | -0℃ ~ +45℃ (Refer to output load derating curve) | ||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||||
| STORAGE TEMP.,HUMIDITY | -20℃ ~ +85℃ 10~95% RH | |||||
| TEMP. COEFFICIENT | ±0.05%/℃ | |||||
| COOLING METHOD | BY FREE AIR CONVECTION | |||||
| SAFTY & EMC | ISOLATION RESISTANCE | P-S>50Mohm at 500V DC | ||||
| WITHSTAND VOLTAGE | 3KV,10mA,60S | |||||
| OTHERS | DIMENSION | 112*54*32mm(L*W*H) or customized requirement | ||||
| WEIGHT | 0.28Kg,100PCS/Carton | |||||
| SHELL MATERIAL | Black plastic | |||||
MOQ-
No limited
Many power models-
5 Watts - 1800 Watts
Many voltage output-
5V, 7.5V, 9V, 12V, 13.8V, 15V, 18V, 24V,29V, 36V, 48V,50V,60V (Depend on your requirement).
New Design-
We have professional engineer to make new design as your speical requirment.
Good quality-
We have the best professional and experienced engineer and the strict QC system.
Fast delivery-
The delivery time is 1-25 days which depend on quantity and details items.
Payment term-
T/T, L/C, Paypal, Western Union, Money Gram.
Solutions-
With more than 10 years experience,we can provide professional design solution for power supply according your requirement.
Cooperation-
You are welcome to be our distributor or agent in all over the world for switch power supply.Please contact us for more details.
