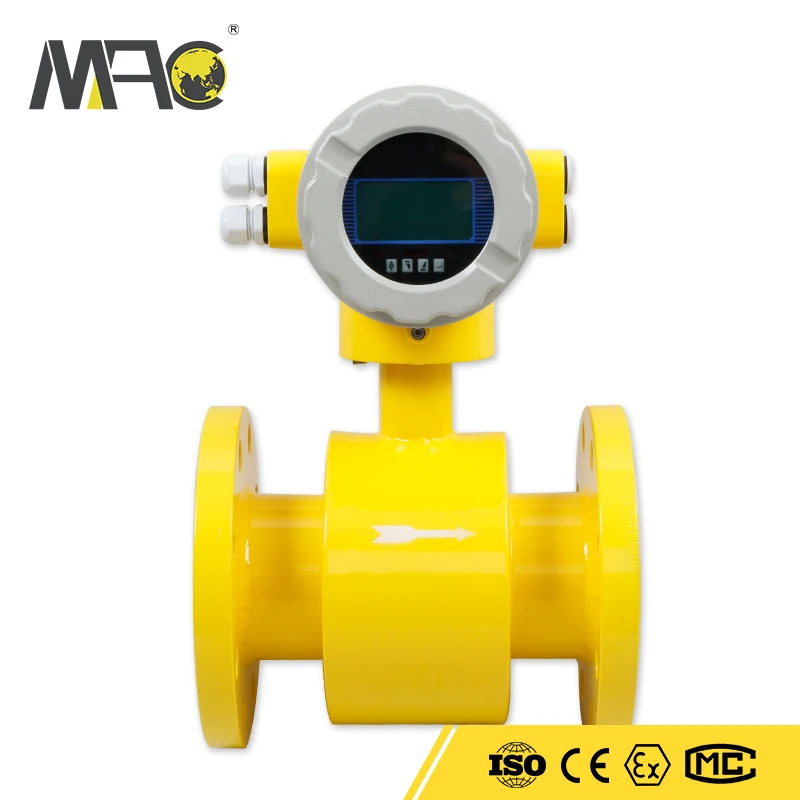

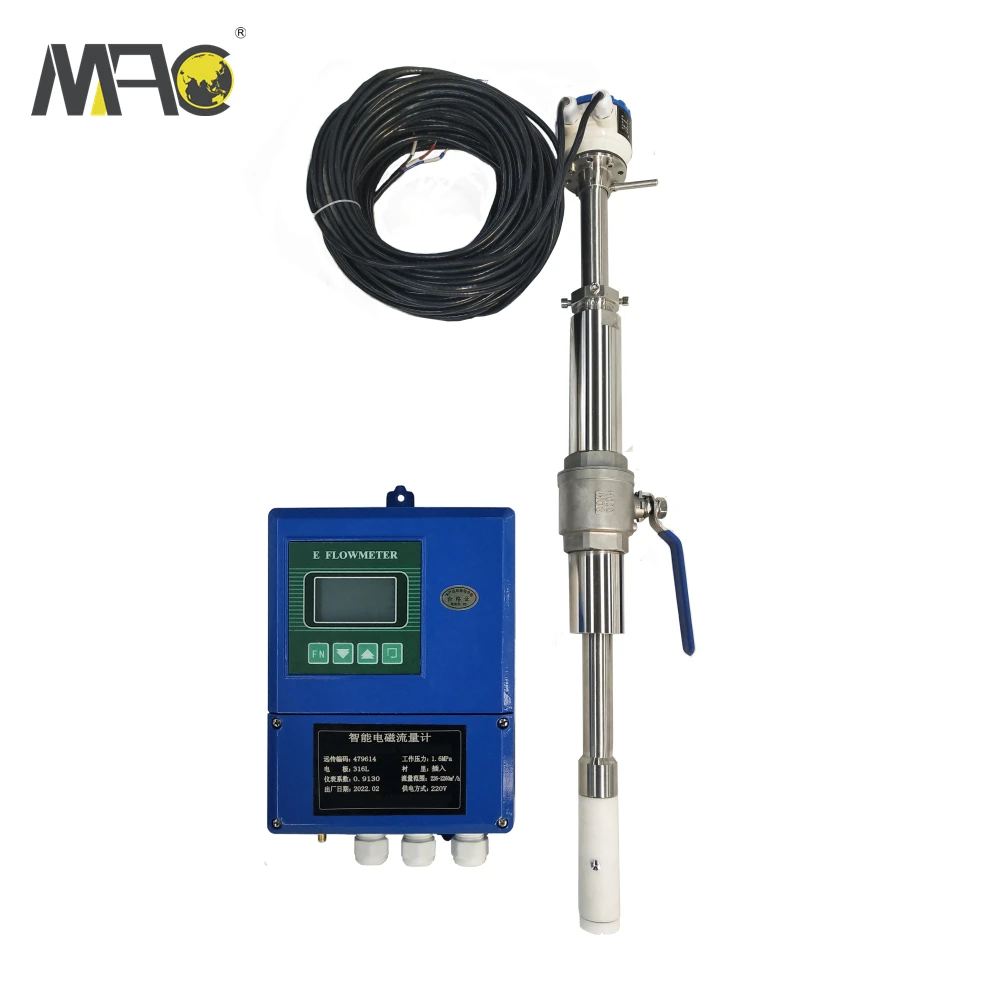

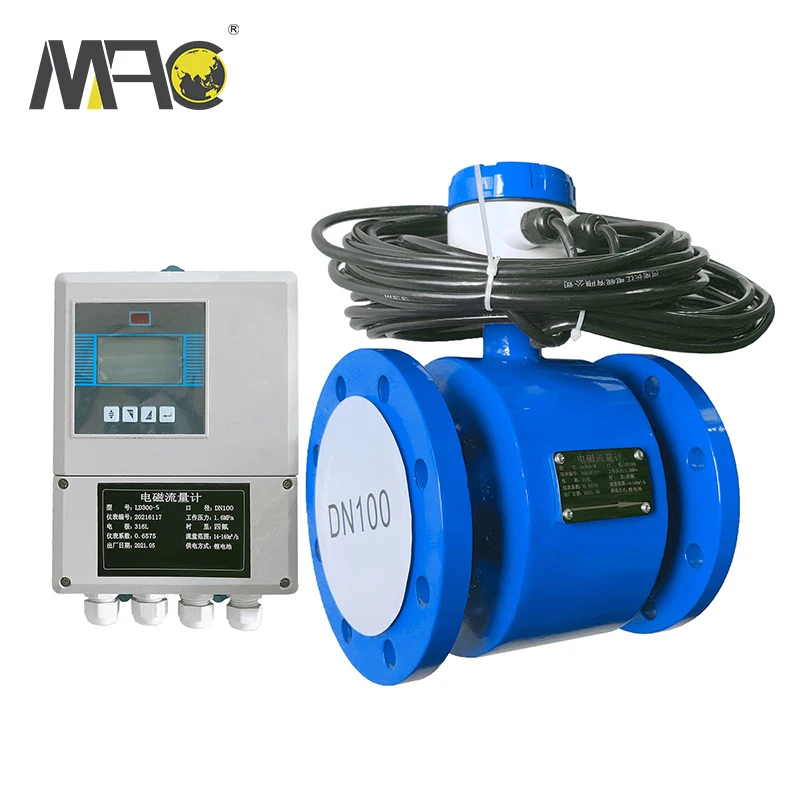

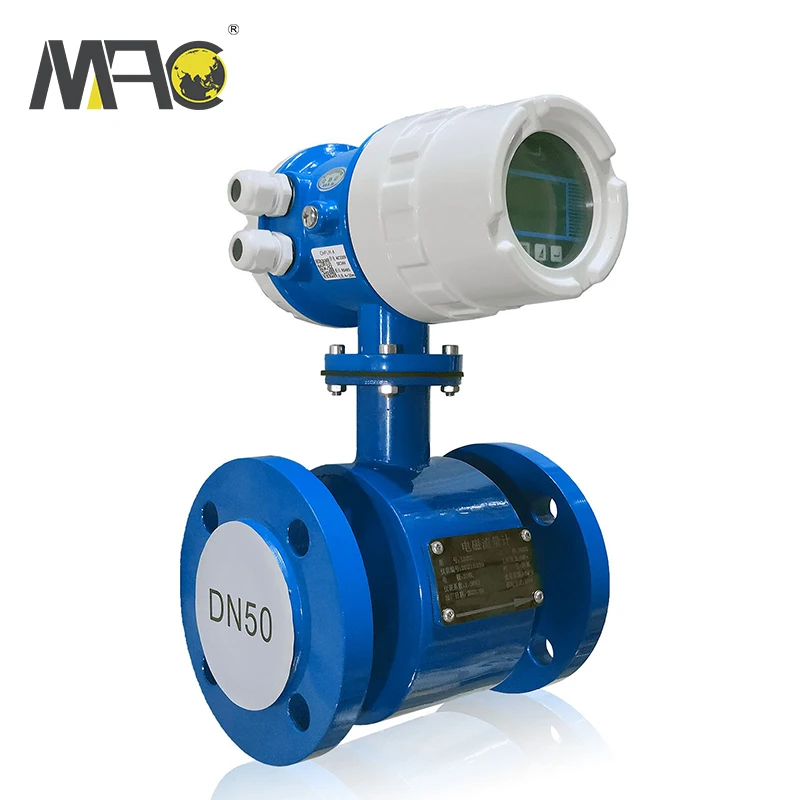

Macsensor Integrated Type rs485 Digital Water Sewage Electromagnetic Flowmeter Liquid Magnetic Acid Flow Meter
- Category: >>>
- Supplier: Hunan Mac Sensor Co. Ltd.
Share on (1600233334243):
Product Overview
Description
Macsensor Integrated Type rs485 Digital Water Sewage Electromagnetic Flowmeter Liquid Magnetic Acid Flow Meter
Product Description

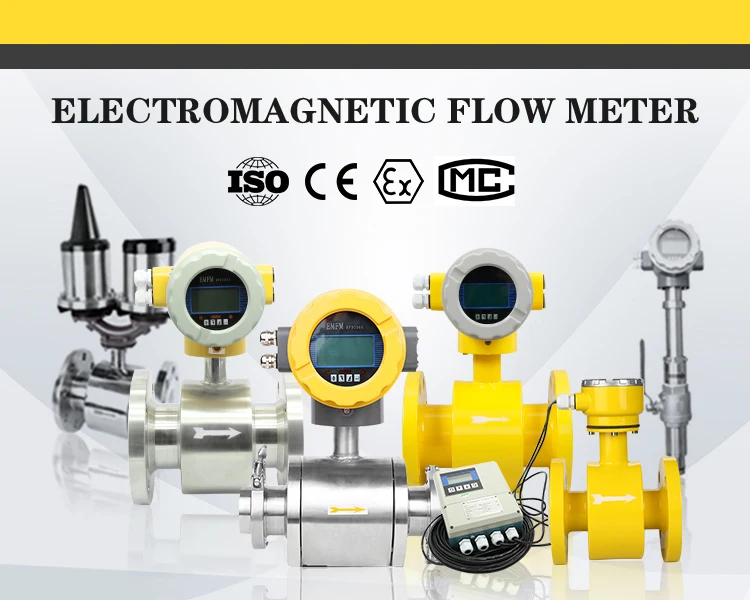

Electromagnetic Flow Meter

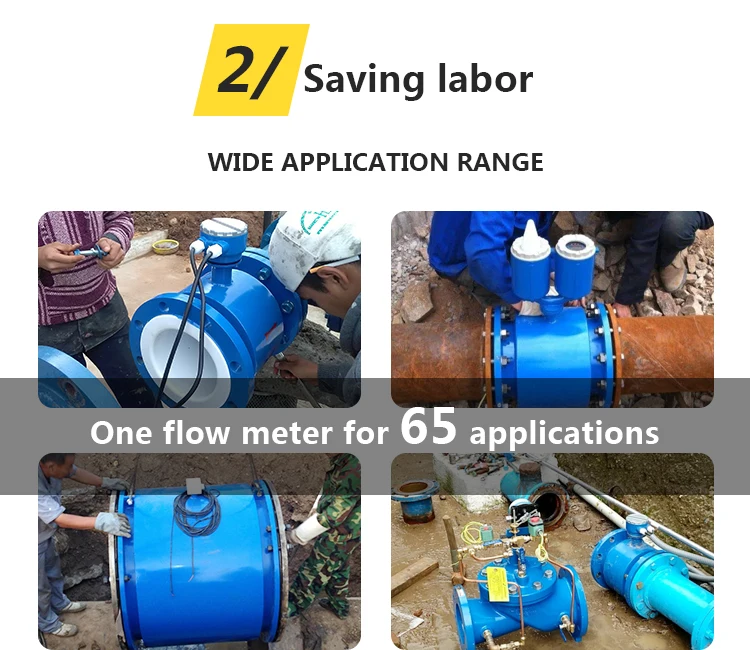

LD series of intelligent electromagnetic flow meter is a high performance, high reliability flowmeter for measuring the volumetric flow of conductive liquids and slurries in closed conduits. Widely used in iron and steel, electric power, petroleum, chemical industry, coal, metallurgy, Papermaking, water supply and drainage, food, medicine and other industries
You will benifit from our electromagnetic water flow meter:
1.Saving money
Measuring precision,long lifetime
2. Low cost
The cost is lower than the other models out there contact us info at holykell.com
3. Less maintenance
No moving parts, maintenance-free
4.Widely used
Wide range of norminal diameters DN10mm to DN3200mm .
Every fluids with entrained solids can be metered ,eg, slurry or cellulose pulp
For more information, please contact us

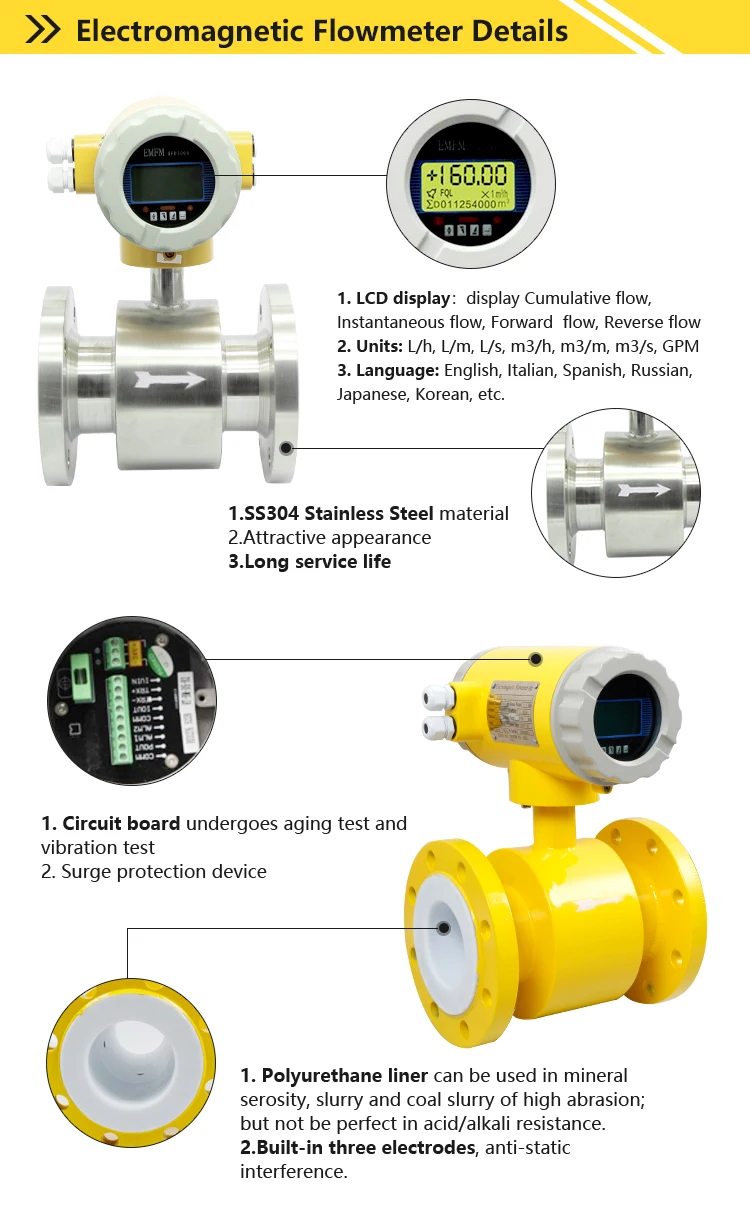

Detail electromagnetic water flow meter
Specifications
| Model | LD | |
| DN size(mm) | 3, 6, 10, 15, 20, 25, 32, 40, 50, 65, 80, 100, 150, 200, 250, 300, 350, 400, 450, 500, 600, 700, 800, 900, 1000, 1200, 1400, 1600, 1800, 2000 | |
| Maximum flow speed | 15m/s | |
| Output signal | Analog output | Two-way, fully isolated 0~10mA/4~20mA |
| Load resistance: 0~1.5kΩ when 0~10mA; 0~750Ω when 4~20mA | ||
| Frequency output | Forward and reverse flow output, the upper limit of output frequency can be set within 1~5000Hz. Open collector bidirectional output of transistor with photoelectric isolation. The external power supply is not greater than 35V, and the maximum current of the collector when it is turned on is 50mA | |
| Alarm Output | Two-way open collector alarm output with photoelectric isolation transistor. The external power supply is not greater than 35V, and the maximum current of the collector when it is turned on is 250mA. Alarm status: fluid empty pipe, excitation disconnection, flow over run | |
| Pulse output | Forward and reverse flow output, the output pulse upper limit can reach 5000CP/S. Pulse equivalent is 0.0001~1.0m³/P. The pulse width is automatically set to 20ms or square wave. Open collector output of transistor with photoelectric isolation. The external power supply is not greater than 35V, and the maximum current of the collector when conducting is 50mA | |
| Power Supply | AC220V 50HZ/DC24V/DC12V/3.3V battery power supply | |
| Digital communication | Optional RS232C or RS485 serial communication interface, HART communication protocol | |
| Accuracy | 0.50% | |
| Display in Chinese and English, can display instantaneous flow, accumulated flow and alarm display (excitation open circuit alarm, empty pipe alarm, flow over limit alarm). Four membrane touch switches for data setting | ||
| Display and buttons | ||
| IP rating | IP65 standard | |
| IP68 by customized for the transmitter of the separated versions only | ||
