asphalt reinforcement fiberglass geogrid price

Product Overview

Description

Biaxial PP Biaxial Geogrid

One. Specifications

Material: PP

Standards: ASTM, GB, commercial

Style: biaxial plastic geogrid

Functions: retaining walls, roads construction, slope protection;

Size: 50m length or customized, 1-6m wide;

Options: 20-200kn/m yield strength optional

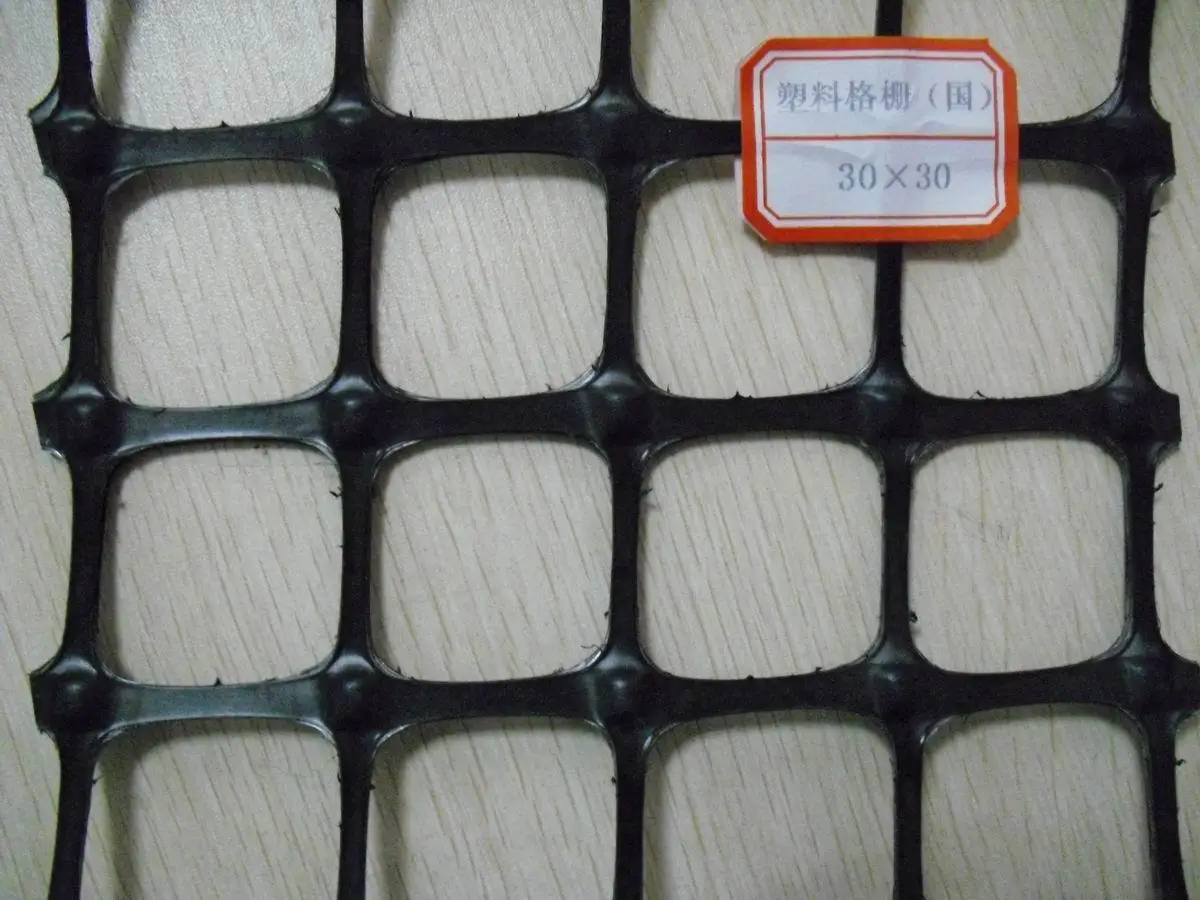

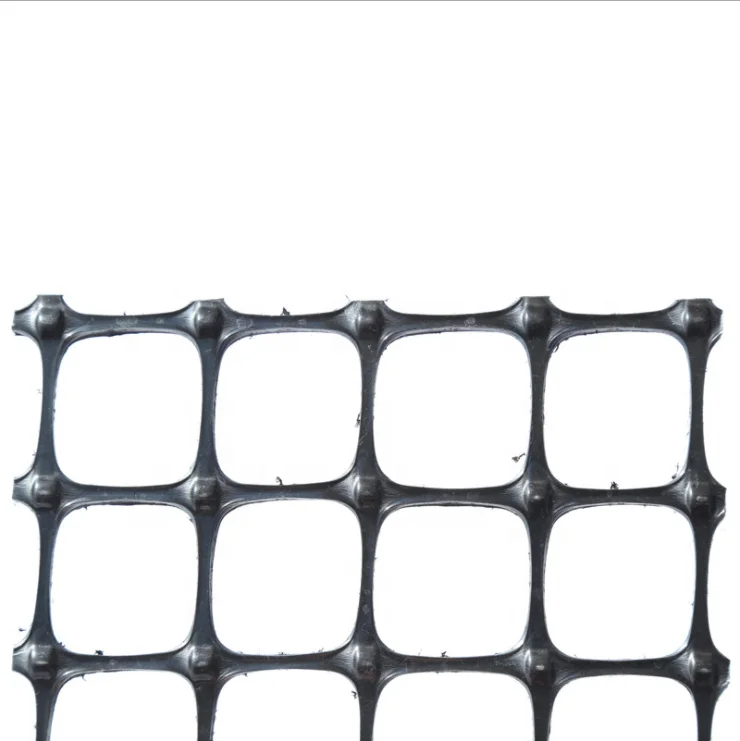

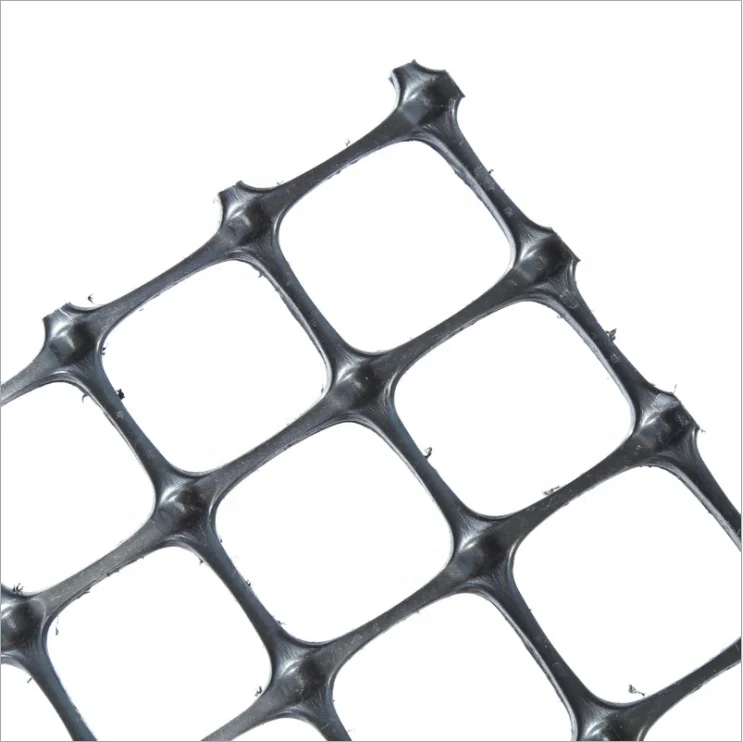

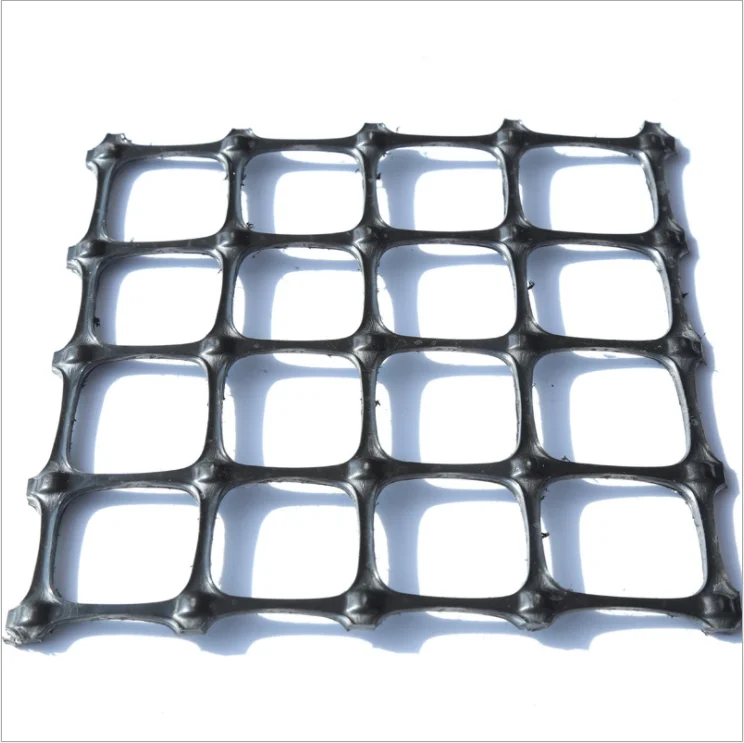

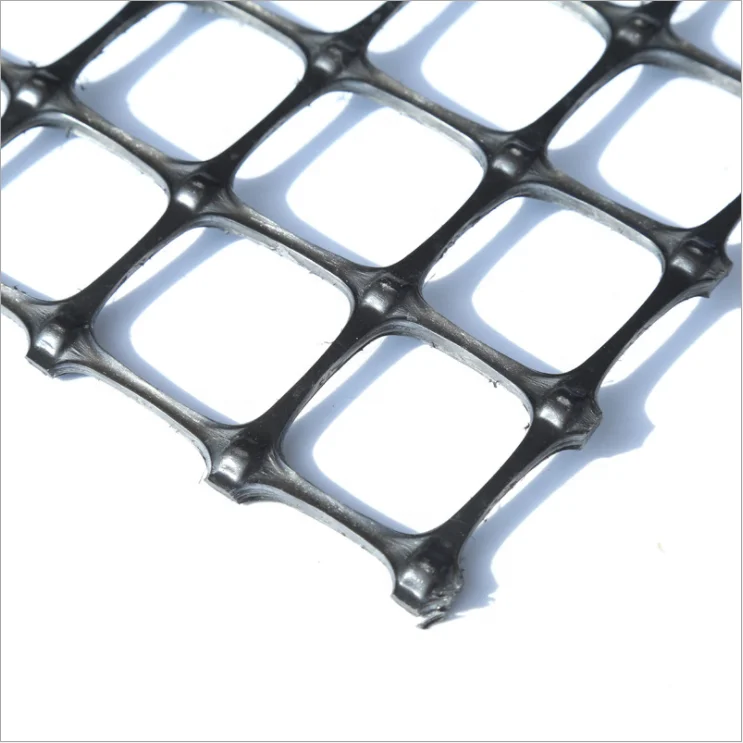

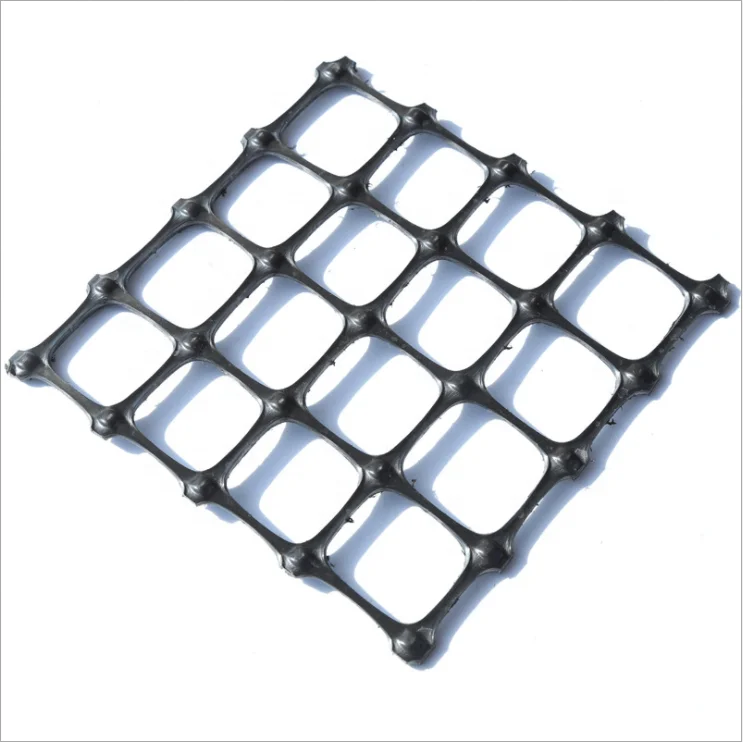

Two. Product images



Three. Main parameters

Item	CD MD tensile and yield strength KN/M≥	CD MD tensile strength at 2% elongation KN/M≥	CD MD tensile strength at 5% elongation KN/M≥	MD elongation ≤	MD elongation ≤	Carbon black percent ≥	Width m
SLGS	15	5	7	15%	13%	2%	1-6m
SLGS	20	7	14
SLGS	25	9	17
SLGS	30	10.5	21
SLGS	35	12	24
SLGS	40	14	28
SLGS	45	16	32
SLGS	50	17.5	35

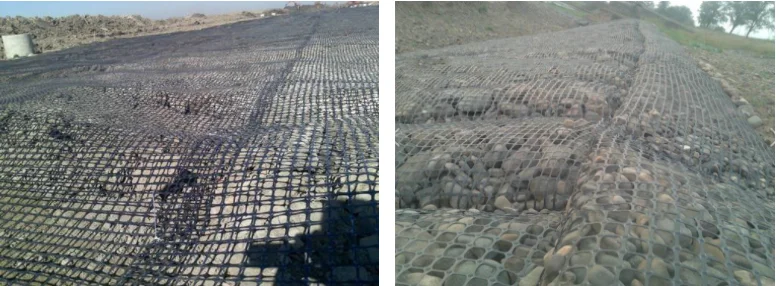

Four. Applications images

When two-way plastic grille is used for Subgrade and pavement, excavate subgrade bed, set sand cushion (height difference is not more than 10cm), roll it into platform, and lay the grille. The longitudinal axial direction shall be consistent with the main stress direction. The longitudinal overlap shall be 15-20cm, and the transverse overlap shall be 10cm. The overlap shall be bound with plastic tape. On the laid grille, U-nails shall be used to fix it on the ground every 1.5-2m. The laid geogrid shall be backfilled in time The number of layers of geogrid laid depends on the technical requirements.

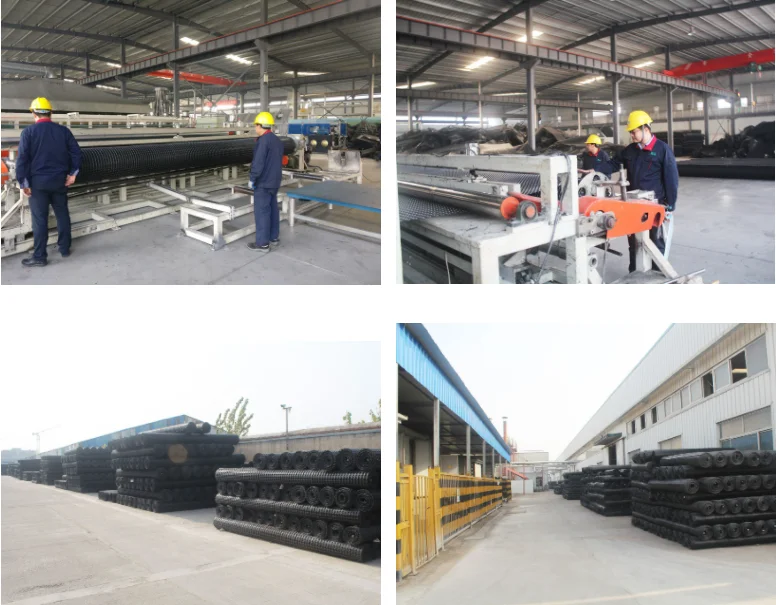

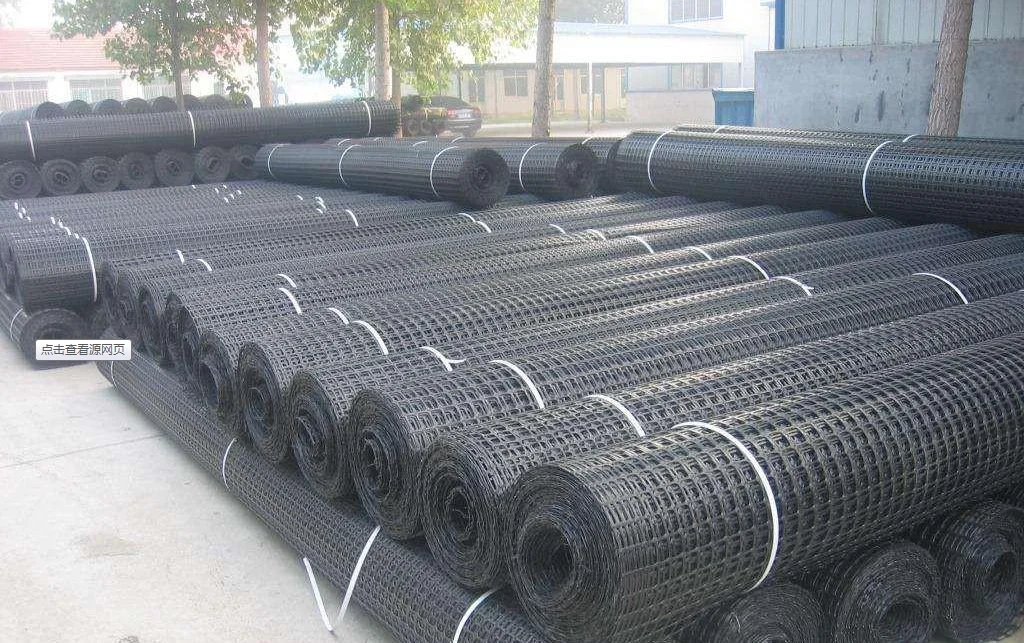

Five. Production
