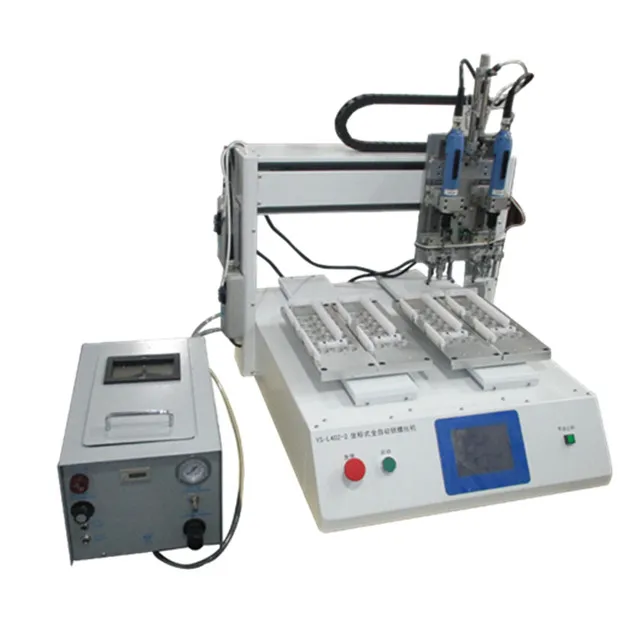

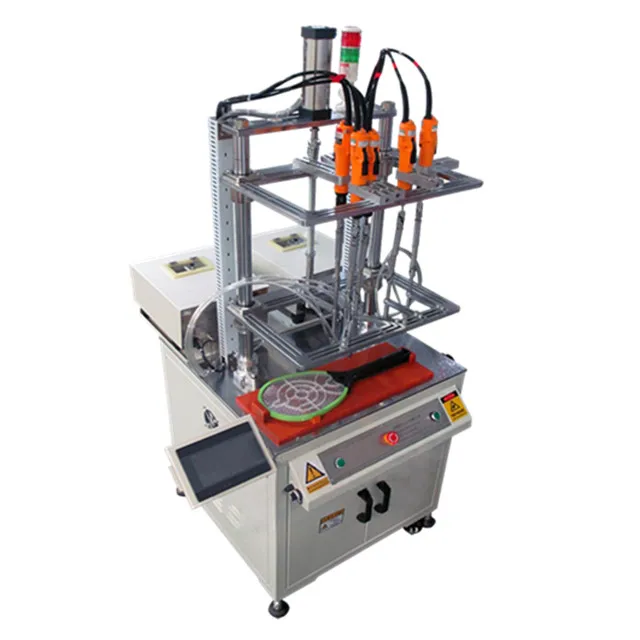

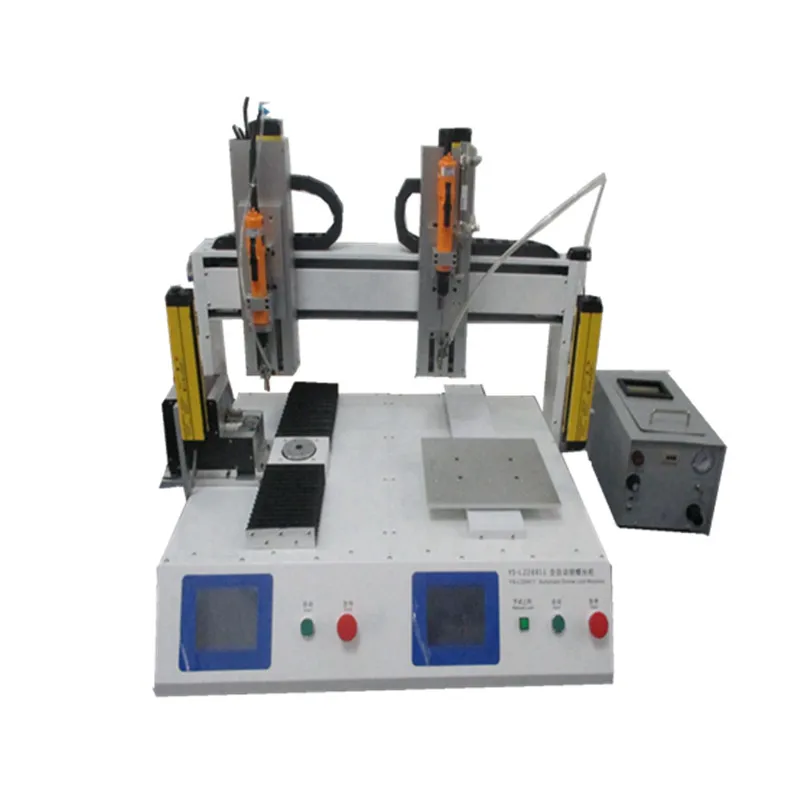

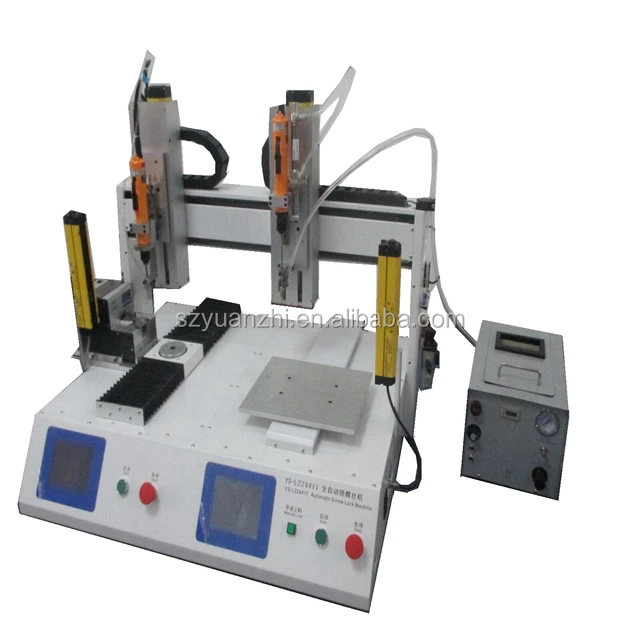

China auto screw fixed mobile phone desktop automatic screwdriver machine auto screw locking fixing with double system

Model

------

YS-L302-2

YS-L402-2

YS-L502-2

structure

weight

About 70kg

About 80kg

About 90kg

Size

L670 ×W550 ×H610(mm)

L770 ×W650 ×H610(mm)

L870 ×W750 ×H610(mm)

XYZ Axis working area

300 ×300 ×100(mm)

400 ×400 ×100(mm)

500 ×500 ×100(mm)

specification

Electric screwdriver Number

two

Working table

Two Tables(two Y axis)

Move speed

XYZ max 500mm/sec

Move Accuracy

±0.03mm

Max Load

Y:10kg   Z:5kg

Voltage

AC 220V 50HZ

Power

500W

Air Resource

 >0.4MPa

Air resource

 >0.4MPa

Air consumption

10m³/hour

Machine Frame

aluminium alloy table,metal plate frame

Motor

Stepper motor(Can customed servo motor )

Axis

4 axis (controller can add additional 2axis)

Control Specification

System control

Embedded real time control

Display

LCD Display,show datas,5.7inch touch screen

File Save

File format,Unlimited file number,each file max 6000 points,Total byte 64M

I/O

16inputs/16outputs

Outer control USB

RS232

Machine start

Auto and single step

Buzzer

warning light and buzzing sound

Auto Screw Feeder

Auto screw Feeder

Beside the screwdriver machine

Screw size

Screw length 1.3 times more than screw head diameter.Total screwlength bellow 40mm.M1 TO M10 screw

Number

1 feeder to two heads(can customed two feeders)

Screw imput method

Air blow(can customed inhale tyle )

Screw Pocket volume

About 4000pcs(M3 screw)

Screw scope

M1.0-M10

Electric screwdriver

Number

2pcs

KILEWS/HHB

As customer demand

Screw head tyle

hexagon bolt,plum screw

Applications

Products size

According to customer products

Robot vertical distance

According to customer products

Screw tighten depth

Set by customer

efficiency

Tighten screw speed

About 1.1 s/pcs(2 screws one time)

Detection

Torque detection

yes

Screw damage detection

yes

Tighten miss detection

yes

Tighten bad detection

Light and buzzing
