auto filter press filtration machine water de precio filtro prensa filtre pres makinesi filtration equipment
- Category: >>>
- Supplier: Woking Environmental Technology Co. Ltd.
Share on (1600233674489):
Product Overview
Description
Product Description

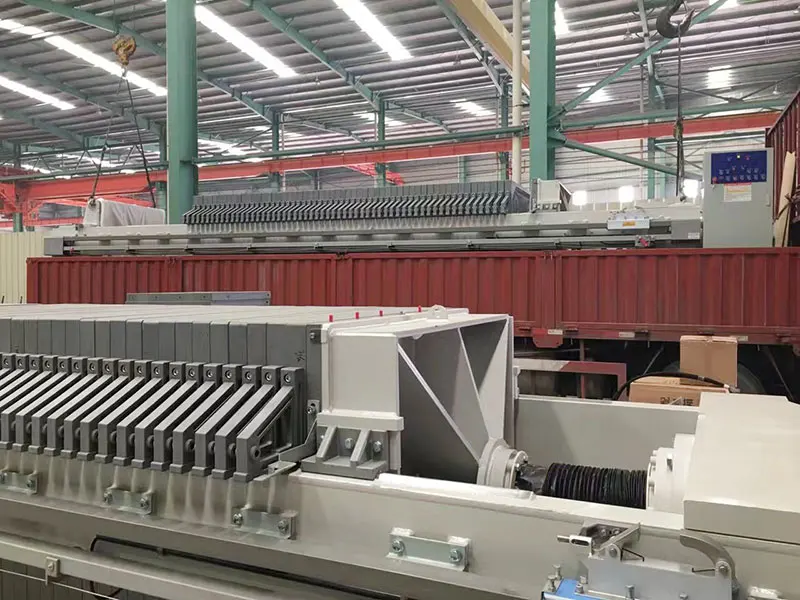

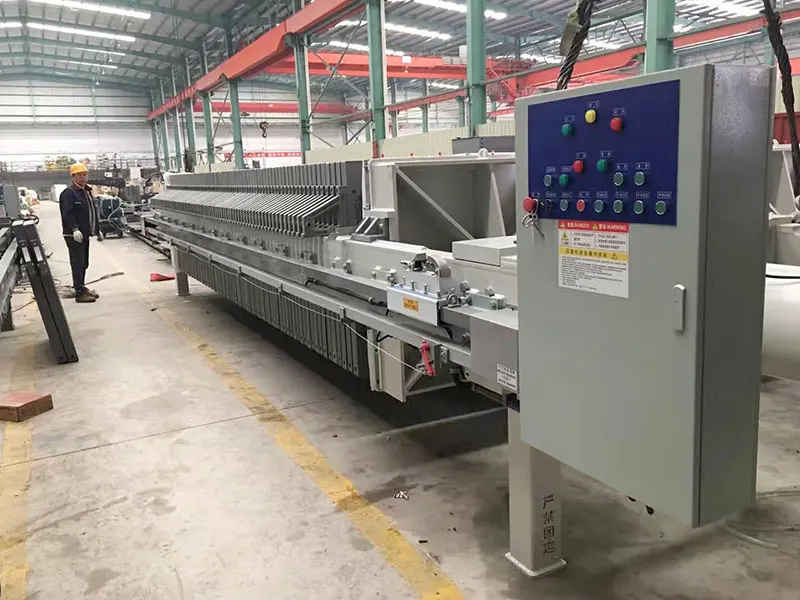

2020 Fully Automatic Slurry processing high pressure plate and frame filter press machine
Applications
Filter press is suitable for almost all types of slurry, such as: ceramics industry, stone industry, glass industry,
mining & minerals industry, coal washing, sand washing, pull&paper industry, food industry, chemical & pharmacy industry,
electroplating industry, textile& dyeing, leather industry, municipal slurry etc.
mining & minerals industry, coal washing, sand washing, pull&paper industry, food industry, chemical & pharmacy industry,
electroplating industry, textile& dyeing, leather industry, municipal slurry etc.
Feature
lower residual moisture, High capture rate, low energy requirement, Reliable, automatic operation, Solid and robust design for demanding operating conditions, Long service life, High operating availability, Free access to plate pack, Special design for aggressive media, Customer-oriented process solution thanks to modular design
Technical Parameters
Filter area(㎡) | Plate size(mm) | Chanbers No. | Totd volume(L) | Working pressure(Mpa) | External Dimensions(L*W*H)(mm) | Machine weight(KG) |
120 | 1250X1250 | 46 | 1800 | ≤0.6 | 4990X1620X2030 | 7900 |
140 | 1250X1250 | 54 | 2100 | ≤0.6 | 5470X1620X2030 | 8400 |
160 | 1250X1250 | 62 | 2400 | ≤0.6 | 5950X1620X2030 | 8900 |
180 | 1250X1250 | 70 | 2700 | ≤0.6 | 6430X1620X2030 | 9400 |
*200 | 1250X1250 | 76 | 3000 | ≤0.6 | 6790X2130X2100 | 9900 |
*250 | 1250X1250 | 96 | 3750 | ≤0.6 | 8030X1620X2030 | 11200 |

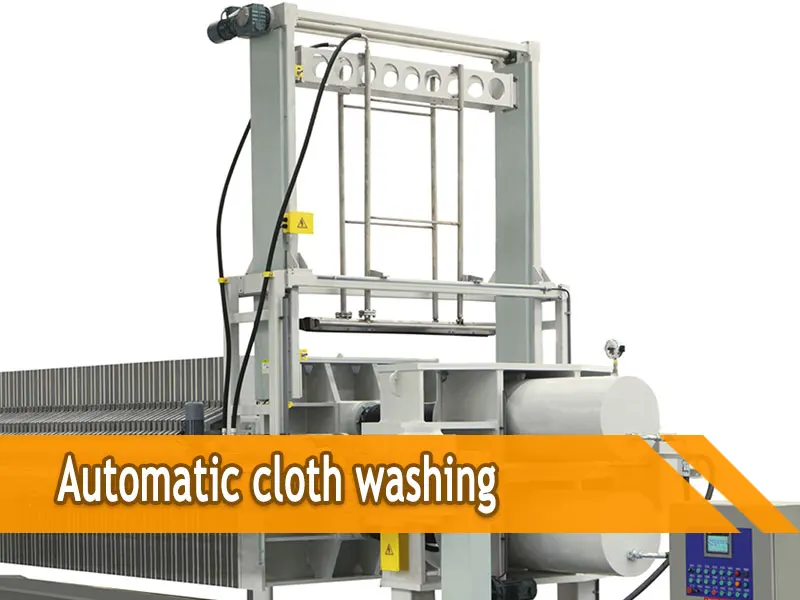

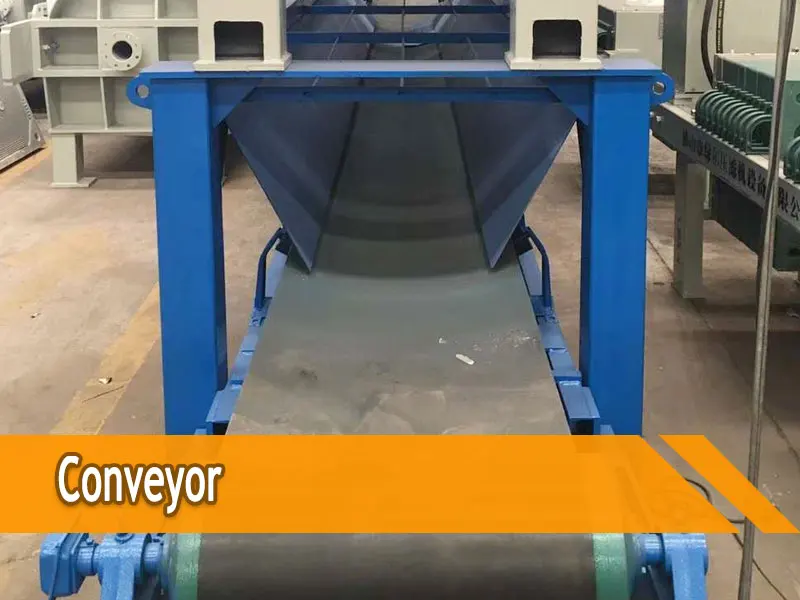

Optional facility
Specification
item | value |
Applicable Industries | copper tailings |
After Warranty Service | Video technical support, Online support, Spare parts, Field maintenance and repair service |
Local Service Location | United States, Viet Nam, Thailand, Malaysia |
Showroom Location | United States, Viet Nam, Thailand, Malaysia |
Video outgoing-inspection | Provided |
Machinery Test Report | Provided |
Warranty of core components | 1 Year |
Core Components | PLC |
Condition | New |
Automatic Grade | Automatic |
Place of Origin | China |
Brand Name | WOKING |
Voltage | |
Dimension(L*W*H) | |
Warranty | 1 Year |
After-sales Service Provided | Online support |

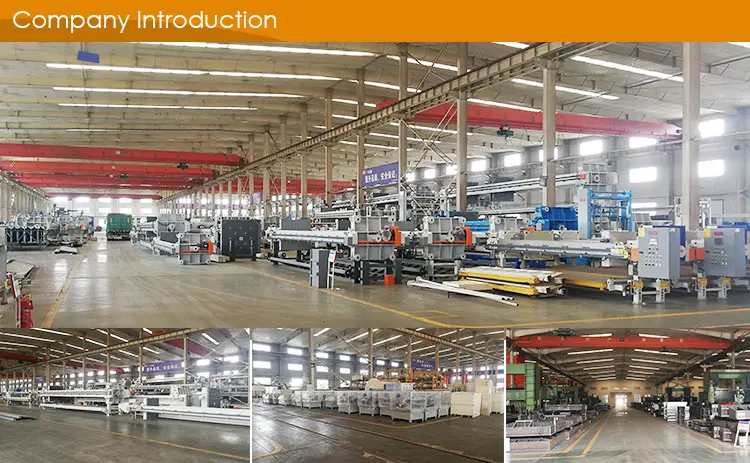

Company Profile
