Product Overview
Description
Product Description
FUNIK CBN inserts are widely used in processing pearlitic cast iron, high chromium and nickel alloy cast iron, hardened steel, powder metal, hard alloy and super alloy. In the mechanical machining application of the traditional system, not only it has greatly reduced the comprehensive production cost, but also significantly improved the production capacity and efficiency during the whole production operation, and the equipment investment is greatly decreased at the same time.
Our Advantages
√ Excellent cost performance
The service life of Funik CBN insert can be more than 10 times that of carbide insert and reduce the cost of comprehensive cutting tool by 30%-50%. The interval time between the replacements of Funik CBN insert is long and the insert replacement frequency is less, which can significantly reduce the cost on inserts.
√ High machining efficiency
The machining efficiency of Funik CBN insert is 5-10 times that of the carbide insert, which greatly improves the equipment capacity and reduces the fixed investment of equipment.
√ Excellent surface quality
Surface finish and dimensional precision of machining workpiece of Funik CBN insert can reach the grinding level, and make turning instead of grinding to reduce equipment investment.
√ Strong universality
Funik CBN insert can be used for both dry cutting and wet cutting and one grade normally is suitable for machining a variety of materials.

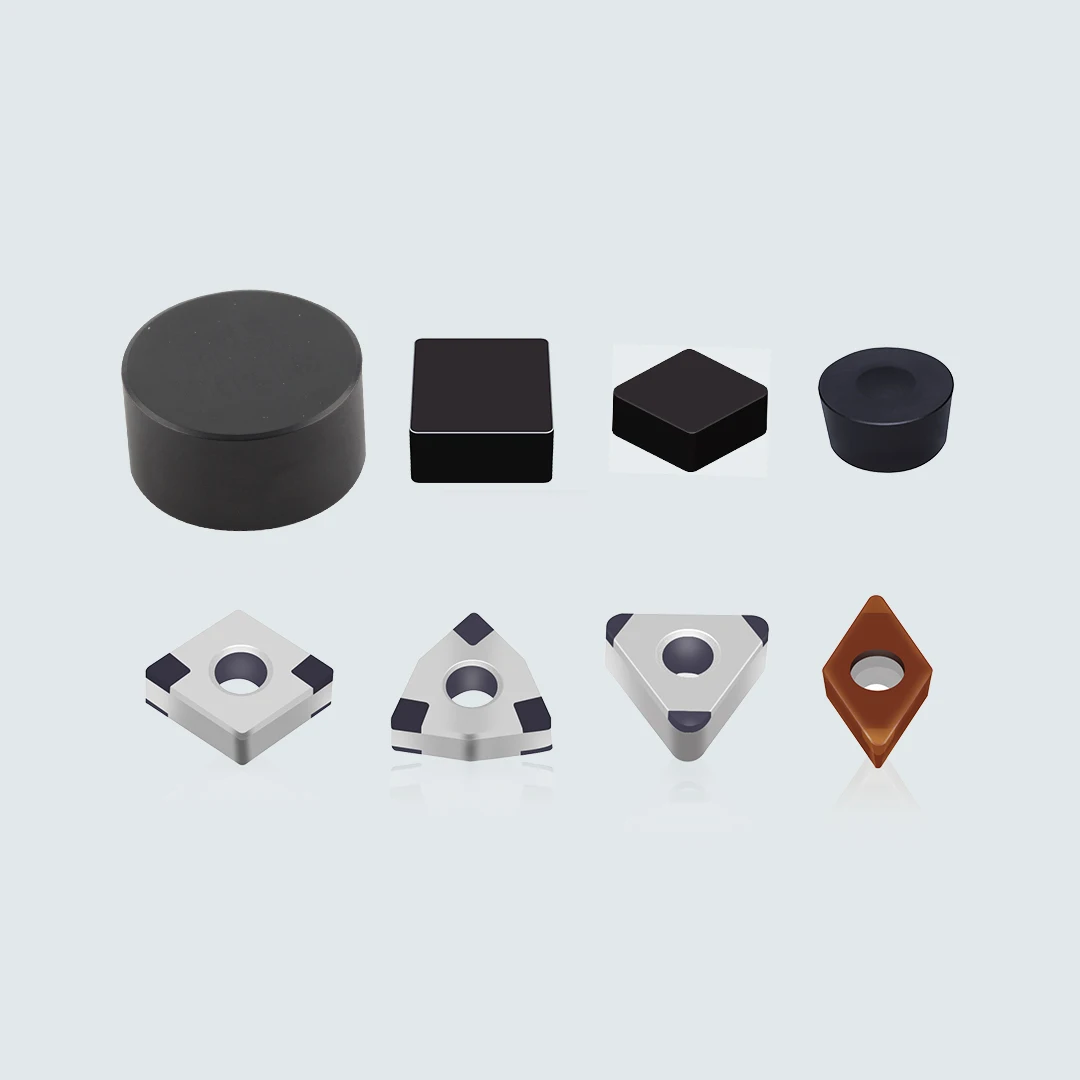

CBN Solid Insert
Grade | Machining model | Applicable industry | Workpiece material |
FBN7600 | Rough/ Semi-finishing | ●Roll, slurry pump ●Brake disc ●Brake drum ●Rolling mortar wall ● Parts of compressor | ●High nickel-chromium ●High hardness alloy cast iron ●High speed steel ●Gray cast iron ●High manganese steel |
FBN9500 | Rough/ Semi-finishing | ● Gear ●Bearing ● Mining machinery ●Coal mine machinery | ●Hardened steel ●Surface overlaying material |
FBN9500 C06 | Semi-finishing/ Finishing | ●Gear ●Bearing ●Mining machinery ●Coal mine machinery | ● Hardened steel ●Cemented steel ●Surface overlaying material |
CBN Brazed Insert
Grade | Machining model | Applicable industry | Workpiece material |
FBV7200 | Finishing | ●Brake disc ●Brake drum ●Parts of compressor | ●Gray cast iron |
FBV5800 | Finishing | ●Gear ●Bearing ●Parts of compressor | ●Hardened steel ●Gray cast iron |
FBV7200 C07 | Finishing | ●Brake disc ●Brake drum ●Parts of compressor | ●Gray cast iron |
FBV5800 C06 | Finishing | ●Gear ●Bearing ●Parts of compressor | ●Hardened steel ●Gray cast iron |

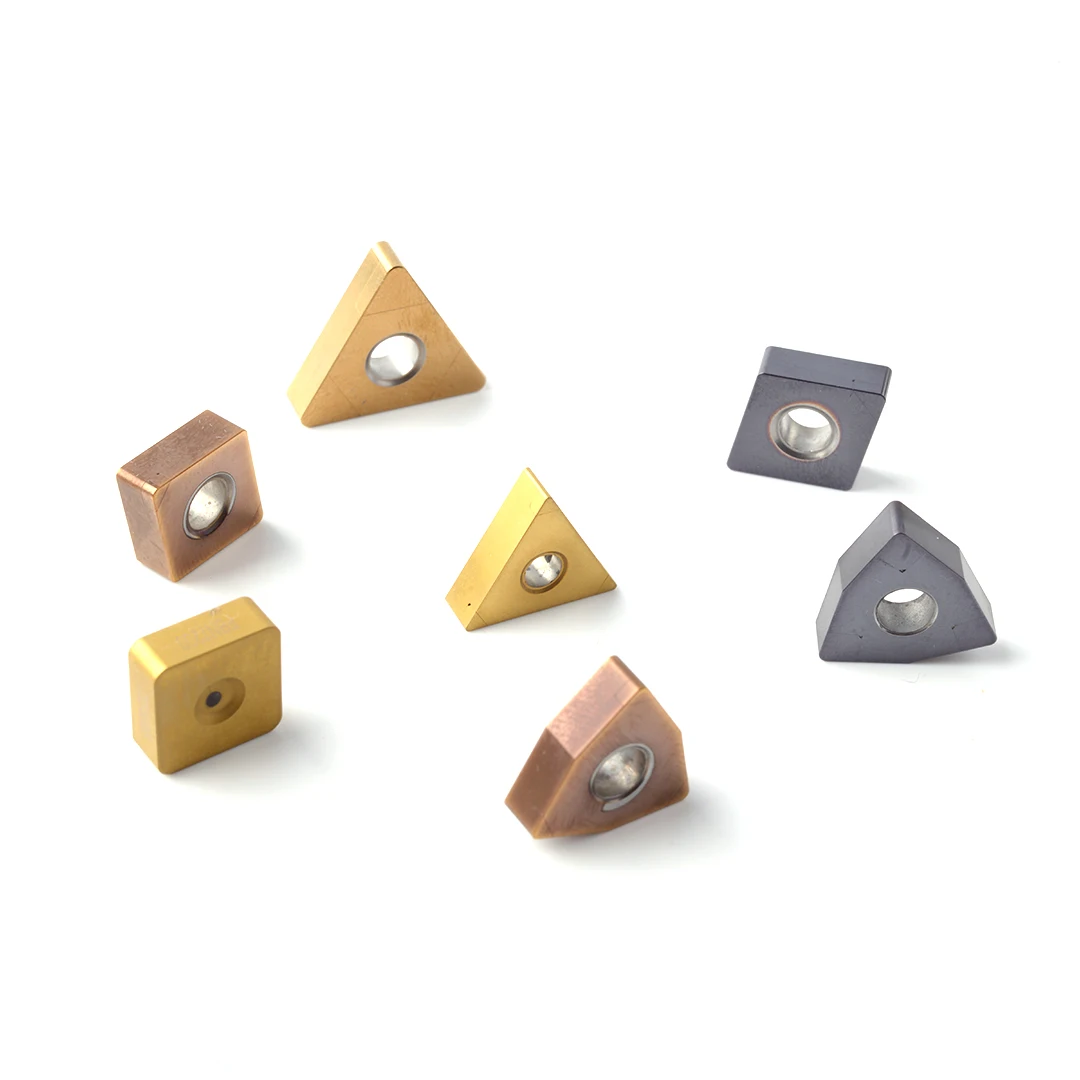

CBN Tipped Brazed Coating Insert
Grade | Machining model | Applicable industry | Workpiece material | Cutting speed Vc(m/min) |
FBK7520 C07 | Finishing | ●Brake disc ●Gear | ●Gray cast iron ●Powder metallurgy | ●600-1200 ●90-200 |
FBK9540 C06 | Finishing | ●Gear ●Bearing | ●Hardened steel | ●180-300 |
FBK9550 C06 | Finishing | ●Gear ●Bearing | ●Bearing steel ●Cemented steel | ●100-175 |
FBK9560 C06 | Finishing | ●Gear ●Bearing | ●Cemented steel | ●100-200 |
Multiple Choice
CBN FBS Brazed Cutting Inserts:
SNGA, SCGW, CNGA, CCGW, WNGA, TNGA, TCGW, DCGW, VNGA
Manufacturing & Inspetion Process
Application
Funik CBN inserts are used for turning and milling of centrifugal rolls, slurry pumps, brake discs, brake drums, rolling mortar walls, compressor parts, gears, bearings, mining machinery, coal mining machinery industries.
