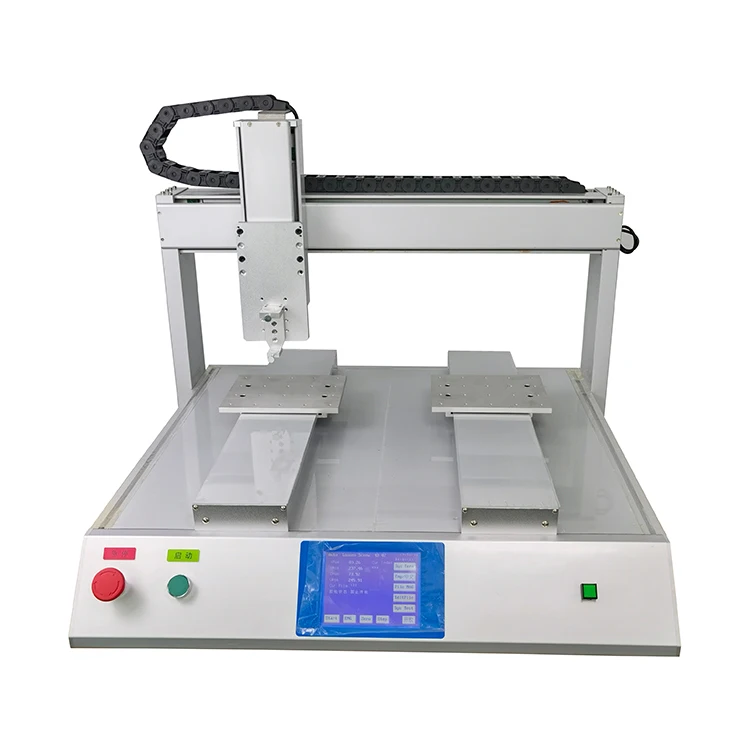

high efficiency Auto lock screwing machine supplier
- Category: Power Tools >>>
- Supplier: Shenzhen Yuanzhi Automation Technology Co. Ltd.
Share on (1600233808439):
Product Overview
Description
Product Description
high efficient auto feeder screwdriver machine
Application:
1) Scope of applicative screws: M2- M6
2) Scope of applicative screw heads: for any universal type
3) Surface Treatment of screw: electrolytic nickel plating, color zinc plating, white zinc plating, and copper plating, etc.
4) Screw Materials: iron, copper, stainless steel, etc.
5) Materials of products to be screwed: plastic, iron, aluminum, etc.
6) Applicative Industries: mobile photo, hard disk, keyboard, toy, LCD/LED modules, communication equipment, electrical appliances, auto parts and so on.
Specifications:
Model | -------- | YS-L301 | YS-L401 | YS-L501 |
Structure | Weight | About 60kg | About 70kg | About 80kg |
Size | L670 ×W550 ×H610(mm) | L770 ×W650 ×H610(mm) | L870 ×W750 ×H610(mm) | |
XYZ working area | 300 ×300 ×100(mm) | 400 ×400 ×100(mm) | 500 ×500 ×100(mm) | |
specification | Electric screwdriver Number | Single | ||
Working table | Single | |||
Move speed | XYZ max 500mm/sec | |||
Move Accuracy | ±0.03mm | |||
Max Load | Y:10kg Z:5kg | |||
Voltage | AC 220V 50HZ | |||
Power | 360w | |||
Air resource | >0.4MPa | |||
Air consumption | 10m³/hour | |||
Machine Frame | aluminium alloy table,metal plate frame | |||
Motor | Stepper motor(Can customed servo motor ) | |||
Drive type | Timing belt+precision guide(Custom accept,eg:presscision ball screw) | |||
Axis | 3 axis (controller can add additional 3axis) | |||
Control Specification | System control | Embedded real time control | ||
Display | LCD Display,show datas,5.7inch touch screen | |||
File Save | File format,Unlimited file number,each file max 6000 points,Total byte 64M | |||
I/O | 16inputs/16outputs | |||
Outer control USB | RS232 | |||
Machine start | Auto and single step | |||
Buzzer | warning light and buzzing sound | |||

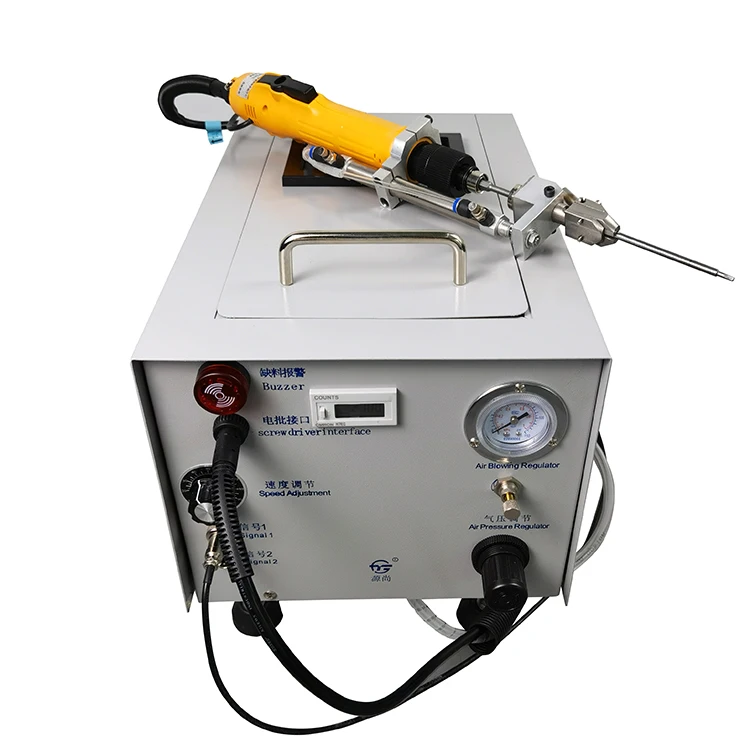

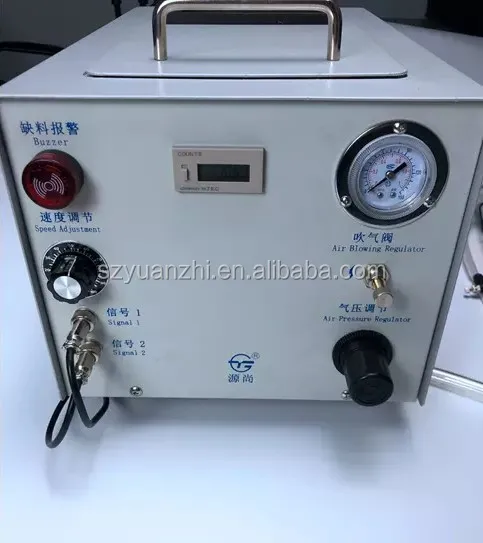

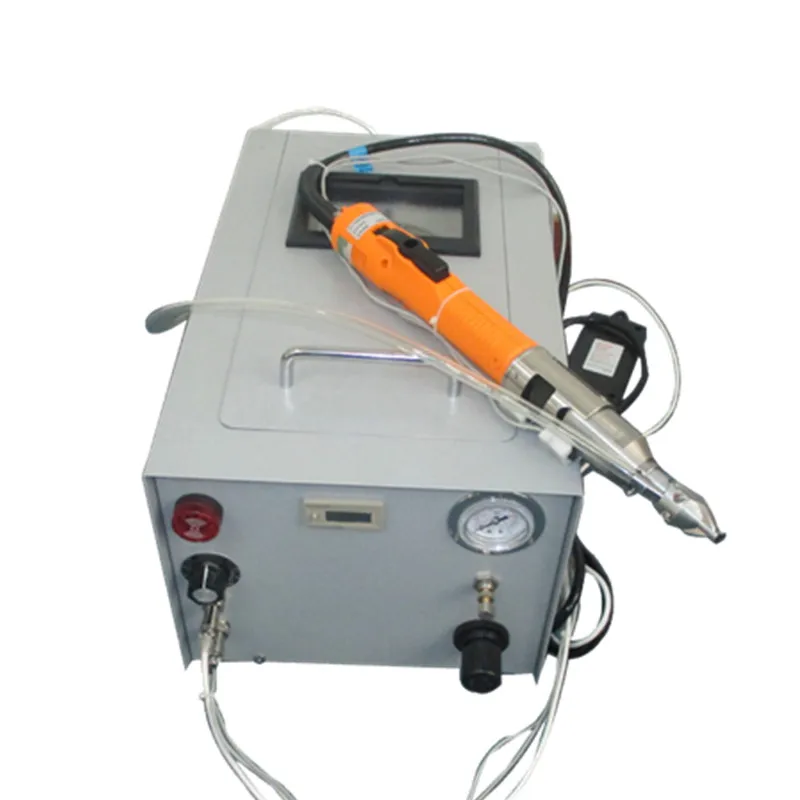

Auto Screw Feeder | Auto screw Feeder | Beside the screwdriver machine | ||
Screw size | Screw length 1.3 times more than screw head diameter.Total screwlength bellow 40mm.M1 TO M10 screw | |||
Number | 1 set | |||
Screw imput method | Air blow(can customed inhale tyle ) | |||
Screw Pocket volume | About 4000pcs(M3 screw) | |||
Screw scope | M3.0-M10 | |||
It is suitable for all kinds of screw. Cheap and save labor
Our Advantage:
1.With more than 10 years experience in researching and developing the automatic SMD/SMT parts counter machine, quality is the most important thing that we focus on aways.
2. The system is made by our own reserch and development team, Technology support and after-sale service can be guarranteed.
3. We are manufacturer, So we can provide the most competitive price.
![[{H_U1]TE)R47D1YD(~{LS](http://sc03.alicdn.com/kf/Ha5e9068f889449d2aa96e8b77954233a8/229389802/Ha5e9068f889449d2aa96e8b77954233a8.jpg)
Packaging & Shipping
Company Information
More than 20 years Robot Factory
Our Services
----Purchase Guidance
If not sure which one is your best choice within the budget, please provide the details or samples to us. We will provide the best solutions and machines.
As one of leading manufacturer in China, we offer factory price and very thorough quality check before
----After Sale Services
We provide lifelong support after sale including operation guidance, parts replacement and maintenance support. Just feel free to contact us.
----Technology Consultation
Any question about wires, cables, machinery, and even the production line please feel free to contact us. We can provide reasonable budget and suggestions.
----OEM Services
We provide OEM services.
