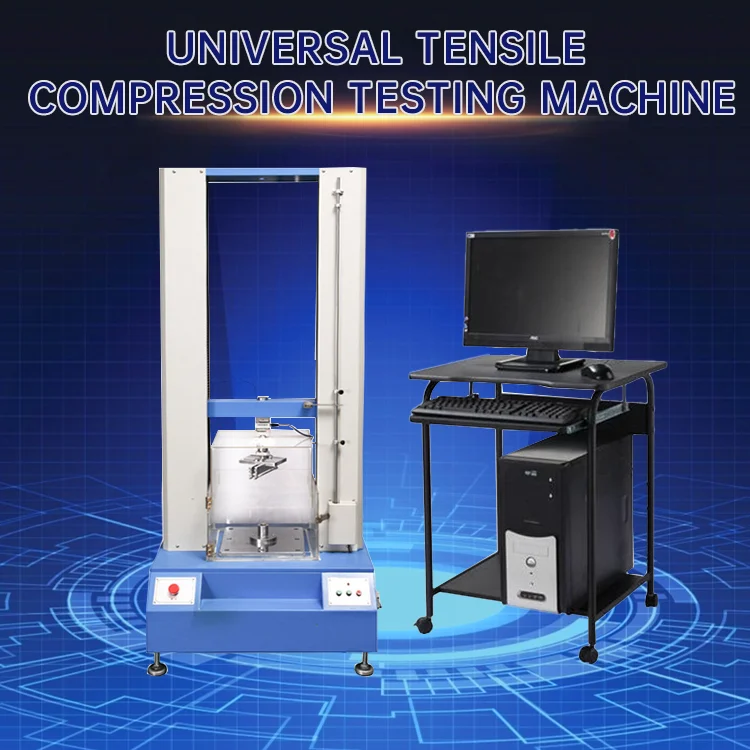

Jinuosh10Kn 100kn Timber Testing Machine Fatigue Machine Universal Material Tensile Testing Machines
- Category: >>>
- Supplier: Guangdong Jinnuo Technology Co. Ltd.
Share on (1600233997992):
Product Overview
Description
1. Product use
Servo control computer system tensile testing machine is widely used in rubber, plastics, wires and cables, textiles, waterproof materials,Mechanical performance test of non-woven fabrics and other non-metallic materials and metal wires, metal foils, metal plates and metal rods, with special fixtures, it is also suitable for all kinds of finished products tensile, compression, peeling, shearing, tearing, bending (folding) test. It can also realize various cyclic tests such as constant stress, constant strain, creep, relaxation, axial and radial. The tensile strength, yield strength, elongation, constant elongation stress, constant stress elongation, elastic modulus and other parameters can be automatically calculated according to GB, JIS, ASTM, DIN and other standards.Comply with: GB, ISO7500/1, JJG475-88, ASTME4, DIN5122, JISB7721/B7733, EN1002-2, BS1610, CNS9471/9470 and other standards
2. Features
Servo control computer system tensile testing machine is widely used in rubber, plastics, wires and cables, textiles, waterproof materials,Mechanical performance test of non-woven fabrics and other non-metallic materials and metal wires, metal foils, metal plates and metal rods, with special fixtures, it is also suitable for all kinds of finished products tensile, compression, peeling, shearing, tearing, bending (folding) test. It can also realize various cyclic tests such as constant stress, constant strain, creep, relaxation, axial and radial. The tensile strength, yield strength, elongation, constant elongation stress, constant stress elongation, elastic modulus and other parameters can be automatically calculated according to GB, JIS, ASTM, DIN and other standards.Comply with: GB, ISO7500/1, JJG475-88, ASTME4, DIN5122, JISB7721/B7733, EN1002-2, BS1610, CNS9471/9470 and other standards
2. Features
Servo control computer system tensile testing machine adopts computer control, can print multiple data, can make graphical output comparison according to different data, high control precision, easy operation; modular design, various accessory accessories are complete, and collocation is flexible.
Capacity selection | 2000kg | ||||||
Force unit | N，KN，Kgf，Lbf | ||||||
Unit of length | mm,cm,in free conversion | ||||||
Unit switch | Kg、lb、N | ||||||
Data sampling frequency | ±0.5% | ||||||
Load accuracy | ±0.25% | ||||||
Load sensing | High-precision tension and compression transducer | ||||||
Drive rod | hagh precision ball screw | ||||||
Motor | Servo motor | ||||||
Resolution | 1/200000 | ||||||
Test speed | 1-500mm/min stepless speed regulation | ||||||
Standard test effective width | 400mm (can be customized) | ||||||
Standard distance between beam and worktable | 1100mm (can be customized) | ||||||
Test stroke (including fixture) standard type | 800mm (specifically related to fixture requirements) | ||||||
Effective stretching space | 950mm | ||||||
Effective compression space | 700mm | ||||||
Overload protection function | When more than 10% of the set test force, the system will automatically shut down for protection | ||||||
Trip protection | Setting protection for upper and lower limit position of stroke | ||||||
Power | 1.10kW | ||||||
Power source | 220 VAC,50/60Hz | ||||||
Weight | Host 200kg | ||||||
