USB/RS232 Kiosk vending machine Barcode Scanner 2D Barcode Scanner Module For Self Service Kiosk

Product Overview

Description

USB/RS232 Kiosk vending machine Barcode Scanner 2D Barcode Scanner Module For Self Service Kiosk





Product Introduction

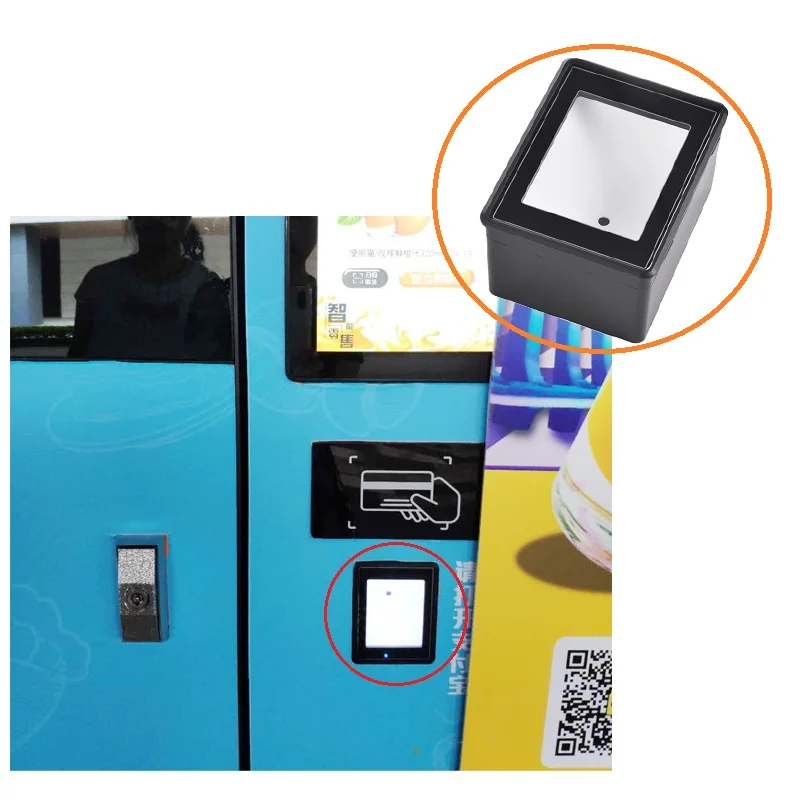

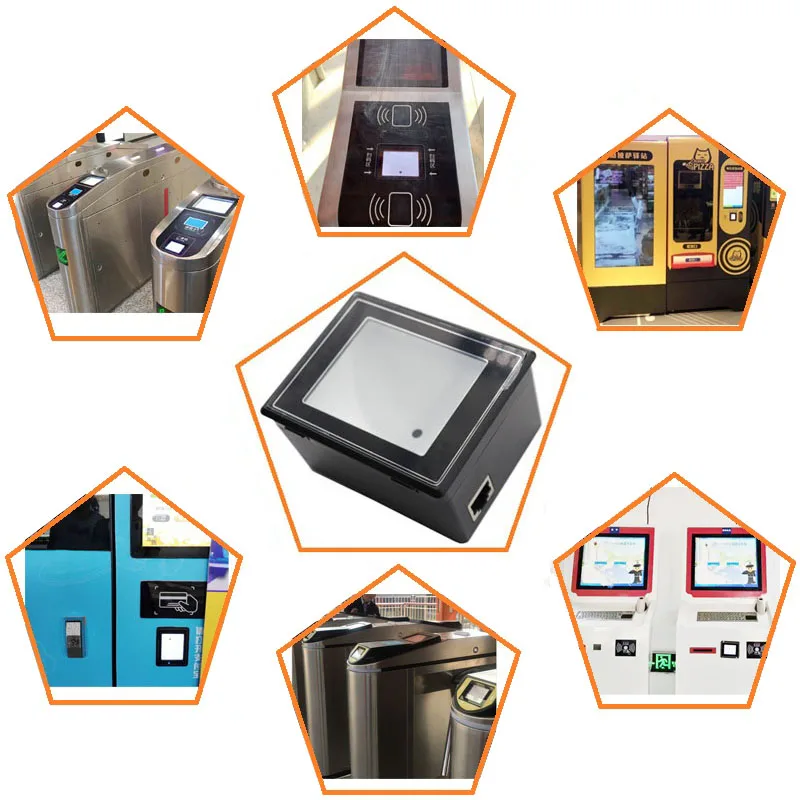

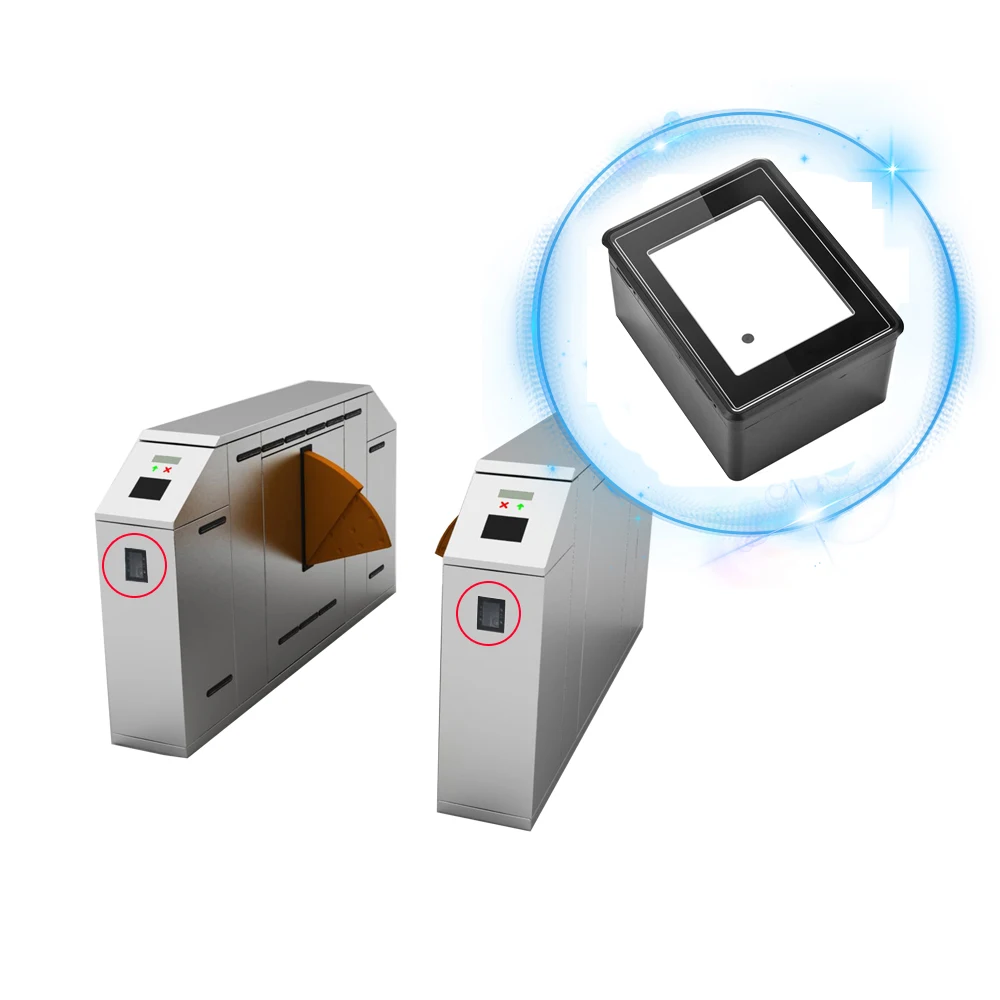

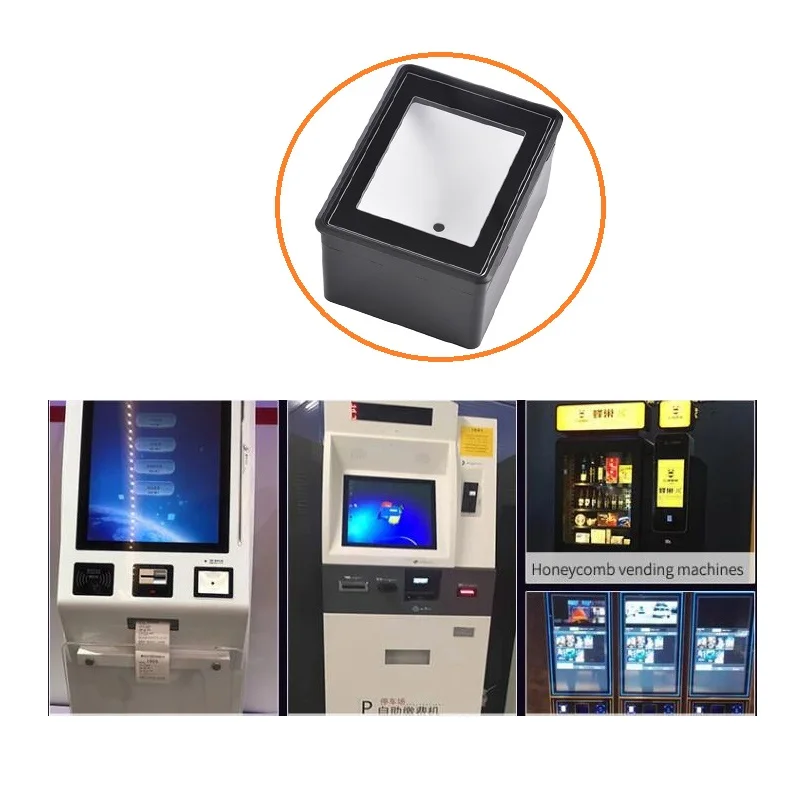

WS-8T400 is a multi-functional, multi-interface, multi-scene application comprehensive equipment. The device can support a variety of output modes USB,RS232,TTL,ect. It’s mainly used for built in QR code application, turnstiles gate and other scenarios, support scan code, swipe card and other functions.



Product characteristics

1. Strong recognize reading

It can recognize the two-dimensional code and one-dimensional code on the mobile phone screen, support the enhancement engine mode, and can scan the code when the mobile phone screen is dark.

2. Paper Code reading

Mainstream two-dimensional codes printed on paper and various one-dimensional codes can also be read

3. High Speed Reading

For different mobile phone LCD screens, there are generally different contrast and color reflection, that is, as long as the code can be read within the reading window range

4. easy to use

The scanner can be configured by configuration tools to achieve the best working state.

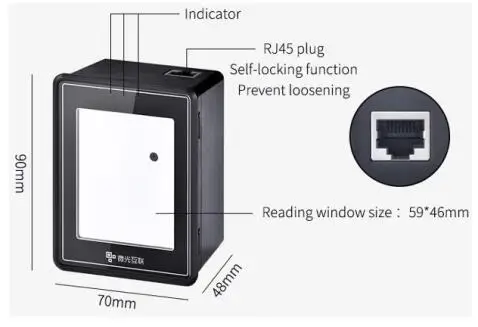

Product dimension drawing



Product technical parameters

Working Voltage	4.7v~15v
Working current	150mA
Reading direction	360 degree
Reading distance	0-10cm
Reading speed	70ms per time
Scanning feedback	Buzzer indication
Decoding mode	Image-based decoding engine
Imaging Sensor	640*480 CMOS
Recognizable code size	5-100mm
Wireless support	WIFI module can be added
Applied environment	Temp range-20°~70℃,Relative humidity 5%~95%
Output modes	USB analog keyboard,USB HID development board,RS232,TTL

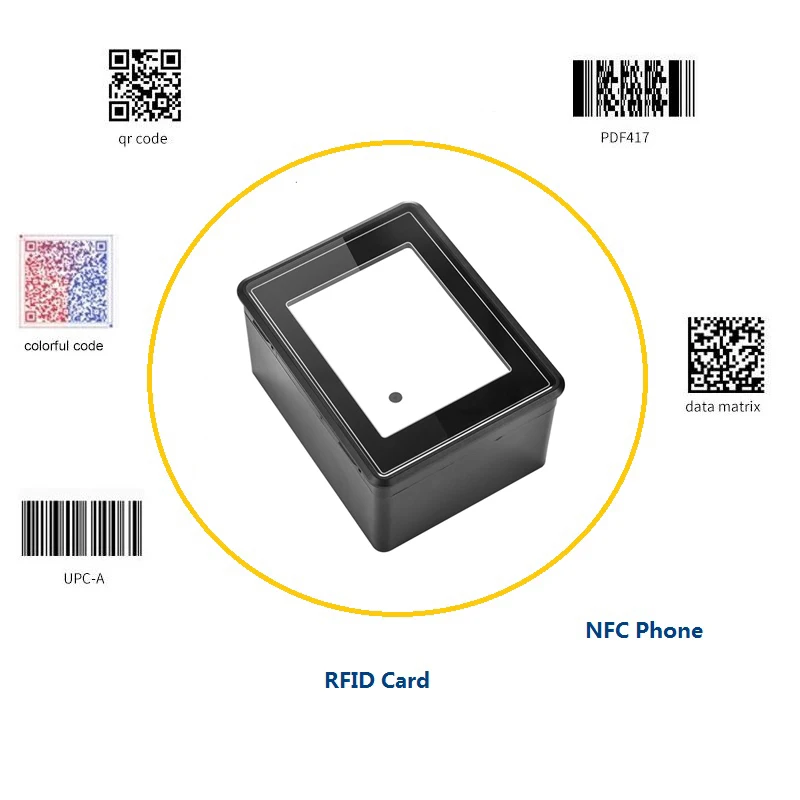

Symbologies	QR code,Dmcode EAN-13,EAN-8,RSS_14,CODE_39,CODE_93, CODE_128,ITF,CODABAR,inverse code,image code
Development interfaces	USB-HID mode development,Serial communication development ((provide C/C++,C#,Java,DELPHI SDK)
Compatible system	Windows series(XP,7/8/10),Android,Linux,Mac,etc.
Card Swiping support	NFC module can be added,Support ID card,NFC mobile phone,non-contact IC card,M1 proximity card
Recognizable radio frequency	ID card,Mifare_UltraLight,Mifare_One(S50),Mifare_One(S70), Mifare_Pro(X),Mifare_Desire.
Size	90*70*48mm
Weight	0.14kg
Material	PC+ABS
Interface	RJ45
Indication light	3(supporting programming)
Scanning feature	Automatic
Power consumption	0.75W
Recognition window	59*46*3mm Tempered glass
Light source	White and Red LED light(Switchable)

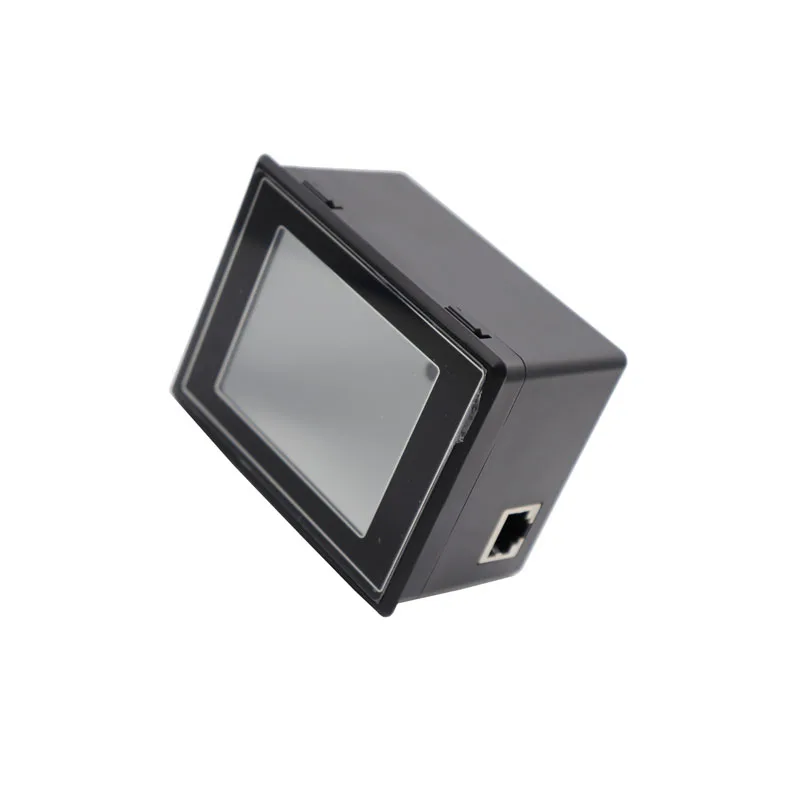

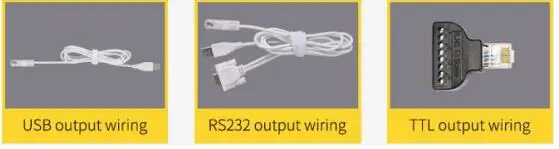

Interface

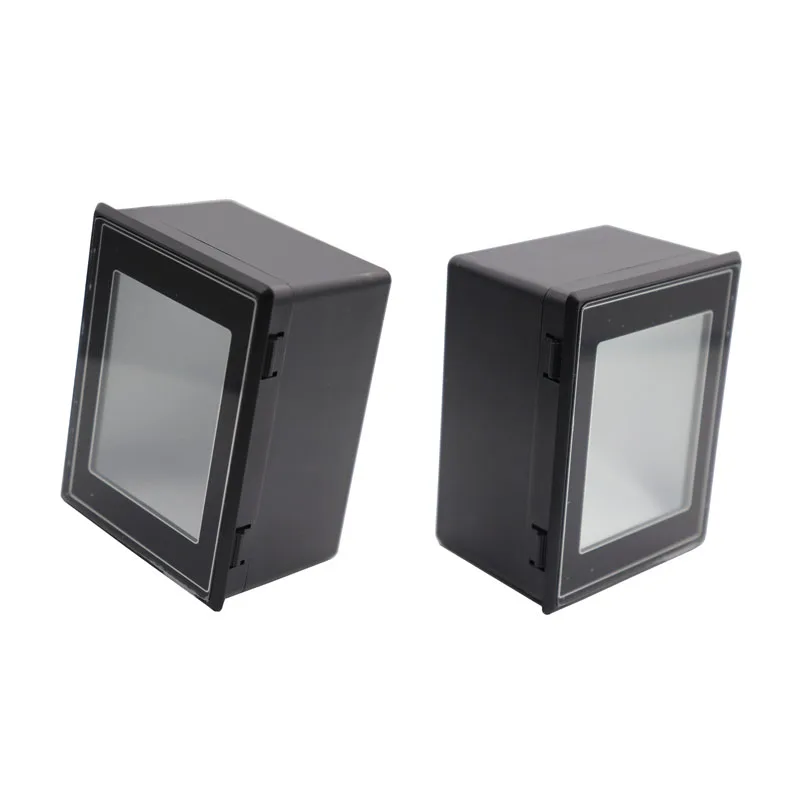

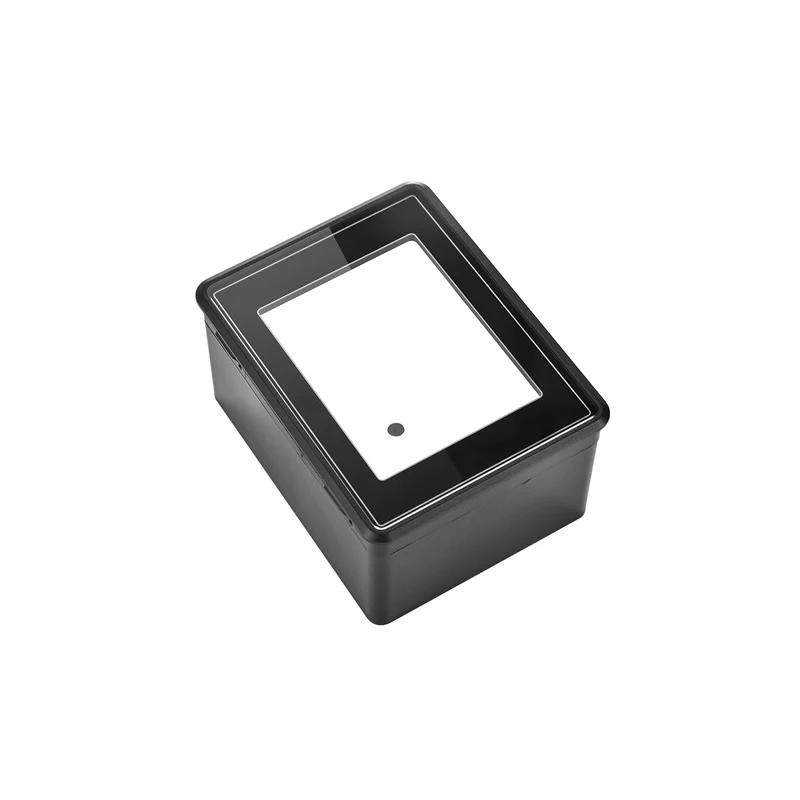

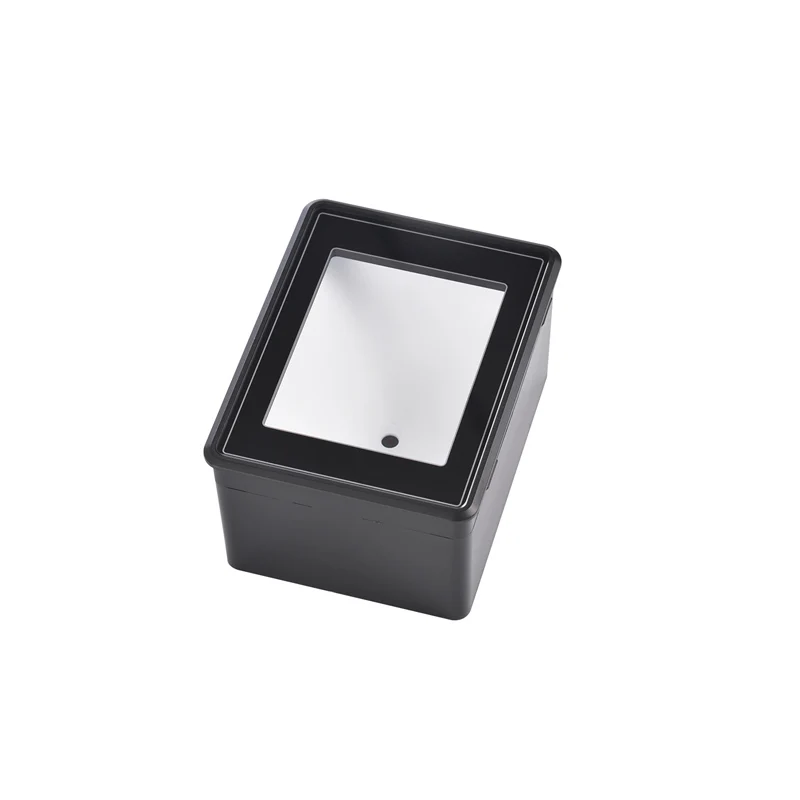

Product pictures
