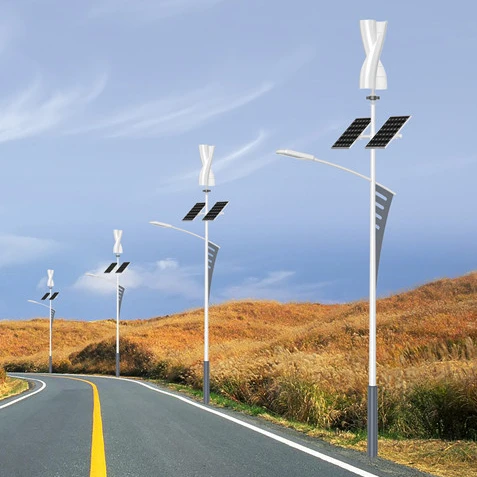

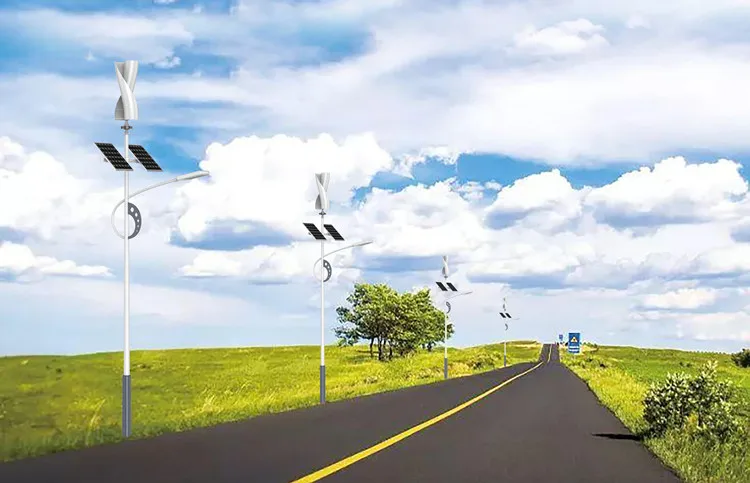

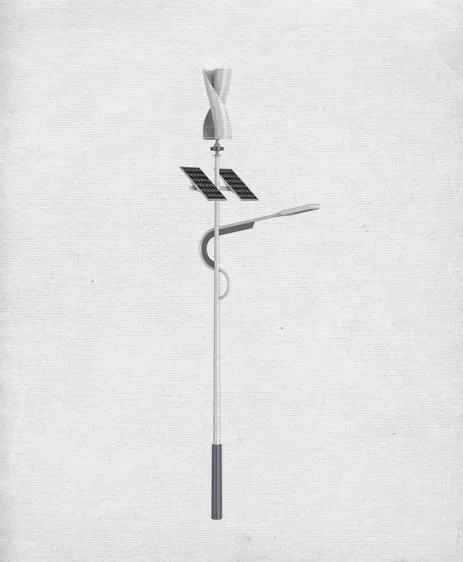

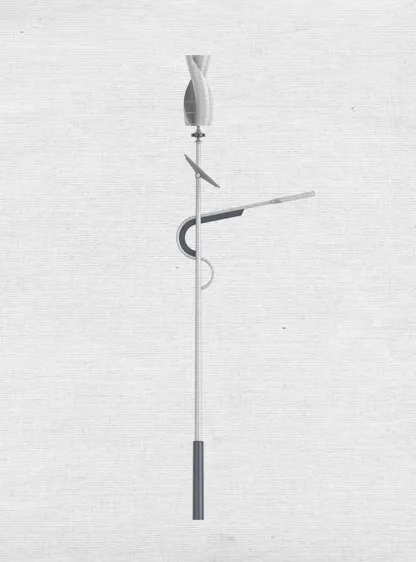

Low start wind speed solar wind street lightings solar panel hybrid power system wind turbine
- Category: >>>
- Supplier: Jiangsu Yanchang Sunlaite New Energy Co. Ltd.
Share on (1600234538027):
Product Overview
Description
Product Description
Specification
Model | SLT-60 |
Light source | 24V/60W |
Wind generator | 24V/100W |
Solar panel | 24V/200W |
Controller | 24V |
Lamp Pole | 6 m hot galvanized steel, surface with Powder Coating |
(include rag bolts,battery house,solar bracket and cables) | |
IP rating | IP65 |
Working temperature | -40℃~ 65℃ |
Certification | CE,RoHS |
Model | SL-60 |
Rated Power | 60W |
LED Power | 60W |
Luminous Flux | ≥6600lm |
LED Efficiency | ≥110 lm/W |
Voltage (VDC) | 24V |
TYPE | Inside Patented with 3 years warranty |
Protection Grade | IP66 |
Fixture efficiency | >92% |
Life Time | 50,000h |
Color Temperature(CCT) | 5500-6500K |
Working Temperature(℃) | -40--60℃ |
Lampshade | Toughened Glass |
Lamp Body Material | Aluminum Alloy |
Size | 960L×376W×200H |
Weight | 9.0Kg |
Wind turbine | |
Model | WSC100 |
Rated power | 100W |
Maximum power | 150W |
Nominal voltage | 24V |
Start wind speed | 1.5m/s |
Rated wind speed | 10m/s |
Rated revolution | 180rpm |
Weight | 20kg |
Diameter | 520mm |
Height | 1.3m |
Blade number | 2 |
Blade material | CBF |
Generator | Maglev generator. |
Controller system | Electromagnetic/wind round lateralization. |
Speed way | Automatically adjust the windward angle. |
Solar panel | |
Maximum Power | 100W x 2 |
Optimum Power Voltage(Vmp) | 17.64 |
Optimum Operatige Current(Imp) | 3.41 |
Open Circuit Voltage(Voc) | 21.4 |
Short Circuit Current(Isc) | 3.77 |
Size of Module(mm) | 1100*610*5.5 |
Front Glass Thikness(mm) | 5 |
Temperature Coefficients of Isc(%)℃ | 0.065+/-0.015%/℃ |
Temperature Coefficients of Voc(%)℃ | -(2.23+/-0.1)mv/ ℃ |
Temperature Coefficients of Pm(%)℃ | -(0.5+-0.05)/℃ |
Temperature Coefficients of Im(%)℃ | +0.1/ ℃ |
Temperature Coefficients of Vm(%)℃ | -0.38 |
Temperature Range | -40°C to +85°C |
Tolerance Wattage(e.g.+/-5%) | ±5% |
Surface Maximum Load Capacity | 60m/s(200kg/sq.m) |
Allowable Hail Load | steel ball fall down from 1m height |
Weight Per Piece(KG) | 5.4 |
Bypass Diode Rating(A) | 12 |
Cell Efficiency for 80W(%) | >16.85% |
Frame(Material Corners,etc.) | Alumnium |
Standard Test Conditions | AM1.5 1000W/sq.m 25 +/-2°C |
FF (%) | 70% |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile

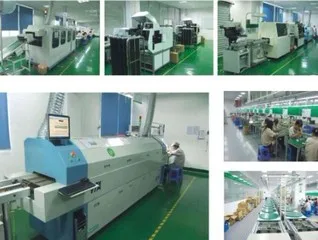

Kunshan Sunlaite New Energy Technology Co., Ltd is a company devoted to develop new energy resources. The company was founded by Nanjing University(NJU). Taking advantage of talent resources from Eco-Materials & Renewable Energy Research Center.NJU, the Innovation &Technology Platform of NJU and Kunshan Solar Energy Efficient Application Center,the company is aimed to develop clean and renewable energy resources, especially the development, fabricating and marketing of novel functional materials and devices.
The company has the intellectual property rights and key technology on several projects such as: Vertical wind turbine,solar cell of new generation, Proton exchange membrane fuel cell (PEMFC).
The company has the intellectual property rights and key technology on several projects such as: Vertical wind turbine,solar cell of new generation, Proton exchange membrane fuel cell (PEMFC).
FAQ
1. who are we?
We are based in Jiangsu, China, start from 2011,sell to Western Europe(50.00%),South America(30.00%),North America(10.00%),Eastern Europe(10.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Spiral wind turbine,wind and solar hybrid street lighting,solar street lighting,LED lamp,Hydrogen Fuel Cell
4. why should you buy from us not from other suppliers?
We got a strong research institute based on famous Nanjing University of China, including one Academician, 6 staffs with Doctor degree, 14 staffs with Master Degree etc.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Russian
We are based in Jiangsu, China, start from 2011,sell to Western Europe(50.00%),South America(30.00%),North America(10.00%),Eastern Europe(10.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Spiral wind turbine,wind and solar hybrid street lighting,solar street lighting,LED lamp,Hydrogen Fuel Cell
4. why should you buy from us not from other suppliers?
We got a strong research institute based on famous Nanjing University of China, including one Academician, 6 staffs with Doctor degree, 14 staffs with Master Degree etc.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Russian
