Customized PCL automatic sandblasting machine / of automatic sandblasting production line notebook shell pretreatment sandblasti

Product name

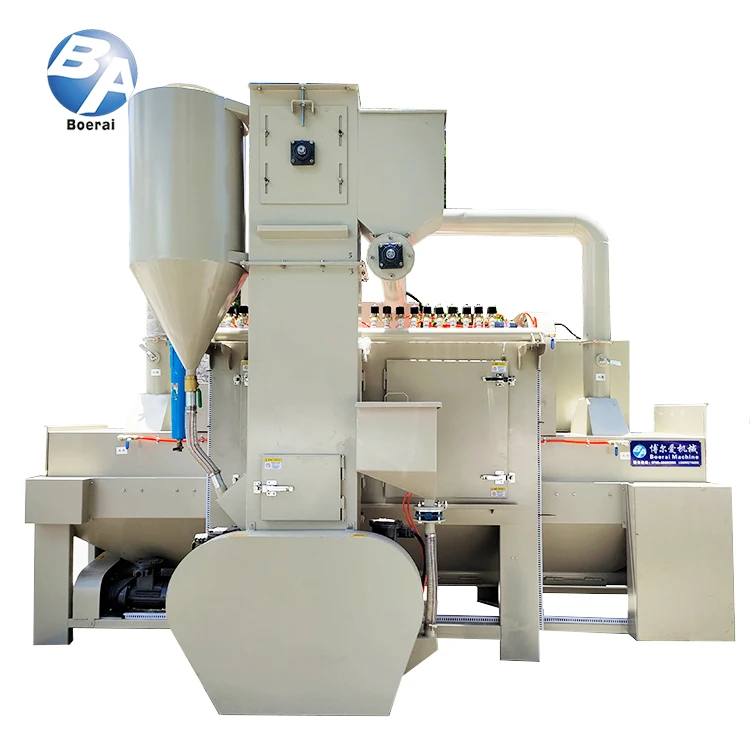

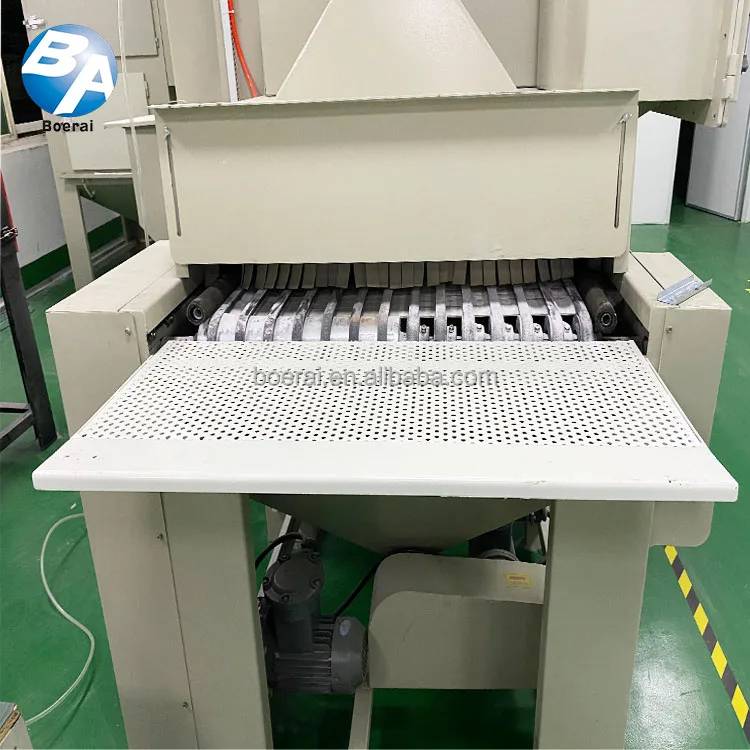

Automatic sandblasting machine with electric lift to recover abrasive material

Model No

BA-1800SA-24A

Brand name

BA,CHINA

Parameter

1. Process: Start the control system → start the dust removal fan → start the sand return system → start the conveying system → start the sandblasting system → start the workpiece → product enters the area to be sprayed → enter the sandblasting area → product uniform transportation → sandblasting automatically starts to work → enter the cleaning area → loading and unloading operation area.

2. The studio door must be closed before it can be moved, otherwise the system cannot be moved.And each button is interlocked, the start procedure is: power on → dust removal start → sand return start → conveying start → sandblasting start, stop the action is opposite.The start and stop bits of the electrostatic elimination system are controlled separately.

Parameter

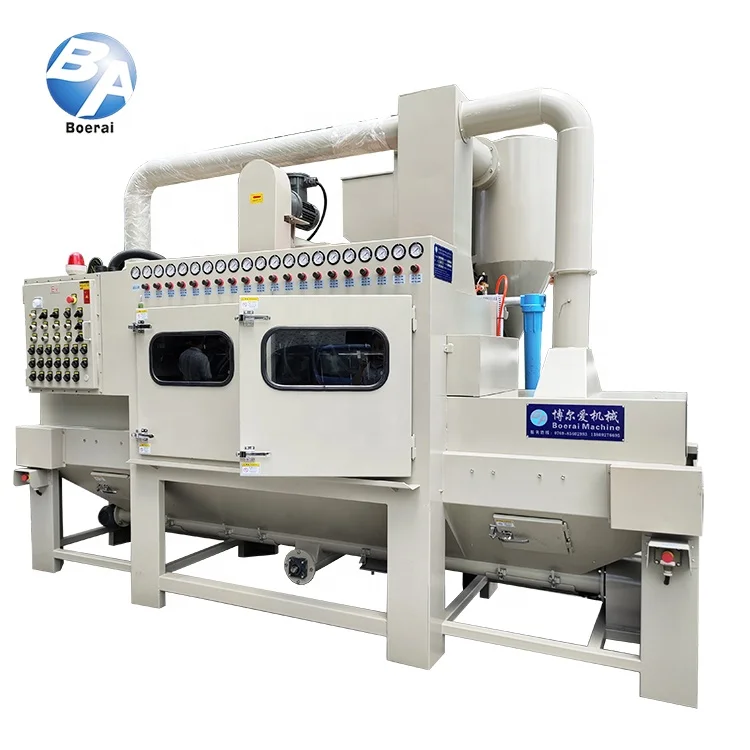

l Name:Conveyor sandblasting machine

l Model: BA-1200SA-16A

l Floor area: 3900*2100*3000mm

l Working space:1800*1200*1340mm

l Feed inlet: 1200*400

l Power: three phase 380V;50-60Hz

l Precipitron:5HP

l Number of gun :22set - 28 Set

l Air compressor:50 HP

Description

l This type machine is fully automatic transmission special sandblasting type.

l The transmission speed is controlled by frequency changer

l The sandblasting speed is fast.

l The operation is simple. Put the workpiece on transmission conveyor, and the machine can be blast sand automatically.

l The spray gun angel can be adjusted freely according to need

l It equipped with large dust collector and cyclone separator.

l The sand materials can be recycled automatically.

l It is equipped with 24 sets spray guns. Each gun can be used alone.

l It is equipped with 4 blowing guns, reducing the sand materials on the workpiece.

l It can be customized according to workpiece’s size and shape so as to meet the special need.

l  It can also be equipped with wet- type dust collector according to customer’s workpiece’s need.

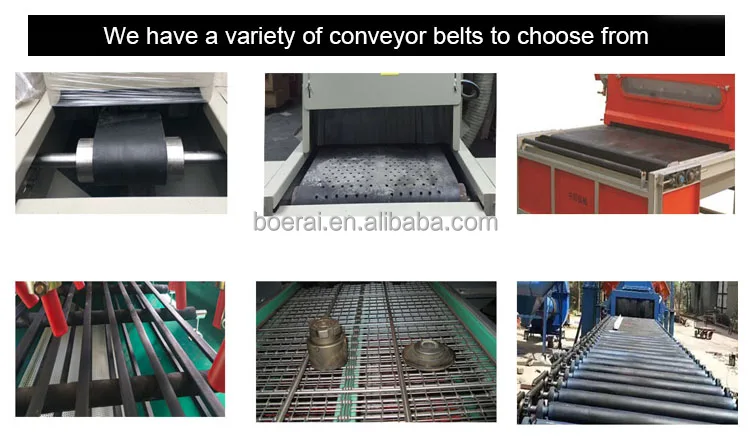

l The forward and reverse output of the belt can be adjusted.

Usage

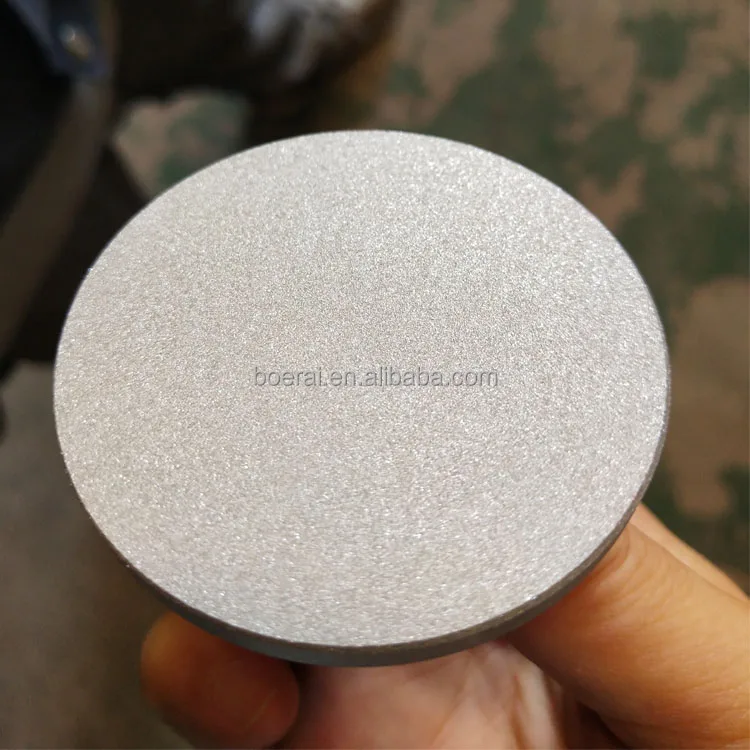

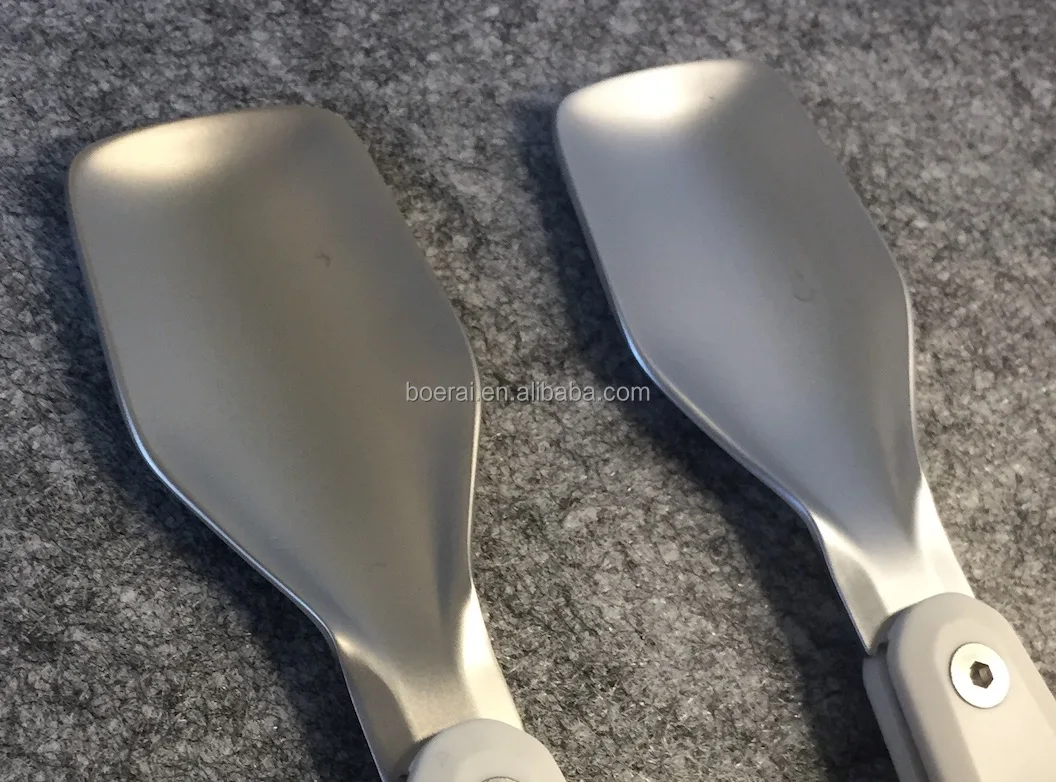

Sandblasting machine use compressed air driven high speed grinding material, spray onto metal and non-metallic surface, cleaning surface and remove rust,In addition to burr, in addition to welding scars, repair scratches ,Increase adhesion; its is used widely, for different purposes in material into different effects. It is easy to operate, improve the beauty of the product and to be of high attached value.

Available material

Alumina sand( corundum sand),silicon carbide(green silicon carbide,black silicon carbide),glass bead, Plastic granule, walnut sand, resin sand, nylon sand, ceramic sand, steel shot, steel grit,
