TESmart Chinese Manufacturer Sale Hdmi 16 Port Kvm Switch With One Monitor
- Category: KVM Switches >>>
- Supplier: Shenzhen Tesla Elec Technology Co. Ltd.
Share on (1600234871111):
Product Overview
Description
Product Description
# HKS1601A1U

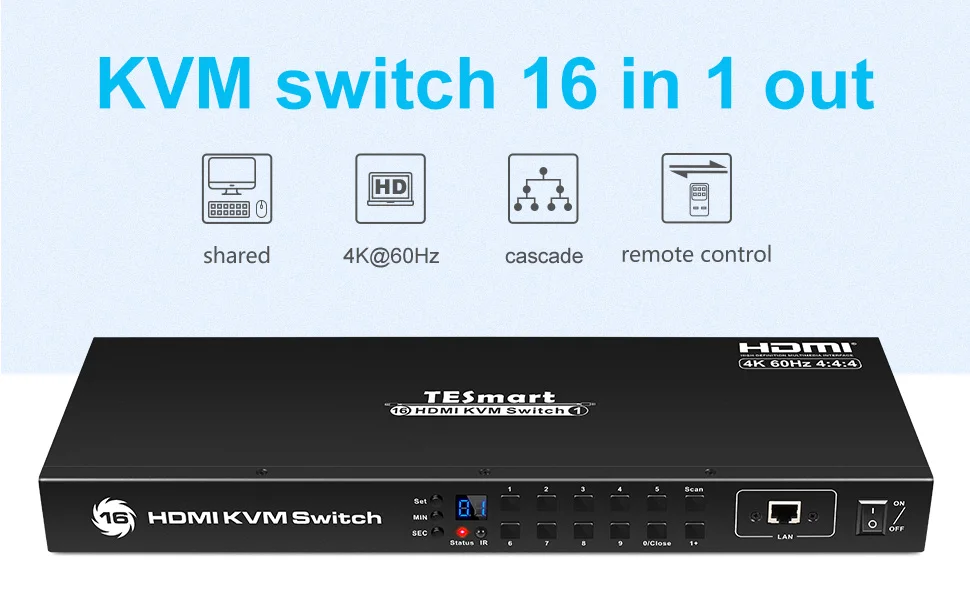

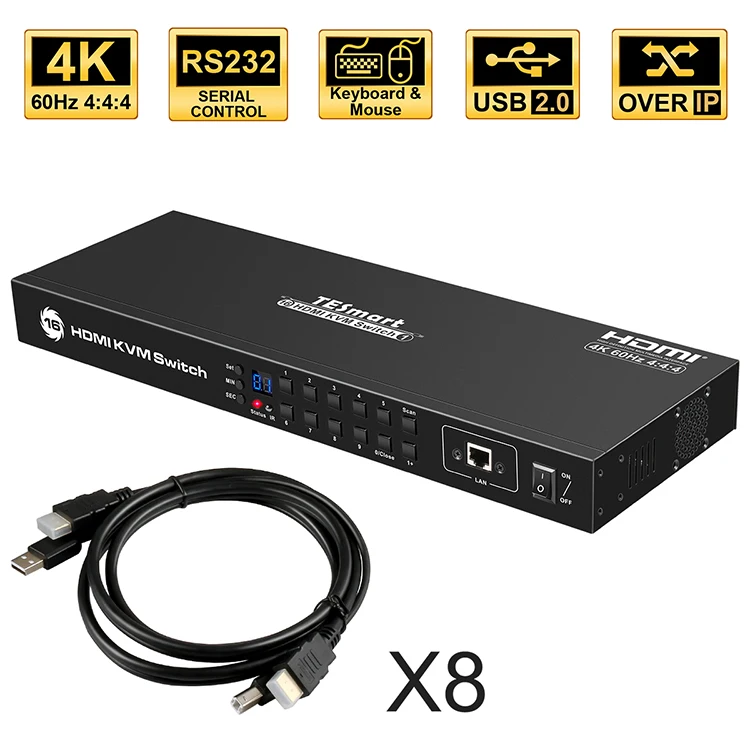

This 16x1 HDMI KVM switch provides you with great flexibility in integrating cross-platform computer equipment easily. It makes you available to switch easily and reliably between any HDMI computers using one HDMI compliant display.
This 16x1 HDMI KVM switch provides you with great flexibility in integrating cross-platform computer equipment easily. It makes you available to switch easily and reliably between any HDMI computers using one HDMI compliant display.
Feature:
1. Using one USB console control 16 PCs
2. Support Unix /Windows /Debian /Ubuntu /Fedora /Mac OS X /Raspbian /Ubuntu for Raspberry Pi and other Linux based system
3. With EDID emulators in each input port, keep PCs always having correct display information
4. Support hot plug, connect or disconnect devices to the KVM at any time without turning off devices
5. Support auto switching to monitor computers in a specified time interval
6. Support front panel buttons, IR signals, keyboard hot keys, RS232 serial commands or IP commands to control KVM switch
7. Available to use keyboard and mouse without any delay after switching input sources

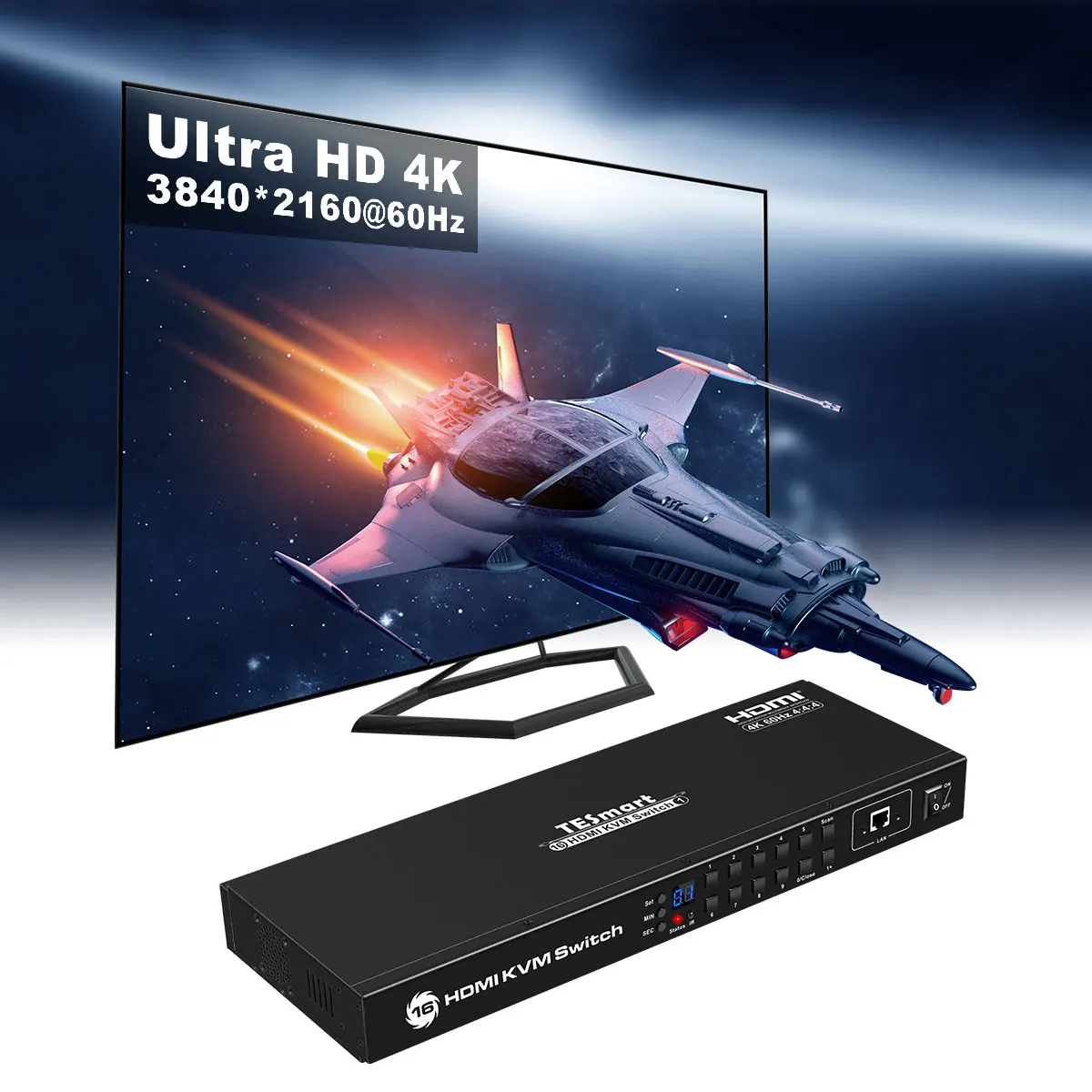

8. Support resolution up to 3840*2160@60Hz 4:4:4
9. With extra standard USB 2.0 hub port, it is possible to connect bar code scanner, USB hard drive or other USB devices KVM
10. Supports DVI-D single link sources and displays with the use of HDMI-to-DVI adapters
2. Support Unix /Windows /Debian /Ubuntu /Fedora /Mac OS X /Raspbian /Ubuntu for Raspberry Pi and other Linux based system
3. With EDID emulators in each input port, keep PCs always having correct display information
4. Support hot plug, connect or disconnect devices to the KVM at any time without turning off devices
5. Support auto switching to monitor computers in a specified time interval
6. Support front panel buttons, IR signals, keyboard hot keys, RS232 serial commands or IP commands to control KVM switch
7. Available to use keyboard and mouse without any delay after switching input sources
8. Support resolution up to 3840*2160@60Hz 4:4:4
9. With extra standard USB 2.0 hub port, it is possible to connect bar code scanner, USB hard drive or other USB devices KVM
10. Supports DVI-D single link sources and displays with the use of HDMI-to-DVI adapters

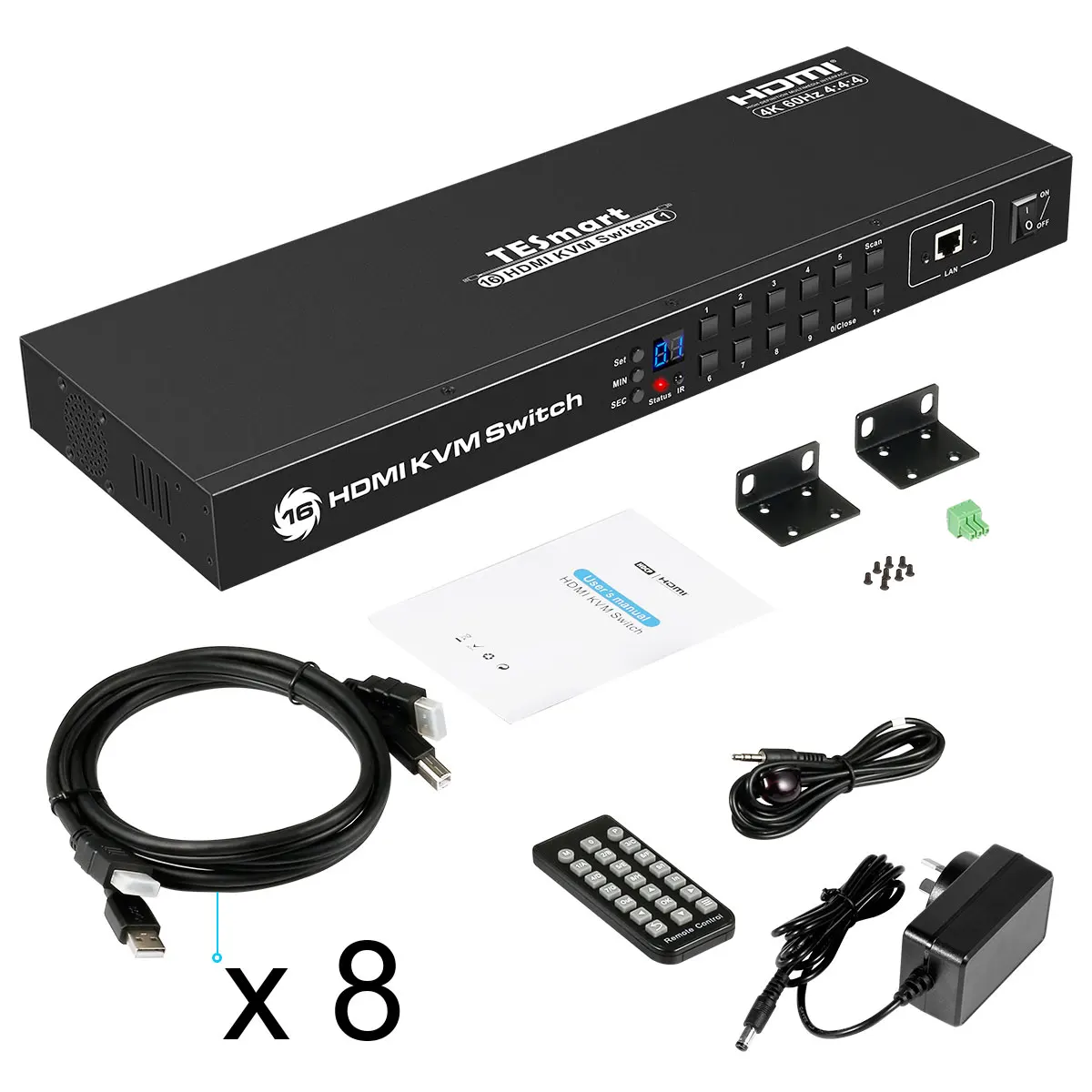

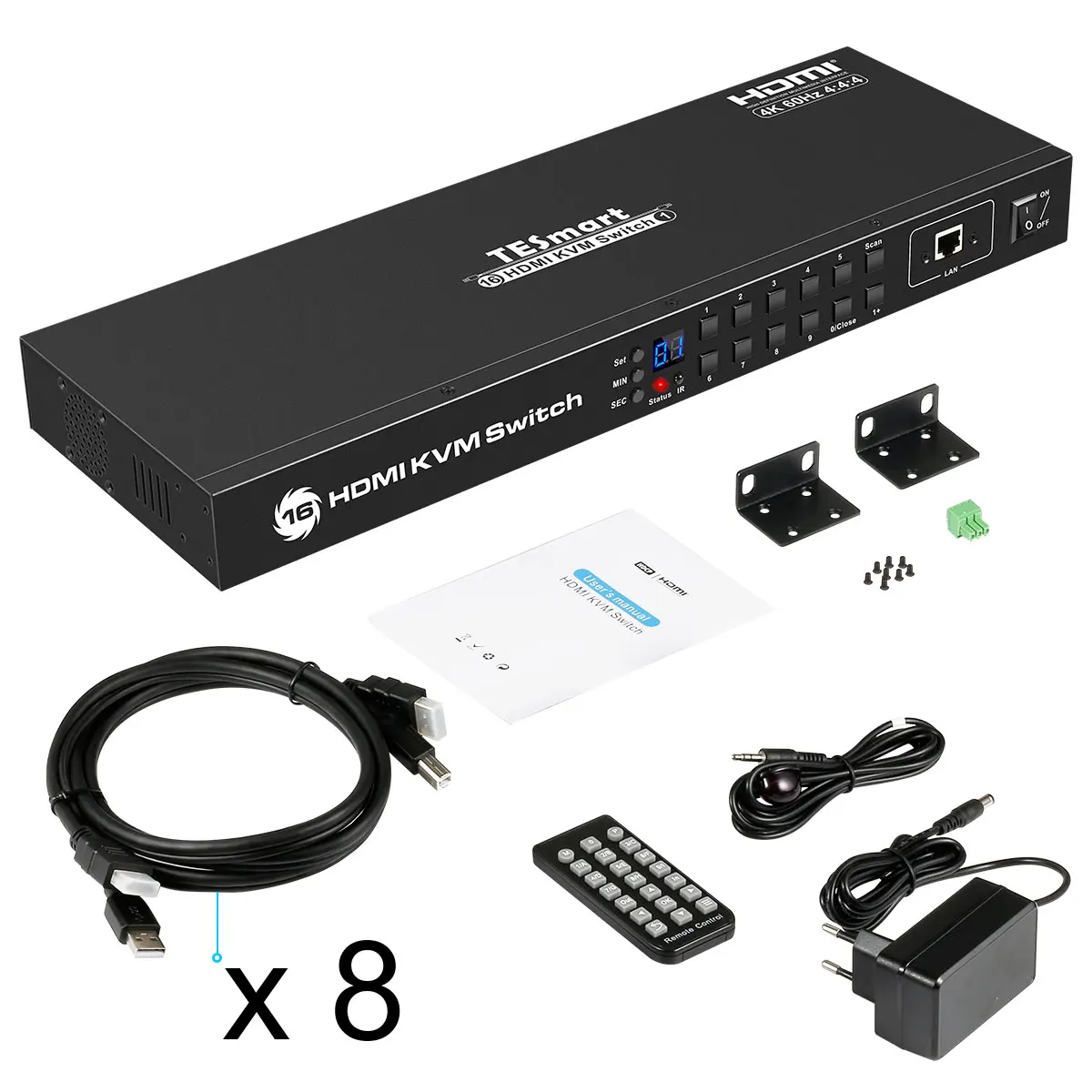

1 * 16x1 HDMI KVM Switch
1 * DC 12V 2A Power Adapter

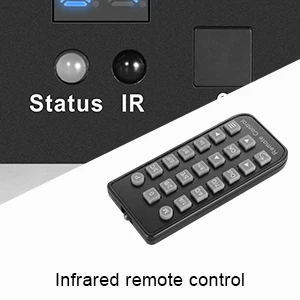

1 * IR Remote Control
1 * IR Receiver Cable
1 * 3 Pins Connector (For RS232)
2 * Rack-ears
1 * Quick-Start Guide
Specification
HKS1601A1U | 16x1 HDMI KVM Switch | |||
Functionality: | ||||
Auto Scan | Yes | |||
Port selection | Front panel buttons | Yes | ||
Keyboard hotkeys | Yes | |||
IR remote control | Yes | |||
Console commands | RS232 / IP | |||
Technical: | ||||
Max. Resolution | 3840x2160@60Hz | |||
Auto to get EDID | Yes | |||
Data rate | 18 Gbps | |||
Auto scan interval | 5~3600 Seconds | |||
Beep Sound | On/Off | |||
OSD | No | |||
Supported OS | Unix/Windows/Debian /Ubuntu /Fedora /Mac OS X/ Raspbian /Ubuntu for Raspberry Pi and other Linux based system | |||
Console ports | Keyboard emulation | 1 * USB Type A | ||
Mouse emulation | 1 * USB Type A | |||
USB 2.0 Hub ports | 2 * USB Type A | |||

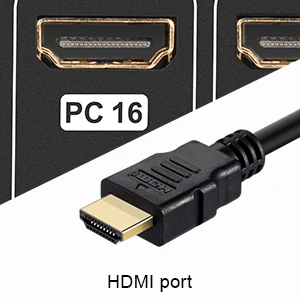

Video /Audio | 1 * HDMI Type A | |||

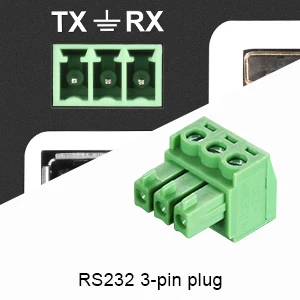

RS232 | 3 Pins jack | |||

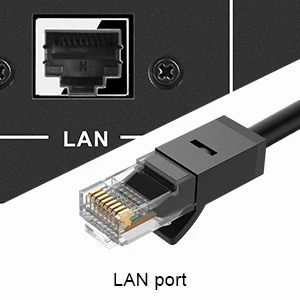

LAN (TCP/IP) | 1 * RJ45 | |||

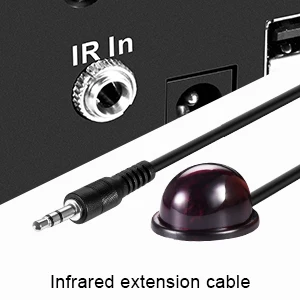

IR extension input | 1 * AUX | |||

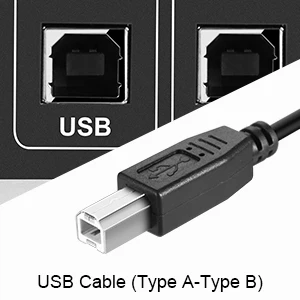

System ports | USB Data | 16 * USB Type B | ||
Video / Audio | 16 * HDMI Type A | |||
ESD protection | Human body model - ±8kV (Air-gap discharge) | |||
Mechanical: | ||||
Chasing material | Metal | |||
Product Dimensions | 440 (L) x 150 (W) x 44.5 (H) mm | |||
Item Weight | 1800g | |||
