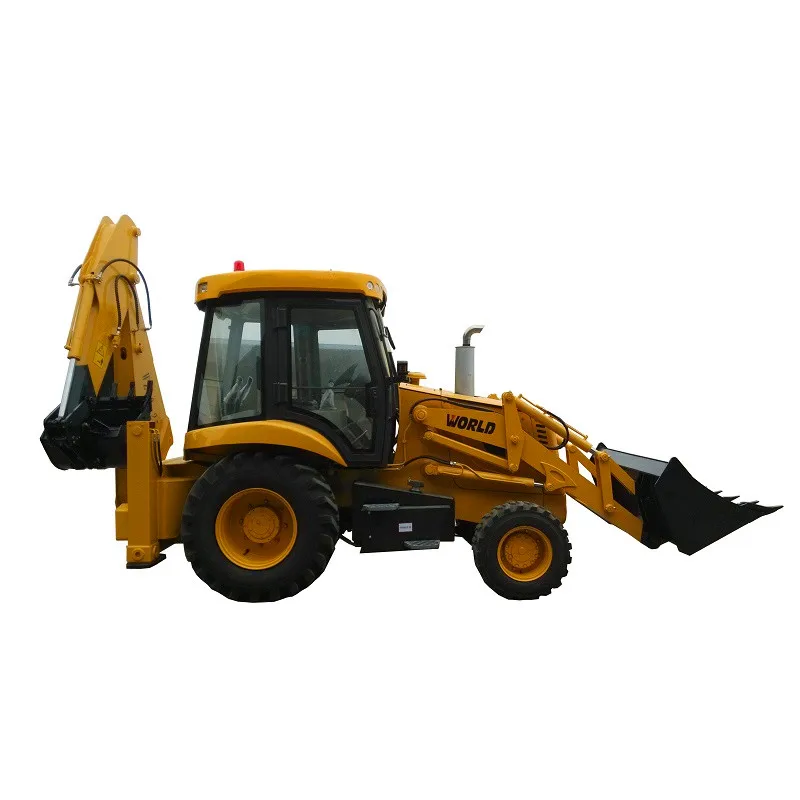

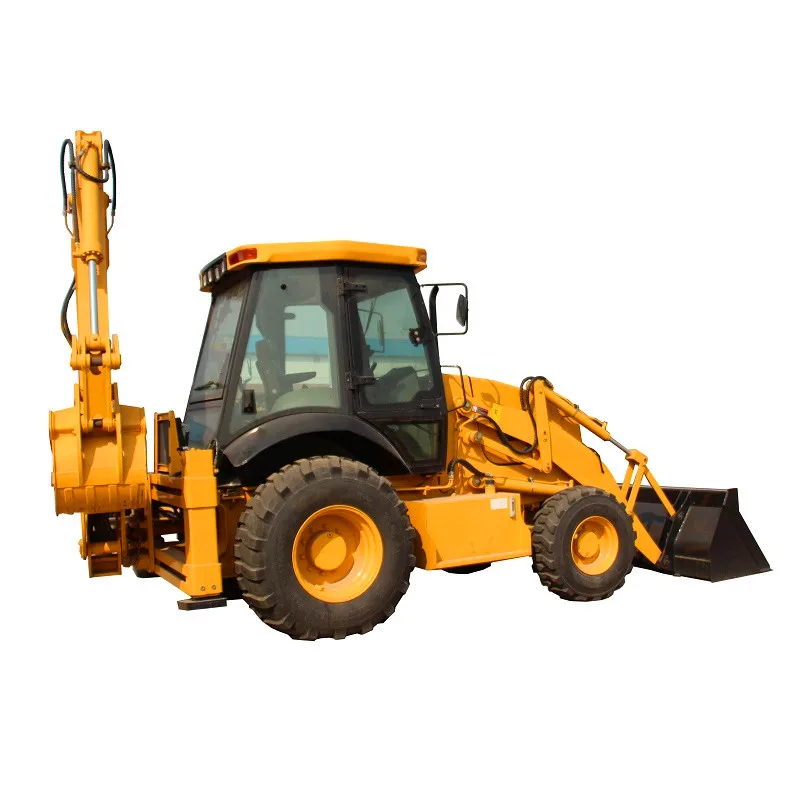

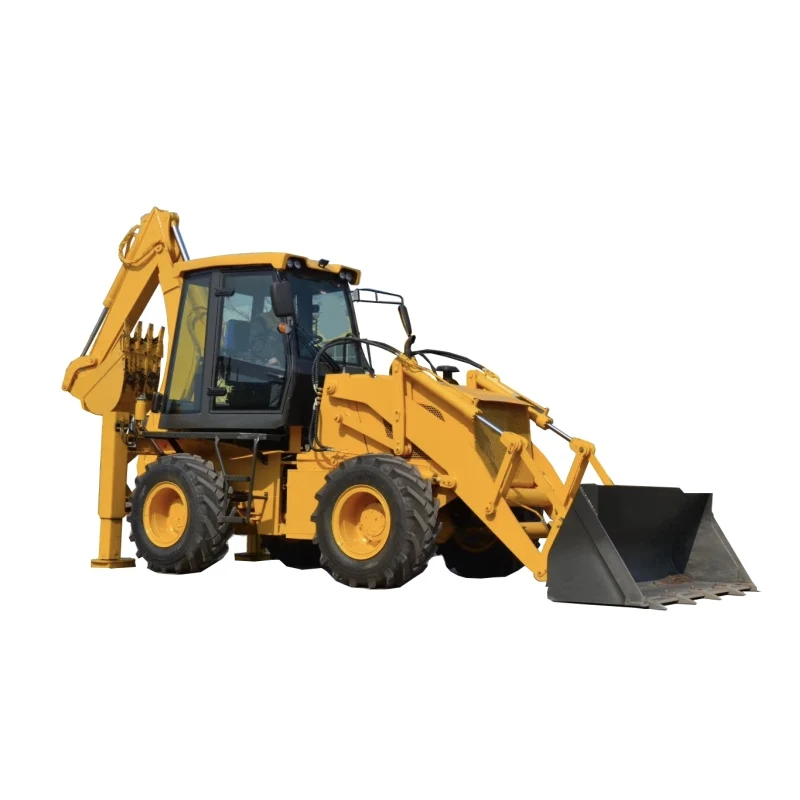

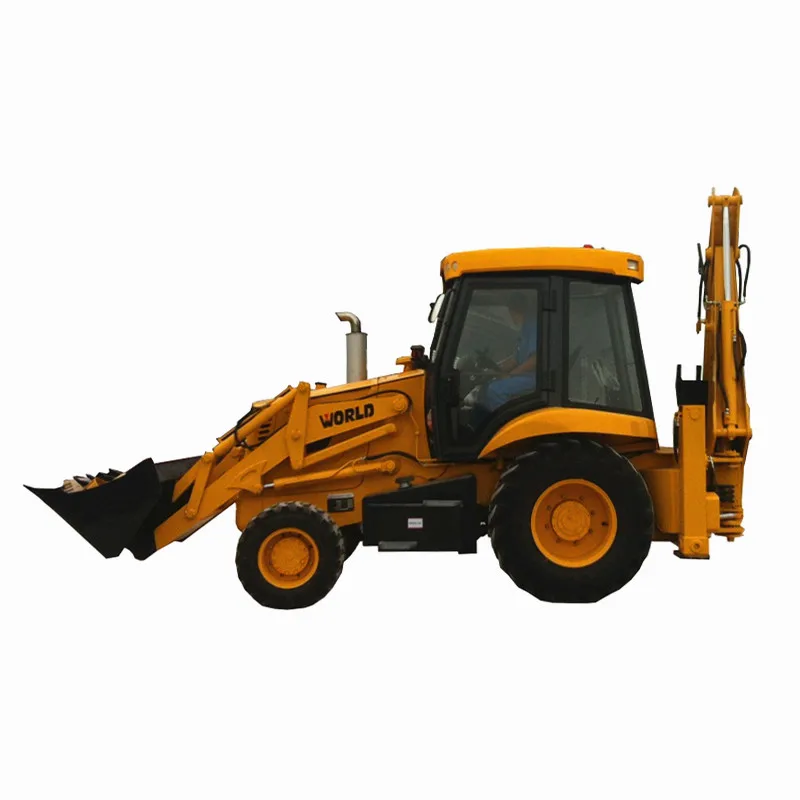

100HP WZ30 25C Model Small Mini Chinese Backhoe Loader with Price
- Category: >>>
- Supplier: Shanghai Yingxin World Machinery Co. Ltd.
Share on (1600235201401):
Product Overview
Description

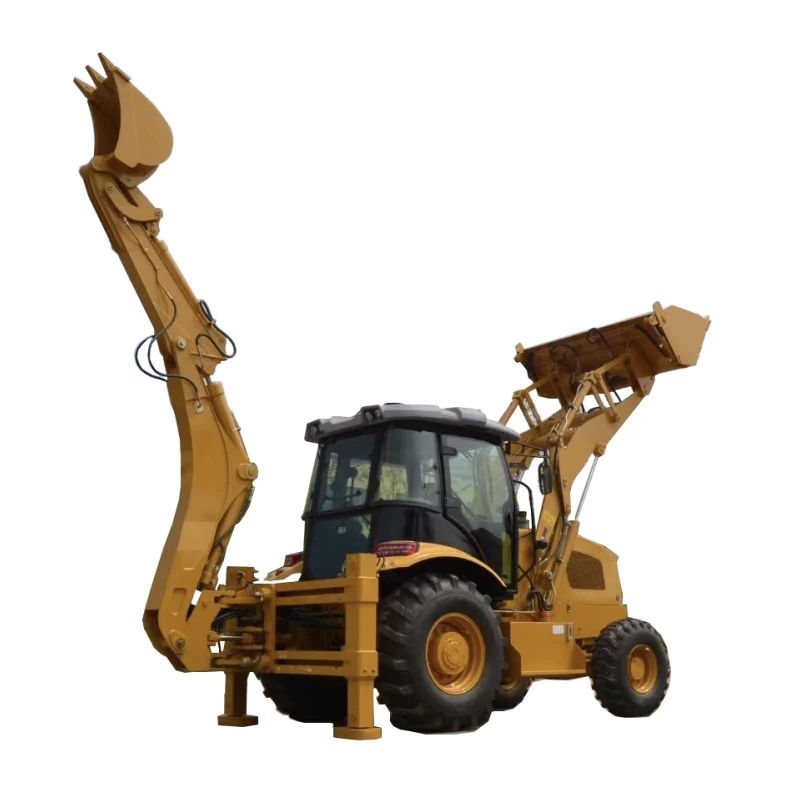

100HP WZ30-25C Model Small Mini Chinese Backhoe Loader with Price
Main Features
1. Four-wheel drive system
2. Air-conditioned luxury cabin, 360-degree rotary seat
3. More stronger unit frame, compact structure
4. H type outrigger, swing boom
5. Backhoe slide device provides bigger working range
6. Joystick control, high efficiency
7. Powerful gearbox with strong axle, dry type brake system, easy maintenance
8. Many accessories are available according to customer requirement
Main Performance | ||
Operation Weight | 8200 KG | |
Shipment Dimensions | 6150×2250×3763 mm | |
Min. Ground Clearance | 300 mm | |
Loading Bucket | Bucket Capacity | 1 m3 |
Breakout Force | 38 KN | |
Loading Lifting Capacity | 2500 KG | |
Bucket Dumping Height | 2742 mm | |
Bucket Dumping Distance | 1062 mm | |
Bucket Digging Depth | 52 mm | |
Bucket lifting Time | 5.4 s | |
Bucket Dumping Time | 2.0 s | |
Bucket Lowing Time | 3.1 s | |
Backhoe | Bucket Size | 0.3 m3 |
Max. Digging Depth | 4082 mm | |
Swing Angle | 190 degree | |
Max. Tracking Force | 39 KN | |
Max. Bucket Digging Force | 46.5 KN | |
Max. Arm Digging Force | 31 KN | |
Engine System | ||
Engine Model | CUMMIN-S | |
Engine Power | 75 kw/2400rpm | |
Engine Type | In line direct injection, four-stroke and Injection combustion chamber | |
Max. Torque | 310 N.M | |
Displacement | 3.3 L or 4.3 L | |
Min. Fuel Consumption | 239 g/km.h or 235 g/km.h | |
Transmission System | ||
Gearbox Type | Fixed shaft power transmission | |
Oil Pressure of Clutch | 1373 Kpa-1569 Kpa | |
Shift Gears | 2F/2R | |
Max. Travelling Speed | 22 km/h | |
Torque Coverter Model | YJ280 | |
Converter Type | Single-stage, three elements | |
Max. Efficiency | 84.40% | |
Inlet Pressure | 0.4 Mpa—0.55 Mpa | |
Outlet Pressure | 1.2 Mpa—1.5 Mpa | |
Cooling Methord | Oil-cooling, pressure circulation | |
Steering System | ||
Model of Steering Gear | BZZ5-250 | |
Steering Angle | 36 degree | |
Min. Turning Radius | 6581 mm | |
Hydraulic Pressure | 12 Mpa | |
Axle and Tyre | ||
Main Reducer Type | Double reduction | |
Hub Reducer Type | Single stage final reducer | |
Axle Rated Load | 4/18.5 Ton | |
Front Tyre Size | 14-17.5 | |
Rear Tyre Size | 19.5L-24 | |
Tyre Pressure(F/R) | 0.22 Mpa | |
Brake System | ||
Service Brake | Air over oil caliper brake, external type | |
Parking Brake | Manual | |
