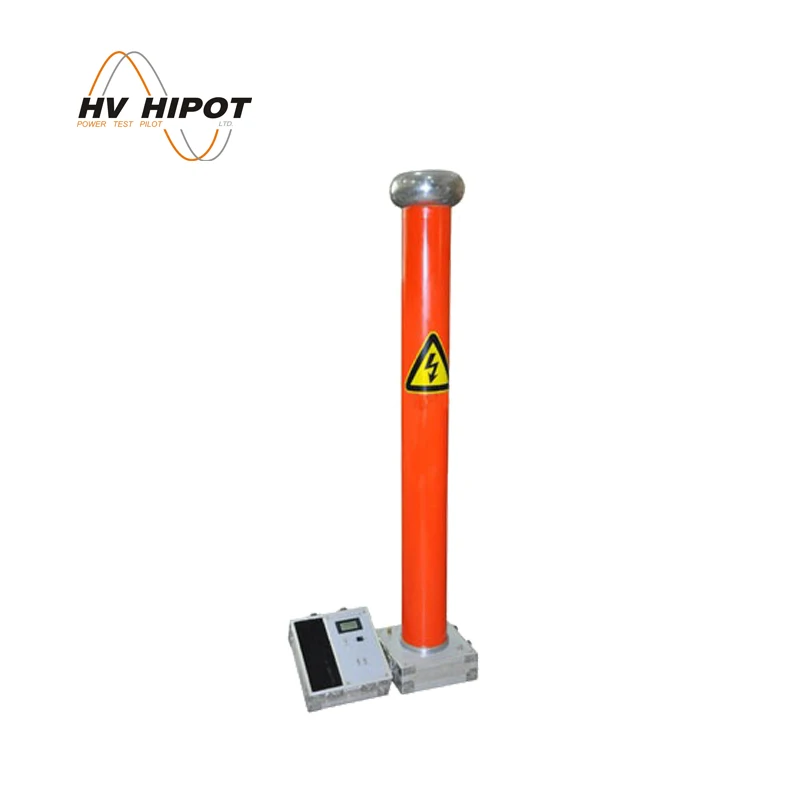

GDFR C1 50 High Quality Hign Voltage Divider Digital Voltage Meter 50kV HV Hipot
- Category: >>>
- Supplier: HV Hipot Electric Co. Ltd.
Share on (1600235741992):
Product Overview
Description
Product Description

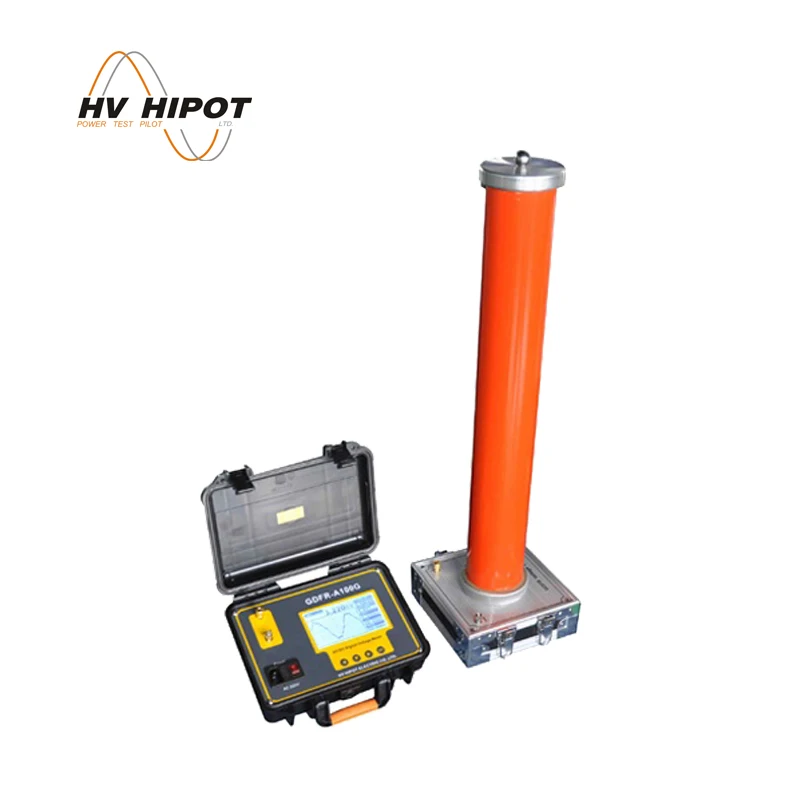

GDFR-C series AC/DC digital meter is on-site instrument, which test both AC and DC voltage.It consist of voltage divider and LCD display measurement meter.

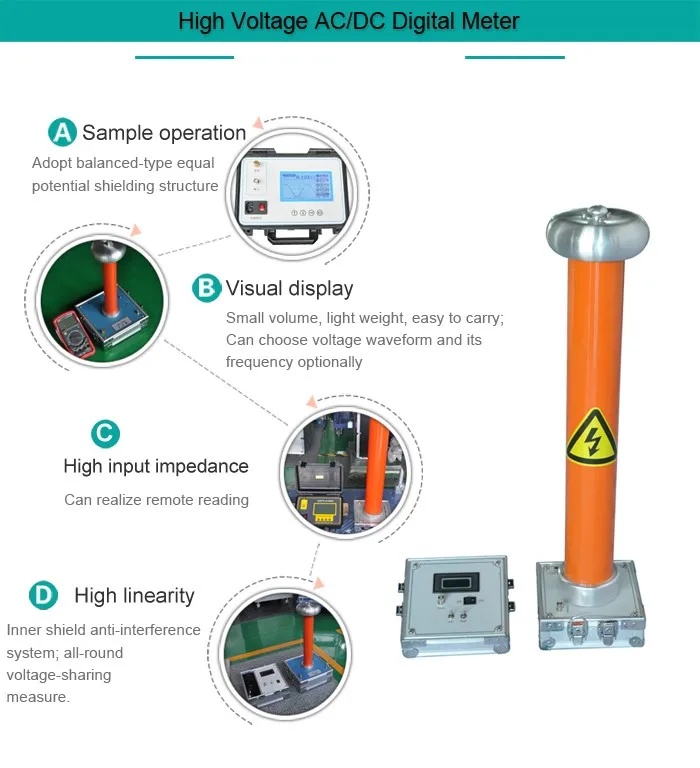

Features
- Balance type equal potential shield structure.
- Fully-sealed insulation cylinder with internal excellent components.
- High accuracy and linearity, good stability and anti-interference ability.
- LCD screen to show AC RMS, peak/√2peak factor, average value, peak-to-peak value, voltage waveform and frequency.
- Inner shield anti-interference system.
- The voltage ratio can be customized, suitable for calibration.

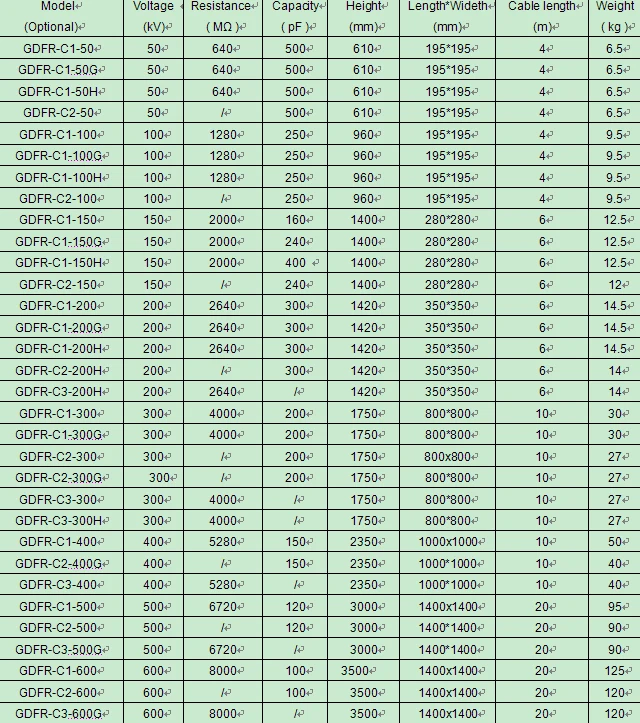

Specifications
Model (optional) | AC/DC(C1) | AC(C2) | DC(C3) |
Accurance level (optional) | Basic accurancy | AC:1.5% /DC:1.0% | |
G model accurancy | AC:1.0% /DC:0.5% | ||
H model accurancy | AC:0.5% /DC:0.5% | ||
AC frequency(Hz) | Power frequency | ||
Divider ratio | 1000:1 or 10000:1(>=300kV) other special ratio can be customized | ||
Cable resistance(Ω) | 75 | ||
Measurement range | 1,150kV and below,low measurement range:0~20 kV,high measurement range:20kV- rated voltage 2,200kVand above ,low measurement range:0~200 kV,high measurement range:200kV- rated voltage | ||
Filling medium | Polyurethane foaming agent | ||
Operation temperature | 0℃ ~ 45℃ | ||
Relativetyhumidity | <85%RH, non-condensation | ||
Altitude | <1500 meter,other is cvustomized | ||
Use environment | Indoor use or outdoor use in fine weather conditions | ||
