Хорошая производительность fusion Тип патч панель 19 стойку раздвижная конструкция модульный 12/24/48 порт волоконно оптический патч панель
- Category: Telecom Parts >>>
- Supplier: JFOPT,CO.,LTD.
Share on:
Product Overview
Description
Good performance fusion type Patch Panel 19 rack mounted sliding design modular 12/24/48 Port fiber patch panel
STYLE SELECT

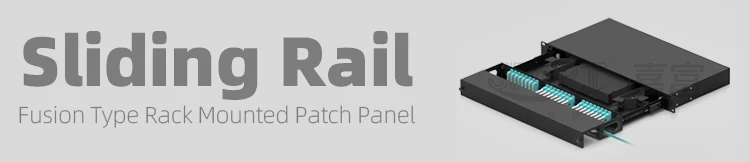

Sliding Rail Fusion Type
Sliding rail drawer design patch panel, with functions of fiber fusion splicing, storage and distributing, mainly used for the termination and distribution of central trunk cables in optical fiber communication systems, which can conveniently realize the connection, distribution and scheduling of the optical fiber line. Suitable for small and medium wiring systems such as FTTZ, FTTB.
ORDERING INFORMATION
Item | Parameter |
Type | Rack Mounted Sliding Rail Patch Panel |
Adapter Port | SC/ LC/FC/ST/E2000 |
Fiber Cores | SC: 1~48C LC: 1~96C FC: 1~24C ST: 1~24C |
Material | Cold Rolled Steel Sheet |
Dimenison | 1U 19inch |
Color | Black/customized |
Mode | SM/OM1/OM2/OM3/OM4/OM5 |
PRODUCT DETAILS

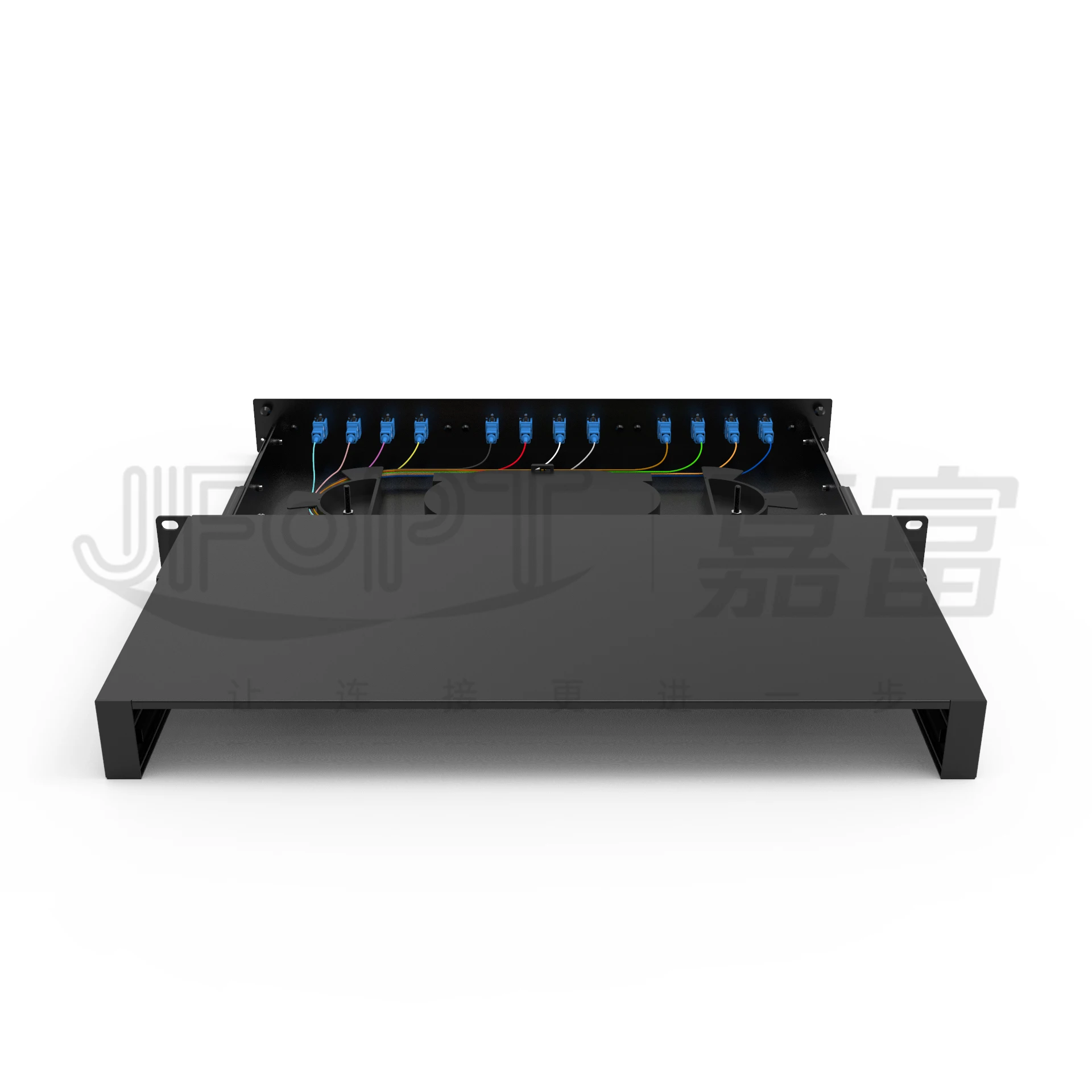

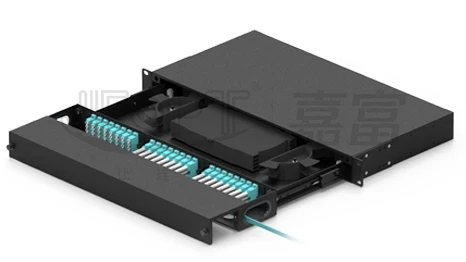

Sliding rail design
3-section sliding rails adopted in the patch panel to achieve smoothly sliding out and not being blocked by the outer casing after being pulled out.
Quick assembly and disassembly
Each single sliding tray can be easily disassembled by pressing its locking clip, and can be easily assembled by simply pushing it back in the opposite direction.

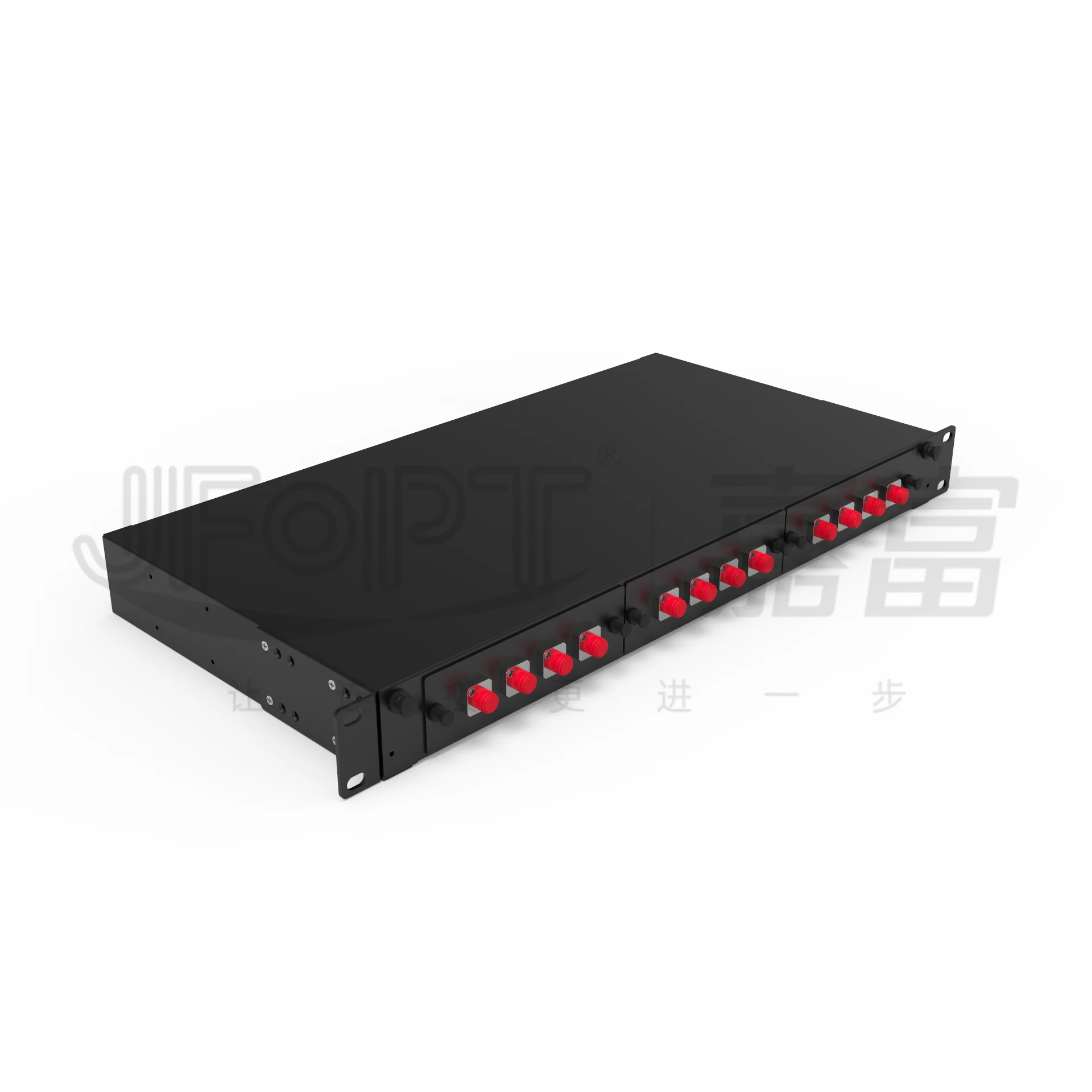

Modular Panel
The pull tray has three adapter panel slots for quick replacement and wiring.
Convenient distribution
Classic layout design, JFOPT has continuously improved with the feedback of the market for decades, ensuring scientific design and convenient use.
Cable entry mode
Four 21mm cable inlets at the back of the patch panel, dust apron can be cut according to usage.
Adjustable mounting ears
The both mounting ears are adjustable by using different fixing hole, to meet the actual wiring requirements.

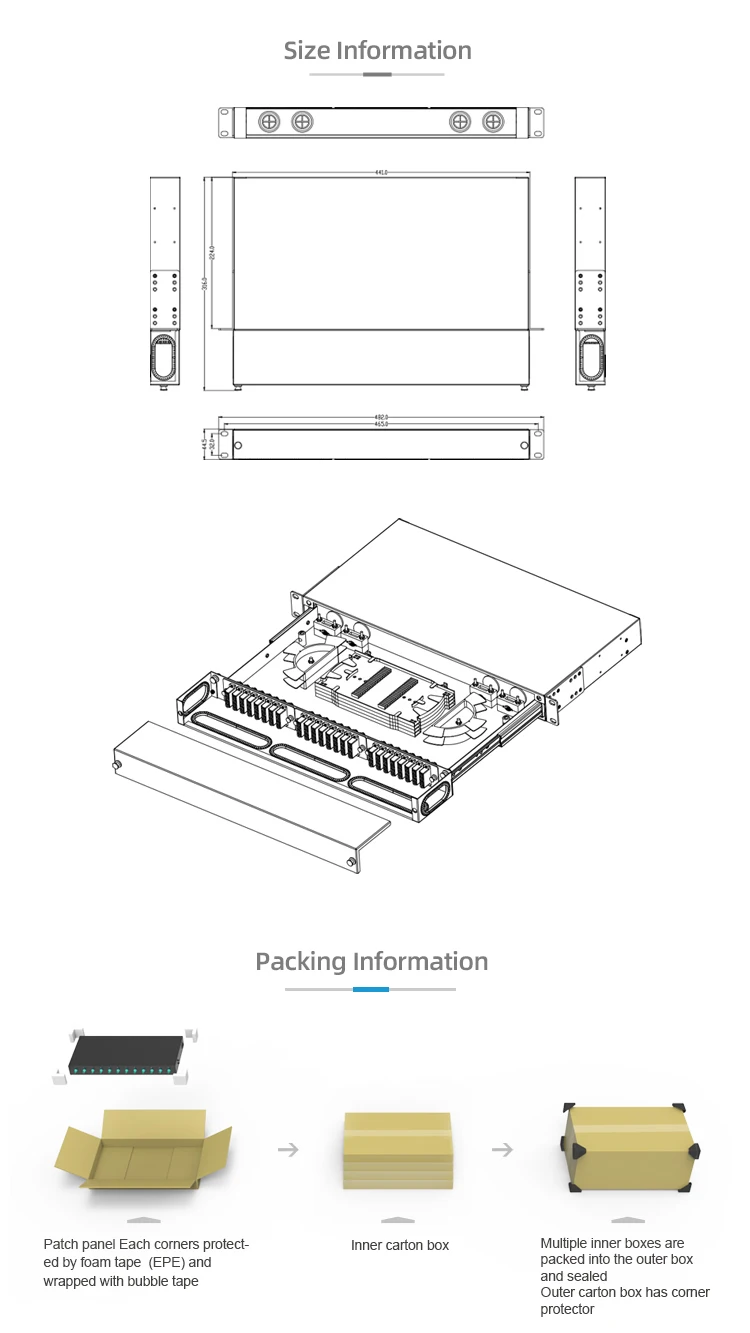

Item | Size | Packaging method |
Patch panel | 482*45.5*230mm | 1PC/inner box |
Inner box | 490*280*70mm | 5PCS/outer box |
Master box | 510*300*420mm |
PRODUCT PACKAGING
