Beer brewing company making craft beer 10bbl 15bbl steam beer brewery equipment for sale
- Category: Fermenting Equipment >>>
- Supplier: Shandong,Tonsen,Equipment,Co.,Ltd.
Share on:
Product Overview
Description
Beer brewing company making craft beer 10bbl 15bbl steam beer brewery equipment for sale
We specialized in manufacturing beer brewing house, fermentation tanks, Cooling machines, CIP cleaning equipment, Beer kegs, Beer bottle filling and keg washing machines, Complete MicroBrewery, and other related beer machines. All of our machines can be customized as per your requirement.
Brewhouse Details
The main body of the equipment is made of international standard high-quality 304 stainless steel, and the tank body is processed inside and outside through technologies such as plasma cutting, pure argon gas shielded welding, and mechanized automatic polishing. The company's scientific Maitreya plate jacket manufacturing process can achieve the maximum heat conduction effect. The inner tank is insulated with high-quality rock wool or polyurethane materials to effectively prevent the leakage of heat in the tank. The advanced filter tank cutter system and hydraulic automatic lifting technology can ensure the mash is filtered at a uniform speed.
Brewhouse:2 vessels 3 vessels 4 vessels 500L-5000L per batch
BEER BREWING EQUIPMENT/MICRO BREWERY EQUIPMENT
Components | Specification | |
Milling System | Miller | Double Roller,Noise<60db |
Heating System | Boiler(steam heating) | Electric or steam |
Brewhouse System | Mash/Lauter tun | Heating jacket Material:SUS 304/316 or Red copper 1Thermometer/tank |
Boiling/Whirlpool Tank | ||
Heat-exchanger | Plate type | |
Fermentation System | Fermentation Tank | Top manway/Side manway Glycol cooling jacket |
| Yeast Adding Tank | SUS304 Stainless Steel |
Refrigerator System | Refrigerator machine | With control system |
| Pump/valve |
|
| Ice water tank | Fluorine filling |
CIP Cleaning System | Pump | SUS304 full welded |
| Acid Tank | |
| Alkali Tank |
|
Control System |
| Semiautomatic |
Brewing Time:
Output/Brew | 10BBL | 12BBL | 15BBL | 20BBL | 25BBL | 30BBL | 35BBL |
Brews/Week | 6~12 | 6~12 | 6~12 | 6~12 | 6~12 | 6~12 | 6~12 |
Output/Week | 60~120BBL | 72~144BBL | 90~180BBL | 120~240BBL | 150~300BBL | 180~360BBL | 210~420BBL |
Electric Supply | 3phase/380(220,415,440)V/50(60)Hz, Single Phase/220(110,240v)/50(60)Hz | ||||||
Heating Steam | Steam Heating or Electric Heating | ||||||
Area Request | >70M2 | >80M2 | >100M2 | >120M2 | >140M2 | >150M2 | >180M2 |
Brewmaster | 1 | 1 | 1 | 2 | 2 | 3 | 3 |

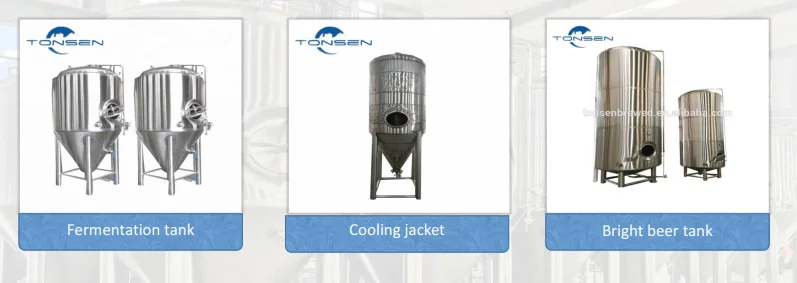

Fermentation System
Fermentation tanks have different structural designs according to different fermentation processes. Thegeneral fermentation tank has an upper head and a lower cone structure, with a polyurethane insulation layer and a Miller plate cooling jacket in the middle. Usually the cone part of the tank has a cooling jacket, and the cylinder part has two or three cooling jackets, which are matched with corresponding temperature measurement points. This can not only meet the relevant requirements of cooling, ensure the cooling rate of the fermenter, but also help settle and preserve the yeast
Standard configuration:
*Dimple plate cooling jacket on tank body and conical bottom
*Insulation: polyurethane, thickness: 80mm
*Interior thickness: 3mm
*Exterior thickness: 2mm
*Temperature sensor TP100
*Hops adding port
*1pcs x breathing valve
*1pcs x mechanical pressure regulation valve
*1pcs x sample valve
*1pcs x racking arm
*1pcs x pressure gauge
*1pcs x CIP spray device
*1pcs x drain outlet bottom
*1pcs x solenoid valve
*4 heavy duty legs with leveling pad
Optional parts:
*Dished head and taper angle 60° or design as the height of the brewery.
*Working pressure: 0-3 bars
*Top manhole/side
*Co2 supplement port
*Clamp or thread(DN/DIN) connection way
Cooling System
The beer refrigeration system plays a pivotal role in the entire beer brewing process. It is mainly used to cool down the saccharified wort and fermentation. The refrigerators used in our factory are from well-known domestic brands, with stable performance, strong cooling effect and low accident rate. The optimized configuration of the refrigeration system can greatly reduce the energy loss and ensure the stable operation of beer brewing.

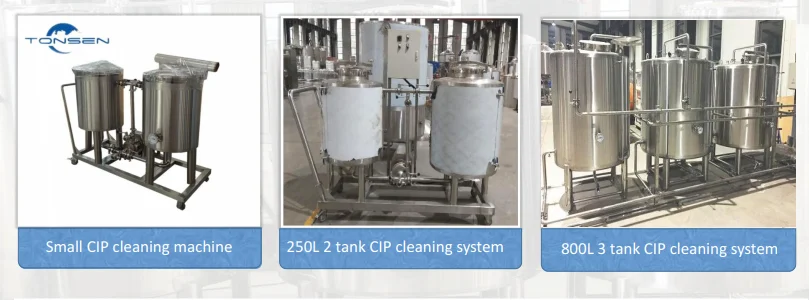

CIP Cleaning System
When the tank volume is small, it can be fixed on a trolley to facilitate cleaning of the brewing system. Alkaline washing can remove fat and protein residues through saponification reaction and improve product safety. After CIP treatment, the cleaned surface is bright, without water, odor, and dirt. And the equipment is easy to operate and has high safety.

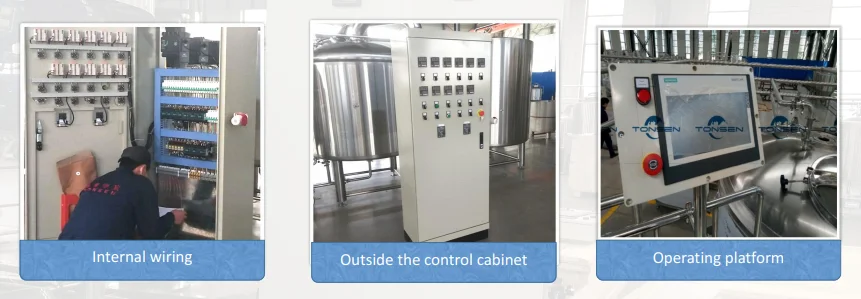

Control System
The PLC control system is composed of Siemens programmable controller, touch screen or industrial computer and other automatic control components, heating and cooling are fully automatic control, and manual control can also be switched on the console. Various process parameters can be controlled automatically or manually according to customer requirements, or according to the process to achieve different process requirements.
Packing System
Semi-automatic Isobar bottles filler&capper capacity 200-600bottles per hour,Stable quality and affordable
Semi-automatic keg washer,keg filler capacity 30-60kegs per hour,Stable quality and affordable
Beer Kegs
| Name | Stainless Steel Beer Keg | Brand | Trano |
| Standard | EURO/US/CASK/RUBBER&ECO | Materials | 304 or 316 Stainless steel |
| Spear Type | A/D/S/G | LOGO Printing | Emboss/Screen Printing/Etching |
| Lead Time | 25 days after advanced payment, subject to prior sales | Warranty | 20 years guaranteed on the keg material, welding and keg structure |
| Packaging | Pallet/Container | Transportation | Land/Air/Sea |
| Packing Details | 1.Product 2.Protective film 3.EPE 4.Carton
| ||
Company Information
FAQ
1.Q:How many years does your warranty ?
A:The main equipment for 3 years, auxiliary ones for 1 year.
2.Q;What’s your advantage ?
A:We are pioneer and know this business. Our 4 top-level technicists worked in this business over 10 years, 3 senior engineers worked over 8 years, workers average production experience is 3 years.
3.Q: Can you do OEM or ODM?
A: Yes, we can do.
4.Q: How to control temperature ?
A:PLC or digital display meter can control the temperature via connecting with the PT100 sensor.
5.Q: Is possible to supply installation in our country ?
A: Yes, we could supply engineer to supply installation guidance and training.
6.Q: Can your factory produce equipment according to our drawing or samples?
A: Yes, we can do.
7.Q;can this equipment be different design?
A:Sure
We are factory supplied with good quality,more competitive price and installation service. Lifetime guarantee are assured.
Whether you are creating a business or brewery renovation project, come here!
A perfect solution is always for you!
