Product Overview
Description

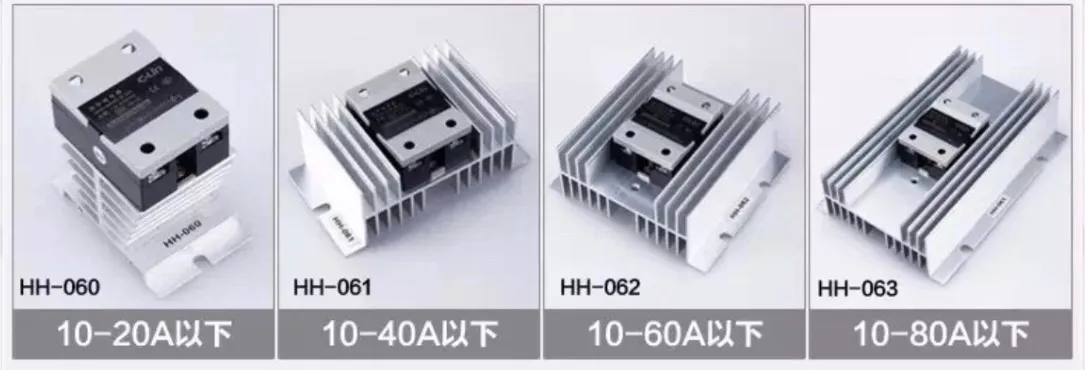

Product display
Product display

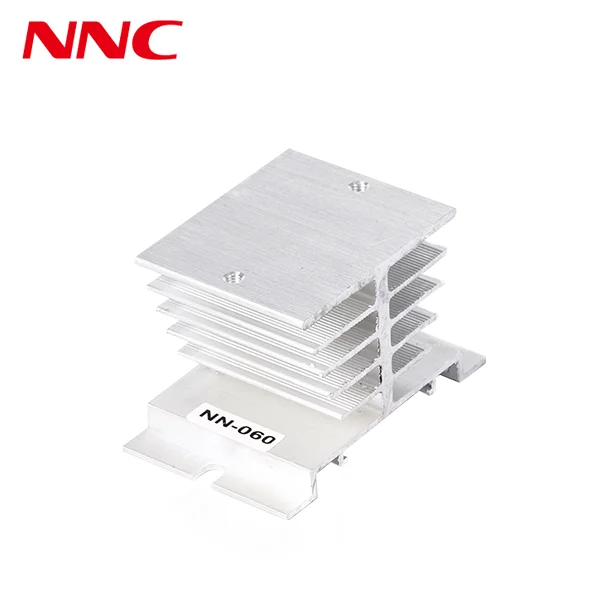

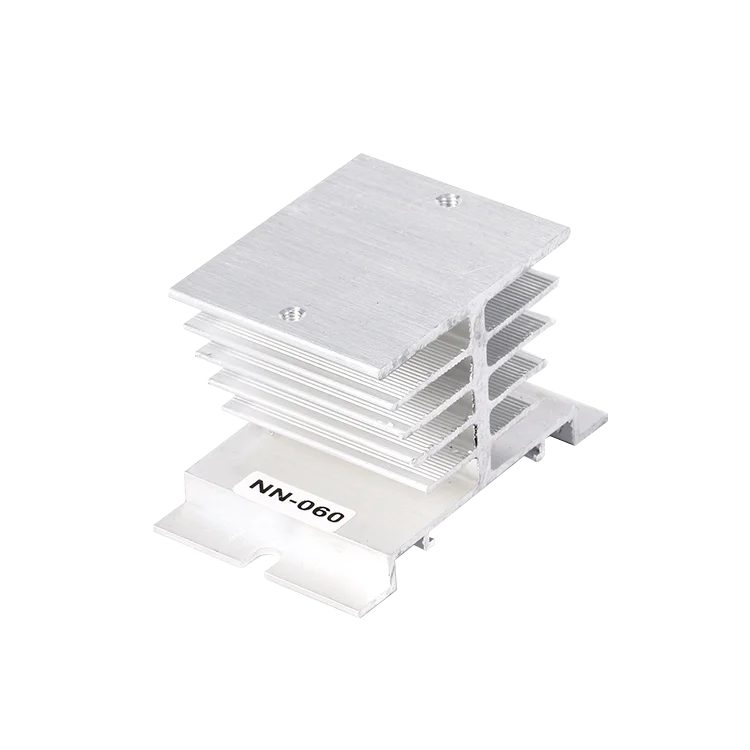

NN-060
| Dimension | 80mm*50mm*50mm | Max current | ≤20A | |
Weight | 100g | Remark | Vertical type | ||
Description | Radiator for single phase SSR | ||||

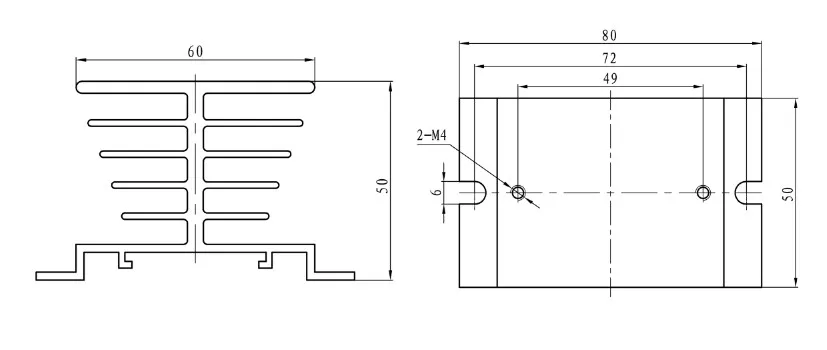

Outside drawing |
| ||||

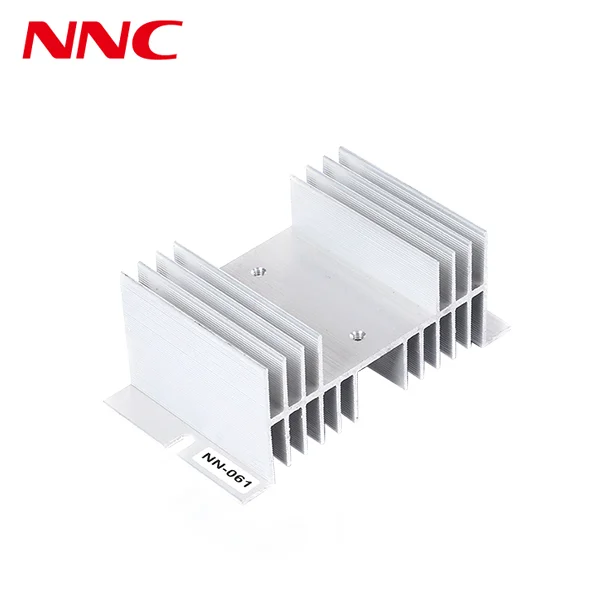

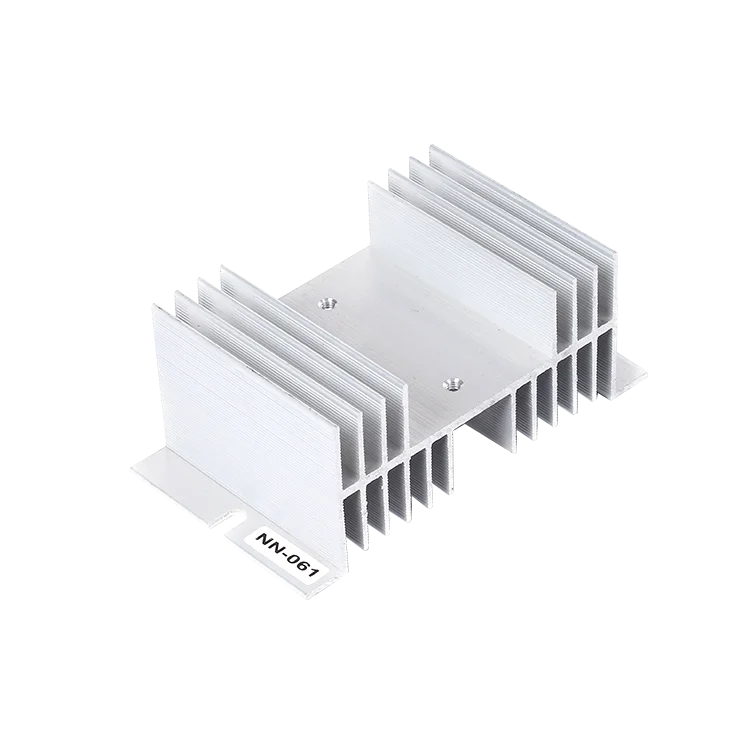

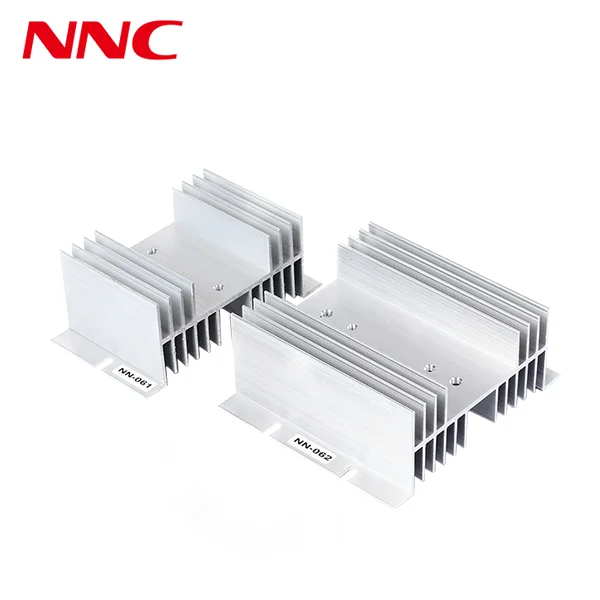

NN-061
| Dimension | 125mm*70mm*50mm | Max current | ≤40A | |
Weight | 200g | Remark | Horizontal type | ||
Description | Radiator for single phase SSR | ||||
Outside drawing |
| ||||

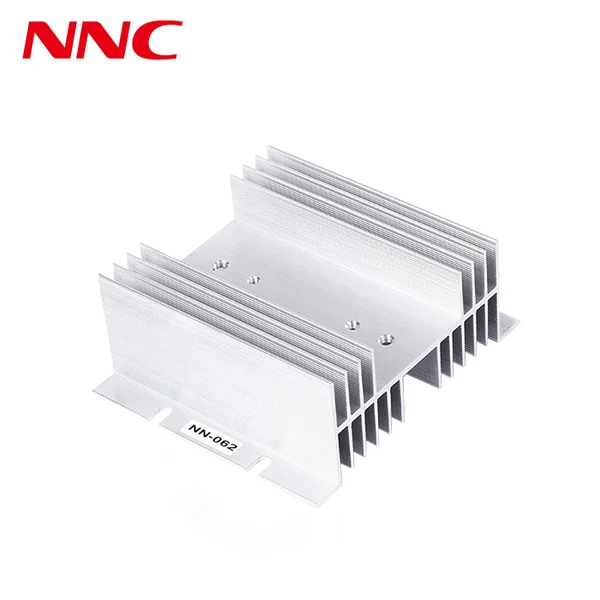

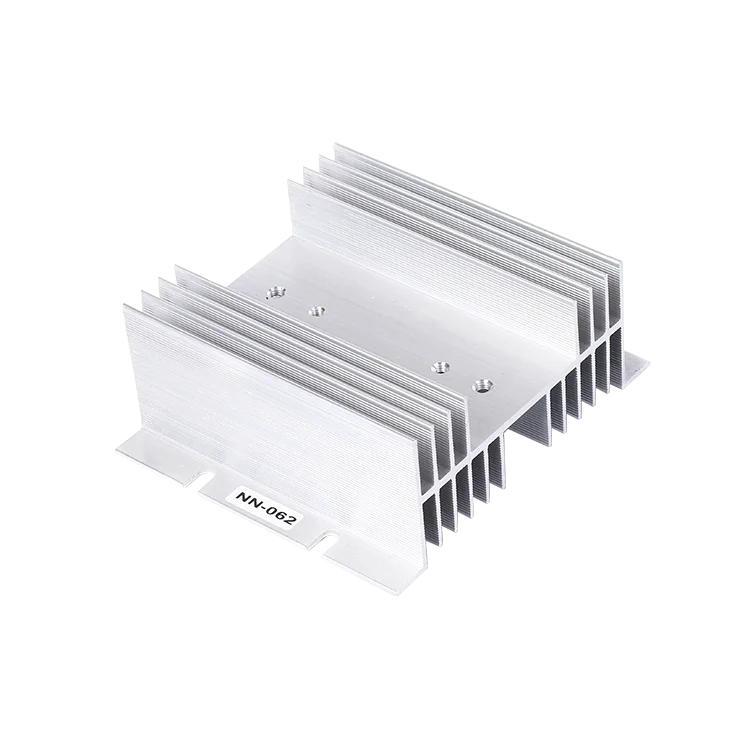

NN-062
| Dimension | 125mm*110mm*50mm | Max current | ≤60A | |
Weight | 300g | Remark | Horizontal type | ||
Description | Radiator for single phase SSR | ||||

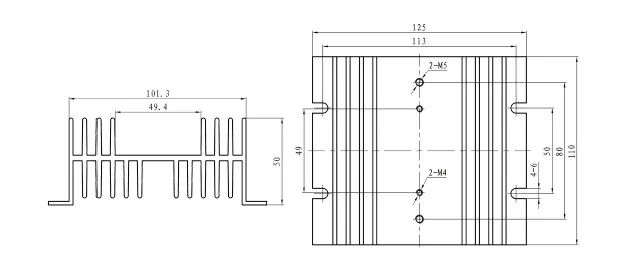

Outside drawing |
| ||||

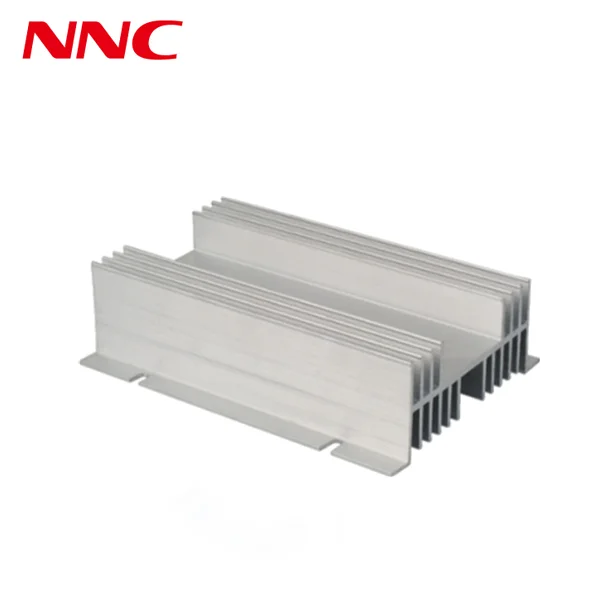

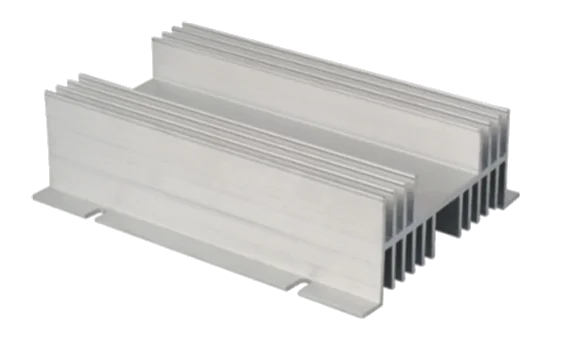

NN-063
| Dimension | 180mm*125mm*50mm | Max current | ≤80A | |
Weight | 630g | Remark | Horizontal type | ||
Description | Radiator for single phase SSR | ||||

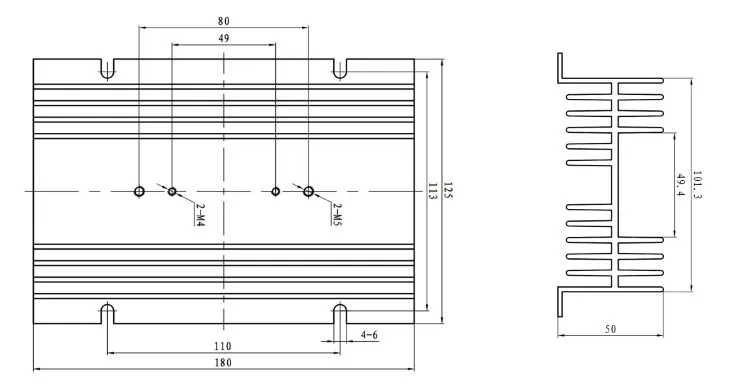

Outside drawing |
| ||||
Related products
Related products
Certificate
Certificate
Shipment & Packaging
Shipment & Packaging
FAQ
FAQ
Q1: Are you Factory?
A1:Yes,we focus on relay and micro switch more than 13years.
Q2: How do you control the products' quality?
A2: Auto inspection machine and manual testing together before packing.
Q3: What's your payment term?
A3:We usually accept T/T(30% deposit,the balance before delivery.)
Q4: Would you accept to use our logo?
A4: If you have good quantity,we can make OEM for you.
Q5: Can I get a sample for reference?
A5: We provide free samples for testing,you only need to pay the express cost.
Q6: What is your delivery time?
A6: Usually it takes 20-35 working days for production.
Q7: What is your warranty time of the products?
A7: 12-24 months
