The GSM remote pump motor relay switch controller RTU5024 is a powerful GSM relay that can be used for authorized door access, controlling gates, switching of remote equipment, and car parking systems. Additionally, it can also be used in places which require you to turn on/off your system, machines, or equipment remotely with a free call from your mobile phone.
Just dial from Authorized User number at the specified time then the Barrier and doors are opened, or the machine are turn on or off by the GSM Gate Opener/Relay Switch. There are no call costs, the GSM Gate Opener/Relay Switch rejects the call from authorized number then carries out the turn ON/OFF action.
Authorized 200 users open gate at the specified time!
GSM Gate, Barrier, Shutter, Garage Door and Door opener
Open gate or garage door with a FREE call from your mobile phone!
Remote switching machines ON/OFF with a FREE call from your mobile phone!
Remote monitoring the Gate, Barrier, Shutter, Garage Door OPEN/Close Status!
GSM remote pump motor relay switch controller function:
1. Add or remove users by SMS Text com mand. 2. The relay close or open time is programmable. 3. Can be operated from anywhere, no distance limit. 4. Quad-band, can work in the worldwide GSM Networks. 5. No need to provide a remote control or keys for different users. 6. Secure – Using caller-ID for identification, unknown callers are ignored. 7. Up to 200 authorized phone numbers can be configured at the specified time. 8. One output with relay rating 3A/240VAC for connecting the switch of the door or machines. 9. Multiple applications. (gates, bollards, barriers, garage doors, shutters and access doors or machines). 10. The relay action will return a SMS confirmation to the owner or authorized call in number, this function is editable by user. 11. No call charges. the GSM GPRS Relay Switch rejects the call from authorized number then carries out the turn ON/OFF action on the first ‘ring’.
GSM remote pump motor relay switch controller specification:

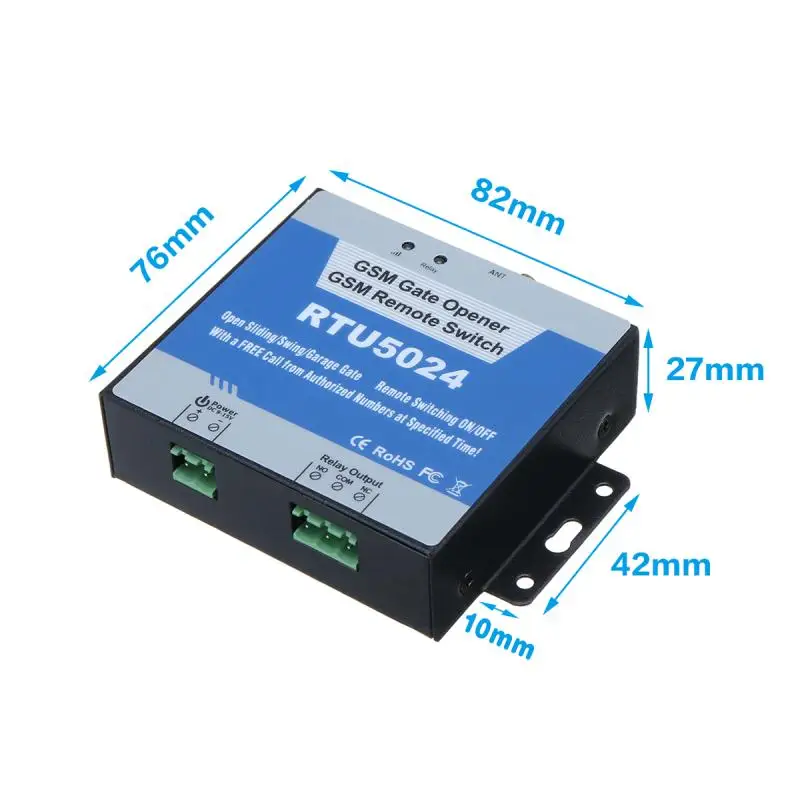

GSM Frequency: Quad-band 850/900/1800/1900MHz Digital Output: NC/NO dry contact, 3A/240VAC DC Power Supply: 9-24VDC/2A Power Consumption: 12V Input Max.50mA/Average 25mA SIM Card: Support 3V SIM Card Antenna: 50Ω SMA Antenna Interface Temperature Range: -20~+60℃ Humidity Range: Ralative Humidity 90% Exterior Dimension: W82mm*D76mm*H27mm
Company Information
Enerna IoTech Co., Limited found in 2012, global market started from 2014. Specialized in smart home security automation systems, baby kids and elderly senior telecare guarder and relative independent testers, remote access control gate opener, cellular WiFi M2M RTU and IoT gateway, WiFi and Ethernet remote controller and wireless IoT RTU. Enerna IoTech always keep eye on clients’ market request, design new and innovative products which help them to expand new business and get better feedback. Till now, Enerna IoTech already had more than 200 different devices, sold to more than 120 countries and regions, and future will be better since many global friends and dealers’ support.
Enerna IoTech is global leader wireless smart wireless/WiFi/GSM/3G/4G/Ethernet automation solutions and independent tools provider, focus on home security smart automation, baby kids elderly healthcare guarder and relative independent testers, remote monitoring and control IoT alarm gateway systems.
Skype: iotech(at)foxmail.com
Whatsapp: 0086-137-2827-9456
Wechat: 13728279456
Packaging & Shipping
1 x RTU5024 GSM remote pump motor relay switch controller 1 x Good Gain Antenna
