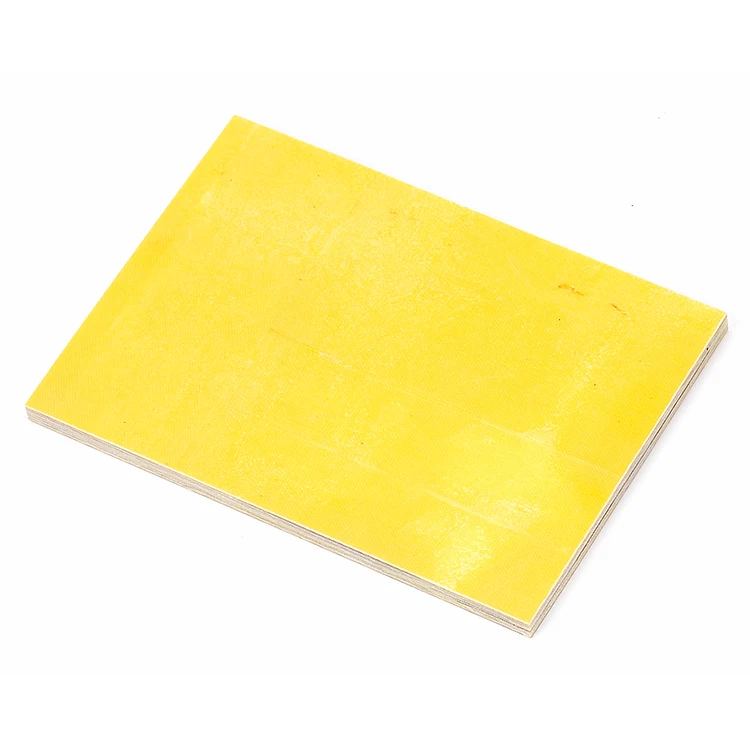

Fiberglass Composite Laminates G10 G11 FR4 3240 yellow epoxy glass fiber sheet
- Category: Electronic Accessories & Supplies >>>
- Supplier: Zhejiang,Haodesheng,Insulation,Material,Co.,Ltd.
Share on:
Product Overview
Description

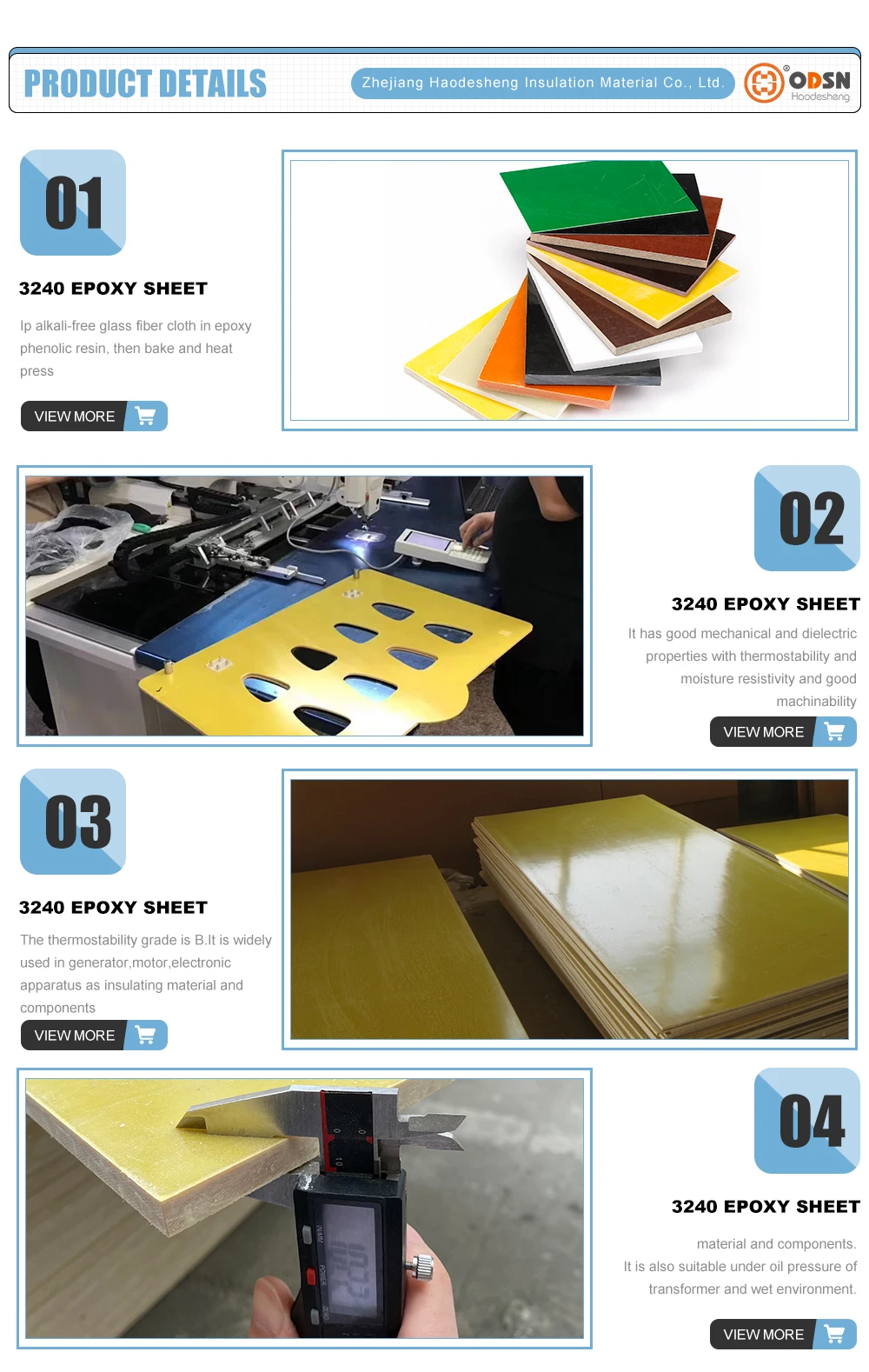

Products Description
3240-A EPOXY GLASS CLOTH LAMINATE SHEET | 3240-A EPOXY GLASS CLOTH LAMINATE SHEET | |||||
Properties | Unit | Grade：3240-A | ||||
Flexural strength perpendicular to laminations (A: under normal conditions E-1/150: 150±5 °C) | ≥ | Mpa | 320 | |||
Impact Strength parallel to laminations (Charpy) | ≥ | KJ/m2 | 33 | |||
Insulation Resistance after immersion in water (D-24/23) | ≥ | Ω | 1.0×108 | |||
Dielectric strength perpendicular to laminations (in 90±2°C transformer oil) | ≥ | MV/m | 14.2 | |||
Breakdown voltage parallel to laminations (in 90±2°C transformer oil) | ≥ | KV | 30 | |||
Water absorption (D-24/23, 1mm in thickness) | ≤ | mg | 18 | |||
Permittivity (1 MHz) | ≤ | — | 5.5 | |||
Dissipation factor (1 MHz) | ≤ | — | 0.04 | |||
Flammability | Class | — | ||||
Density | g/cm3 | (1.9-2) | ||||
Color | — | Natural | ||||

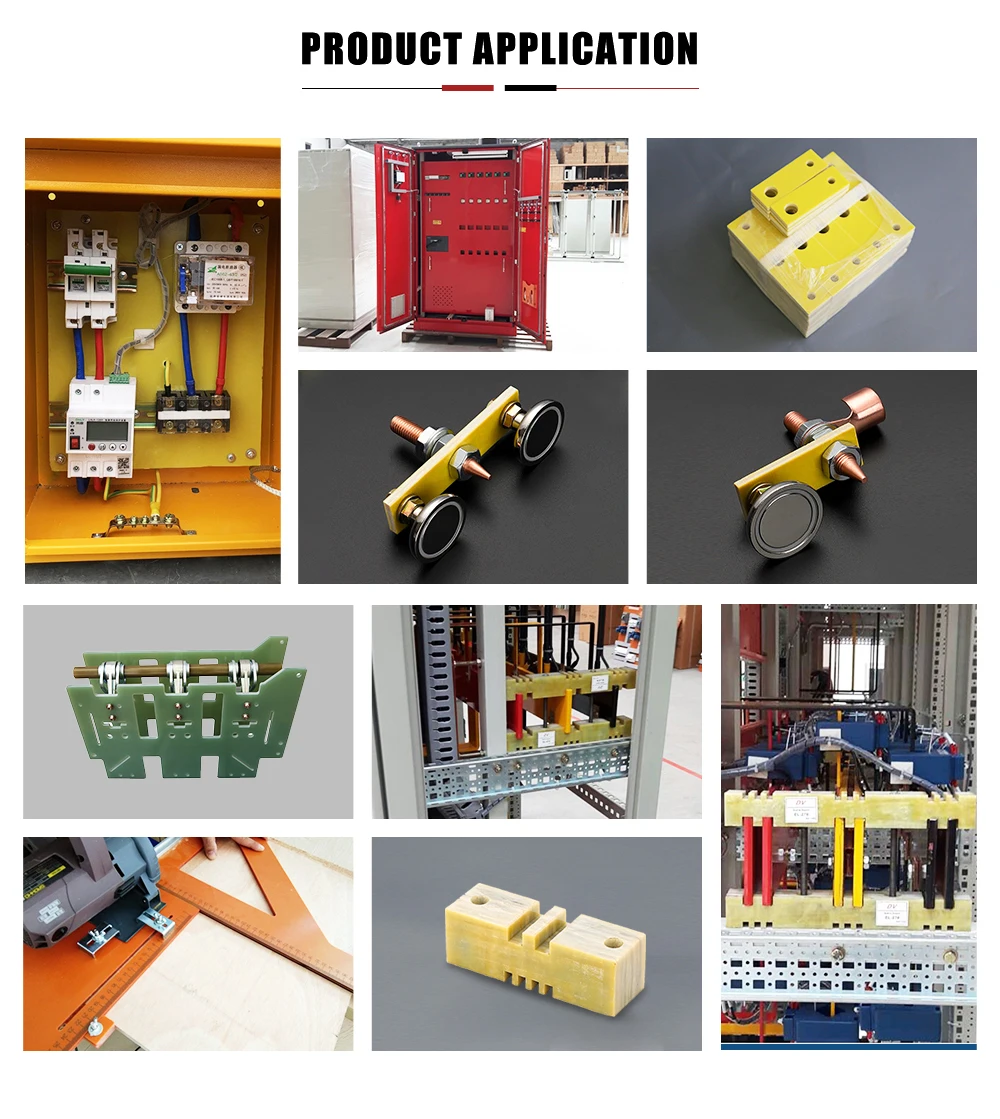

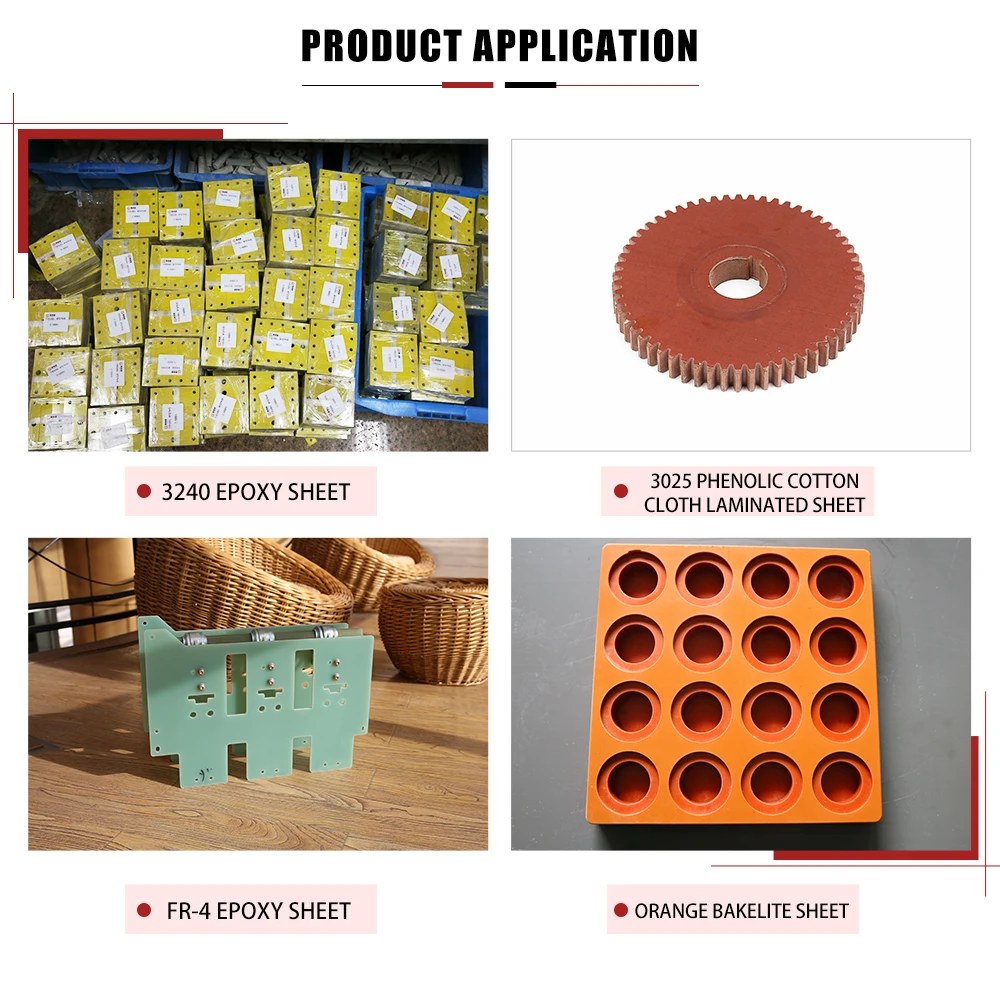

Applications:
Used in mechanical, electrical and electronic insulation structure parts.
Used in Chemical machine parts.
Used in General machines parts and gear, generators, Pads, base, baffle,Generator, transformer, fixture, inverter, motor.

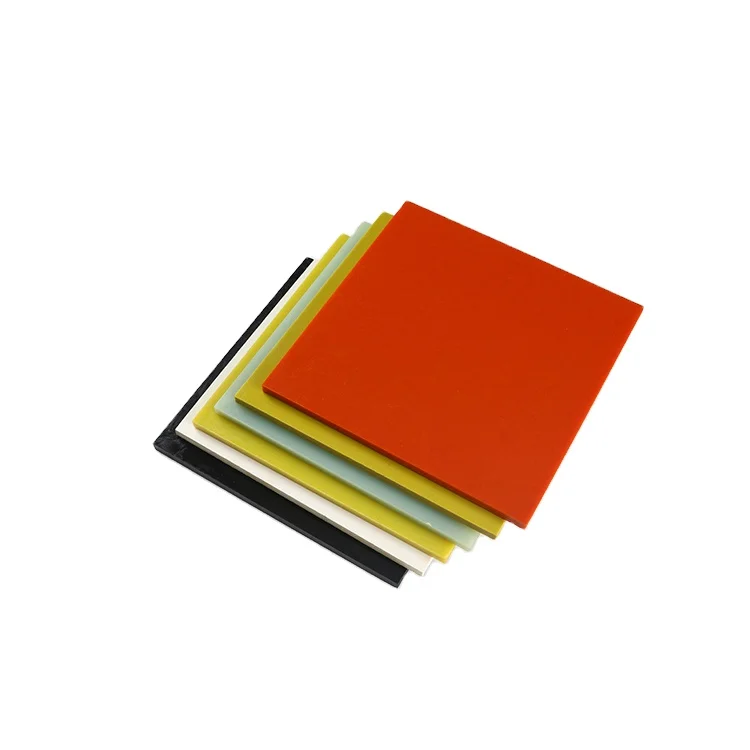

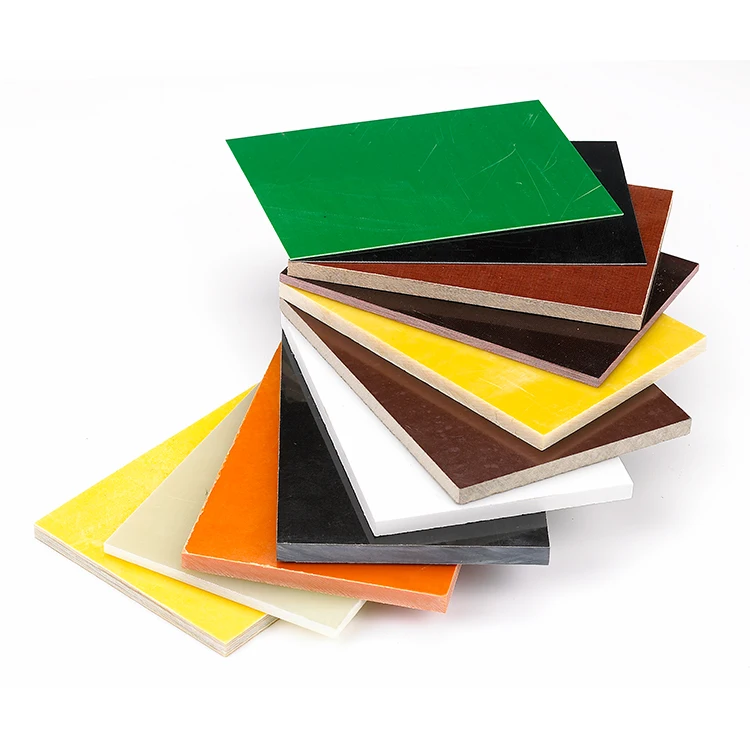

Color:Yellow (Other colors can be customized)
Thickness:0.5-120MM
Size:1020*2020MM,1220*2440MM,1220*1220MM
Density:1.9-2.15 g/cm3
Used in mechanical, electrical and electronic insulation structure parts.
Used in Chemical machine parts.
Used in General machines parts and gear, generators, Pads, base, baffle,Generator, transformer, fixture, inverter, motor.
Color:Yellow (Other colors can be customized)
Thickness:0.5-120MM
Size:1020*2020MM,1220*2440MM,1220*1220MM
Density:1.9-2.15 g/cm3

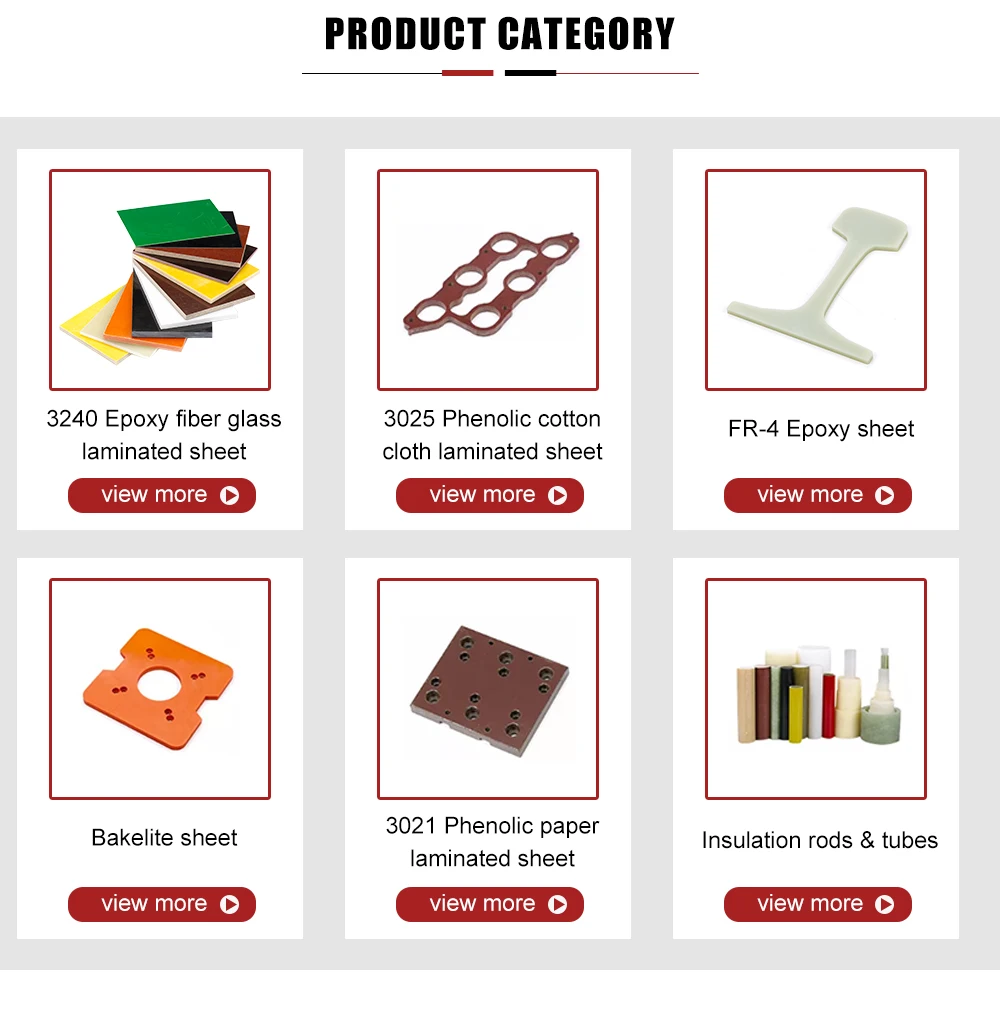

Product Category
Company Profile

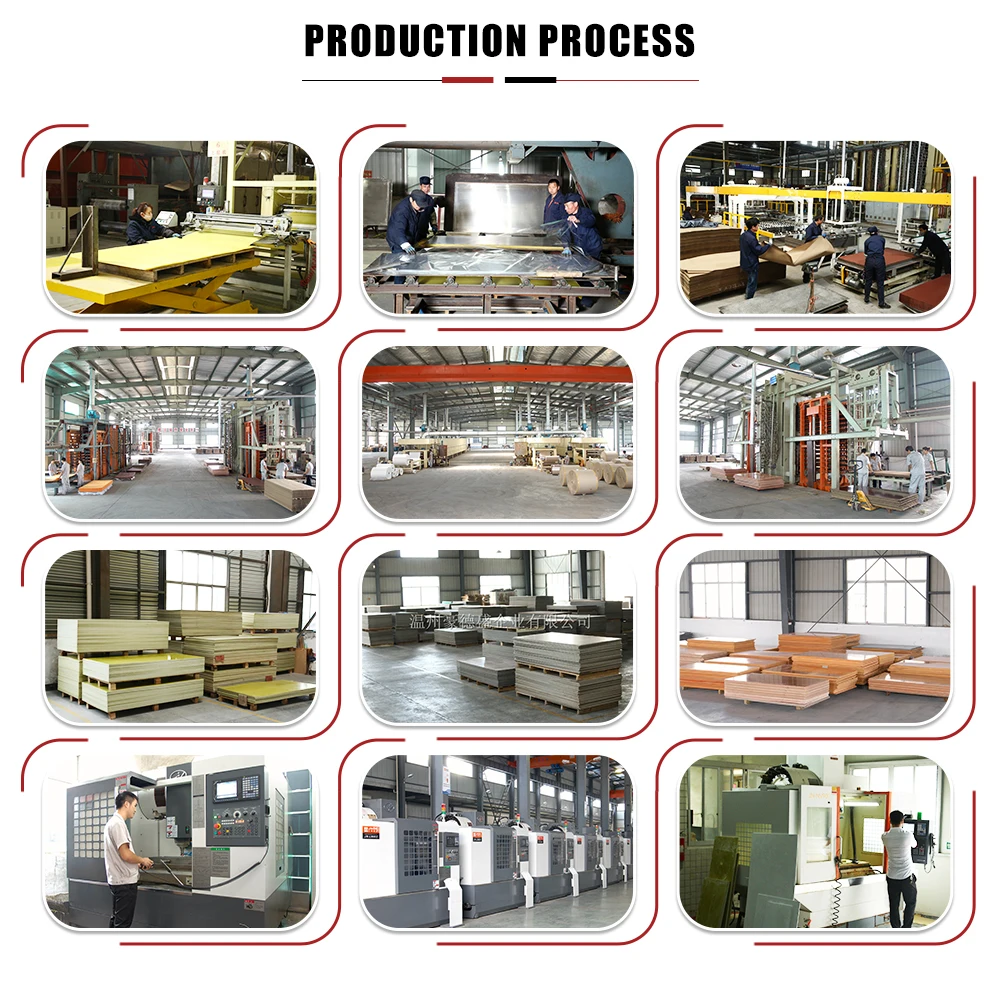

Producton Process
Certificate
FAQ
1.Do you test all your goods before delivery?
Yes, we have 100% test before delivery
3.Are you trading company or manufacturer ?
4.Why choose us?
2.Can you produce according to the samples?
Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
3.Are you trading company or manufacturer ?
We are a manufacturer, We have more than 32 years experience in producing electrical insulation material.
4.Why choose us?
(1) We have adequate can save your time and cut down your cost.
(2) Have many kinds of insulation material to meet your demand.
(3) Also can customized machine according to clients drawing.
(4) Have professional QC team and test tools which can guarantee your quality.
