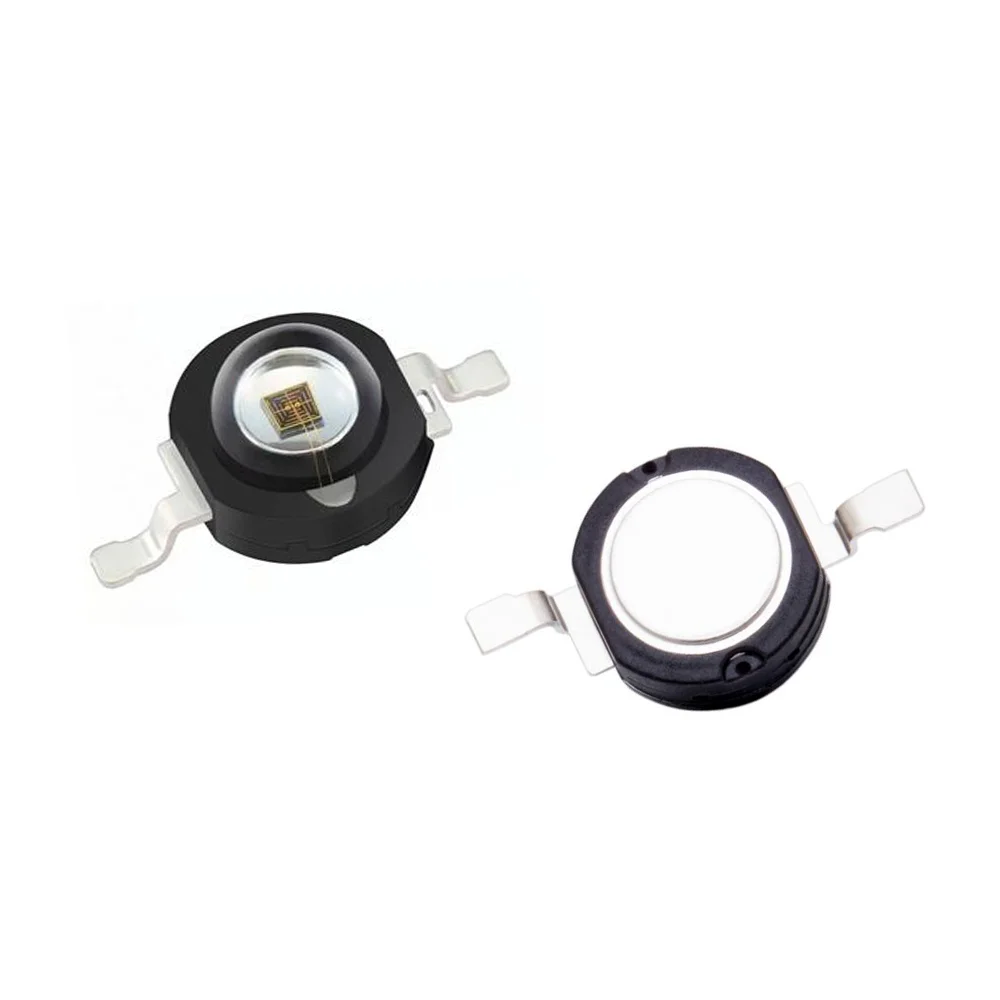

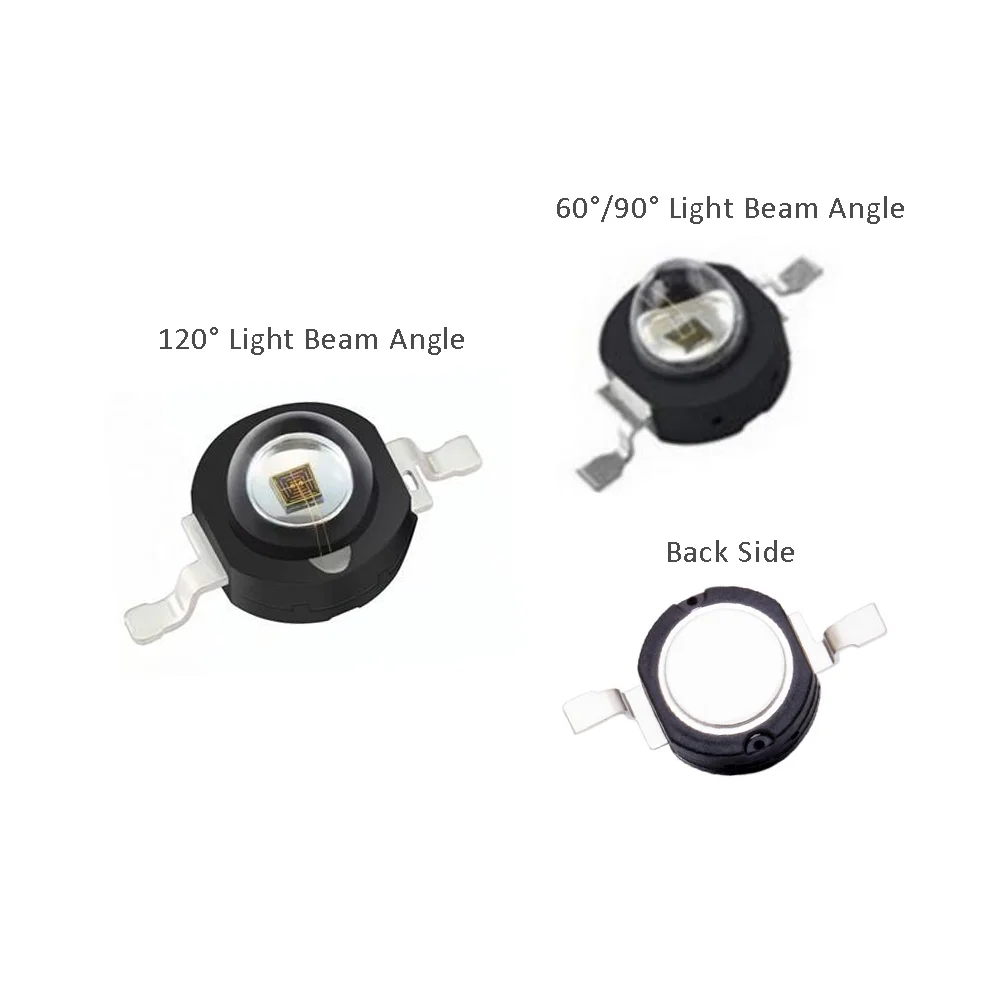

Epistar 42mil Chip High Radiant Power Output Infrared Diode 1W 3W 850nm High Power IR LED

Product Overview

Description

Product Name	1W 3W 850nm High Power IR LED	Product Model	HQS-K2XXXX
Power Dissipation	1W-3W	Light Color	Infrared LED
Forward Voltage	1.8-2.4V	Viewing Angle	120°
Forward Current	350-1000mA	Operating Temperature	-40~+60 ℃
Radiant Flux	600-1200mW	Storage Temperature	-40~+85 ℃
Wavelength	850nm	Soldering Temperature	220℃





High Power LED SERIES SPECIFICATION
Product Name	Light Color	CCT/Wavelength	Voltage	Current	Lumen	Remark
1-3W High Power LED	Gold Yellow	2000-2200K	2.8-3.6V	350-700mA	120-260LM	CRI70,80,90
1-3W High Power LED	White	3000-15000K	2.8-3.6V	350-700mA	120-320LM	CRI70,80,90,95+
High Power UV LED	UV	365-370nm	3.0-3.6V	350-700mA	/	Epileds Chip 370-380-390-400-410-420nm
High Power UV LED	UV	370-420nm	3.0-3.6V	350-700mA	/
High Power Blue LED	Blue	440-470nm	3.0-3.6V	350-700mA	10-30LM	440-450-460-470nm
High Power Green LED	Green	500-530nm	3.0-3.6V	350-700mA	80-200LM	Epileds Chip
High Power Yellow LED	Yellow	590-595nm	2.0-2.6V	350-700mA	40-90LM	Epileds Chip
High Power Amber LED	Amber	600-610nm	2.0-2.6V	350-700mA	50-90LM	Epileds Chip
High Power Red LED	Red	620-630nm	2.0-2.6V	350-700mA	40-100LM	Epileds Chip
High Power Far Red	Far Red	660-665nm	2.0-2.6V	350-700mA	30-60LM	Epileds Chip
High Power IR LED	IR	730-750nm	2.0-2.6V	350-700mA	/	Epileds Chip
High Power IR LED	IR	850nm	1.6-2.0V	350-700mA	/	Epileds Chip
High Power IR LED	IR	930-940nm	1.6-1.8V	350-700mA	/	Epileds Chip
6 PINS RGB LED	RGB	R:620-630nm, 2.0-2.6V, 350mA, 30-100LM, 30mil/35mil/42mil Chip G:520-530nm, 3.0-3.6V, 350mA, 60-160LM, 30mil/35mil/45mil Chip B: 460-470nm, 3.0-3.6V, 350mA, 10-30LM, 30mil/35mil/45mil
8 PINS RGBW LED	RGBW	R:620-630nm, 2.0-2.6V, 350mA, 30-100LM, 30mil/35mil/42mil Chip G:520-530nm, 3.0-3.6V, 350mA, 60-160LM, 30mil/35mil/45mil Chip B: 460-470nm, 3.0-3.6V, 350mA, 10-30LM, 30mil/35mil/45mil W: 3000-7000K, 3.0-3.6V, 350mA, 70-150LM, 30mil/35mil/38mil/45mil
10 PINS RGBWA LED	RGBWA	R:620-630nm, 2.0-2.6V, 350mA, 30-100LM, 30mil/35mil/42mil Chip G:520-530nm, 3.0-3.6V, 350mA, 60-160LM, 30mil/35mil/45mil Chip B: 460-470nm, 3.0-3.6V, 350mA, 10-30LM, 30mil/35mil/45mil W: 3000-7000K, 3.0-3.6V, 350mA, 70-150LM, 30mil/35mil/38mil/45mil A: 590-595nm, 2.0-2.6V, 350mA, 40-70LM, 30mil/42mil





Product Features:

High Radiant Power max to 5000mW, High Light Intensity

IR Wavelength Range: 660nm,710nm,730nm, 740nm,760nm,780nm, 800nm,810nm, 830nm,850nm, 880nm, 910nm, 940nm, 980nm..

Molding Encapsulation Technology, 30 degree, 60 degree, 90 degree, 120 degreen light beam angle...

Lower Light Decay less than 1% after 10000hrs

IEC62778, EN62471, RoHS, LM-80 certificate

Application: Light Medical Beauty, TOF Radar & Ranging, Security Monitor, Infrared Camera,

Remote Controller, IRIS Recognition, Unmanned, Industrial Inspection...



The accurate application for different wavelength

730nm: For Plant Growing Lighting...

800-810nm: For Medical Beauty Equipment, Space Optical Communication, Infrared Lighting...

830nm: For ETC System...(best night vision effect)

840nm: Special for Camera Changes Color to Double Infrared Waterproof.

850nm: For Camera Digital Photography & Monitoring, Apartment Building Intercom, ATA...

870nm: For Mall Camera, Intersection Camera...

900nm: For Detecting Instrument to Detect the Body Blood Glucose and PCO...

940nm: For Remote Control, Position Lock...

>1000nm: For Detecting Instrument to Detect the Body of Alcohol, Fiber, Carbon Monoxide, Carbon Dioxide...







Shenzhen HuaQiSheng Technology CO., LTD has delivered the best quality LED components to different lighting application for clients under our strong technological support, professional management system and perfect & stable supply clain system. Our LEDs (SMD LED, High Power LED, COB LED---Wavelength range: 275nm-980nm) apply to Plant Growing Lighting, Studio Lights, Beauty & Manicure, UVA Sterilization & Disinfection, UV Curing, Exposing, Stage Light, Infrared Sensor, Night Camera and Landscape Lighting and so on.

We got unparalleled customer trust level around the domestic and overseas marketing for over years. 12 Years' LED experience, thank you very much for the attention and support.

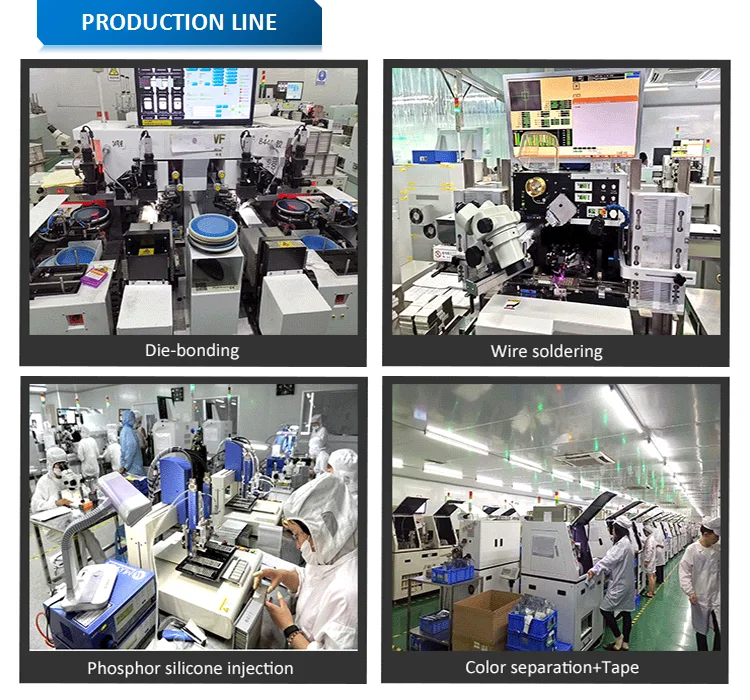

HuaQiSheng, with 30 fully automatic production line, which can produce 10kk pcs SMD LED per day. And we has one of the most experienced R & D team in the world, by focusing on technological innovation.

HQS offer the LED products to our lighting designers and tell their stories through light...
