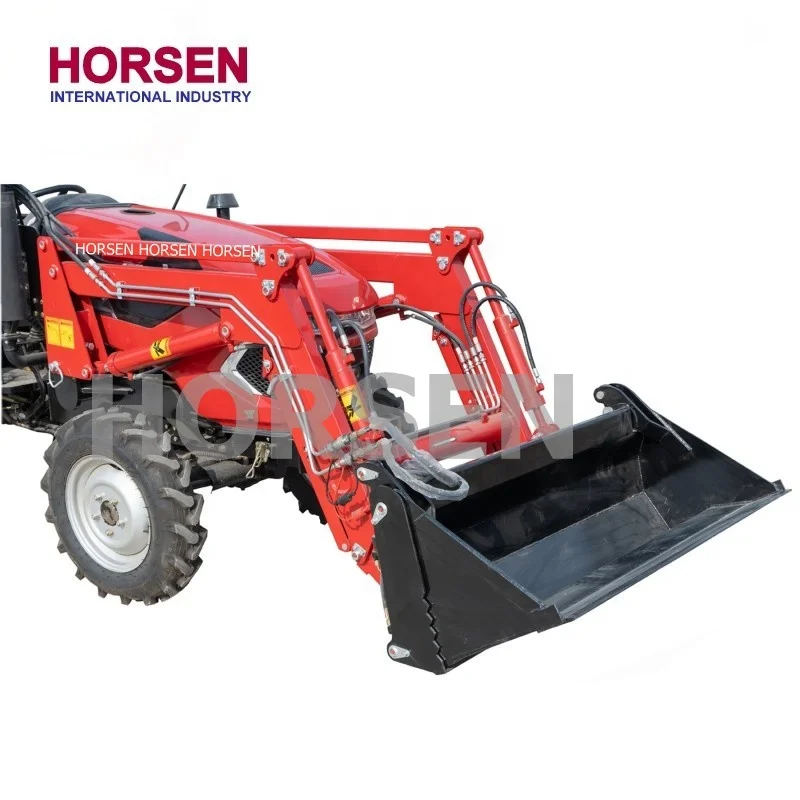

HORSEN CHINA 40hp 45hp 454, компактный сельскохозяйственный трактор 4wd с 4 в 1, продажа фронтального погрузчика и экскаватора погрузчика
- Category: Tractors >>>
- Supplier: SHANDONG,HORSEN,INTERNATIONAL,INDUSTRY,CO.,LTD
Share on:
Product Overview
Description
HORSEN 454
Tiger 35-55 series
HOT SALE technical features:
- Adopt famous 4-cylinderDIESEL ENGINE powerful, fuel-efficient and energy conservation;
- 8+8 transmission, which can realize more shifts switch, able to meet different operation speeds requirements;
- Position mix controlled hydraulic system, OPTIONAL enlarge tractor lifting force, able to meet marching with large implements requirements;
- OPTIONAL Air-conditioning cabin, increased manipulation comfort.
| Main parameters | |
| Type | 454 |
| Drive type | 4×4 four-wheel drive |
| Engine | |
| Engine Brand | LD |
| Engine Type | 490 4 cylinder, water-cooling, In-line, Direct Injection |
| Fuel tank capacity L | 35 |
| Rating power of engine KW/RPM | 33.1/2400 |
| Fuel consumption @ nominal power (g/kw.h) | contact HORSEN |
| Air Intake Type | Naturally Aspirated |
| Displacement L | contact horsen- |
| Air filter type/size | oil bath or dry |
| Torque reserve | contact horsen |
| Transmission system | |
| Clutch type/size | One-piece,dry,double-action |
| No. of gears (F+R) | 8F+2R/8F+8R |
| Shift method | mechanical sliding sleeve |
| Max. speed | contact Horsen |
| Gear position | central /side position |
| Hydraulic system | |
| Hydraulic output flow rate (L / MIN) | contact Horsen |
| Hydraulic output valve | 1/2 |
| Hydraulic filter types and capacity | contact HORSEN |
| Working device | |
| Three-point-linkage | Three-point suspension type 1 |
| PTO Speed | 540/760 |
| Lifting Capacity (kn) | Maximum lifting force at 610mm(KN) ≥8 |
| Tillage depth adjustment | position,float,draft,draft mix control |
| Parameter | |
| The whole machine size (dimensions) mm | 3350×1500 ×2130 |
| Min. operation mass | 1600 |
| Wheel base (mm) | 1800 |
| Mini turning Radius (m) | Unilateral braking 2.3 m Not Unilateral braking 3m |
| Rated traction force(KN) | ≥9 |
| Minimum ground clearance (mm) | 360 |
| Air conditioning cab | Optional |
| Front/rear wheel tread | common1200 |
| tyre size | 6.0-16/9.5-24 6.5-16/11.2-24 |
| Braking and steering | |
| Braking system | hydrostaticpedal control,disc brake, |
| Steering type | hydraulic steering |
| Steering Angle (4 x4) | Front axle Max.Steering angle 45° |
(options: all these types can Optional for swing drawbar, front/rear ballast,for more contact HORSEN) This parameter table is for reference only, everything is based on actual products | |
ABOUT HORSEN INTERNATIONAL INDUSTRY
Shandong Horsen international industry co.,ltd . is a professional tractors and other agricultural machinery manufacturer integrating design,manufacturing ,sales and service. Horsen products cover 25hp to 300hp tractor, tractor implements,combine harvesters , agricultural machinery, farm machinery,forest machinery, garden machinery Horsen as a professional machinery equipment manufacturer in China, Horsen has committed itself to provide all-round solutions to global modern agricultural mechanization. Horsen has integrating high-end products and technologies resources around the world by upgrading of technologies, quality , service and bring forth new idea to creative innovative products as to improve reputation and market share of HORSEN in the world step by step.
After-sales service polices:
- HORSEN tractor is offered 14 months of warranty period of the tractor, which shall start from the 3 month as the shipment date.
- HORSEN will offer free service parts in warranty period, and there is no charge for related work hours and indirect expenses.
- Service training
There are over 70 dealers and service channels covering all the market area. We take "satisfy the customers" as our target, provide "3 Full" (Full course, Full time, Full hearted) service.
