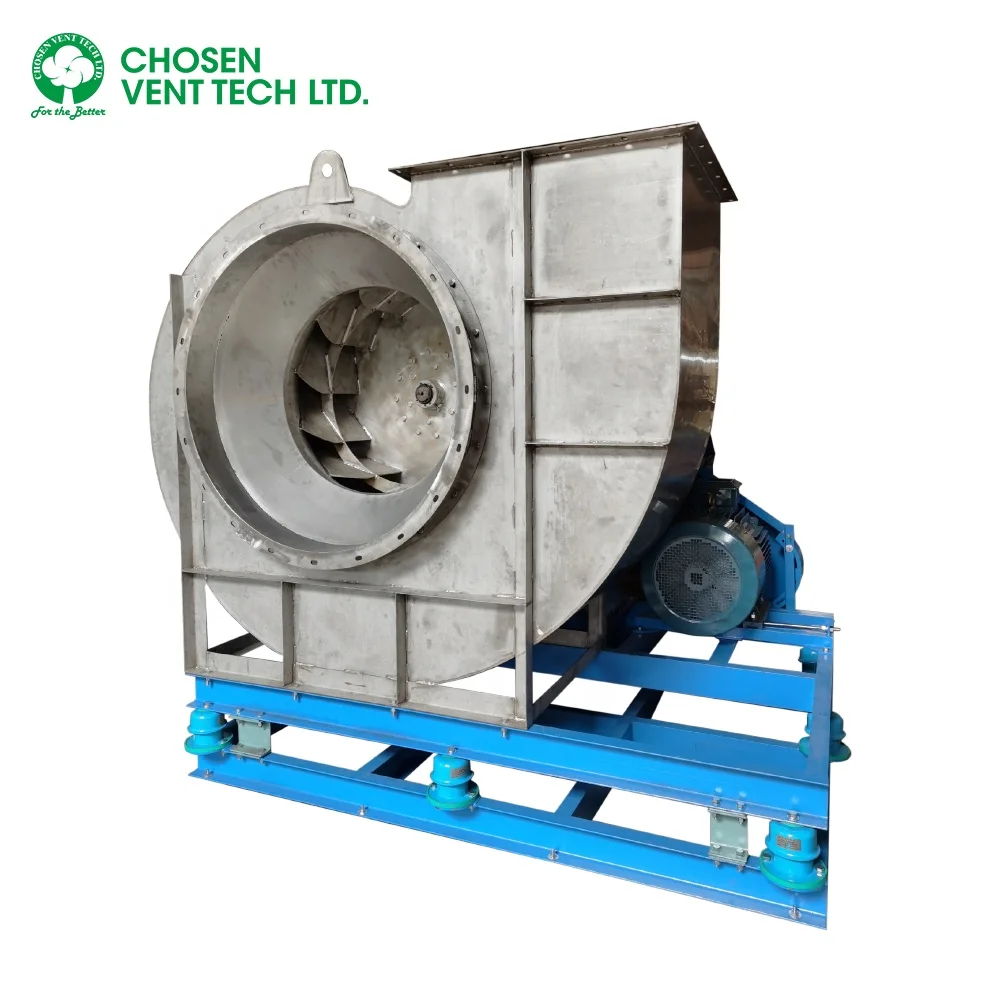

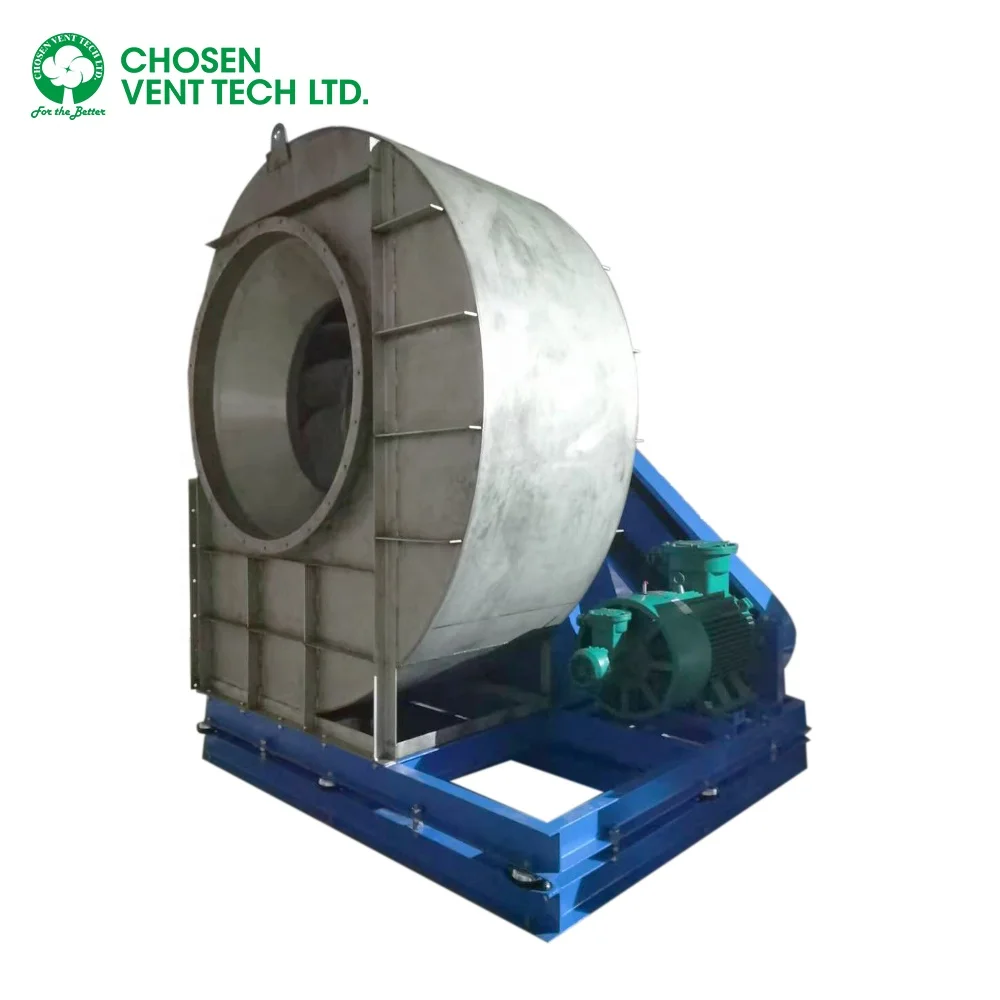

900mm stainless steel heavy duty high pressure extractor fans industrial

Product Overview

Description



 Advantages



· The Fan with Compact structure.
· The impeller will do by dynamic balancing tests. It greatly improves the stability of the impeller operation, and reduces the vibration and noise.
· The Fan with advantages of small volume, light weight, angle adjustable and convenient for installation and maintenance.
· Transportation gas temperature at -20℃ ~ 300℃.
· The fan performance be test by airway or AMCA both available, the fan performance data is truth and reliable.
· Fan Material is optional according to your need.
· Customzation is acceptable.



Backward Centrifugal Fan - SWSI - BSW
Item	Speed	Air flow	Total pressure	Power
	rpm	m³/h	Pa	Kw
CBS280-C	2900	1177-3709	1133-317	1.5
CBS315-C	2900	1734-5463	1611-451	2.2
	2200	1271-4006	825-231	1.1
	1450	838-2640	376-105	1.1
CBS355-C	2900	2399-7559	1821-509	3
	2400	1985-6256	1247-349	2.2
	1900	1572-4952	782-219	1.1
	1450	1199-3779	455-127	1.1
CBS400-C	2900	3432-10813	2312-647	5.5
	2400	2840-8949	1583-443	4
	1900	2248-7084	992-278	2.2
	1450	1716-5407	578-162	1.1
CBS450-C	2900	4886-15396	2870-818	7.5
	2400	4044-12742	1966-561	5.5
	1900	3201-10087	1232-351	3
	1450	2443-7698	718-205	1.1
CBS500-C	2900	6702-21119	3721-1061	15
	2400	5547-17478	2548-727	11
	1900	4391-13837	1597-455	5.5
	1450	3351-10560	930-265	2.2
CBS560-C	2240	7273-22918	2785-794	15
	1450	4708-14836	1167-333	3
	1250	4059-12789	867-247	2.2
	960	3117-9822	511-146	1.5
CBS630-C	2240	10356-32632	3524-1005	18.5
	2000	9247-29136	2810-801	15
	1800	8322-26222	2276-649	11
	1600	7397-23309	1712-488	7.5
	1400	6704-21123	1477-421	7.5
	1250	5779-18210	1097-313	3
	1120	5178-16316	881-251	2.2
	960	4438-13985	647-185	1.5
CBS710-C	1950	12904-40661	3392-967	22
	1800	11912-37534	3028-863	18.5
	1600	10588-33363	2393-682	11
	1440	9596-30235	1929-550	7.5
	1250	8272-26065	1394-397	7.5
	1120	7412-23354	1119-319	5.5
	1000	6618-20852	892-254	4
	960	6353-20018	783-223	3
CBS800-C	1800	17040-53693	3495-996	30
	1600	15147-47727	2899-827	22
	1440	13632-42954	2349-670	18.5
	1250	11833-37287	1753-500	11
	1120	10603-33409	1353-386	7.5
	960	9088-28636	1044-298	7.5
	800	7573-23863	718-205	3
	710	6721-9626	571-554	2.2
		11551-21179	545-163	3
CBS900-C	1440	19410-61159	3001-888	30
	1250	16849-53090	2261-669	22
	1120	15096-47568	1815-537	18.5
	1000	13479-42472	1447-428	15
	900	12131-38225	1172-347	11
	800	10783-33977	926-274	7.5
	710	9570-30155	729-216	5.5
	630	8492-26757	574-170	4
CBS1000-C	1250	23112-72826	2791-826	37
	1120	20708-65252	2241-663	30
	1000	18490-58260	1787-529	18.5
	900	16641-52434	1447-428	15
	800	14792-46608	1143-348	11
	710	13128-41365	901-274	7.5
	630	11648-36704	709-216	5.5
	560	10354-32626	560-171	4
CBS1120-C	1120	29094-91674	2811-832	55
	1000	25977-81852	2241-663	45
	900	23379-73667	1815-537	30
	800	20781-65481	1434-424	22
	710	18443-58115	1130-334	18.5
	630	16365-51567	889-263	15
	560	14547-45837	703-208	11
	500	12988-40926	560-166	7.5
CBS1250-C	1120	40446-127445	3502-1036	75
	1000	36112-113790	2791-826	55
	900	32501-102411	2261-669	45
	800	28890-91032	1787-529	37
	710	25640-80791	1407-416	22
	630	22751-71688	1108-328	18.5
	560	20223-63722	875-259	11
	500	18056-56895	698-206	7.5
CBS1400-C	1000	50735-159867	3502-1036	110
	900	45662-143880	2836-839	110
	800	40588-127893	2241-663	75
	710	36022-113505	1765-522	45
	630	31963-100716	1390-411	30
	560	28412-89525	1098-325	18.5
	500	25368-79933	875-259	15
	450	22831-71940	709-210	11
Click here to view more models.





 Applications



· For building ventilation system, air-conditioning(HVAC), purification equipment and High-temperture system.
· For equipments or system of filtration & drying, fume hood & spray booth, paiting room, food processing , kitchen room and so on.
