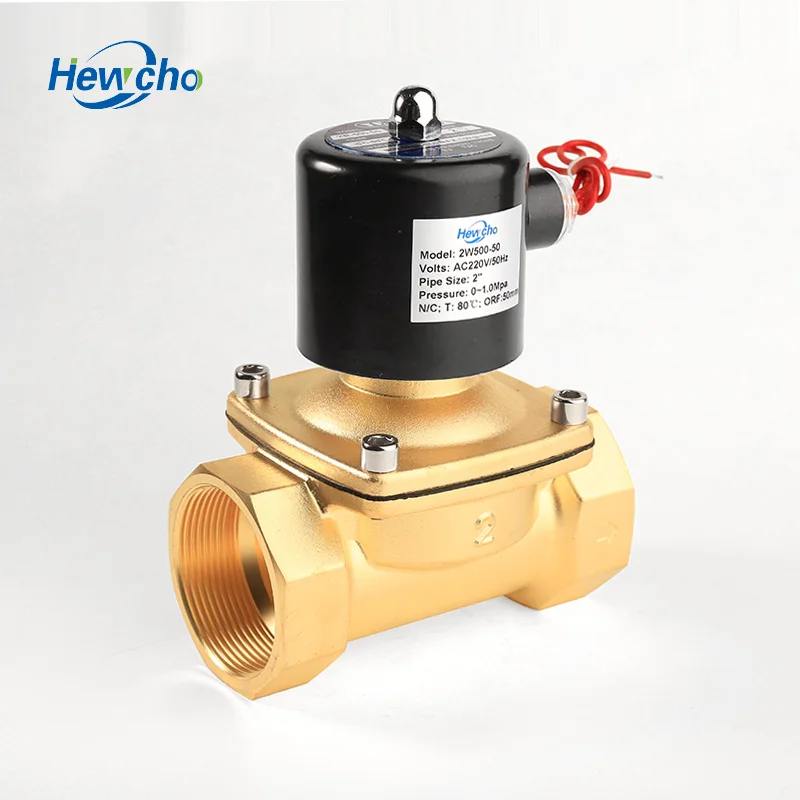

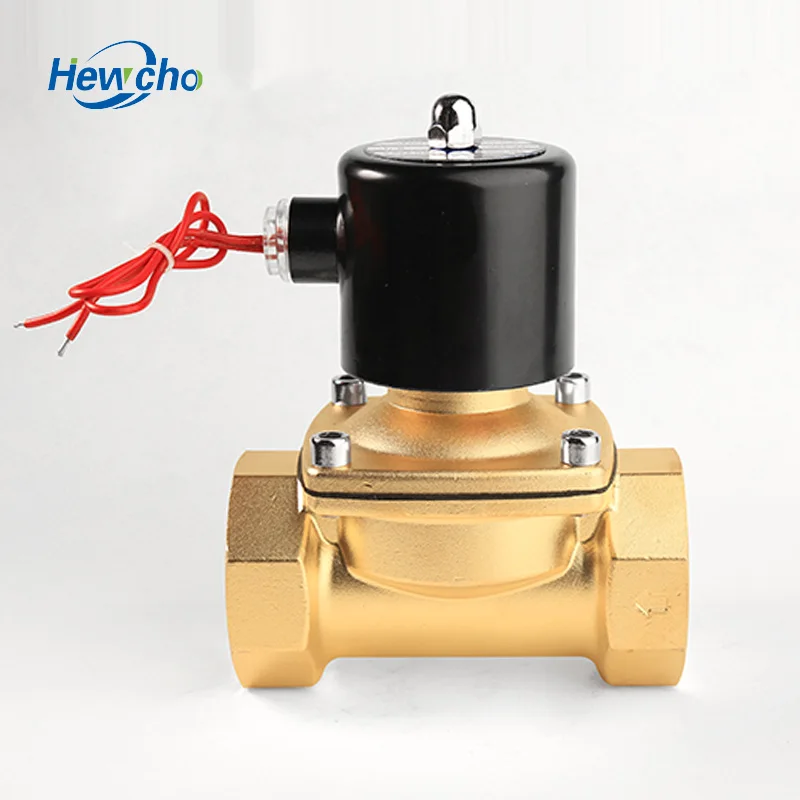

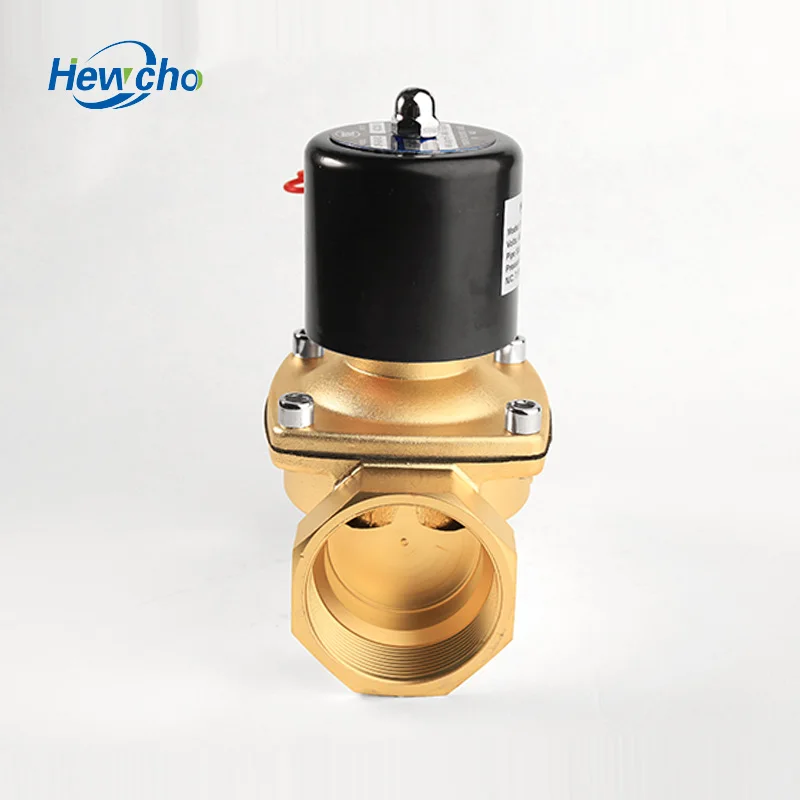

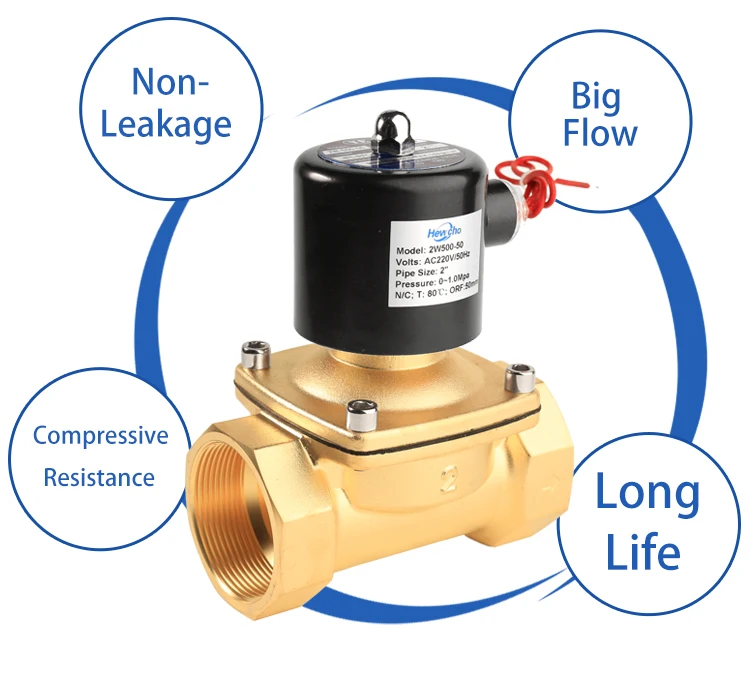

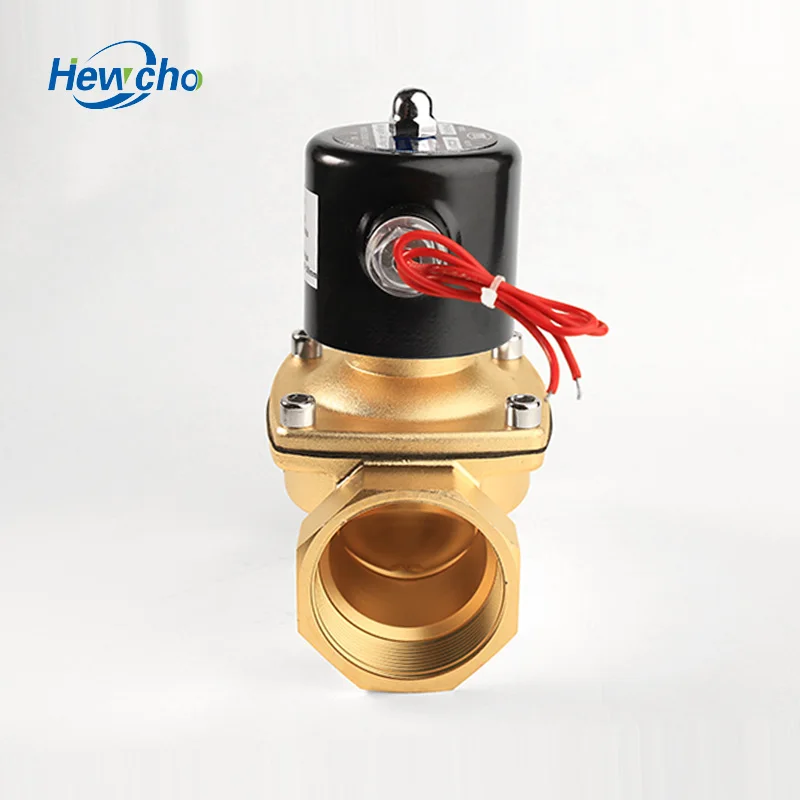

2W Series Brass Gas Solenoid Valve diaphragm solenoid valve
Product Description
Item Number | 2W500-50 | Pressure | 0-1.0Mpa |
Valve Material | Brass | Temperature | -5-80℃ |
Coil Material | Copper | Voltage | AC220V, AC110V(50Hz/60Hz), DC12V, DC24V |
Type | Normally Closed | Sealing | NBR/EPDM/FKM |

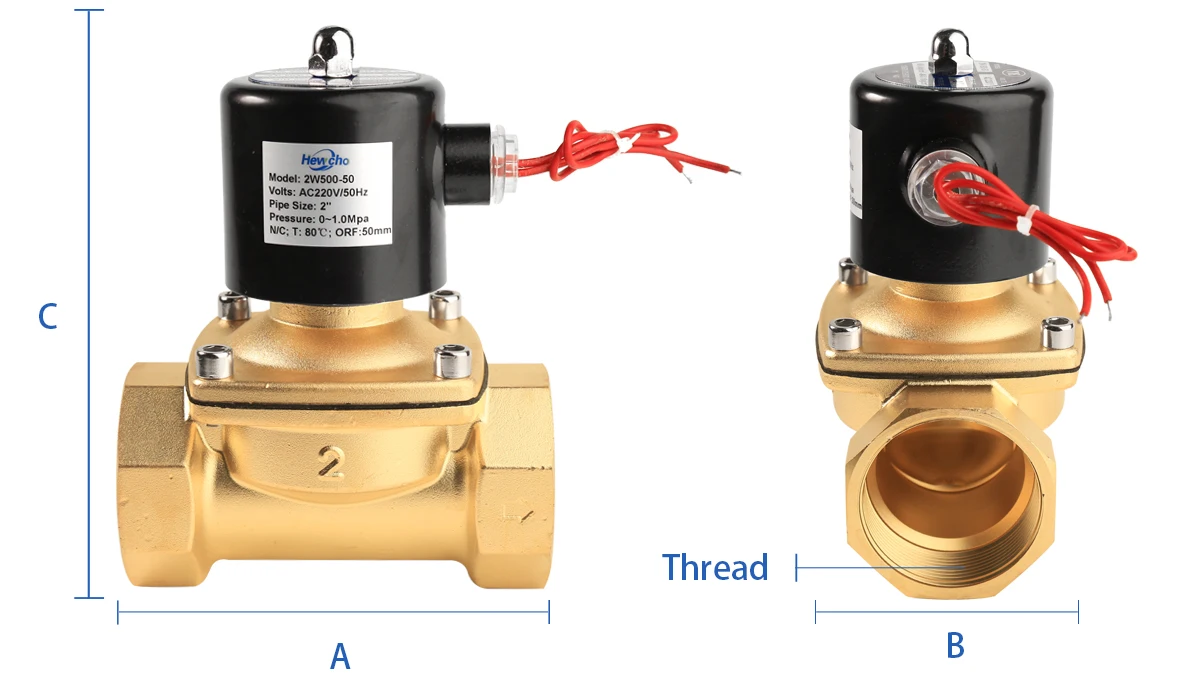

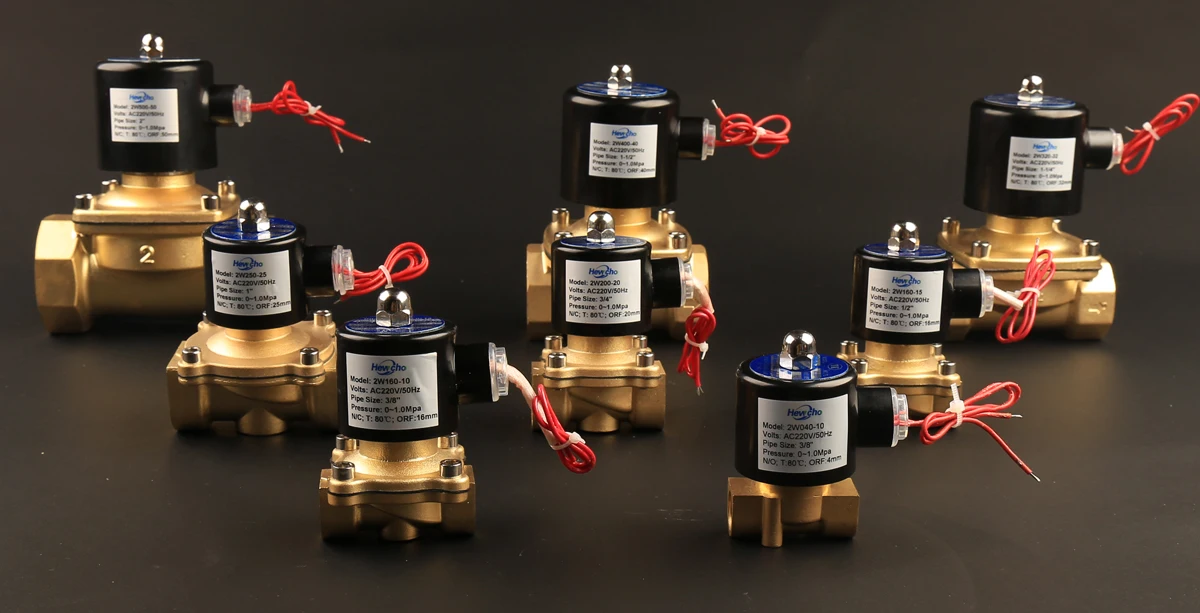

Solenoid Valve Size Chart(mm) | ||||||||||||||
Valve NO. | Orifice | CV | A | B | C | Thread | Weight(kg) | |||||||
2W160-10 | 10 | 4.8 | 69 | 52 | 112 | 3/8" | 0.78 | |||||||
2W160-15 | 15 | 4.8 | 69 | 52 | 112 | 1/2" | 0.75 | |||||||
2W200-20 | 20 | 7.6 | 73 | 57 | 117 | 3/4" | 0.85 | |||||||
2W250-25 | 25 | 12 | 98 | 77 | 122 | 1" | 1.2 | |||||||
2W350-35 | 35 | 24 | 111 | 86 | 155 | 1 1/4" | 2.0 | |||||||
2W400-40 | 40 | 29 | 120 | 94 | 165 | 1 1/2" | 2.2 | |||||||
2W500-50 | 50 | 48 | 163 | 112 | 190 | 2" | 3.8 | |||||||
Company Profile
Why Choose Us
Certifications

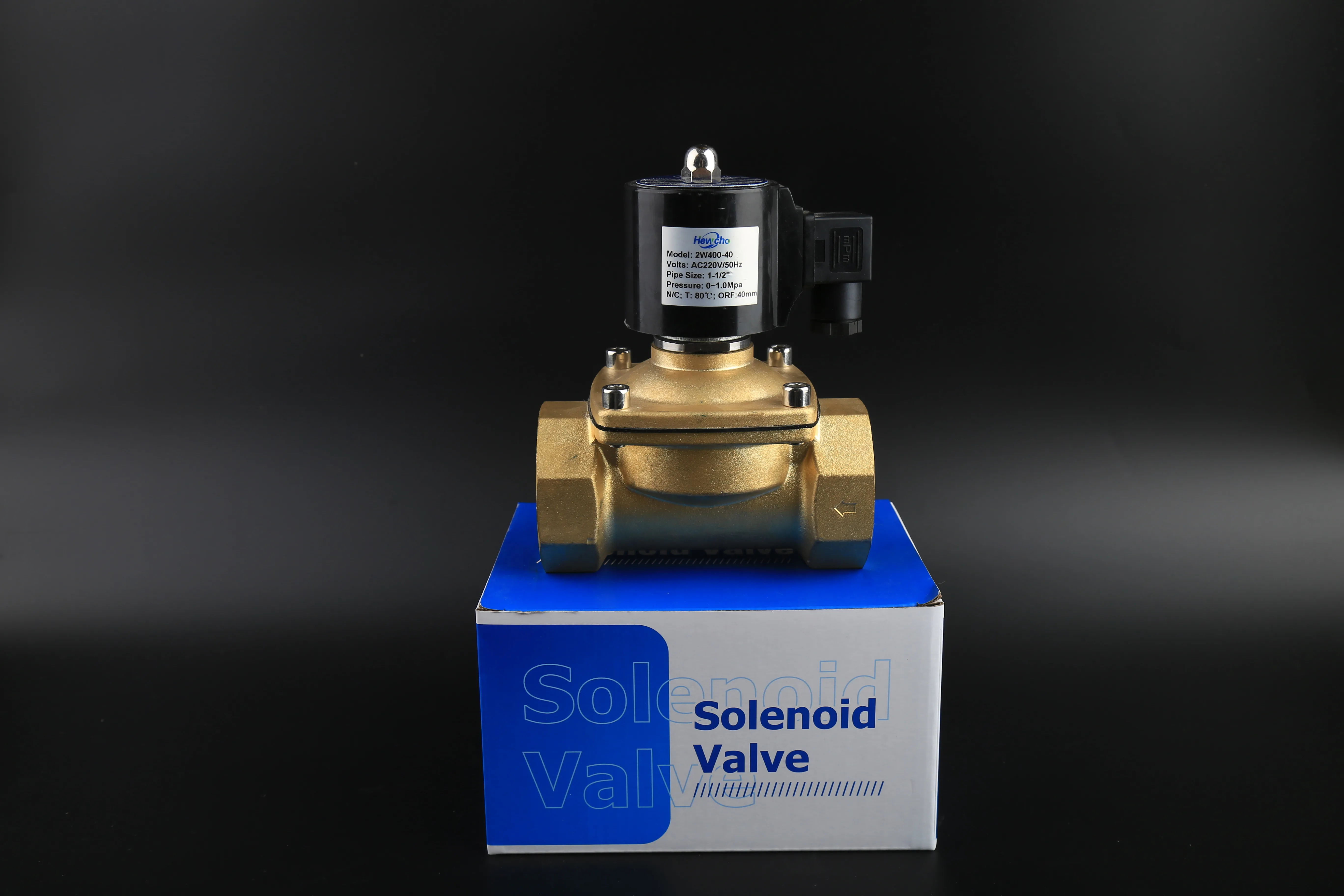

Packing & Delivery
