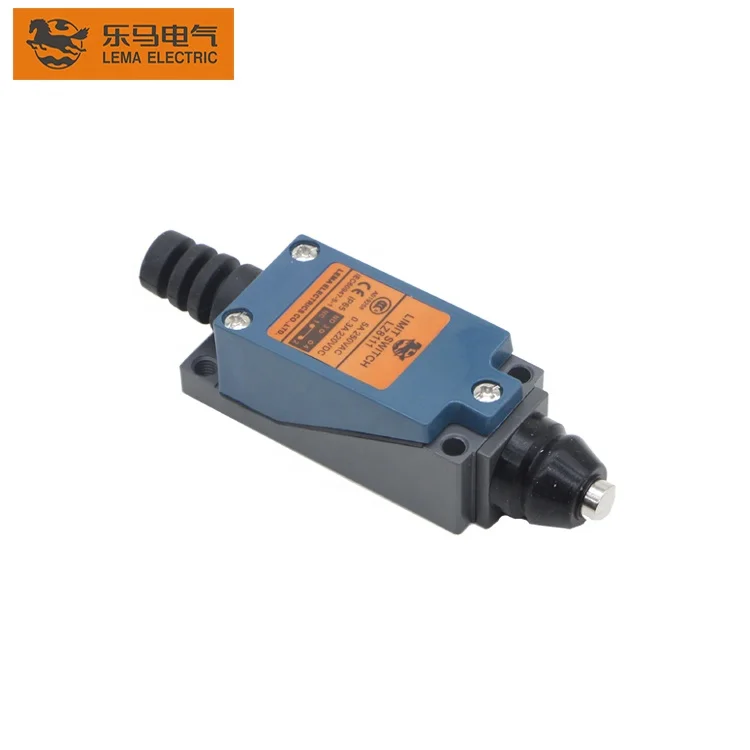

LZ8111 ME/AZ8111 Push Plunger Auto reset Cabinet Limit Switch
LZ8111 ME/AZ8111 Push Plunger Auto-reset Cabinet Limit Switch
LZ8111 ME/AZ8111 Push Plunger Auto-reset Cabinet Limit Switch
LZ8111 ME/AZ8111 Push Plunger Auto-reset Cabinet Limit Switch
LZ8111 ME/AZ8111 Push Plunger Auto-reset Cabinet Limit Switch

LZ8111 ME/AZ8111 Push Plunger Auto reset Cabinet Limit Switch

Share on:


Price:
Price in USD:Details

Quantity:


Product Overview

Description



Product Description



Lema LZ8166 Flexible Rod 5A Cabinet Door Limit Switch for Machine


























































BrandsLEMA
ModelLZ8111
Voltage250/125 VAC
Electric current5 A
Protection levelIp64
PackageCARTON
Size

29*25*97.5mm


CertificateCCC CE
























































Operating speed0.5mm-50cm/sec
Operating frequencyMechanical:120 times/min
Electrical:30 times/min
Initial insulation resistance100MΩmin.(at 500VDC)
Initial contact resistance25MΩmax.
Dielectric
strength		Between non-consecutive
terminals		1,000Vrms, 50/60Hz for 1 min
Between non-current carrying
metal parts and each terminal		1,500Vrms, 50/60Hz for 1 min
Between ground and each
terminal		1,500Vrms, 50/60Hz for 1 min
Vibration resistance10-55Hz,1.5mm double amplitude
Shock resistanceMechanical durable: 1000m/s2max.
Malfunction: 300m/s2max.
Operating
life		Mechanical life10,000,000 operations min.
Electrical life500,000  operations min.









































About Us










Certifications


LZ8





Transport







FAQ































1. How do you control the products’ quality?


100% Auto inspection machine and manual testing together before packing.



2. What's your payment term?
We usually accept T/T.


Samples cost can be paid by PayPal, Western Union.


3. Would you accept to use our logo?
If you have good quantity, we can make OEM and ODM, customized specification.
4. Can I get a sample for reference?
We are glad to send samples for your testing. Samples are free, but you may need to pay the express cost.
5. What is your delivery time?
Usually it takes 15-20 working days for productions.
