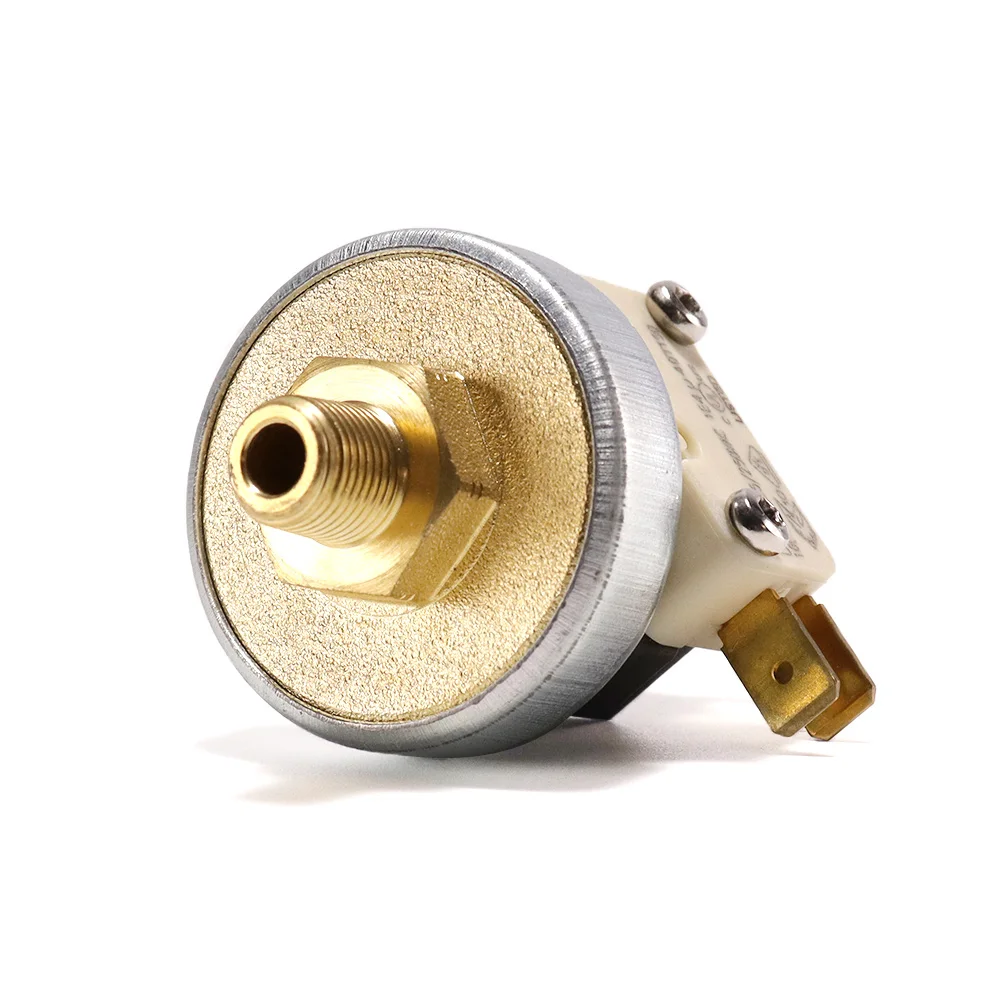

Мини Отпариватель LEFOO LF25 1/8 1/4, переключатель контроля давления дифференциального пара
- Category: >>>
- Supplier: Zhejiang Lefoo Controls Co. Ltd.
Share on (1600237250581):
Product Overview
Description
Product Specification

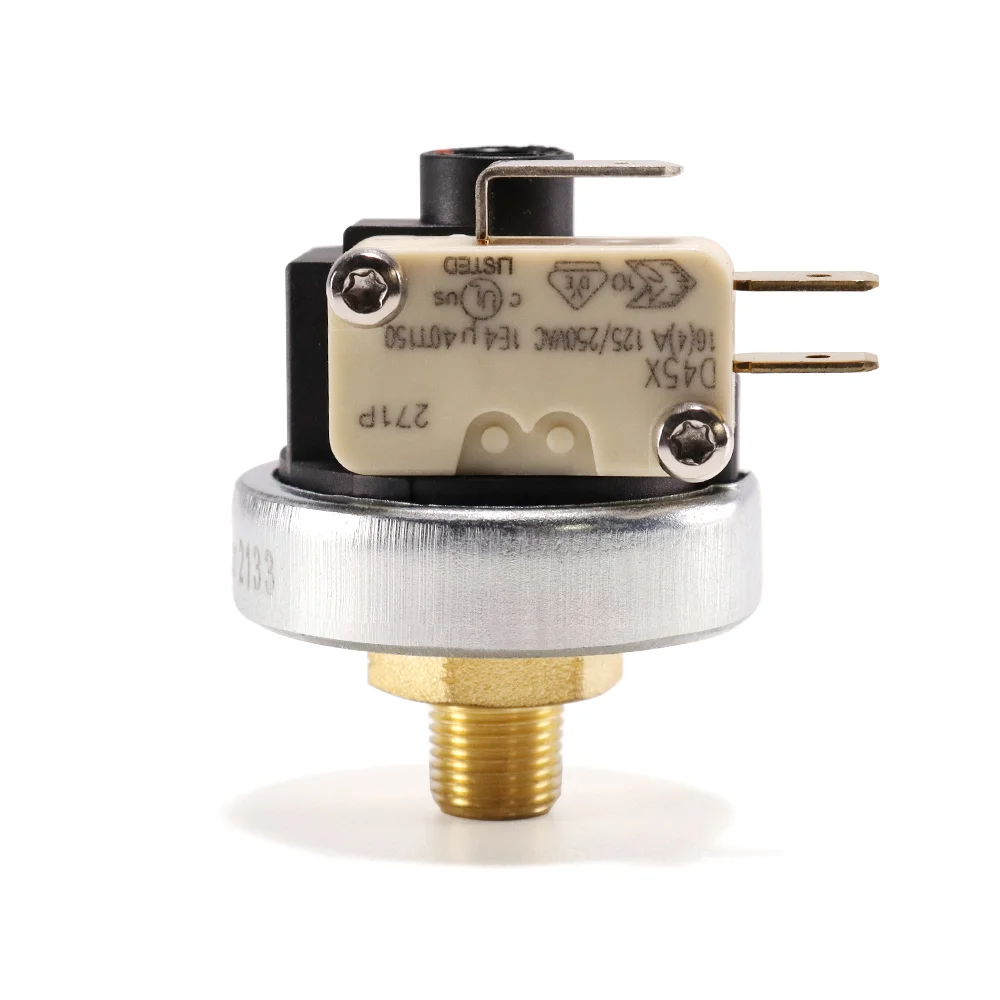

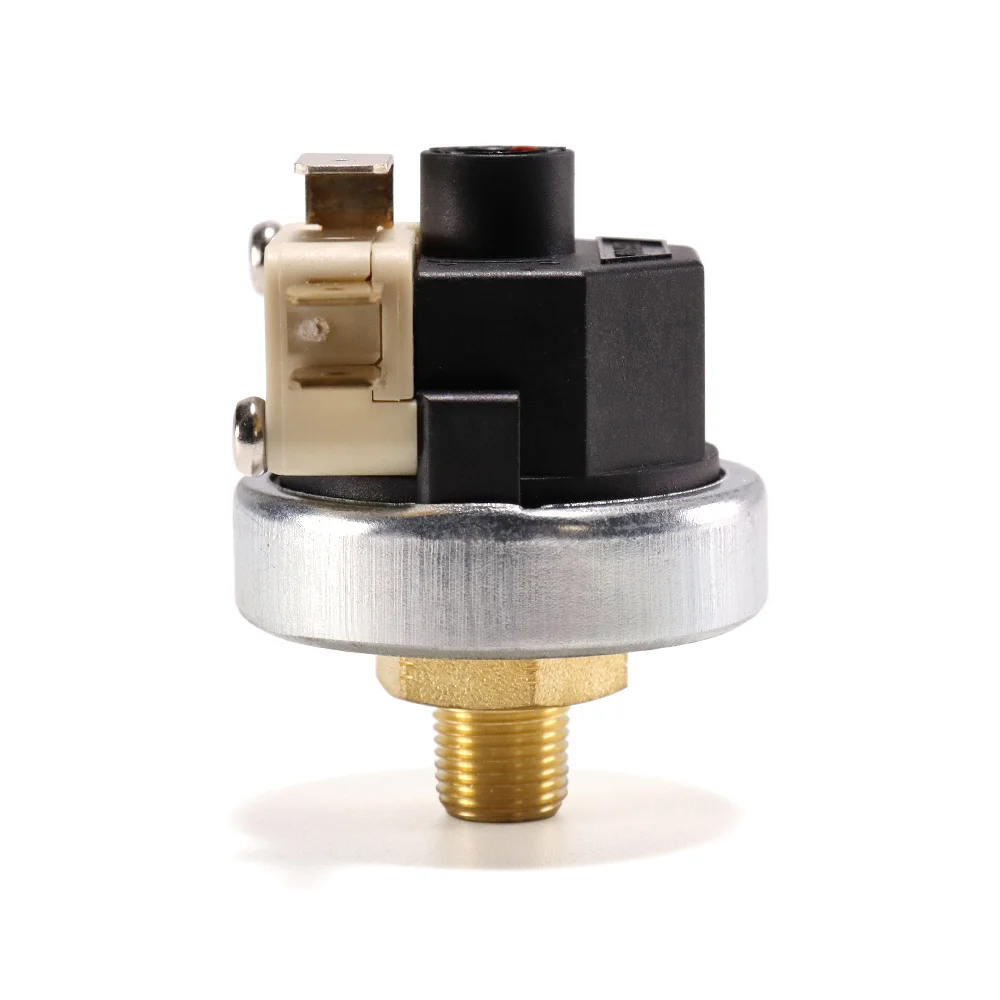

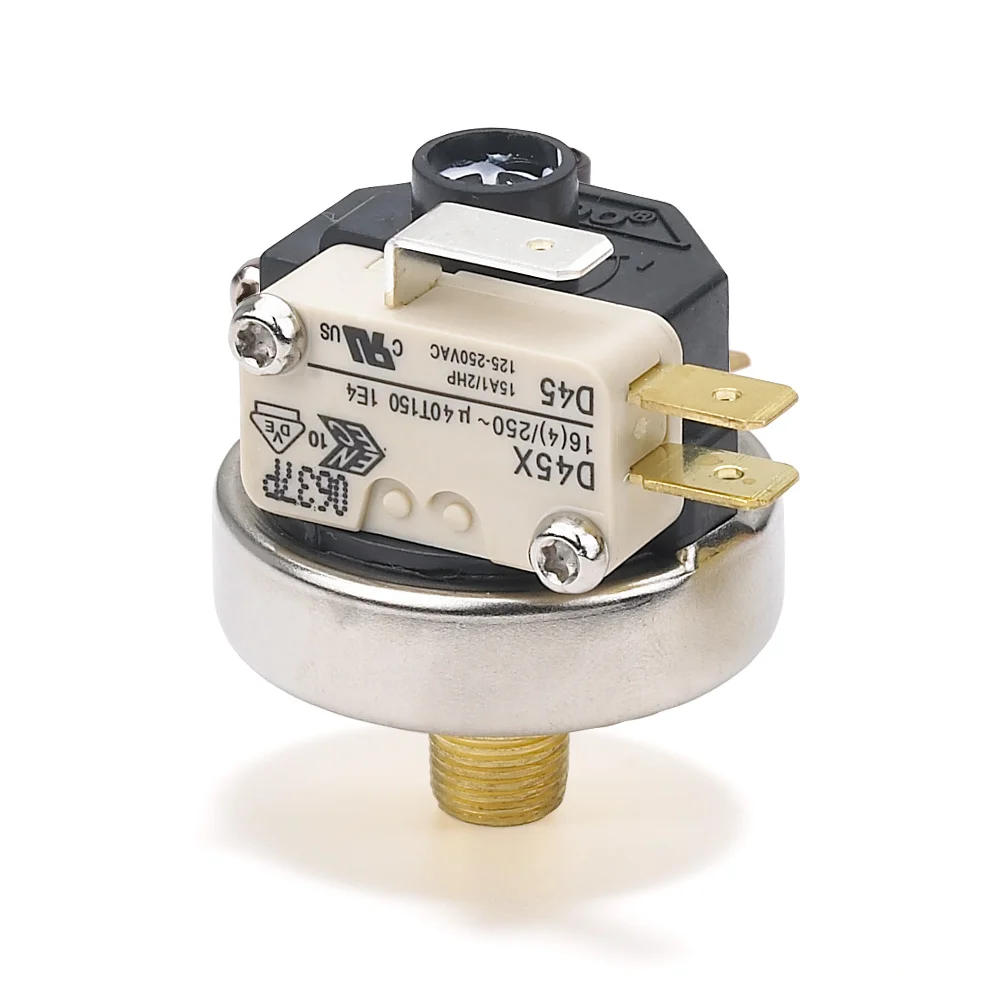

LF25 Steam pressure switch
LF25 pressure switch is designed for control pressure with higher current capacity. It is widely used in steam cleaner, steam sadiron and other pressure control system. It provides SPST or SPDT contact form and switch deadband (also referred to as mechanical differential or hysteresis). LF25 switch utilize high-quality miniature snap-action switches. The switch is diaphragm operated. Duringthe development of a specification, actuation point can be adjusted by the designer. In production,factory setting is required.
Number | Pressure Range | Connection Type (Male) | Electrical Rating | Max operating temperature |
1 | 0.2-0.6bar | B 1/8NPT | C 16A,125-250VAC | D 85℃ |
2 | 0.5-1.0bar | G1/8 | 22A,125-250VAC | 125℃ |
3 | 1.0-2.5bar | R1/8 | / | / |
4 | A 2.0-4.0bar | 1/4NPT | / | / |
5 | 3.0-7.0bar | G1/4 | / | / |
6 | 5.0-9.0bar | R1/4 | / | / |
Specification
Model | LF25 | ||||||||||
Media | Non hazardous gas, liquid or steam | ||||||||||
Operating Pressure | 0.2-0.6bar | 0.5-1.0bar | 1.0-2.5bar | 2.0-4.0bar | 3.0-7.0bar | 5.0-9.0bar | |||||
Proof Pressure | 3bar | 3bar | 10bar | 10bar | 10bar | 10bar | |||||
Opeating Temperature Range | +125℃ Max imum | ||||||||||
Contact Arrangement | SPST or SPDT | ||||||||||
Electric Rating | SPST or SPDT /Normal Close:16(4)-250VAC (other ratings are available if necessar y) | ||||||||||
Terminal | 6.3 or 4.8mm male Q.C. Insulation cover is available if necessar y | ||||||||||
Connection | 1/8NPT-27 or 1/4NPT-18 Male (other connection is optional) | ||||||||||
Conversion: 1kgf/cm²=14.2psi 1bar=14.5psi
Company Profile
Certifications
Exhibition
Product packaging
FAQ
1.What kind of products do you offer ?
Zhejiang Lefoo Controls Co., Ltd. develops and manufactures reliable, high quality standard pressure sensors, pressure transmitters, differential pressure transmitters, pressure switches Pressure Control,temperature control Devices offering innovative solutions and components able to outfit at best machines and production systems and give a single answer to any
requirements in pressure control systems.
2.Are you manufacturer ?
Yes, we are manufacturer with 3 factories.
3. How can I get the quotation?
Send your inquiry to us by the inquiry from on the right-side or the bottom of this page,
4.Could I get samples?
Yes,we have materials in stock to help you to get the samples as soon as we can.
5. Can you make customized products ?
Yes, customized is accept, please contact us for specific requirements.
6.Can I to be your distributor ?
Please contact us directly for details. Looking forward to work with distributors all over the world.
