JY 989E Automatic Sport Shoe Sole Pressing Machine Shoe Sole Edge Attaching Machine
- Category: >>>
- Supplier: Shenzhen Tushi Jingyi Technology Co. Ltd.
Share on (1600237257461):
Product Overview
Description
Hot products
Product Show

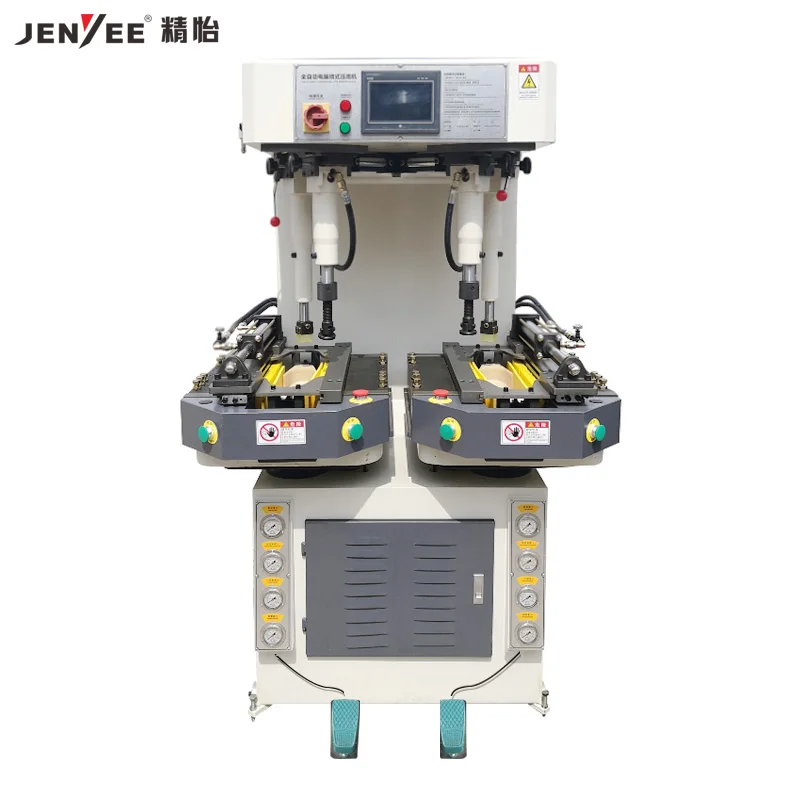

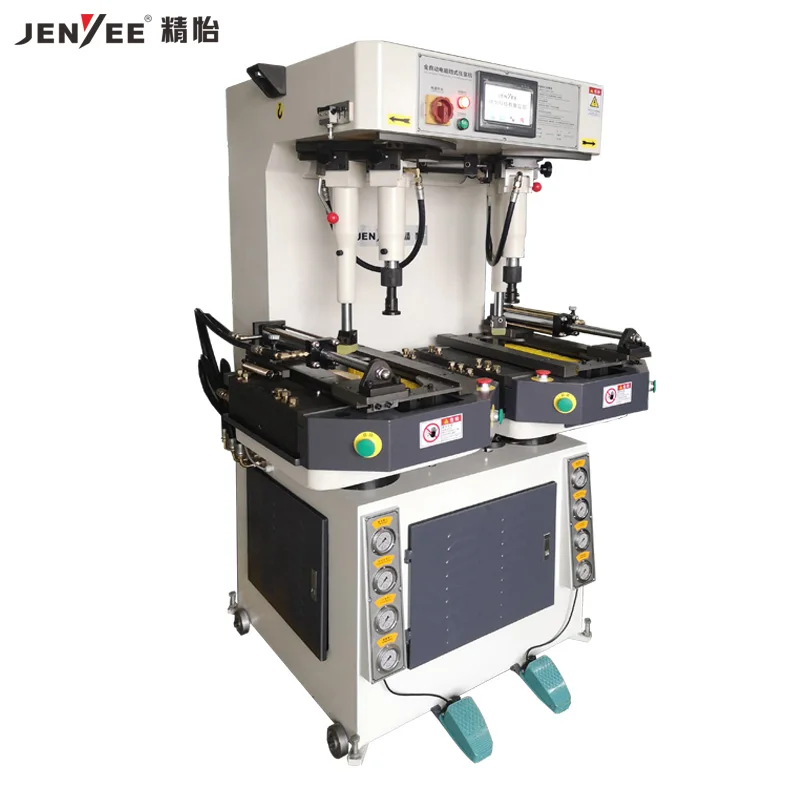

JY-989E shoe machine for sport shoe hydraulic outsole attaching press machine shoe side attacting machine
Quick Details
| Brand Name: | JENYEE | Dimension(L*W*H): | 1200*1280*1920mm |
| Power(W): | 2KW | Voltage: | 380V |
| Weight: | 1500KG | Type: | Hydraulic system |
| Application: | Solo Attaching Machine | Applicable: | all kinds of shoes |
Production Capacity: | 2500pairs/8hr | Warranty: | 1 Year |
Product Application
This machine adopts full oil pressure system design, press bottom, pressure edge, front and rear fastening, can be completed at one time, or can be completed separately according to needs, high pressure, firm fit.
Product Description
Computer control center |
 Computer control center is the machine circuit control unit, operation of it is carried out through function buttons displayed on touching screen |

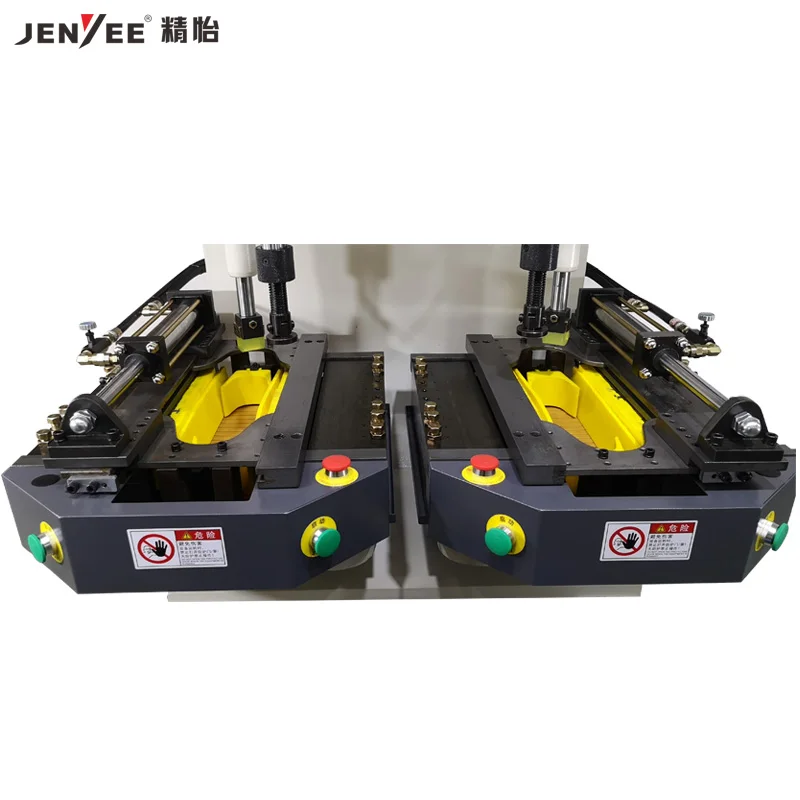

Pressing head rod & Swing arm structure |
The swing structure is connected with the pressing rod seat, when machine is running, swing structure pull and push the seat correspondingly the pressing rod will rotate and change its position to make it convenient for taking out or putting in the shoe model.
|

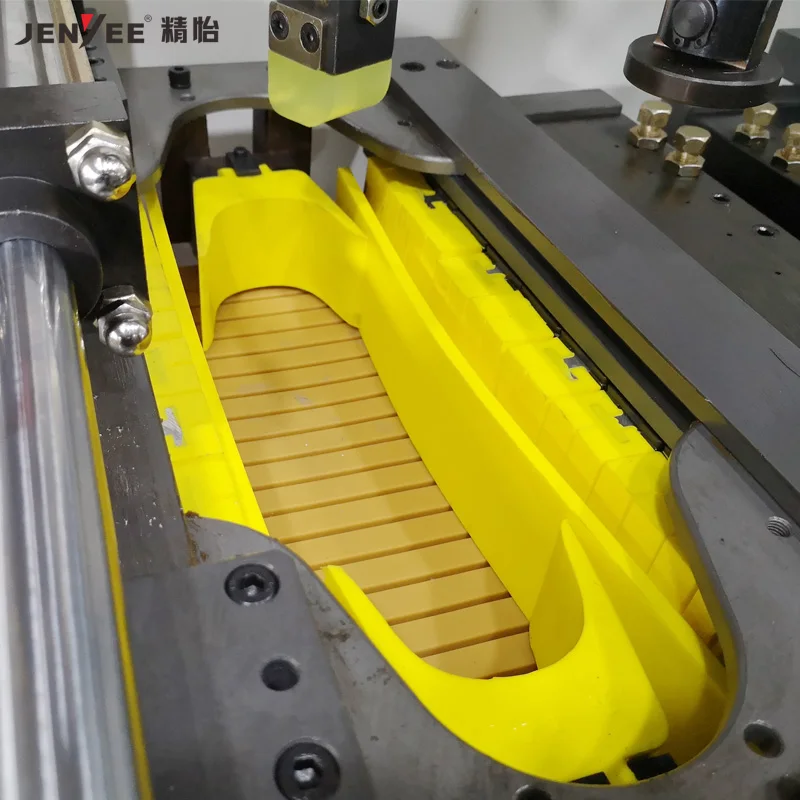

Large seat |
|
|

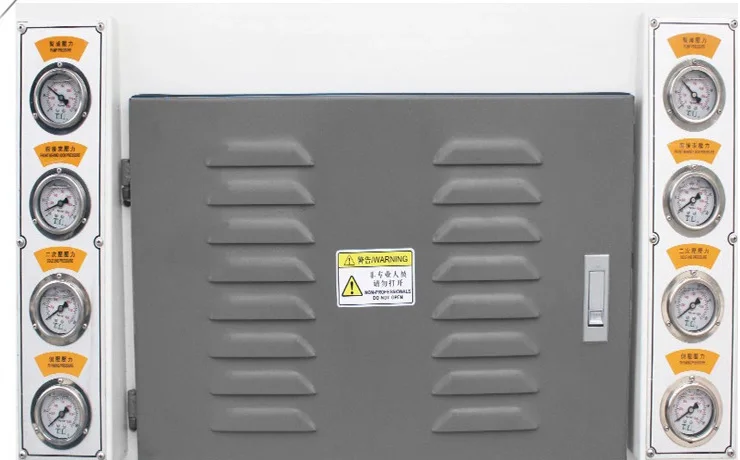

Oil meter & adjusting valve |
High quality pressure oil meter are introduced, pressure system,Value is indicated clearly, which makes commissioning and repairing simple.
|

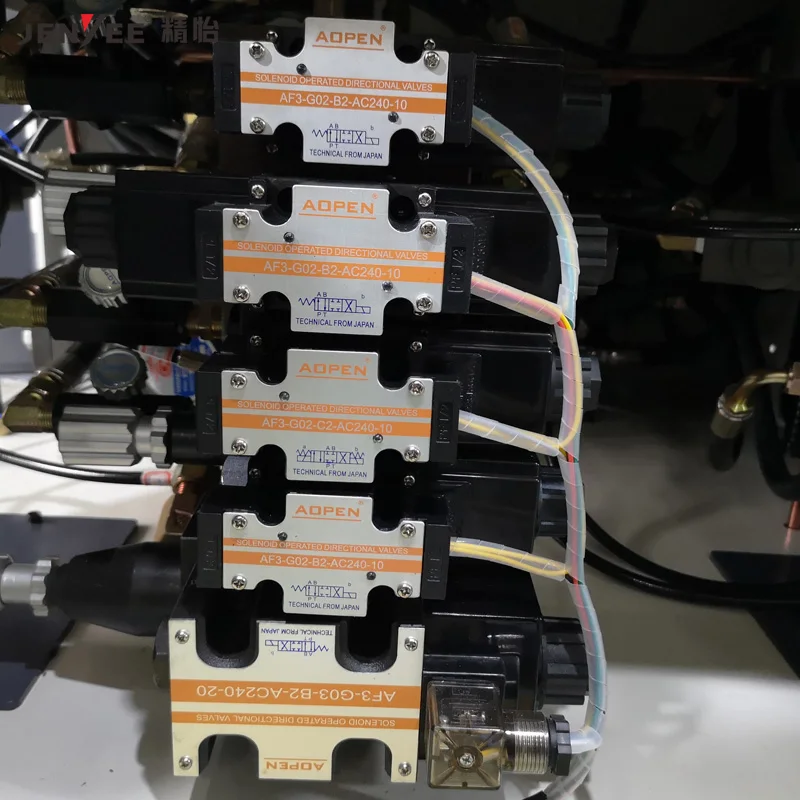

Oil system |
Devices of Taiwan brands are introduced ,CML oil pump, motor, offer big horsepower with low noise. Valve of Taiwan brand are introduced CML hydraulic magnetic valve adjusting system Offer more precise control over circuit and oil flow. |
Brief operating proc
1.Power cable should be connected on socket meet ECC standards with magnetic switch of 380v.
2.Please fill 90-100 litters of 68# or 46# hydraulic oil into oil tank.
3.switch on main power, then turn on pump switch, then select mode, then adjust pressing time.
4.Put the shoe last in the large seat properly, then adjust relevant component properly.
5.To adjust distance between front and rear rod, adjusting distance between top and bottom part of the rear pressing head by screwing the rod.
6.Step the pedal switch or press the two green button at the same time to start the machine for pressing operation.
Company Information
Shenzhen JENYEE Technology Co.,Ltd was established in 1997 .At Jingyi, who always persist in notion of based on science and technology development, never forget to offer his own endeavor for industrial development of the Chinese nation. Along with years of hard investigation, the company now has grown into a comprehensive enterprise whose business as a integrationincluding design and development, manufacture, sales and service. The company been awarded with tittles of The National high Technology Enterprise ,The Shenzhen City high Technology Enterprise, andThe Drafting Unit og National Standard of shoe industry in 2017.
Certifications
About Factory
Packing & Delivery
EXHIBITION
Customer case
FAQ
FAQ
Q1: Are you the factory or trading company?
A1: We are the direct factory with 22 years experience in producing shoe machines.
Q2: What is your MOQ of your Product?
A2: MOQ is 1 set.
Q3: What's your payment term?
A3: 30% deposit in advance, 70% will be balanced before shipping. Other payment terms can be discussed case by case.
Q4: What's your after-sales service?
A4: For repairing or spare parts pls contact me by mail, WeChat, whatsapp or call, we will reply you in 8 hours.
Q5: How long does your product warranty?
A5: one year.
Q6: What is the product package?
A6: Our products package are wooden case, carton and so on, we also accept customer's requirements about the package.
Q7: Do you test all your goods before delivery?
A7: Yes, we have 100% test before delivery.
