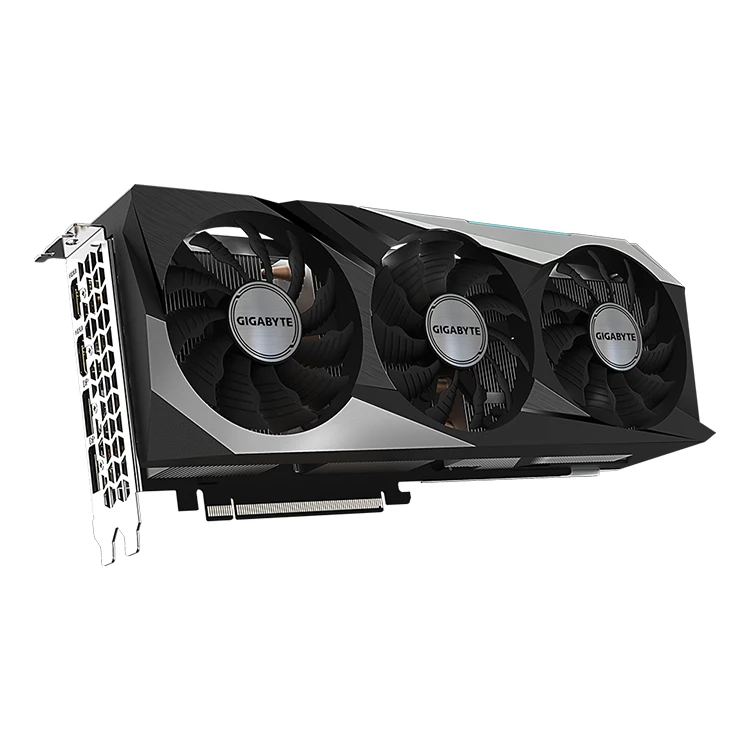

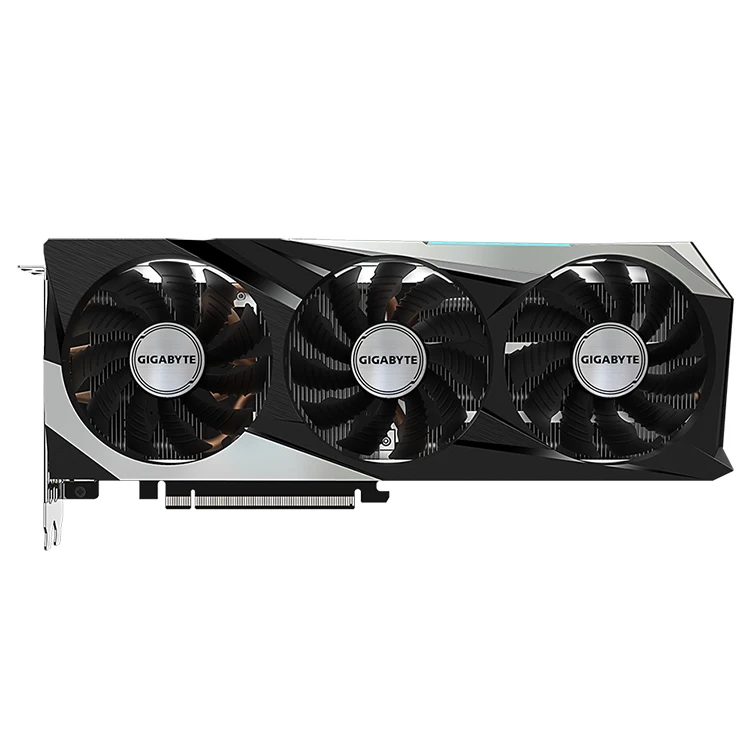

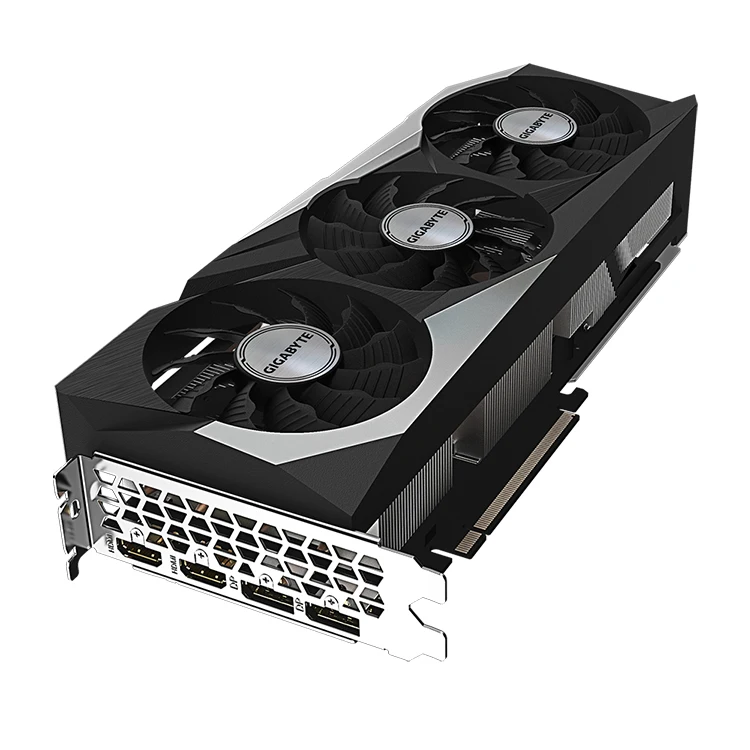

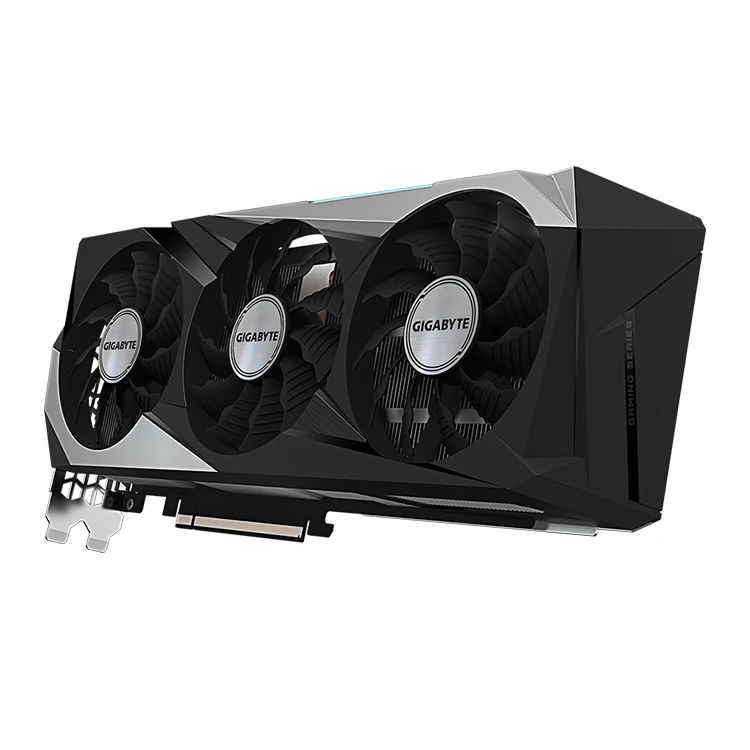

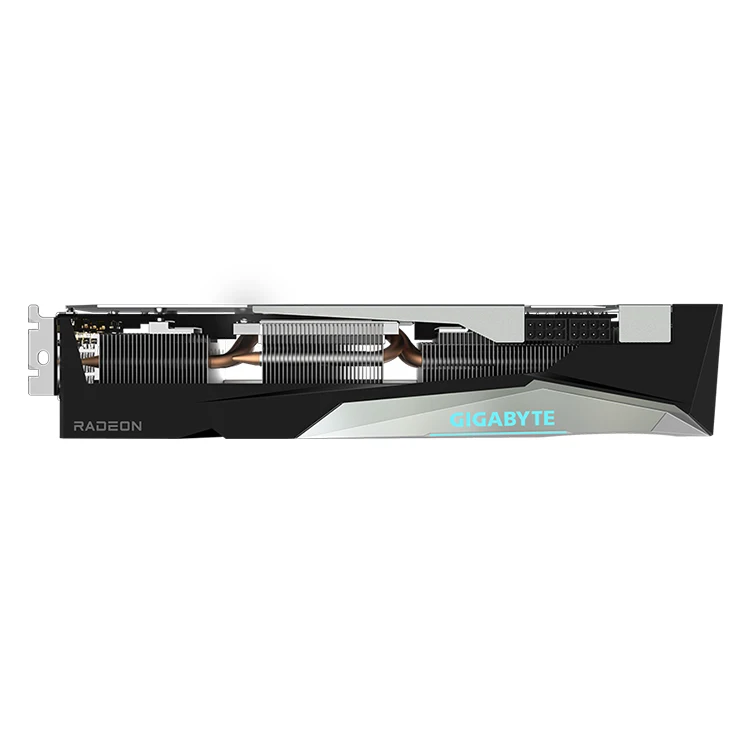

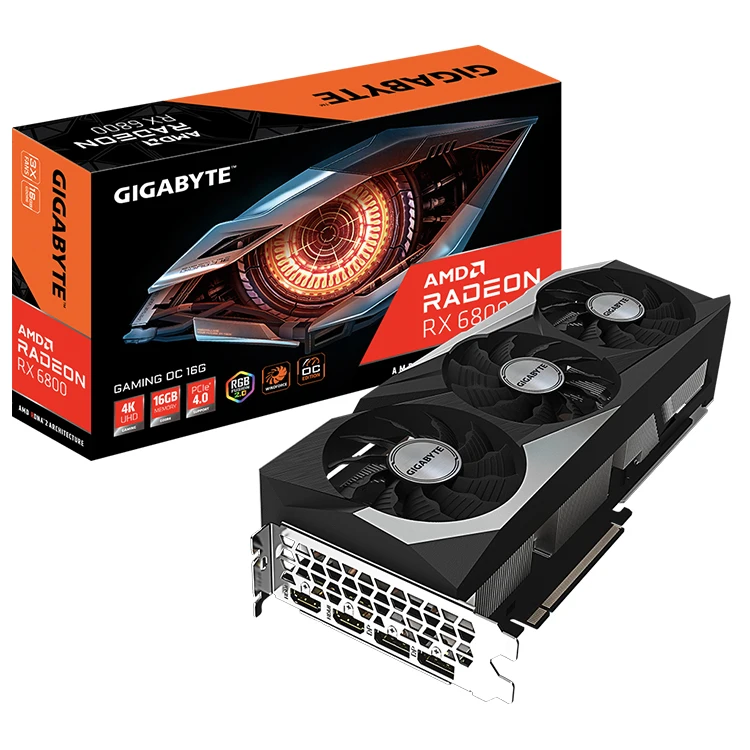

GIGABYTE AMD Radeon RX 6800 GAMING OC 16G Used Graphics Card with 256 bit GDDR6 Memory AMD RDNA 2 Support PCI Express 4.0 x16

Product Overview

Description



GIGABYTE AMD Radeon RX 6800 GAMING OC 16G Used Graphics Card with 256-bit GDDR6 Memory AMD RDNA 2 Support PCI-Express 4.0 x16





FEATURES

Powered by RDNA2 Radeon™ RX 6800
Integrated with 16GB GDDR6 256-bit memory interface
WINDFORCE 3X Cooling System with alternate spinning fans
Screen cooling
Graphene nano lubricant
RGB Fusion 2.0
Dual BIOS

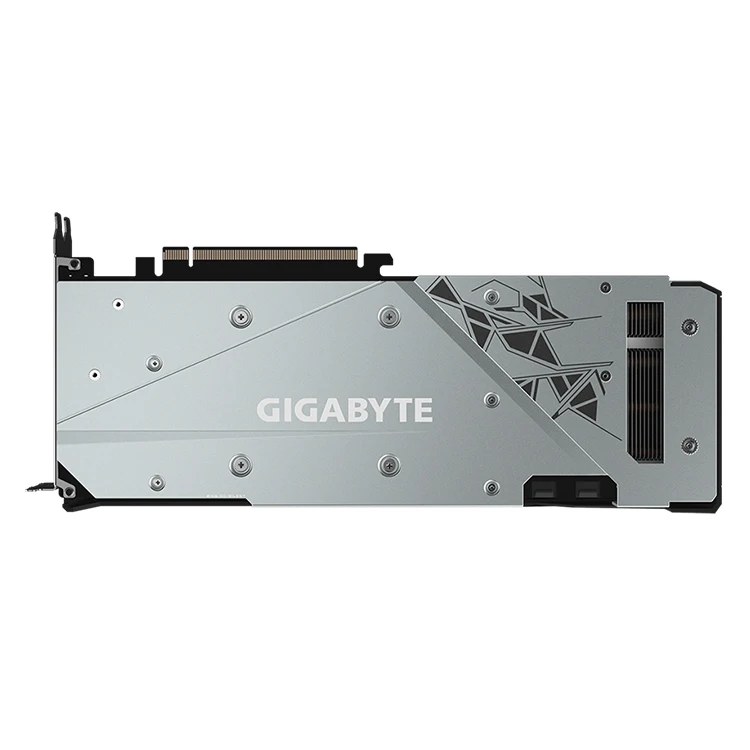

Protection metal back plate

CORE CLOCK

Boost Clock : up to 2155 MHz (Reference card: 2105 MHz)
Game Clock* : 1925 MHz (Reference card: 1815 MHz)



Graphics Processing	Radeon™ RX 6800
Core Clock	Boost Clock : up to 2155 MHz (Reference card: 2105 MHz) Game Clock* : 1925 MHz (Reference card: 1815 MHz)
Stream Processors	3840
Process Technology	7nm
Memory Clock	1‎6000 MHz
Memory Size	16 GB
Memory Type	GDDR6
Memory Bus	256 bit
Memory Bandwidth (GB/sec)	5‎12 GB/s
Card Bus	PCI-E 4.0 x 16
Digital max resolution	7‎680x4320@60Hz
Multi-view	4
Card size	L=286 W=112 H=58 mm
PCB Form	ATX
DirectX	1‎2 Ultimate
OpenGL	4‎.6
Recommended PSU	6‎50W
Power Connectors	8‎ pin*2

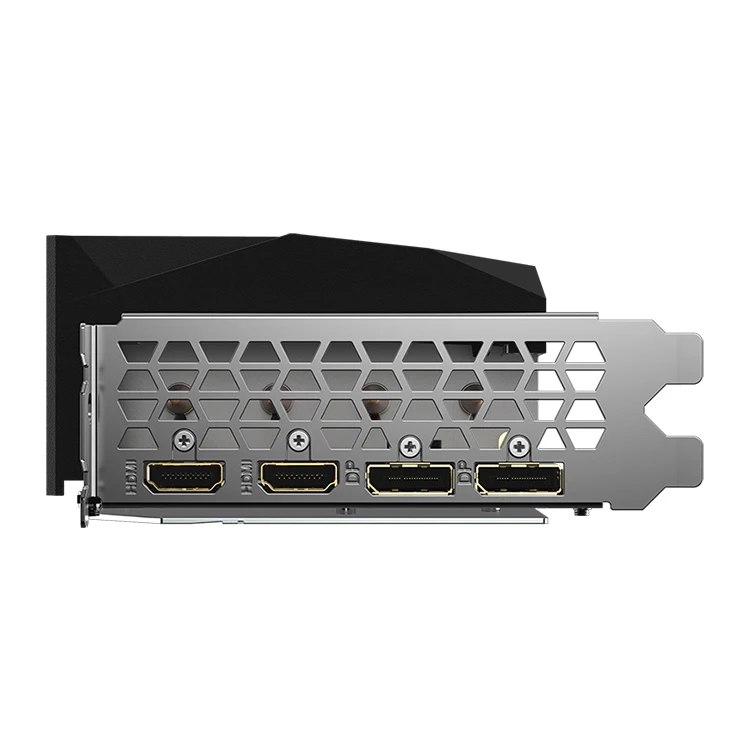

Output	DisplayPort 1.4a *2 HD MI 2.1 *2
Accessories	Quick guide
