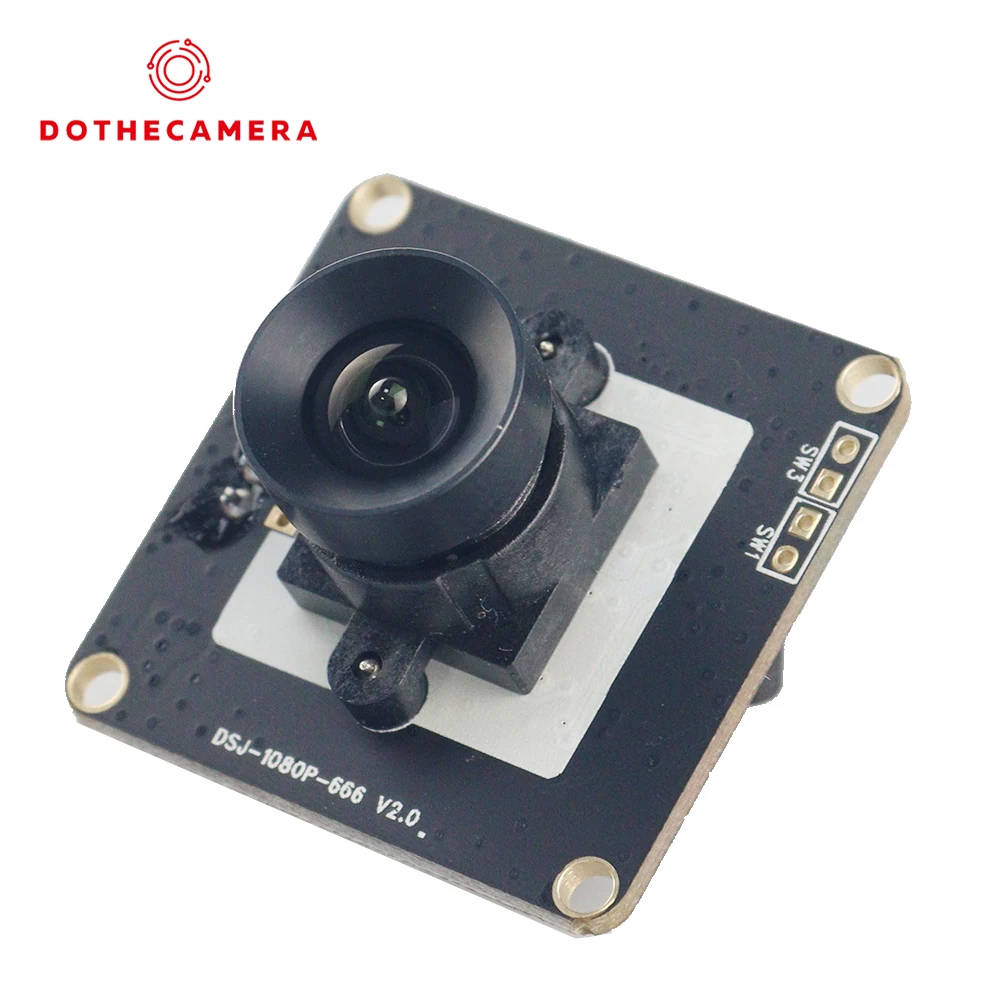

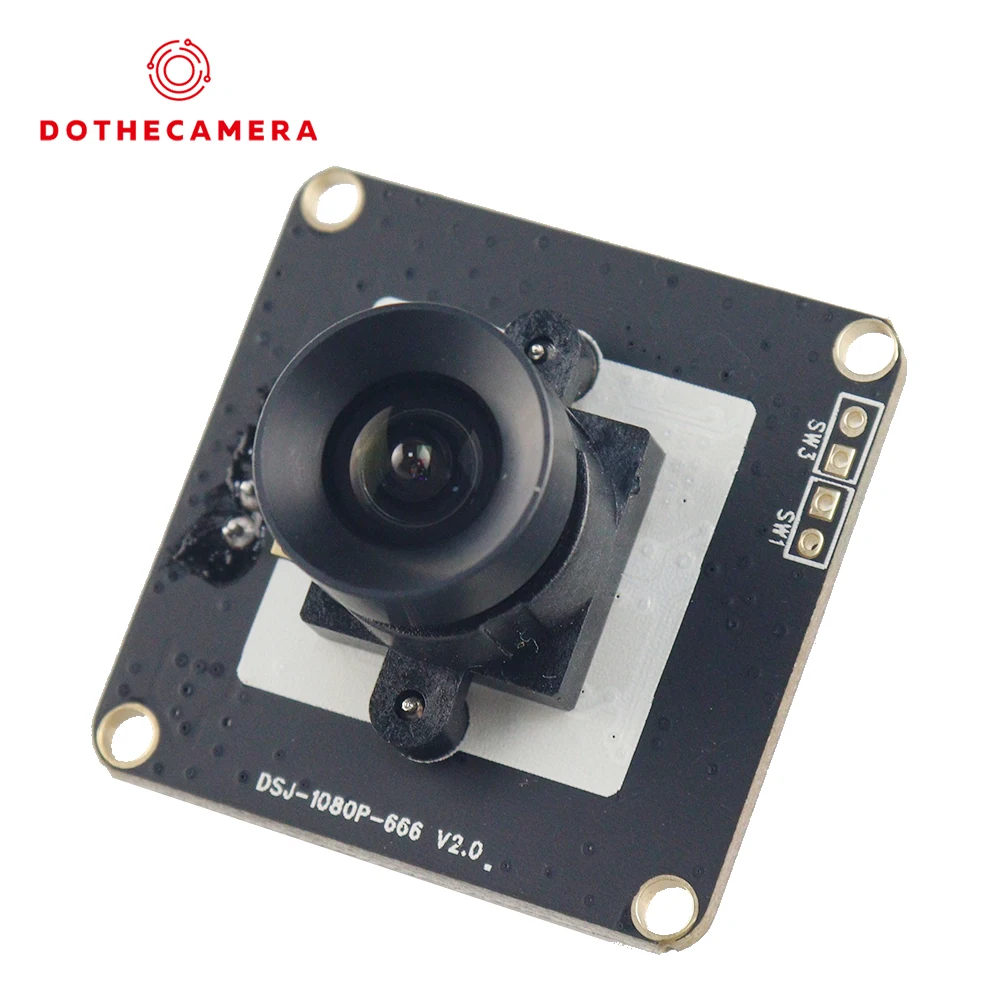

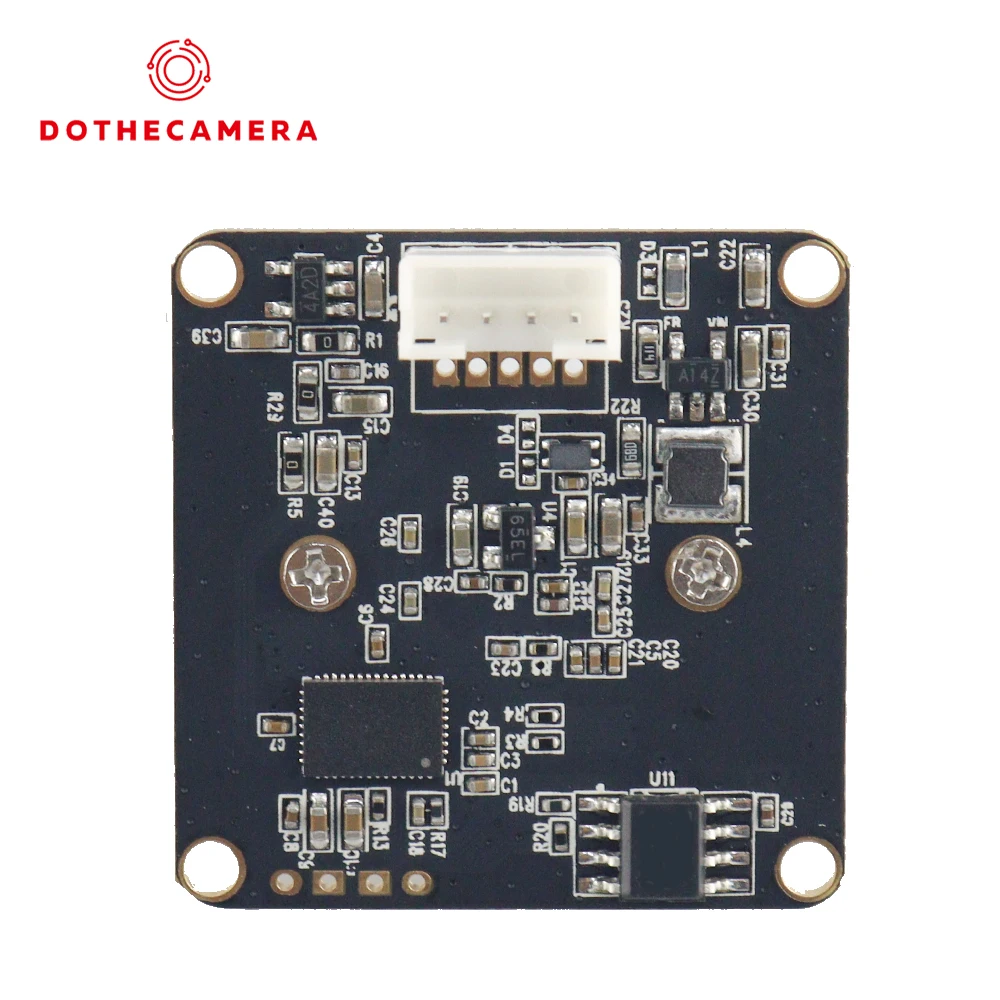

OV2710 Camera Module USB Fisheye Lens 2mp Camera Module 32x32mm PCB Board MJPEG
- Category: >>>
- Supplier: Shenzhen Licam Technology Co. Ltd.
Share on (1600237339993):
Product Overview
Description
Product Description
Module No. | DSJ-1080-666 V2.0 | |

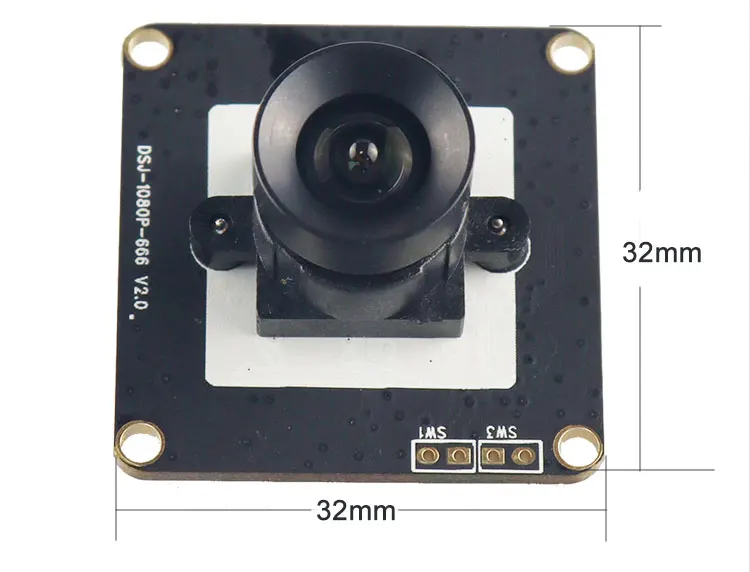

Module Size | 32*32mm | |
Object distance | 30CM-∞ | |
Focus | Fixed Focus | |
Image quality | Colorful | |
Audio | no microphone | |
Interface | USB 2.0 | |
Voltage | DC 5V | |
Temperature (Operation) | 0°C to 70°C | |
Temperature (Stable Image) | 0°C to 50°C | |
Operating system request | WinXP/Vista/Windows 7 (32bit/64bit)/Windows 8/Windows 10/MAC OSX EI captain 10.11.4 and Linux /Android | |
Sensor Type | ||
Sensor No. | OV2710 | |
Sercor Type | 1/2.7″ | |
Active Array Size | 1920H*1080V | |
33Pixel Size | 3μm x 3μm | |
Resolution @ Frame Rate | MJPG: 1920×1080@60fps, 1280×720@30fps, 640X480@30fps | |
HDR | YES | |
LENS | ||
FOV | HFOV=90° EFL=2.8mm | |
IR Filter | 650±10nm | |
Distortion | <5% | |
LED | ||
LED | no LEDs | |
DSP Type | ||
GC/EC/Whiter balance | Auto | |
Output Formats | YUV/MJPG | |
Feature:
* 32*32mm PCB Board

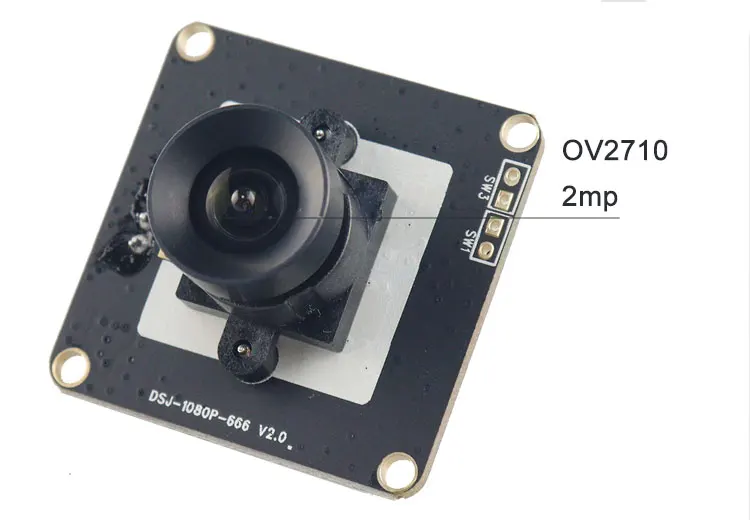

* OV2710 2mp Sony Sensor
* WDR 69dB

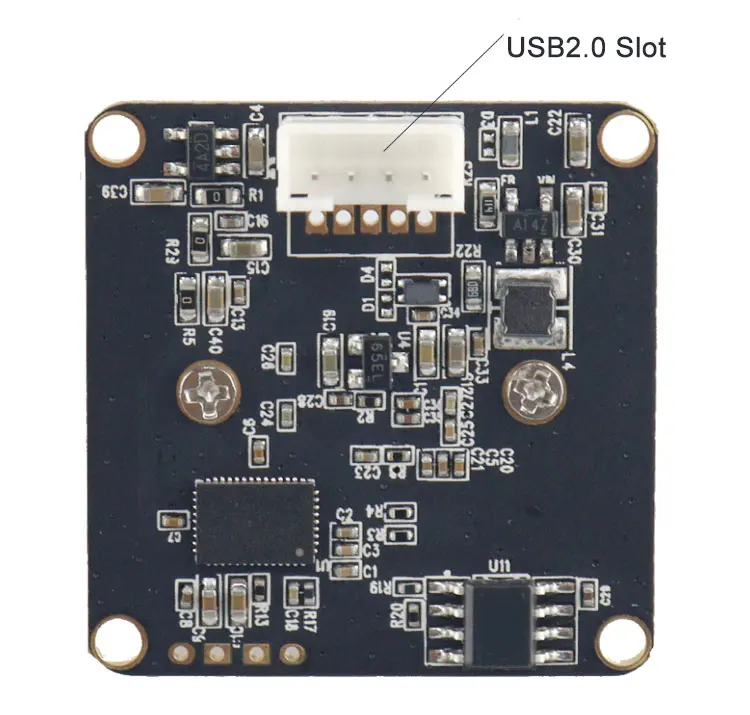

* USB2.0 slot
* Fixed Focus.
* There’s no microphones on camera module
* Different FOV lens are available 60~160° HFOV, please contact us to make it happen.
* The 1/2.7-inch sensor size addresses the fast growing demand for affordable, HD-quality digital video solutions for video
conferencing and recording.
* High quality image
* UVC compliant, Plug & Play
* USB2.0 OTG
* 32*32mm PCB Board
* OV2710 2mp Sony Sensor
* WDR 69dB
* USB2.0 slot
* Fixed Focus.
* There’s no microphones on camera module
* Different FOV lens are available 60~160° HFOV, please contact us to make it happen.
* The 1/2.7-inch sensor size addresses the fast growing demand for affordable, HD-quality digital video solutions for video
conferencing and recording.
* High quality image
* UVC compliant, Plug & Play
* USB2.0 OTG
CONTACT US
Email: lis@dothecamera.com
Web: www.dothecamera.com
Mob/ Wechat/ Whatsapp: +8613662378504
Details Images
222

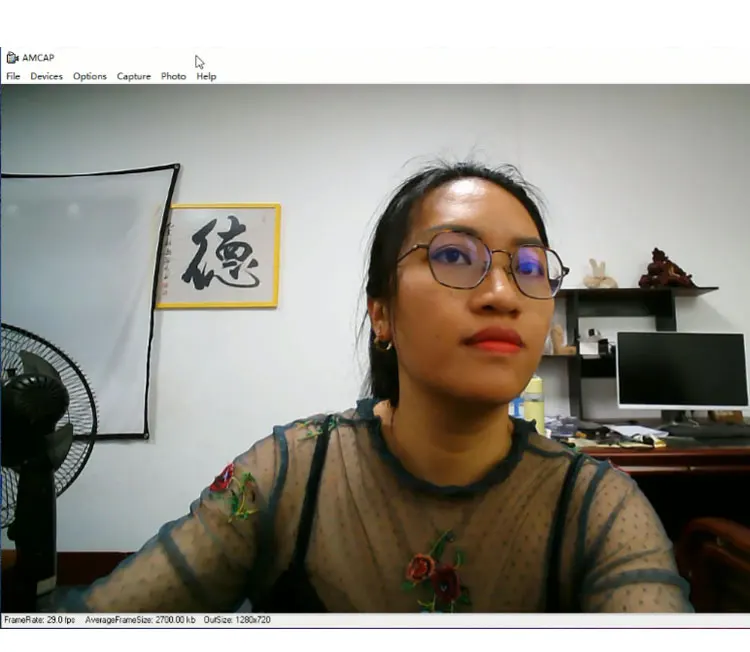

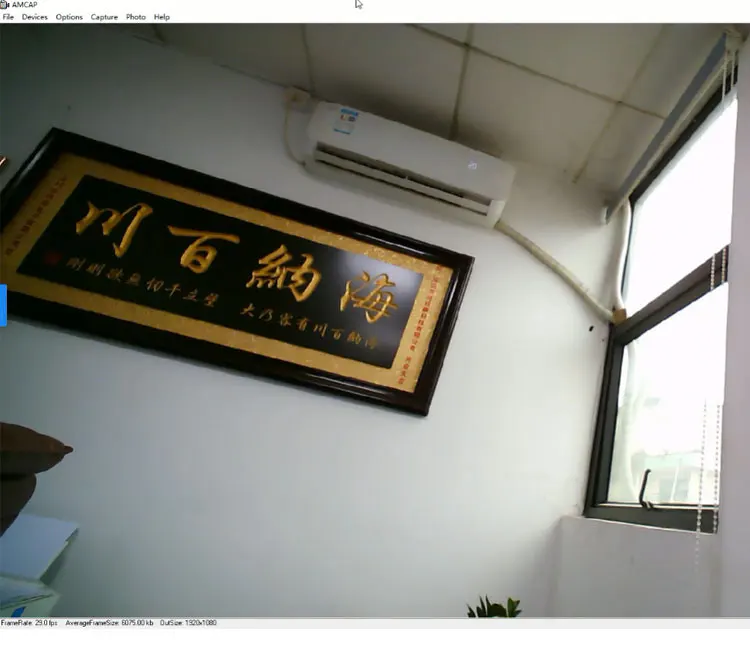

Image Effect of OV2710
Image effect is perfect even backlight
OV2710 Camera Module Image Effect
The OV2710-1E is among the very first no-compromise full HD (1080p) sensors available on the market, meaning it offers HD video format with a display resolution of 1920 x 1080 pixels, operating at 30 frames per second. Built with OmniVision's proprietary 3µm OmniPixel®3-HS high sensitivity pixel technology, the OV2710-1E delivers low-light sensitivity of 3700 mV/lux-sec, S/N ratio of 40 dB, and a peak dynamic range of 69 dB, enabling cameras to operate in virtually every lighting condition from bright daylight to nearly complete darkness below 15 lux.
The OV2710-1E is among the very first no-compromise full HD (1080p) sensors available on the market, meaning it offers HD video format with a display resolution of 1920 x 1080 pixels, operating at 30 frames per second. Built with OmniVision's proprietary 3µm OmniPixel®3-HS high sensitivity pixel technology, the OV2710-1E delivers low-light sensitivity of 3700 mV/lux-sec, S/N ratio of 40 dB, and a peak dynamic range of 69 dB, enabling cameras to operate in virtually every lighting condition from bright daylight to nearly complete darkness below 15 lux.
Product Usage
Application
Related Products
Packing&Shipping
If you have any special requirement on package, please talk with us.
Company Introduction
Dothecamera® is a start-up company rooted in the Shenzhen City, hold by Shenzhen LiCam Technology Co.,Ltd., the innovation center of P.R. China. During the recent years, our dual lens cameras has been installed in more than 10Kpcs of facial recognition devices. Our cameras have served hundreds of clients from over 15 countries with RELIABLE performance and highly-EFFECTIVE costs.
Our talented team includes professional optical engineers, software developers and electronic technicians. Our TANDARD models are capable of carrying out a broad range of detection/inspection tasks. In addition, we also offer CUSTOMIZED solutions for our clients’ specific demands.
Our talented team includes professional optical engineers, software developers and electronic technicians. Our TANDARD models are capable of carrying out a broad range of detection/inspection tasks. In addition, we also offer CUSTOMIZED solutions for our clients’ specific demands.
“Detect your World better with DoTheCamera®”
Why Choose Us
Quality Control
All cameras would be strictly according to AQL Ⅱ 0/2.5/4
Warmly welcome the 3rd party inspection company
12 months guarantee after selling
Supply Chain
Located in Shenzhen China
Complete Electronic Industry Chain
Make Personalized Customization Possible
Faster Delivery Time
Team
Our members have been in the camera industry for an average of more than 5 years.
Rich Experienced R&D team and sales team to provide you with quality service.
FAQ
1. How to buy our product?
You can buy the products from our company directly. Normally the procedure is, sign the contract, make the payment by T/T, Paypal, Alibaba or Western Union, then ship the goods to your address.
2. What's the warranty?
The free warranty is 12 months from the date of commissioning qualified. During the free warranty period, if there's any fault because of our produce, it's our duty to repair it and change the fault assembly for free.
3. Can we visit your camera module manufacturer?
Of course, we will arrange everything if you can tell me in advance. So please feel free to contact me and I will do my best to make your trip worthwhile.
4. How to customize camera modules as our requirement?
For customization service, it's warmly welcome.
Our company has been in camera module industry for over 10 years and has a rich experience on customized services.
We'll try our best to meet your requirements.
In order to know well clients' requirements, we should know parameters as below,
a) Form factor
b) Dimensions
c) Pixel
d) Frame rate
e) FOV-horizontal, diagonal, vertical
f) Interface-MIPI, USB, ANALOG etc.
g) Pin description
h) Image Effect, monochrome or colorful
i) Any other function requirement? IR Light, IR Cut? What's the wavelength?
Our company has been in camera module industry for over 10 years and has a rich experience on customized services.
We'll try our best to meet your requirements.
In order to know well clients' requirements, we should know parameters as below,
a) Form factor
b) Dimensions
c) Pixel
d) Frame rate
e) FOV-horizontal, diagonal, vertical
f) Interface-MIPI, USB, ANALOG etc.
g) Pin description
h) Image Effect, monochrome or colorful
i) Any other function requirement? IR Light, IR Cut? What's the wavelength?
