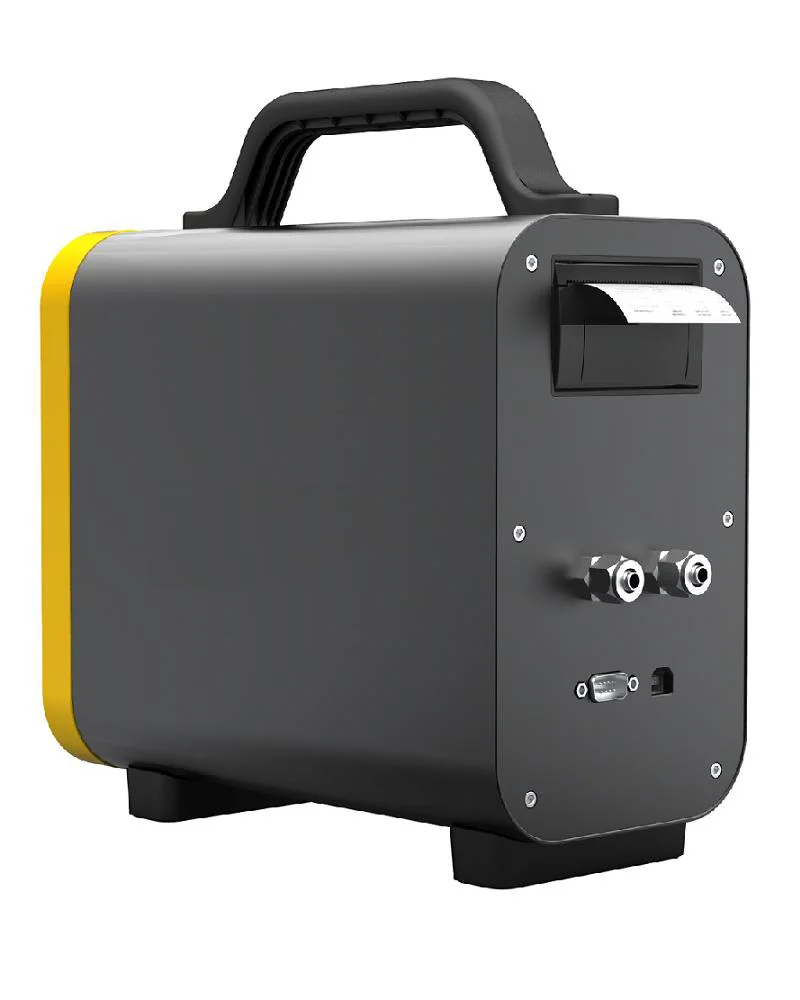

Zetron Best selling PTM600 O2/CO/CO2/H2S/CH4/H2 Gas Detector
- Category: >>>
- Supplier: Beijing Zetron Technology Co. Ltd.
Share on (1600237348763):
Product Overview
Description
overview

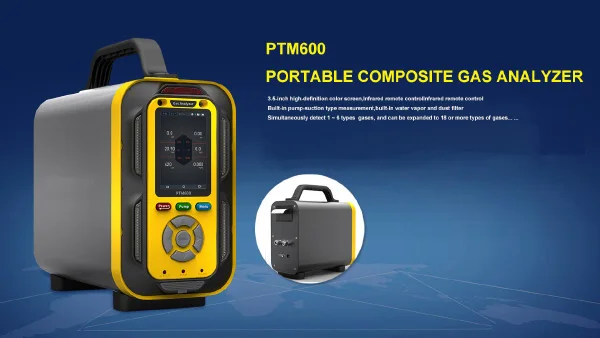

PTM600 Six-in-One Flue Gas Analyzer
The product is provided with high measurement precision, stable performance and simple operation and convenient to carry.
It is possible to simultaneously detect 1 ~ 6 types of gases, which can be expanded to 18 or more types of gases, and the types for detection are more than 500 types.
Product Specifications
Gases to be detected | O2/CO/CO2/H2S/CH4/H2 | ||||||||
Detection range | O2:0-30%VOL CO: 0-1000ppm CO2: 0-100%VOL H2S: 0-200ppm CH4:0-100%LEL H2: 0-1000ppm other ranges can be customized | ||||||||
Resolution | 0.1ppm | ||||||||
Detection principle | O2: UK Alpha Electrochemical sensor CO2: Infrared sensor H2S: Electrochemical sensor CH4: Catalytic combustion sensor f H2: Electrochemical sensor | ||||||||
Allowable error | ≤±2% F.S (other or higher precision levels can be customized) | ||||||||
Linearity | ≤±2% | Repeatability | ≤±2% | Uncertainty | ≤±2% | ||||
Response time | T90≤20 seconds | Recovery time | ≤30 seconds | ||||||
Working environment | Temperature: -40 ℃ ~ + 70 ℃, humidity: ≤10 ~ 95% RH, and built-in filters can be used in high humidity or high dust environment. | ||||||||
Sample gas temperature | -40 ℃ ~ + 70 ℃, and the optional configuration of high-temperature sampling and cooling filter handle will be possible to detect the smoke gas at the temperature of 1300 ℃. | ||||||||
Power supply | 3.6VDC, 10000mA high capacity rechargeable polymer battery | ||||||||
Display mode | 3.5-inch high-definition color screen | ||||||||
Detection mode | Built-in pump-suction type measurementFlow rate at 800 ml / min | ||||||||
Alarm mode | It is possible to set as sound & light alarm, vibration alarm, turning off the alarm. | ||||||||
Protection level | IP66 | ||||||||
Explosion-proof type | Intrinsically safe type | ||||||||
Explosion-proof mark | Exia II CT6 | ||||||||
Exterior dimensions | 230×210×120 mm (L×H×W) | ||||||||
Weight | 2.5Kg | ||||||||
Product Feature
①It is possible to simultaneously detect 1 ~ 6 types of gases, whichcan be expanded to 18 or more, and the types for detection are more than 500 types. It is suitable for detecting the concentrations of gases in the atmosphere environment in the pipeline or confined space; and the purity of the gas leakage and various high concentration single gases with the background gas as nitrogen gas or oxygen gas.
②There are 7 gas units to display, and the units can be switched freely. Units that can be selected: PPM, mg/m3, Vol%, LEL%, PPHM, ppb, mg/l.
①3.5-inch high-definition color screen, display the information such as real-time concentration, alarm, time, temperature,
humidity, storage, and so on; the menu interface adopted high definition simulation graphics to display the function name of each menu.
②Graphical display, and use the form of curve to reflect the trend of gas concentration changes in a certain period of time.

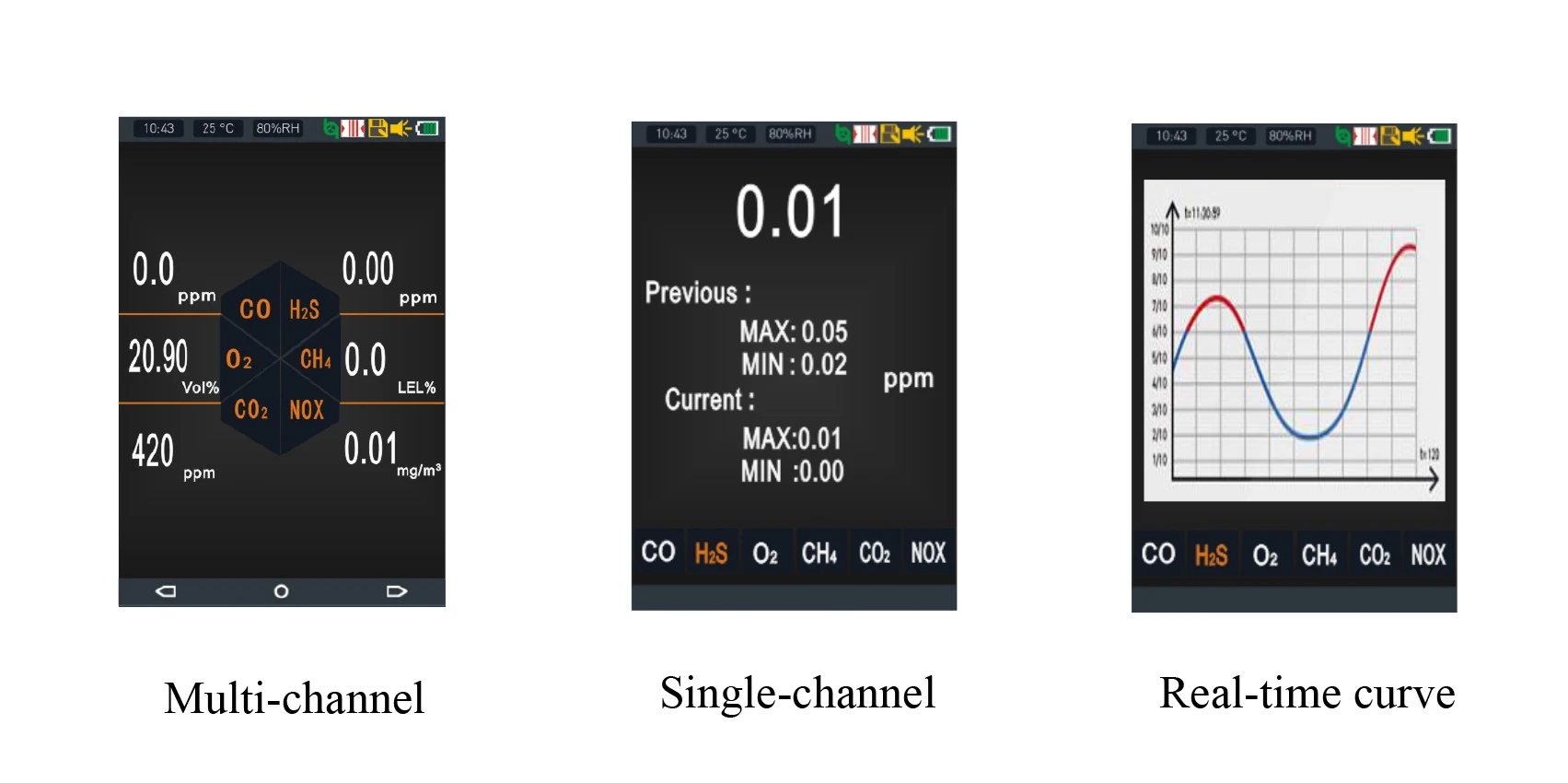

③Simultaneously display the concentrations of five types of gases, repeatedly display the concentration of single-channel gases in large font, and display the real-time curve. And it is possible to switch among three display modes.
humidity, storage, and so on; the menu interface adopted high definition simulation graphics to display the function name of each menu.
②Graphical display, and use the form of curve to reflect the trend of gas concentration changes in a certain period of time.
③Simultaneously display the concentrations of five types of gases, repeatedly display the concentration of single-channel gases in large font, and display the real-time curve. And it is possible to switch among three display modes.

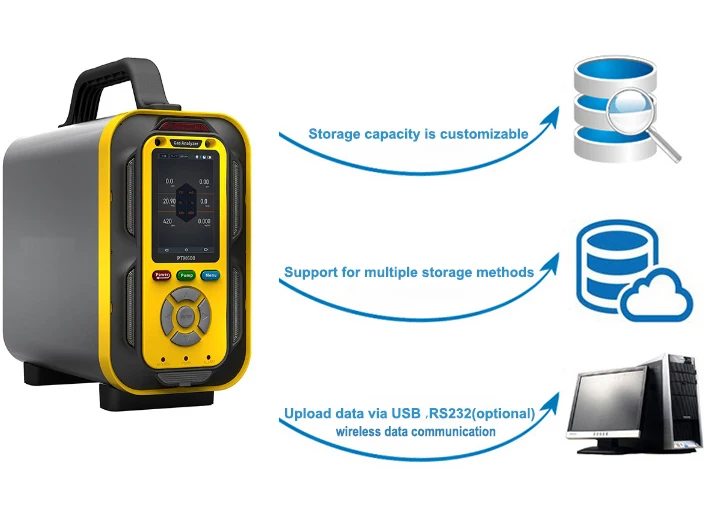

①Standard configuration is the data storage capacity for 100, 000 entries; real-time storage and fixed time storage are supported, or only the data of the alarm concentration will be stored. Large capacity can be customized.
②It is supported to use the local host to view, and delete data, and upload the data via USB, RS232 interface or infrared
communication to the computer for data analysis or printing.
②It is supported to use the local host to view, and delete data, and upload the data via USB, RS232 interface or infrared
communication to the computer for data analysis or printing.

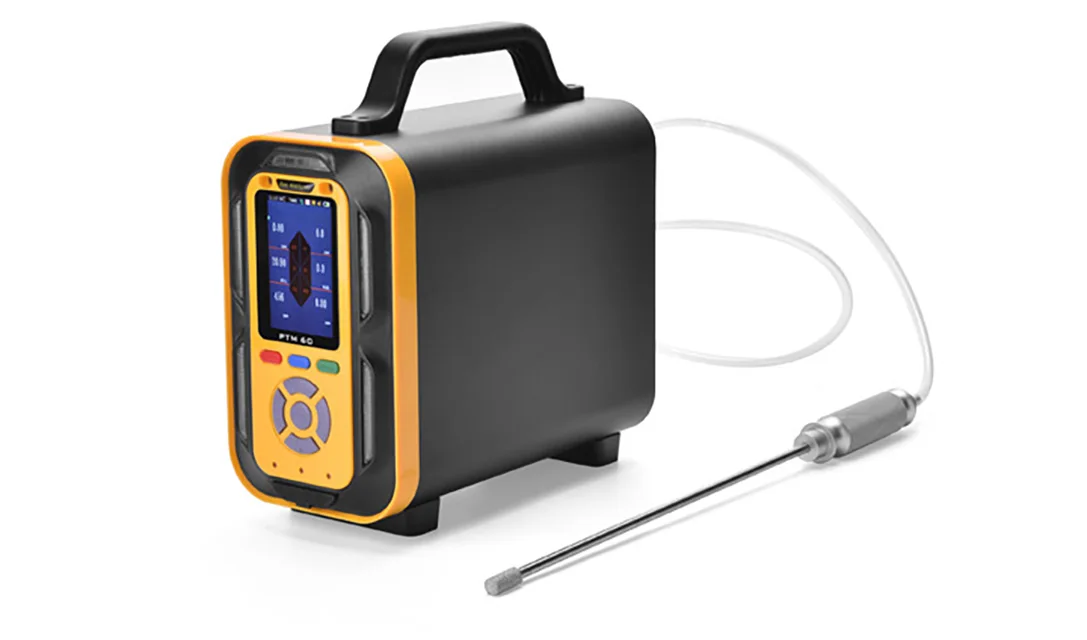

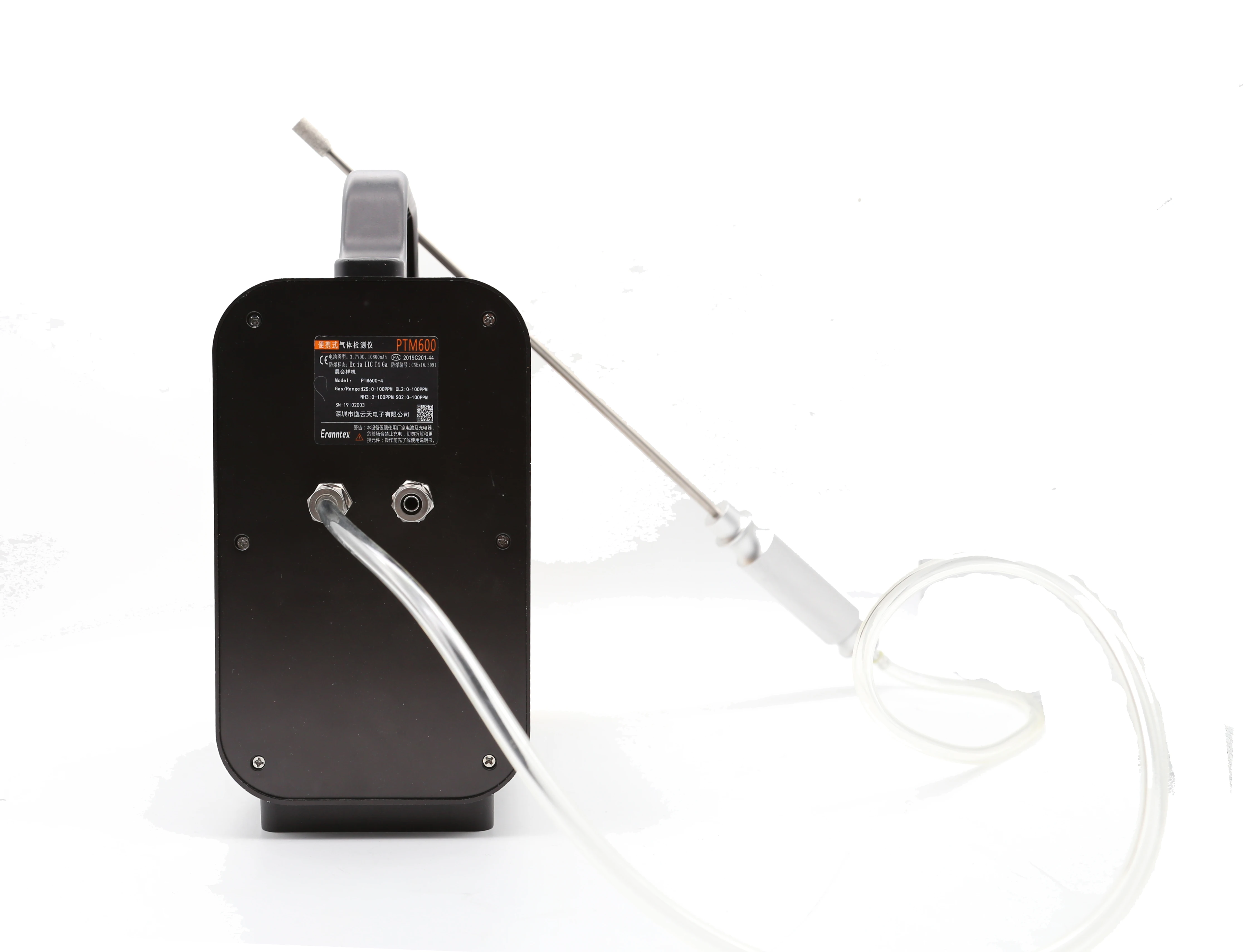

① 0.4 meter stainless steel sampling handle (with dust filter, not retractable) ,preliminary treatment of the detection gas, so as to protect the equipment.
②Multiple alarm modes, and multi-directional and three-dimensional indication alarm states. It includes sound & light alarm, vibration alarm, display screen visual alarm.Alarm types include: concentration alarm, under-voltage alarm, and failure alarm. Multiple alarm mode settings: low alarm, high alarm, interval alarm, and weighted average alarm.
③Zero-point automatic tracking; long-term use will not be affected by the zero drift.
④Multi-level calibration for target points, can ensure the linearity and accuracy of the measurements.
⑤Log recording Record the calibration logs, repair logs, failure history, failure countermeasure solutions, sensor service life due reminder, and function of reminder for the time of next concentration calibration.
⑥Data recovery function; in case of mis-operation, it is possible to select partial or full recovery.
⑦Mis-operation recognition function: automatic recognition and prevention of the concentration calibration mis-operation, which is possible to avoid the poor performance that may be caused by human factors.
②Multiple alarm modes, and multi-directional and three-dimensional indication alarm states. It includes sound & light alarm, vibration alarm, display screen visual alarm.Alarm types include: concentration alarm, under-voltage alarm, and failure alarm. Multiple alarm mode settings: low alarm, high alarm, interval alarm, and weighted average alarm.
③Zero-point automatic tracking; long-term use will not be affected by the zero drift.
④Multi-level calibration for target points, can ensure the linearity and accuracy of the measurements.
⑤Log recording Record the calibration logs, repair logs, failure history, failure countermeasure solutions, sensor service life due reminder, and function of reminder for the time of next concentration calibration.
⑥Data recovery function; in case of mis-operation, it is possible to select partial or full recovery.
⑦Mis-operation recognition function: automatic recognition and prevention of the concentration calibration mis-operation, which is possible to avoid the poor performance that may be caused by human factors.
· Temperature and humidity measurement function
· 1.2 m retractable sampling handle (1-10 meter hose, and the standard length is 1 meter)
· High temperature sampling and cooling filter handle
· High temperature humidity pretreatment system· External remote sampling pump
· Multiple humidity dust filter· CD-ROM (upper level computer communication software)
· SD card storage
· USB disk storage
· External mini wireless infrared printer
· Built-in mini printer
· Wireless data communications: RS232, infrared communication, automatic recognition
· 1.2 m retractable sampling handle (1-10 meter hose, and the standard length is 1 meter)
· High temperature sampling and cooling filter handle
· High temperature humidity pretreatment system· External remote sampling pump
· Multiple humidity dust filter· CD-ROM (upper level computer communication software)
· SD card storage
· USB disk storage
· External mini wireless infrared printer
· Built-in mini printer
· Wireless data communications: RS232, infrared communication, automatic recognition
Application Scenes
