China Gold Concentration Processing Blue Bowl Centrifugal Knelson Gold Washing extraction Mining equipment small scale gold
Centrifugal Gold Concentrator is a relatively new type of gravity concentration apparatus. The machine utilize the principles of a centrifuge to enhance the gravitional force experienced by feed particles to effect separation based on particle density.
Centrifugal Gold Concentrator was patented in China. It is an efficient equipment for recovering free gold in all particle size ranges, specially for recovery of fine gold which is lost during the operation of hard rocks, to replace amalgamation, and recovery gold from tailings.
Application shows that the recovery can be as high as 99%, and the concentrating ratio is up to 1,000 times. In recovering the natural gold in lode are with size -0.074 mm (200 mesh), the gold is up to 98%. For 0.04 mm ( 100 mesh) particle size, the gold recovery rate is 97%.
It replaced amalgamating and ideal for gold washing in rock gold recovery, dry land and river way alluvial gold, placer gold.
Our company manufacturing 5 different models of STLB type Alluvial and Rock Gold Centrifugal Machine. After rigorous tests and practical use, it had been proved that our machines have several excellent features as bellow:
* Automatic ore concentrating&discharging * High recovery rate (over 97%) * Reliable and effective gold recovery.

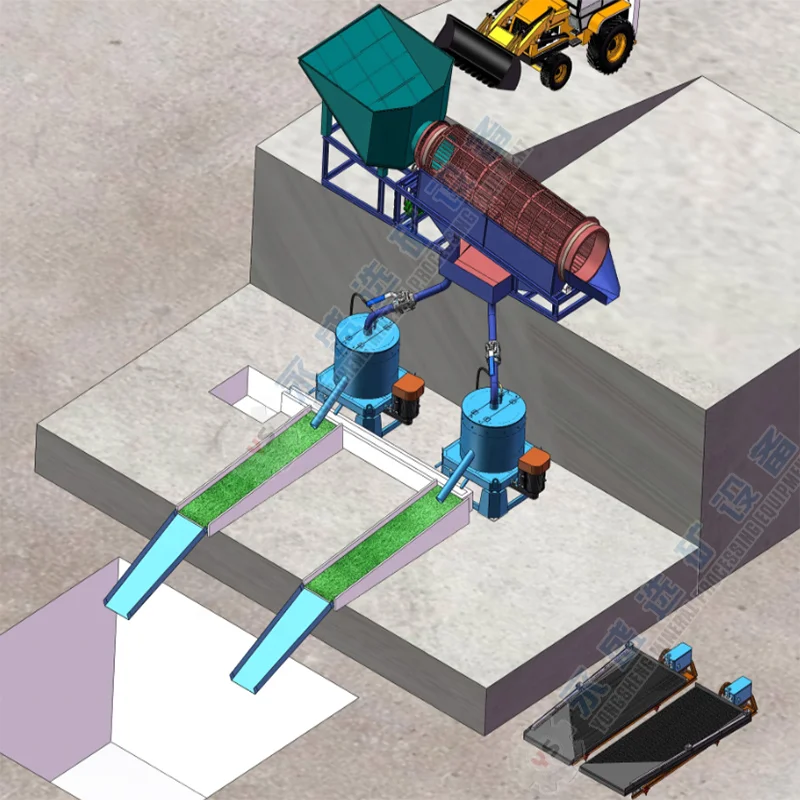

The Alluvial and Rock Gold Centrifugal Machine is applied in an alluvial gold mining plan. This machine can cooperate with sand wash plant, sieve machine and some other gravity mining machine. We have a profession engineer team which can provide you overall suggestions on mining procedure and technical guide.
Specification
Model
STLB20
STLB30
STLB60
STLB80
STLB100
Feeding Capacity (T/h)
0-0.6
2-3
8-12
40-45
60-80
Fluidization Water Required (m3/h)
2-3
3-5
7-10
30-36
50-60
Slurry Water Required (m3/h)
1.5-4
5-7
8-12
40-45
60-80
Feeding Density (%)
0-50
0-50
0-50
0-50
0-50
Feeding Size (mm)
0-3
0-3
0-5
0-5
0-6
Concentration Cleaning Up Cycle
Vein gold 1-3 Hours Placer gold:2-6 Hours
Concentrate Weight (Kg)
2
3-5
10-20
40-50
70-80
Power Requirements (Kw)
0.75
1.5
4
11
18.5
Approximate Shipping Weight (Kg)
205
380
1100
2300
3700
Approximate Crated Shipping Dimensions (mm)
914×700×900
1160×885×
1165
1820×1450×1700
2476×2032×2018
2849×2085×2426

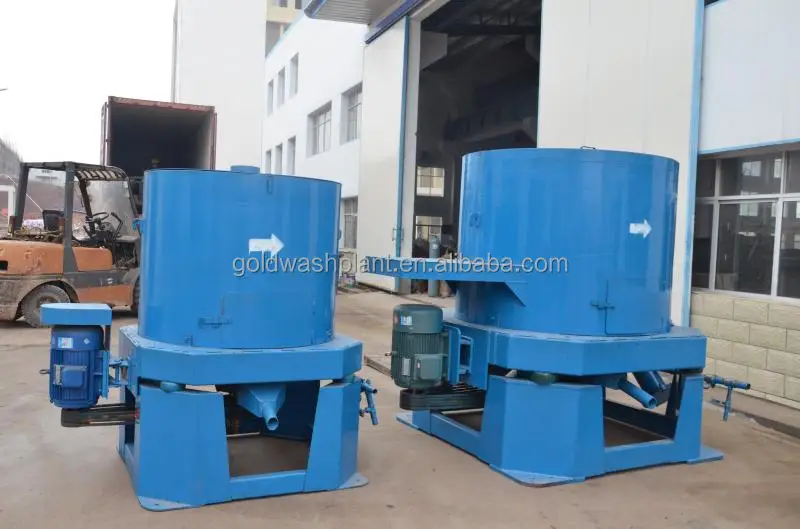

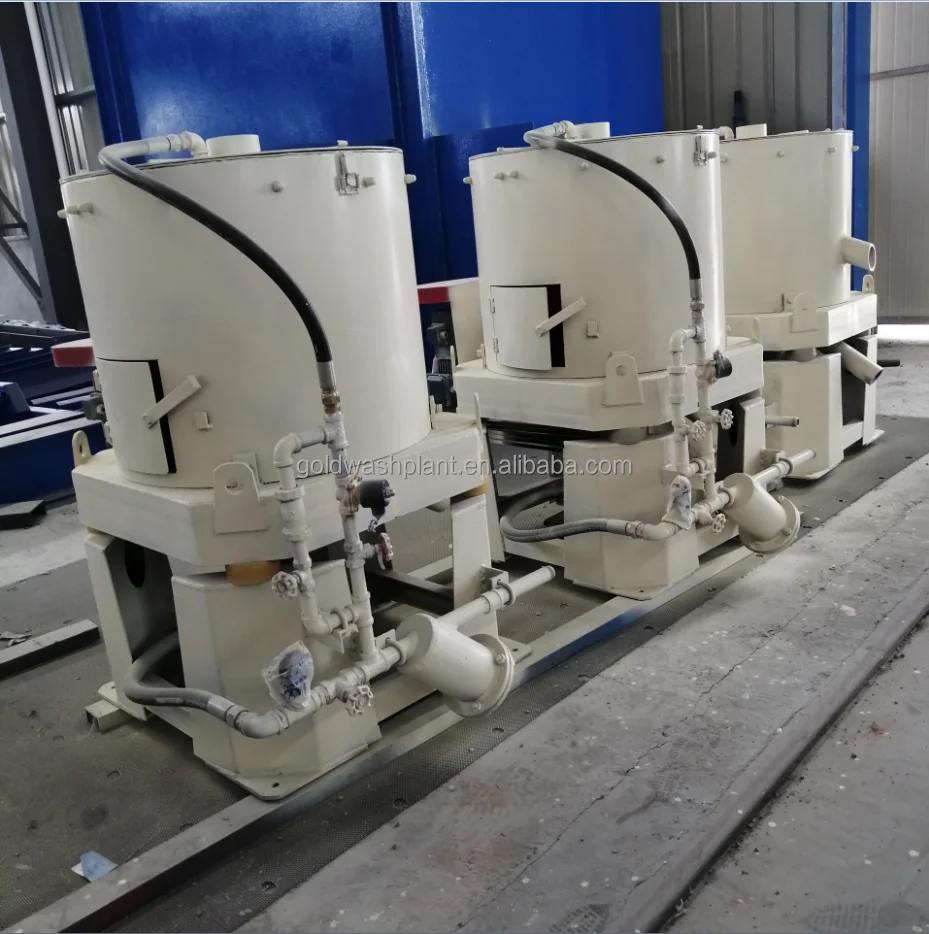

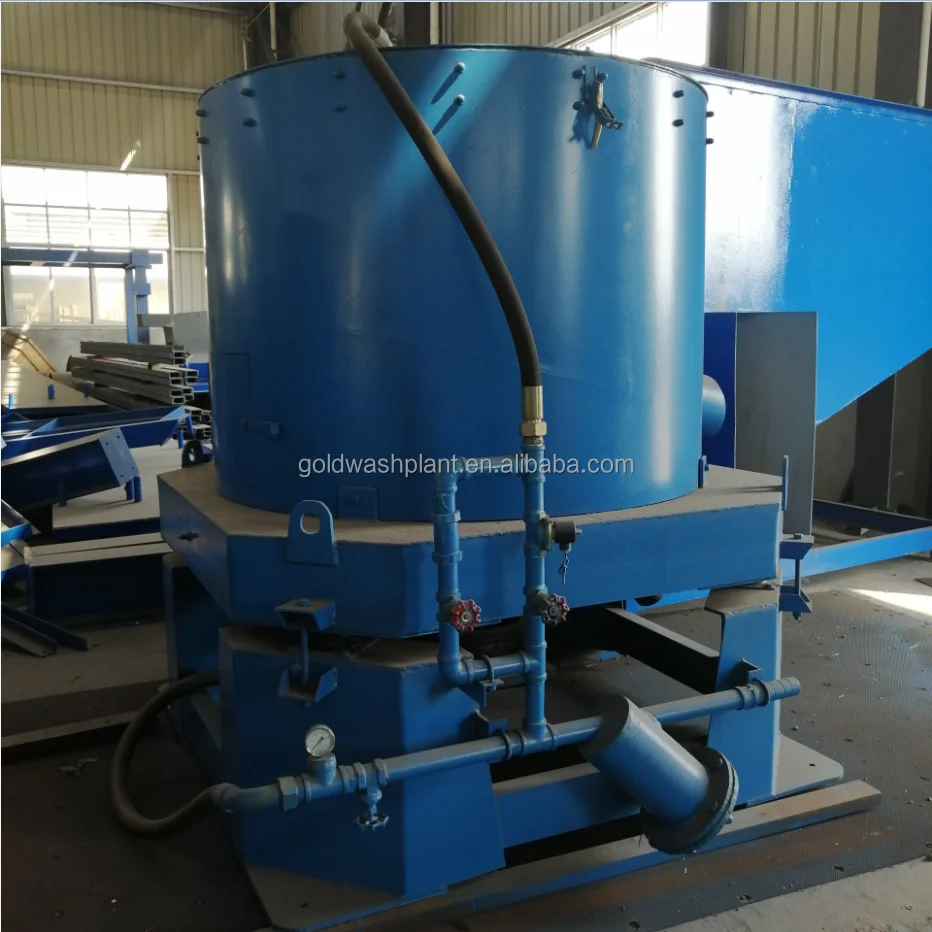

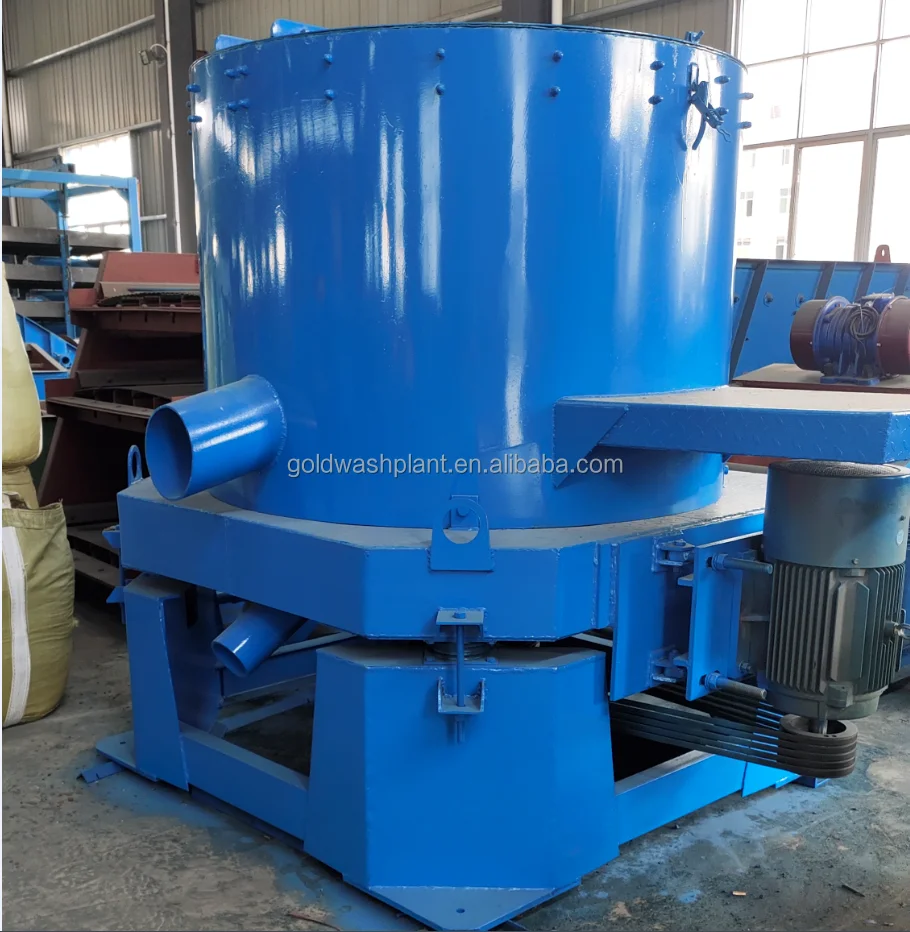

Details Images

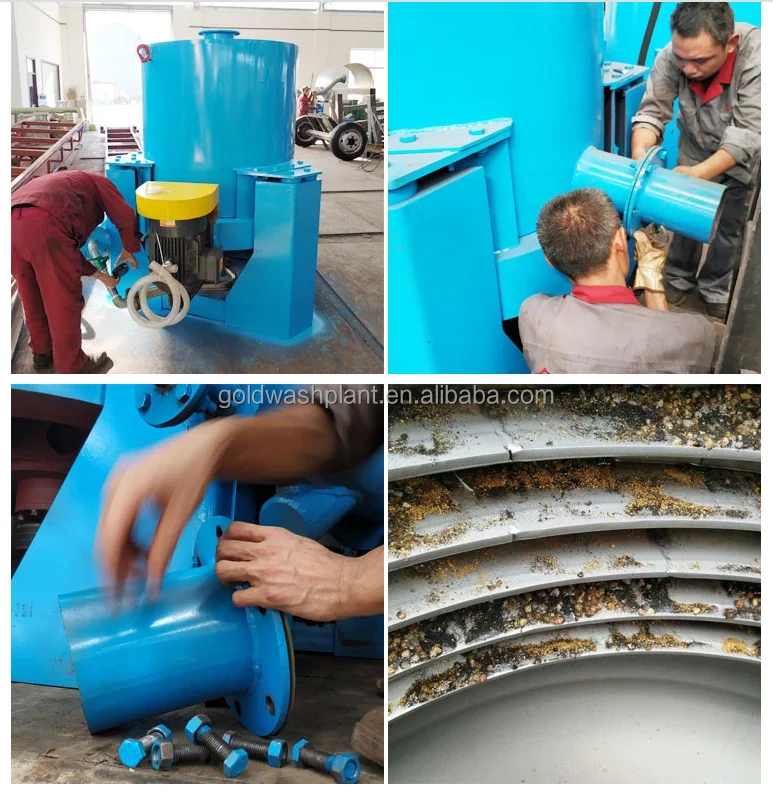

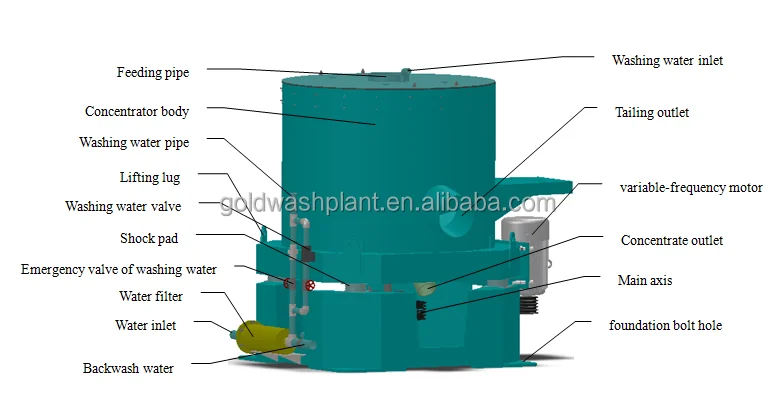

Structure

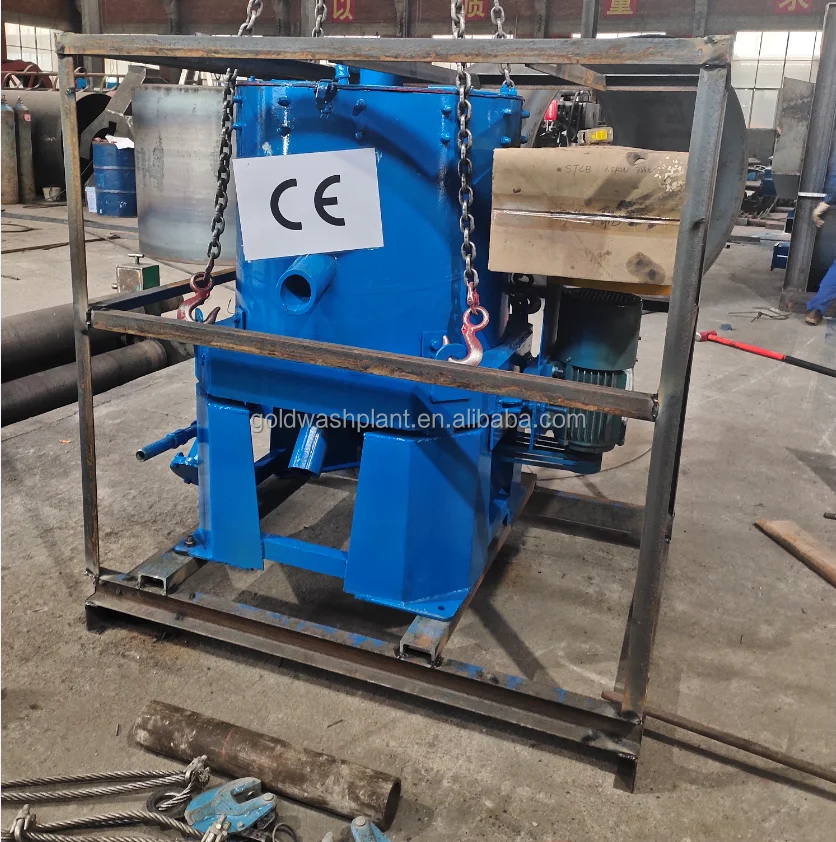

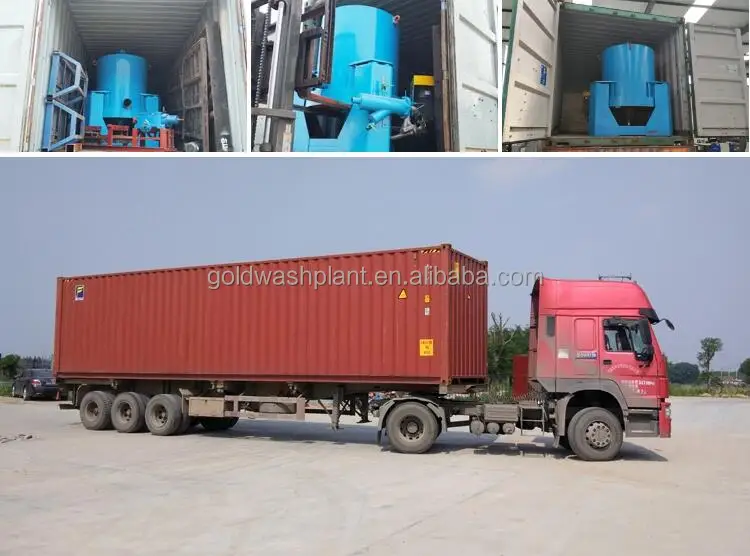

Feature and Packing

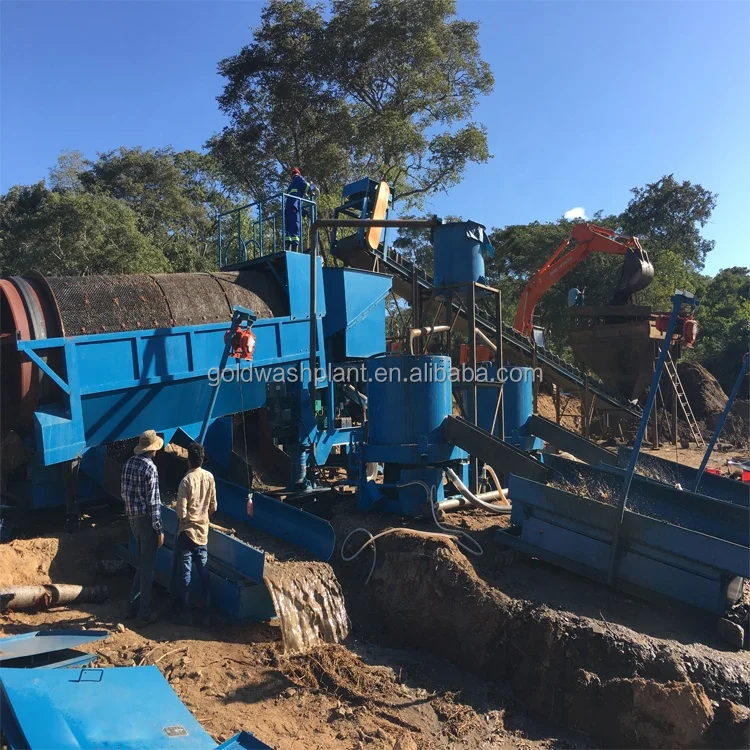

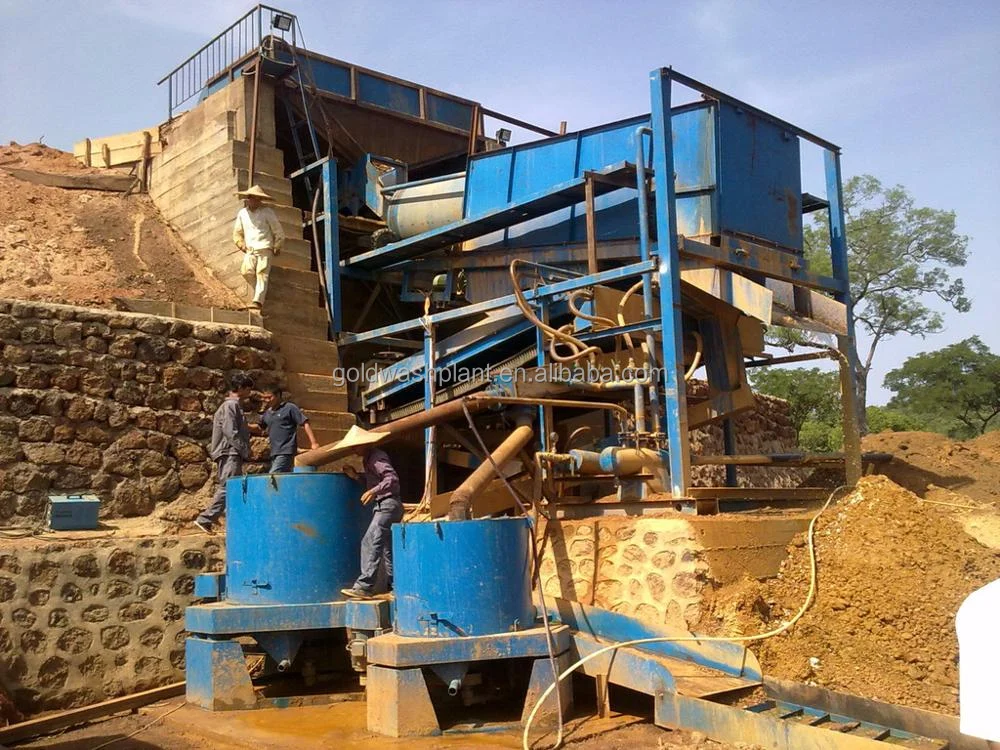

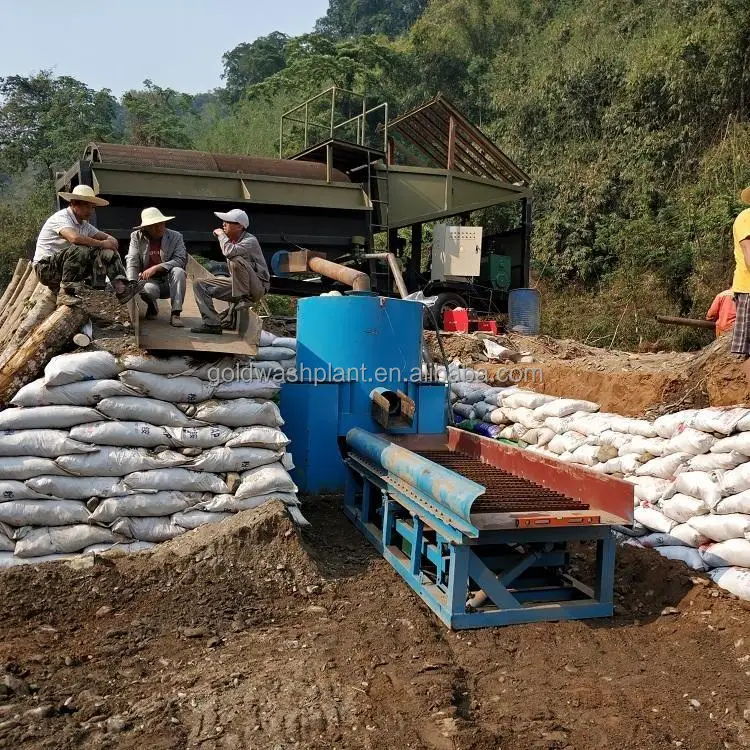

Clients use on-site pictures
FAQ
Q: What is the payment terms ? A: 1.Total payment lower than 3000USD : 100% payment by T/T before delivery. 2.Total payment higher than 3000USD: 30% prepayment by T/T , after the seller finish the production process and buyer verify the machine , 70% balance should paid before delivery. 3.Alibaba trade assurance L/C is also acceptable in special conditions.
Q: How long is the delivery time of your machine? A: 1. The delivery time is within 7-30 working days. 2. But if the project is very large and clients have some special requirement about the equipment, the delivery time will be extend.
Q: How long will the shipment takes ? (roughly) A: 1. Africa : 30-45 days Asia : 5-25 days America : 15-40 days Europe : 30-40 days
Q: How long is the warranty period about machine? A: 1. Our machine warranty period is 1 year. 2. Wearing parts and problem coursed by worker's wrong operation are not included.
Q: Can you provide me a solution and quotation? A: Of course. Please give us your details about project, raw material, the capacity, max feeding size, the output size, the usage of final products, etc.
