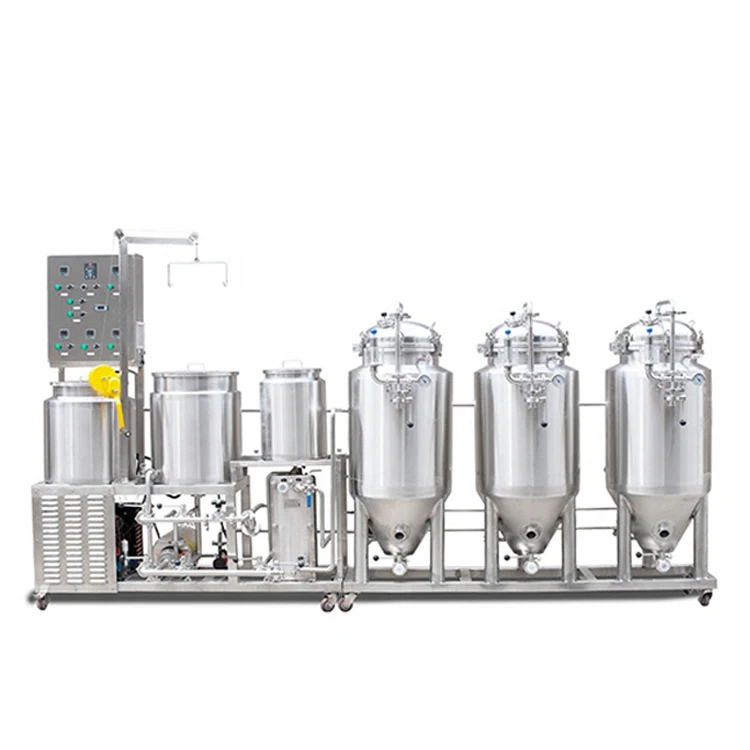

Professional micro brewery home beer brewing equipment 50L 30L 100L
- Category: Fermenting Equipment >>>
- Supplier: Nanjing Maidilong Machinery Technology Co. Ltd.
Share on (1600237695641):
Product Overview
Description

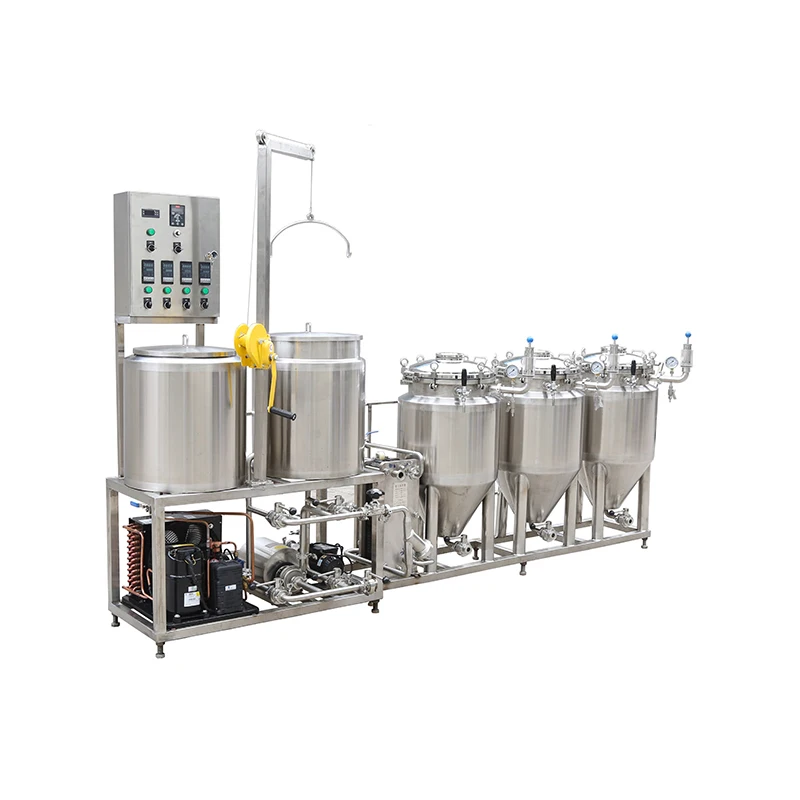

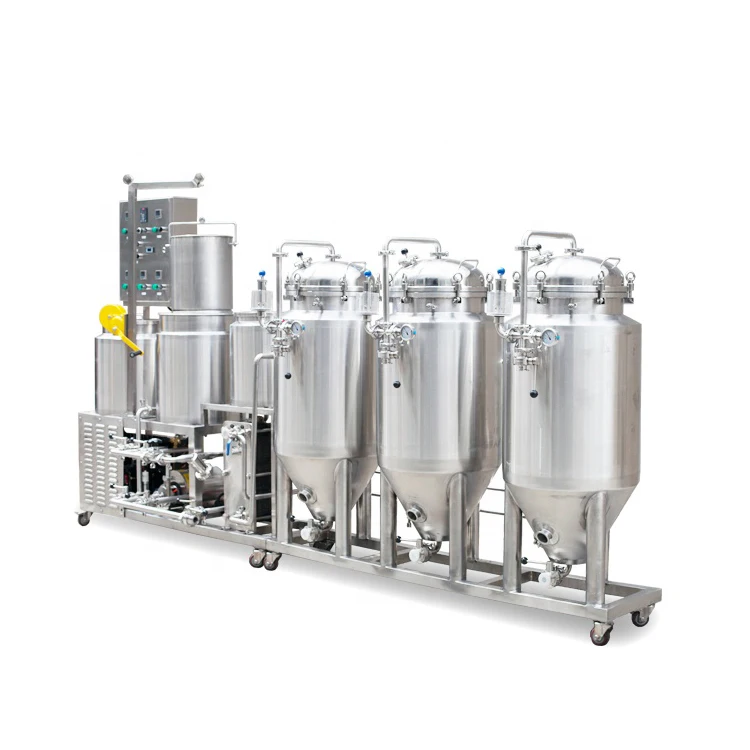

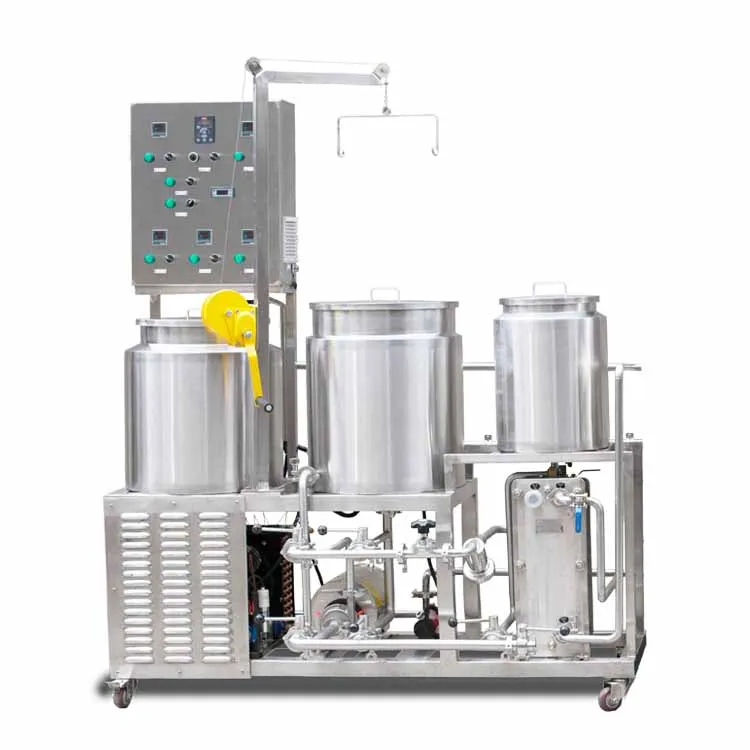

This skid is designed for pilot and small quantity craft beer brewing.
It is integrated with complete professional functions of mashing, wort lautering, wort boiling,
whirlpool, temperature control, pressure control, process control, fermentation.
It is integrated with complete professional functions of mashing, wort lautering, wort boiling,
whirlpool, temperature control, pressure control, process control, fermentation.
1.4 in 1 Mashing
This skid is designed for pilot and small quantity craft beer brewing.
It is integrated with complete professional functions of mashing, wort lautering, wort boiling,
whirlpool, temperature control, pressure control, process control, fermentation.
It is integrated with complete professional functions of mashing, wort lautering, wort boiling,
whirlpool, temperature control, pressure control, process control, fermentation.
Temperature Probe transfers the signal to control cabinet for precise temperature management.
The Heating Coil is applied for mashing and boiling heating.

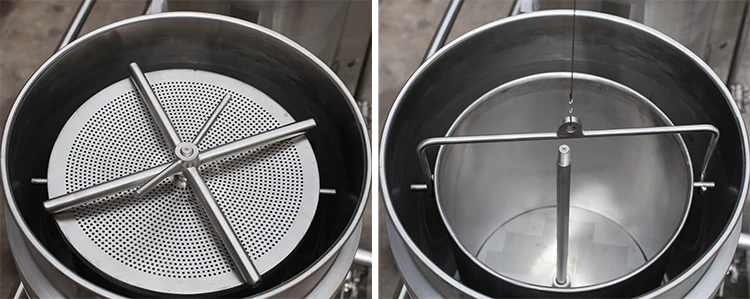

The Filter Barrel separates the grain and wort, also easy to wash grain when it is raised up by the lifter. Also, it is fixed by an axis stably.
The Heating Coil is applied for mashing and boiling heating.
The Filter Barrel separates the grain and wort, also easy to wash grain when it is raised up by the lifter. Also, it is fixed by an axis stably.
Water and wort can be circulated via the inlets and outlets, it not only enables whirlpool sediment but also makes mashing sufficiently.
A specially designed lifter is applied for lifting the grain for washing and barrel cleaning.

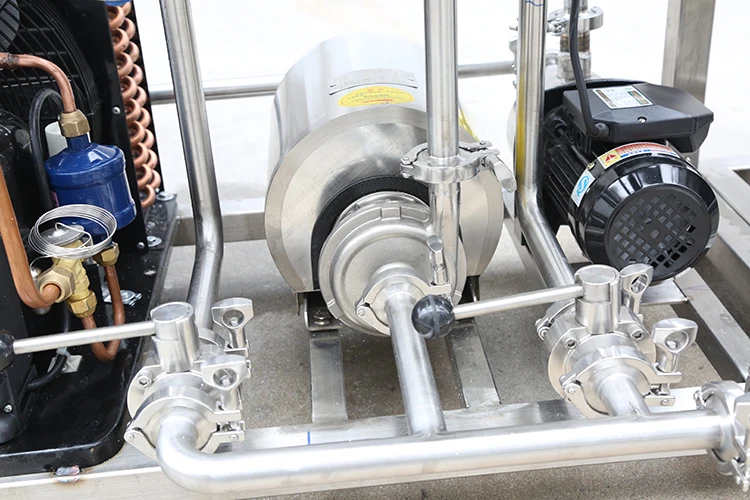

The pump can do all the works including hot water pumping, water and wort circulation, wort whirlpool and sediment, wort transmission to fermenters, fermenter washing and cleaning.
The pump can do all the works including hot water pumping, water and wort circulation, wort whirlpool and sediment, wort transmission to fermenters, fermenter washing and cleaning.

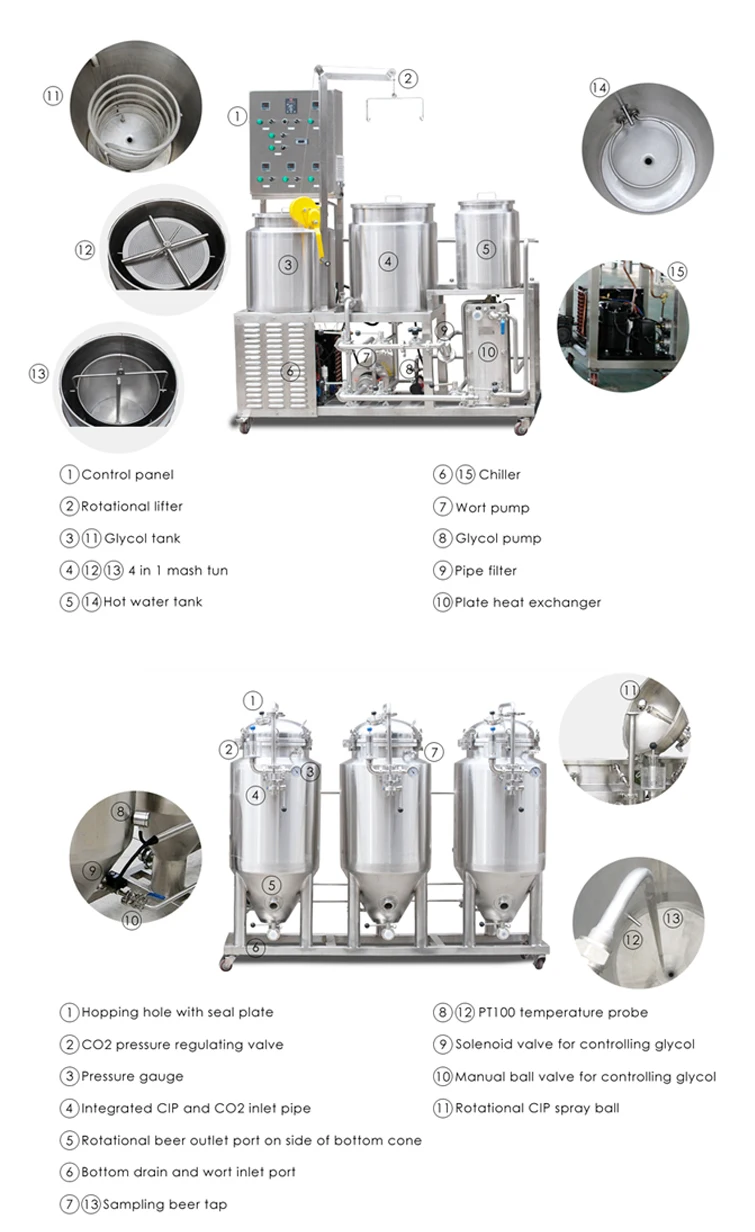

2.Main Parts
3.General Technical Requirements
1.Using 304 stainless steel material conform to ASTM standard.
2.Medium contact surface to be sanitary polished at Ra≤4μm and passivated.
3.Construction with TIG welding.
4.All pipe lines and vessels should pass tightness and pressure test before delivery.
5.Nozzles, inlets, outlets and connections should be sealed before delivery.
6.All medium connections are Tri Clamps.
7.Electrical components are from CCC certified and/or CE, CSA certified manufacturers.
2.Medium contact surface to be sanitary polished at Ra≤4μm and passivated.
3.Construction with TIG welding.
4.All pipe lines and vessels should pass tightness and pressure test before delivery.
5.Nozzles, inlets, outlets and connections should be sealed before delivery.
6.All medium connections are Tri Clamps.
7.Electrical components are from CCC certified and/or CE, CSA certified manufacturers.
4.Typical Configurations
Model | PB501M | PB501SE | PB502M | PB502SE | PB1001M | PB1001SE | |||||
Mashing Volume | 50L | 50L | 50L | 50L | 100L | 100L | |||||
Glycol Tank | 50L | 50L | 50L | 50L | 160L | 160L | |||||
Hot Water Tank | 30L | 30L | 30L | 30L | 75L | 75L | |||||
Fermentation Vessel | 50L*3 | 50L*3 | 100L*3 | 100L*3 | 100L*3 | 100L*3 | |||||
Control | Manual | PLC | Manual | PLC | Manual | PLC | |||||

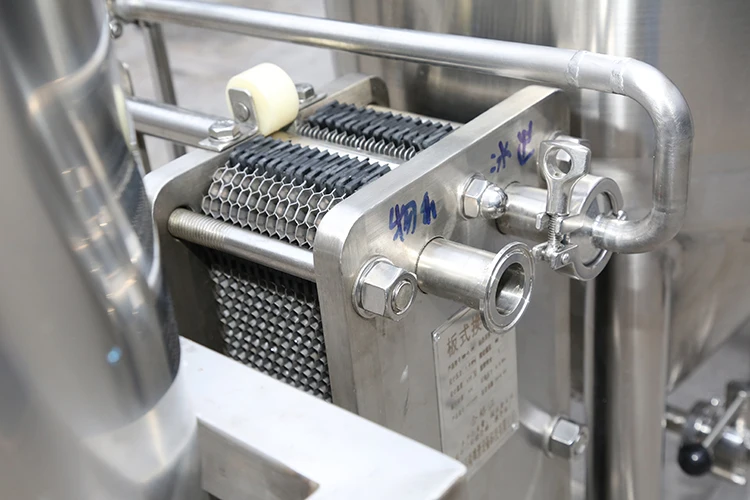

Plate Heat Exchanger | Dual Stages | ||||||||||
We are providing more optional configurations,please contact our engineer for assistance.

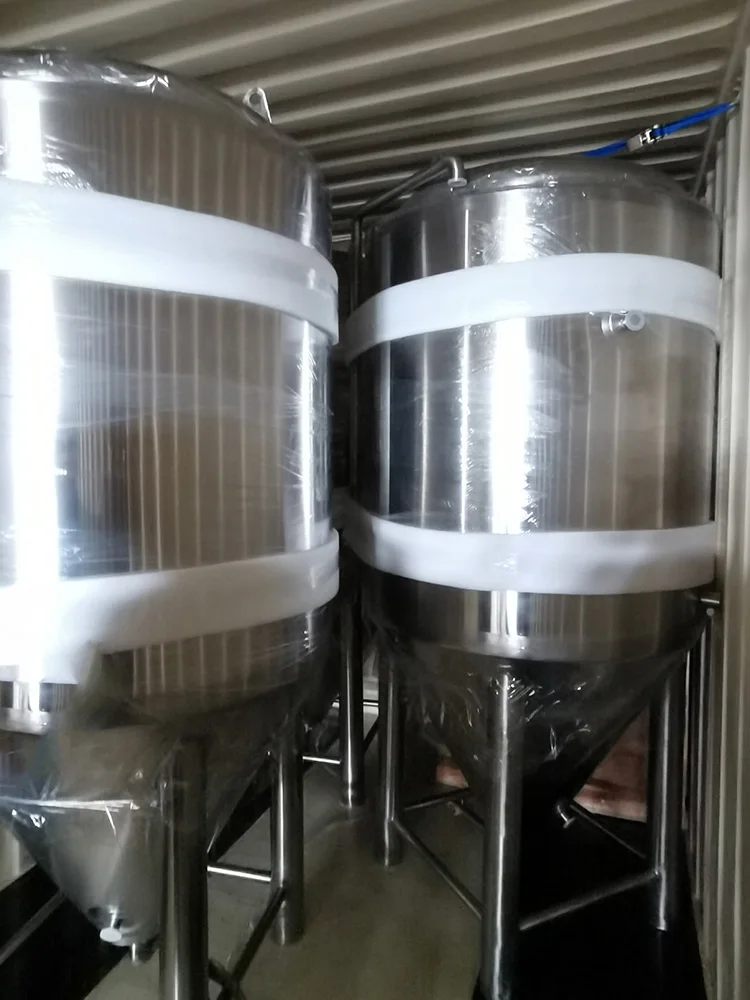

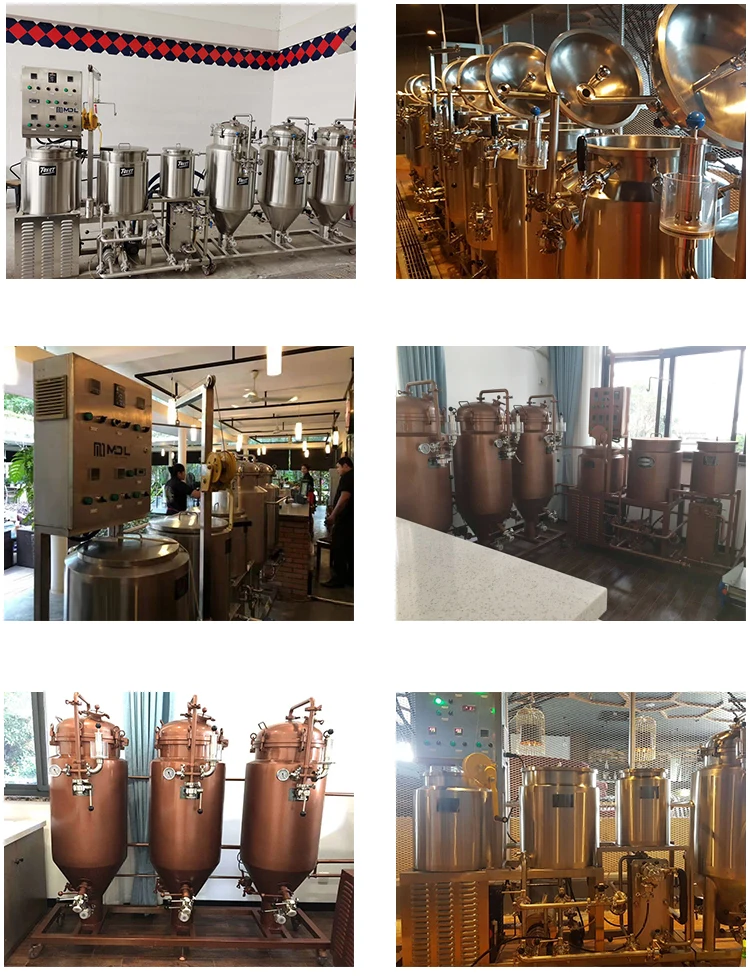

5.Scene project case

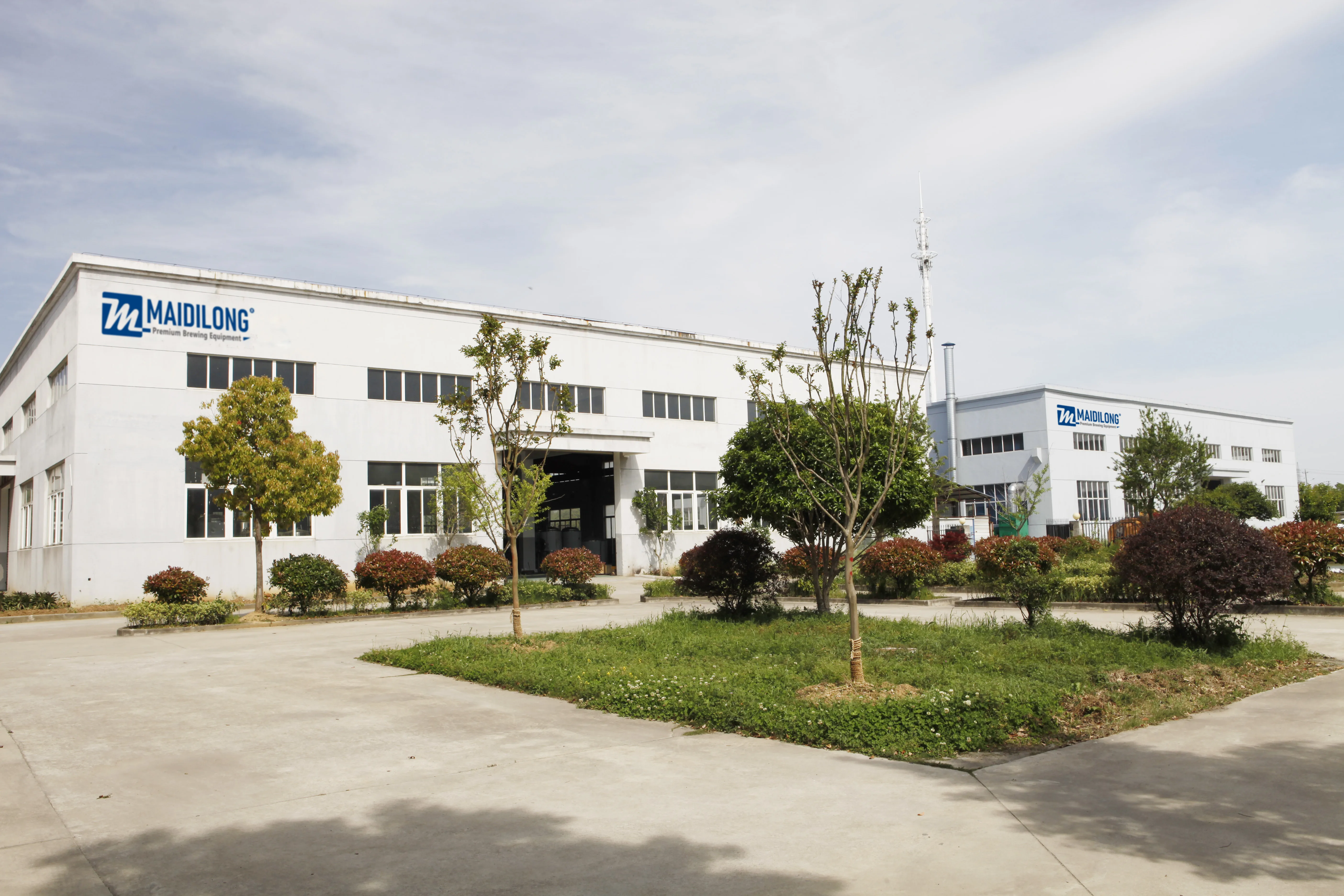

MDL is a technology application-oriented manufacturing enterprise, focusing on the design and manufacturing of professional equipment for the wine, beer, food, dairy, fine chemicals, pharmaceutical and bioengineering industries.
For over 15 years MDL’s professional manufacturing experience, leading manufacturing technology, excellent equipment quality and client-driven business approach has won the support of domestic and international customers.
A dedicated approach to further developing advanced product technology, rigorous manufacturing processes, quality control and supply chain management allow us to provide customers with excellent products and services.
For over 15 years MDL’s professional manufacturing experience, leading manufacturing technology, excellent equipment quality and client-driven business approach has won the support of domestic and international customers.
A dedicated approach to further developing advanced product technology, rigorous manufacturing processes, quality control and supply chain management allow us to provide customers with excellent products and services.
