Factory Price Industrial Water Cooler Liquid Chiller Machine for Petrochemical
- Category: >>>
- Supplier: Wuxi Guanya Refrigeration Technology Co. Ltd.
Share on (1600238153862):
Product Overview
Description

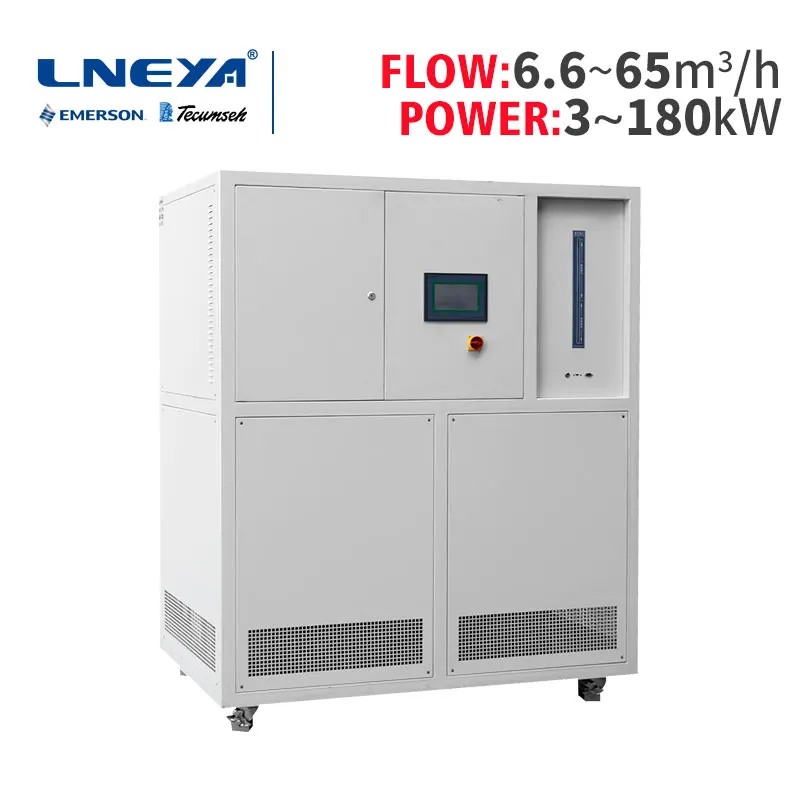

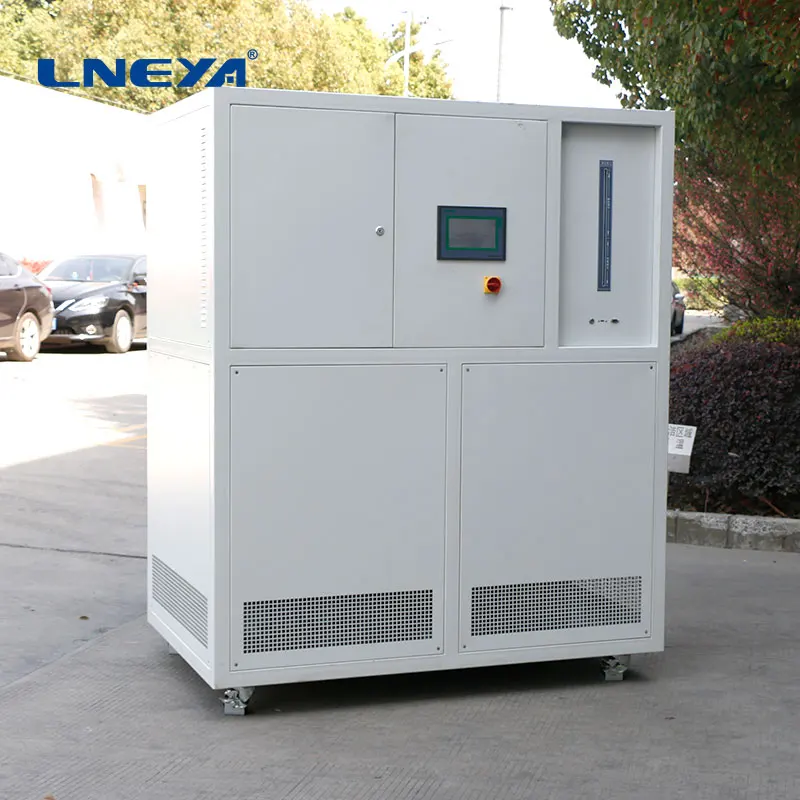

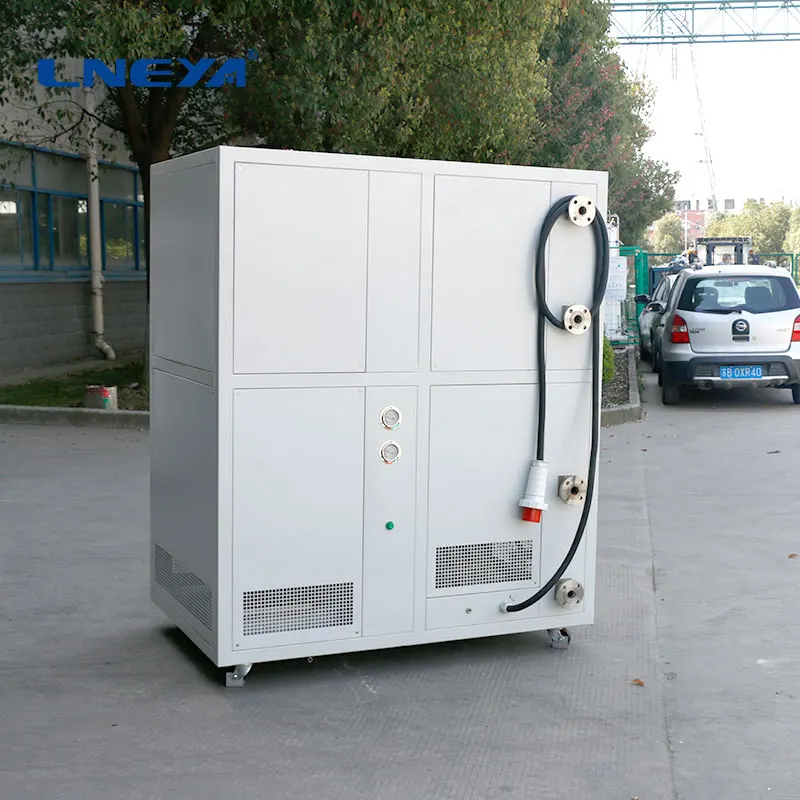

Factory Price Industrial Water Cooler Liquid Chiller Machine for Petrochemical
Products Description
Product Paramenters
Model | LC- 12W | LC- 20W | LC- 30W | LC- 40W | LC- 60W | LC- 80W | LC- 120W | LC- 180W | LC- 240W | ||||||||
Temp range | -25 ~ -5℃ (optional: -150 ~ -5℃) | -10~+200 ℃ | |||||||||||||||
Cooling capacity (KW) AT -20 ℃ | 12KW | 20KW | 30KW | 40KW | 60KW | 80KW | 120KW | 180KW | 240KW | ||||||||
10320Kcal/h | 17200Kcal/h | 25800Kcal/h | 34400Kcal/h | 51600Kcal/h | 68800Kcal/h | 103200Kcal/h | 154800Kcal/h | 206400Kcal/h | |||||||||
Circulation pump info | 6.6m³/h 2.5bar | 9m³/h 2.5bar | 15m³/h 2.5bar | 15m³/h 2.5bar | 25m³/h2.5bar | 25m³/h2.5bar | 25m³/h 2.5bar | 35m³/h 2.5bar | 35m³/h 2.5bar | ||||||||
Inlet&outlet connection size | DN25 PN10 | DN25 PN10 | DN32 PN10 | DN32 PN10 | DN40 PN10 | DN40 PN10 | DN40 PN10 | DN50 PN10 | DN50 PN10 | ||||||||
Expansion tank | 100L | 135L | 250L | 350L | 500L | 600L | 750L | 1000L | 1350L | ||||||||
Refrigerant | R404A/R507C, optional: R448A | ||||||||||||||||
Dimension cm | 100*150*185 | 100*150*185 | 250*145*205 | 205*145*205 | 205*145*175 | 245*145*205 | 300*160*225 | 350*160*205 | 400*160*225 | ||||||||
Power 380V 50HZ | 10KW | 14KW | 22KW | 31KW | 45KW | 61KW | 86KW | 127KW | 167KW | ||||||||
Weight kg | 800 | 950 | 1100 | 1350 | 1500 | 1800 | 2400 | 3100 | 3600 | ||||||||
LNEYA has several high-quality designers with rich experience in ultra-low temperature and high-low temperature development. At present, the company is at the advanced level of its peers in the R & D of refrigeration technology, at the international advanced level in the research of high and low temperature rapid temperature rise and fall technology, and at the advanced level in the research of single medium temperature control of reactor.
Company Profile
Wuxi Guanya Refrigeration Technology Co., Ltd. specialized in the industrial chiller, environmental chamber, industrial freezer, thermostatic bath, multi-reactor chiller (TCU), recirculating air control system and ultra-low temp. water-cooled chiller.We are the technology leader for high precision thermoregulation solutions in research and development industry. Our products ensureprecise temperature control throughout the whole world in the semiconductor industry, chemical/pharmaceutical industry, biotechnology industry, research/lab/university, food/medical/hospital(health)and laptop/Mobile Phone. Our products offer temperature control solutions for applications from -152 to +350℃.
Exhibition
LNEYA attends various exhibitions at home and abroad every year. At the exhibition, we show the latest research equipment of LNEYA. Every year, long-term cooperative customers will come to exhibitions and communicate with us. We are also actively developing new customers to provide them with high quality machines and services.
Certifications
As an enterprise certified by ISO9001, LNEYA has reached international standards in the integration of various management systems. The products of LNEYA, CE is used as a permit for the product to enter the European market.
So far, LNEYA has 11 patents of utility model authorized certificate.
So far, LNEYA has 11 patents of utility model authorized certificate.
FAQ
After sale service
Quality assurance
Guarantee that the goods are sold to be conform to the provisions of the contract and qualified new products by factory
inspection, quality performance, technical indicators and configured are in accordance with manufactures and technical documents stipulated in the contract.
Installation and debugging
After the arrival of the goods, my company or my company agent is responsible for installation and debugging of equipment need on-site installation and debugging.
Inspection and acceptance
After installation and debugging, acceptance by the customer to confirm the goods to be conform to the provisions of the contract and qualified new products, quality performance, technical indicators and configured are in accordance with manufactures and technical documents stipulated in the contract, and after the confirmation of a full set of technical documents, sign the installation acceptance report and confirm acceptance.
Training
At the same time of installation and debugging of equipment, my company’s after-sales service engineer is responsible for
technical training for user until user can be skilled of operation. In the process of using equipment by customer, customer can consult relevant technical issues to after-sales service personal of our company at any time, according to the situation, my company will arrange training on site or remote.
After sale service commitment
A full free one year warranty since the date of acceptance, during the warranty period, all repairs and spare parts are free of charge(instrukent malfunction caused bu human factors will be charged of cost price of spare parts); After the warranty period, we will be responsible for maintenance of equipment for lifetime, according to the actual maintenance fees, appropriate fee will be charged.
(PS:There will have extra charge if the customer need on-site service. And customers need to describe the issue first and then send some failed pics or videos in advance, then Lneya judge if it is possible to go for after-Sales on site. )
Quality assurance
Guarantee that the goods are sold to be conform to the provisions of the contract and qualified new products by factory
inspection, quality performance, technical indicators and configured are in accordance with manufactures and technical documents stipulated in the contract.
Installation and debugging
After the arrival of the goods, my company or my company agent is responsible for installation and debugging of equipment need on-site installation and debugging.
Inspection and acceptance
After installation and debugging, acceptance by the customer to confirm the goods to be conform to the provisions of the contract and qualified new products, quality performance, technical indicators and configured are in accordance with manufactures and technical documents stipulated in the contract, and after the confirmation of a full set of technical documents, sign the installation acceptance report and confirm acceptance.
Training
At the same time of installation and debugging of equipment, my company’s after-sales service engineer is responsible for
technical training for user until user can be skilled of operation. In the process of using equipment by customer, customer can consult relevant technical issues to after-sales service personal of our company at any time, according to the situation, my company will arrange training on site or remote.
After sale service commitment
A full free one year warranty since the date of acceptance, during the warranty period, all repairs and spare parts are free of charge(instrukent malfunction caused bu human factors will be charged of cost price of spare parts); After the warranty period, we will be responsible for maintenance of equipment for lifetime, according to the actual maintenance fees, appropriate fee will be charged.
(PS:There will have extra charge if the customer need on-site service. And customers need to describe the issue first and then send some failed pics or videos in advance, then Lneya judge if it is possible to go for after-Sales on site. )
