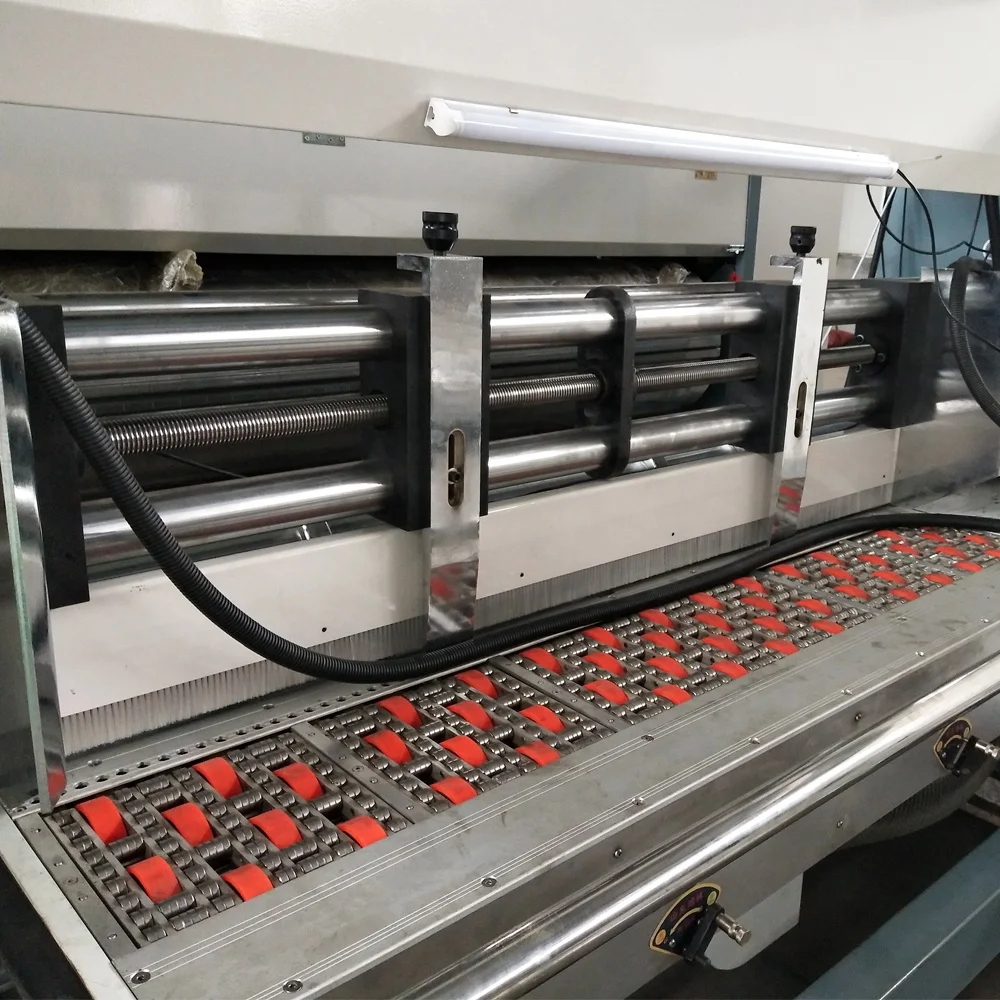

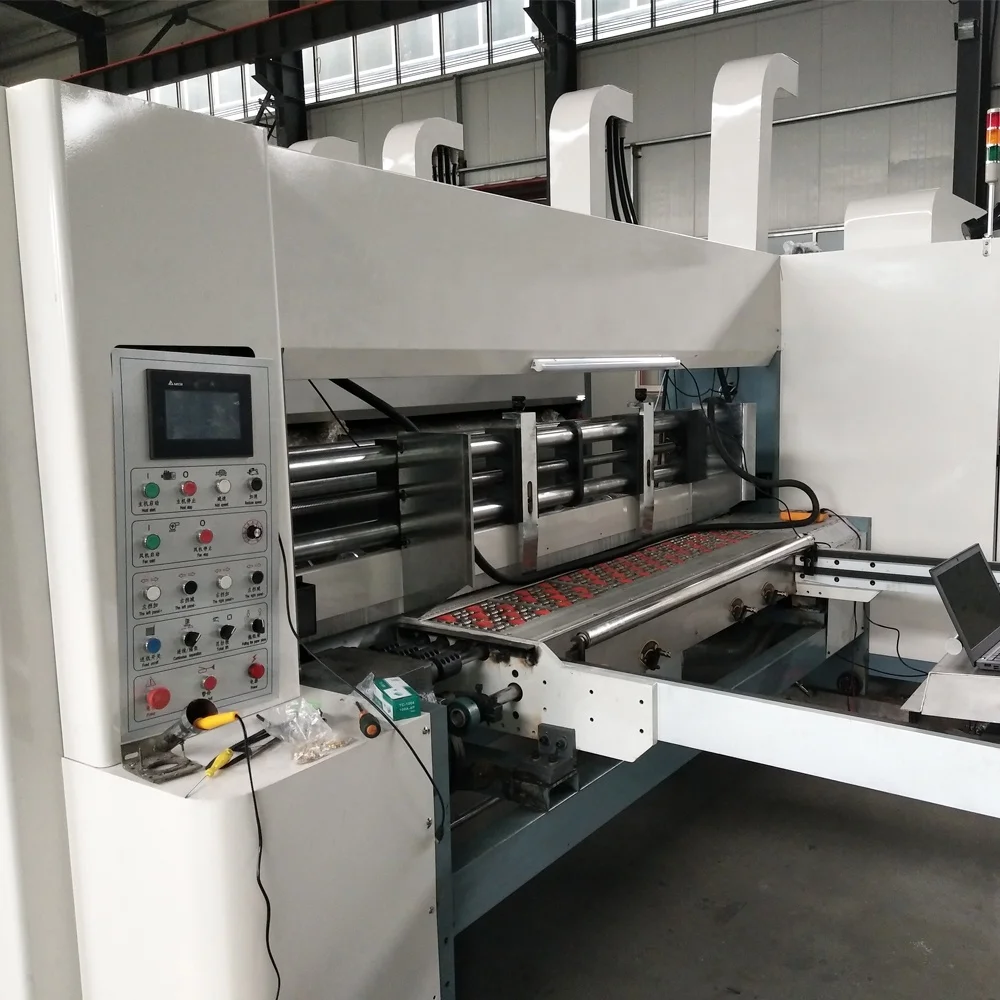

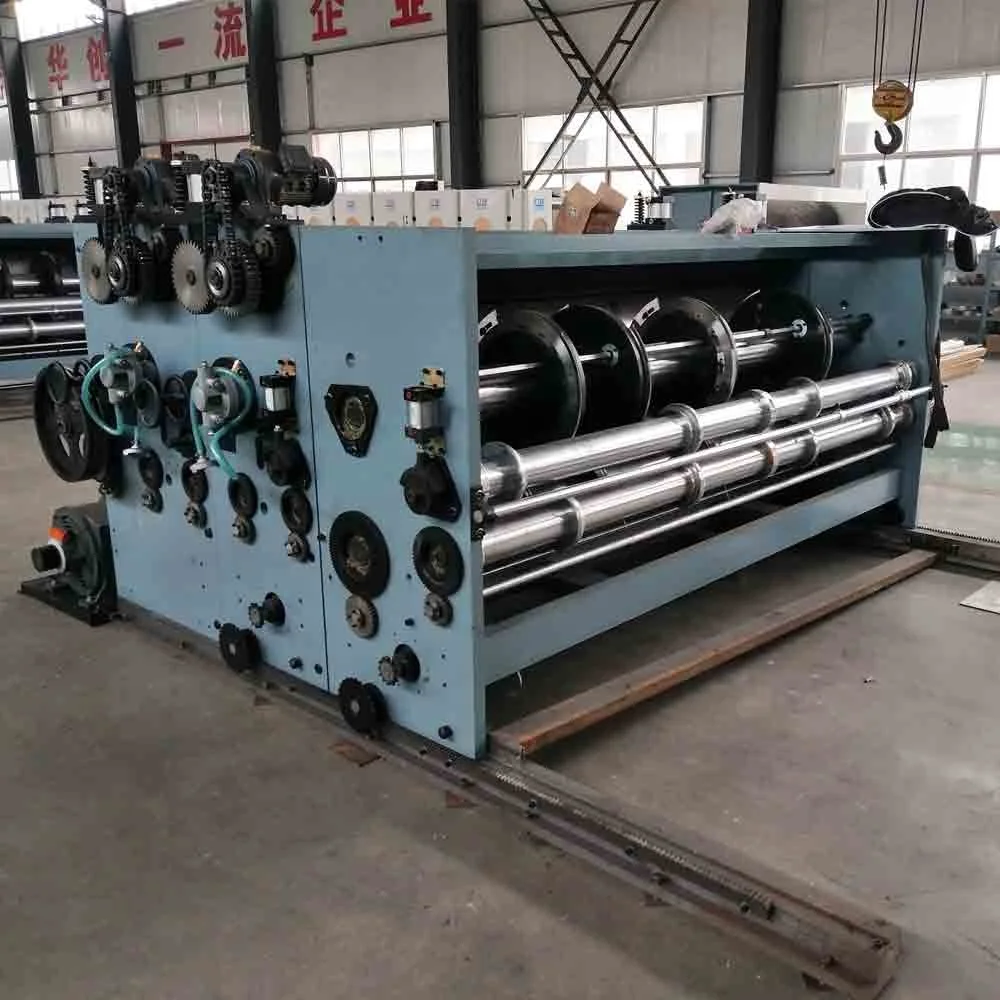

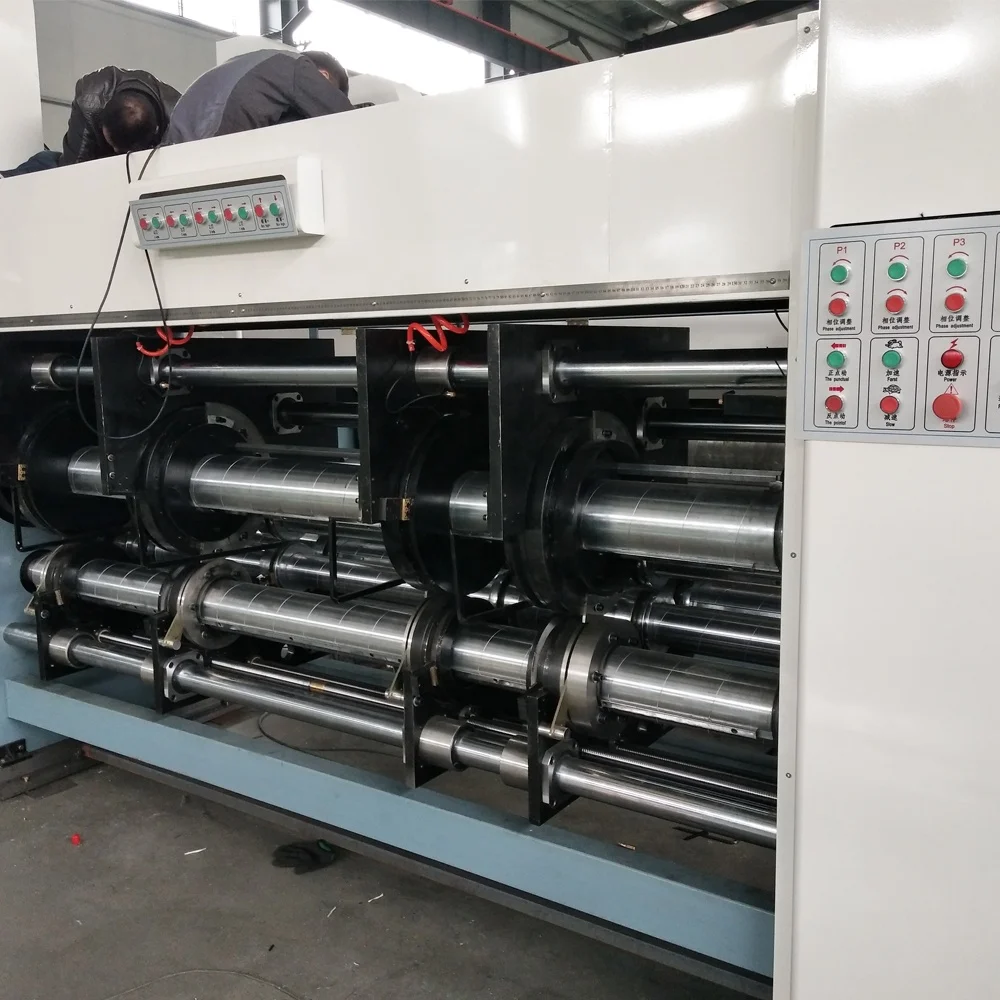

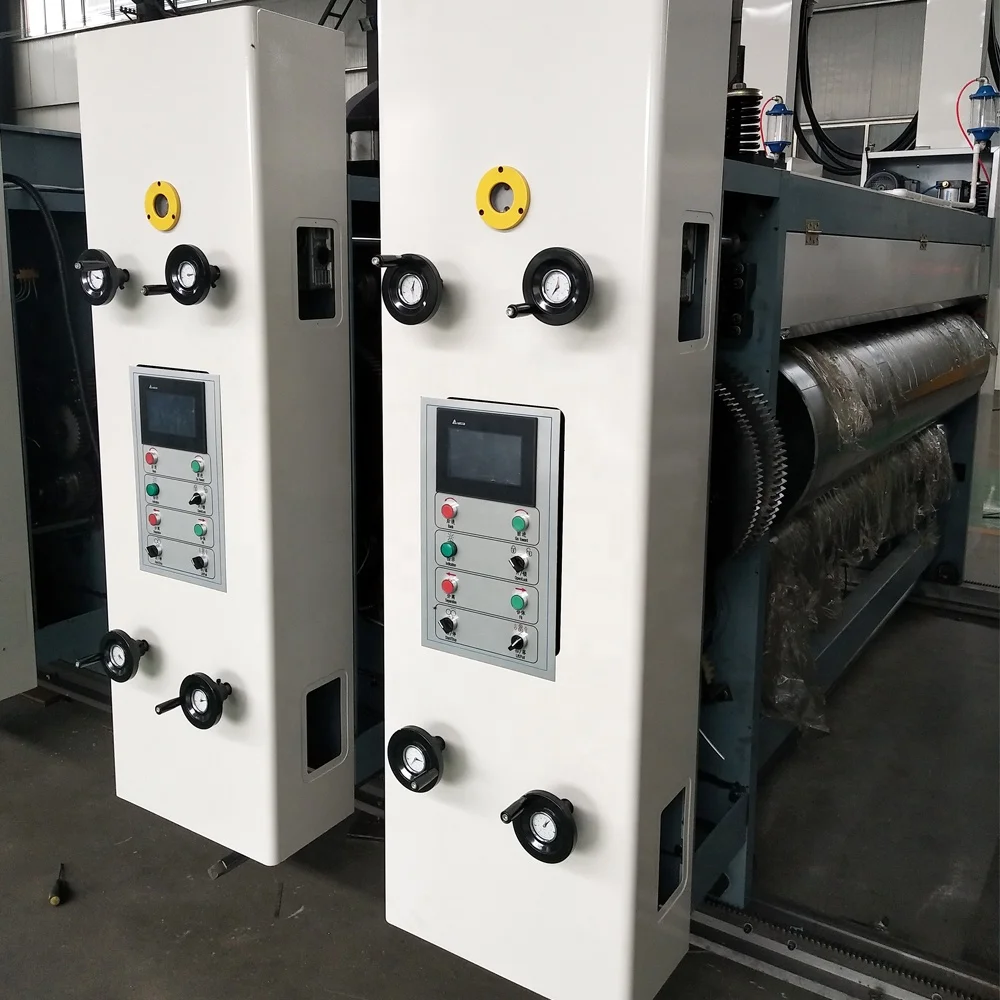

direct factory corrugated paperboard carton chain link printing machine with slotting die cutting part
direct factory corrugated paperboard carton chain link printing machine with slotting die cutting part
direct factory corrugated paperboard carton chain link printing machine with slotting die cutting part
direct factory corrugated paperboard carton chain link printing machine with slotting die cutting part
direct factory corrugated paperboard carton chain link printing machine with slotting die cutting part
direct factory corrugated paperboard carton chain link printing machine with slotting die cutting part
direct factory corrugated paperboard carton chain link printing machine with slotting die cutting part

direct factory corrugated paperboard carton chain link printing machine with slotting die cutting part

Share on (1600238192945):


Price:

Quantity:


Product Overview

Description



Product Overview

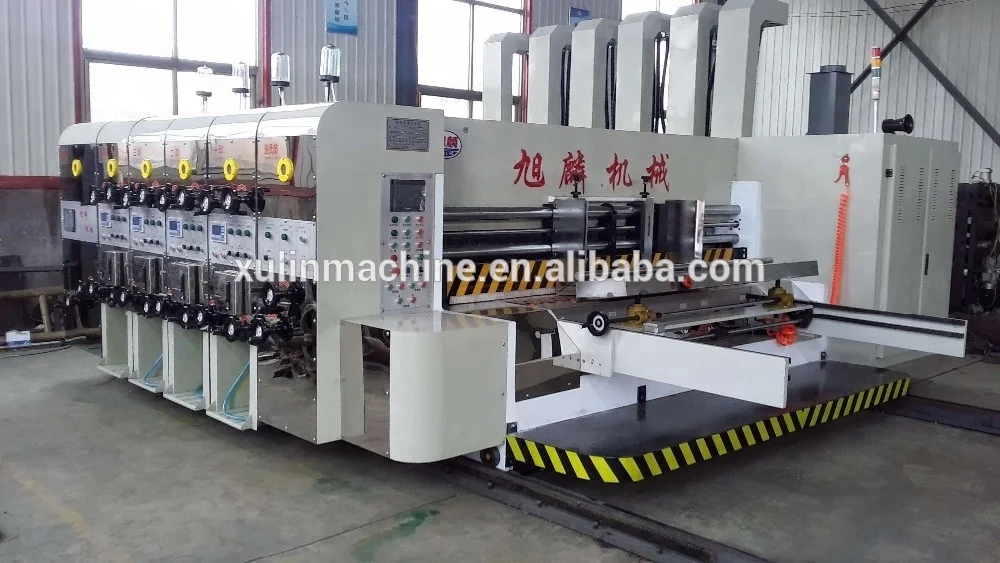

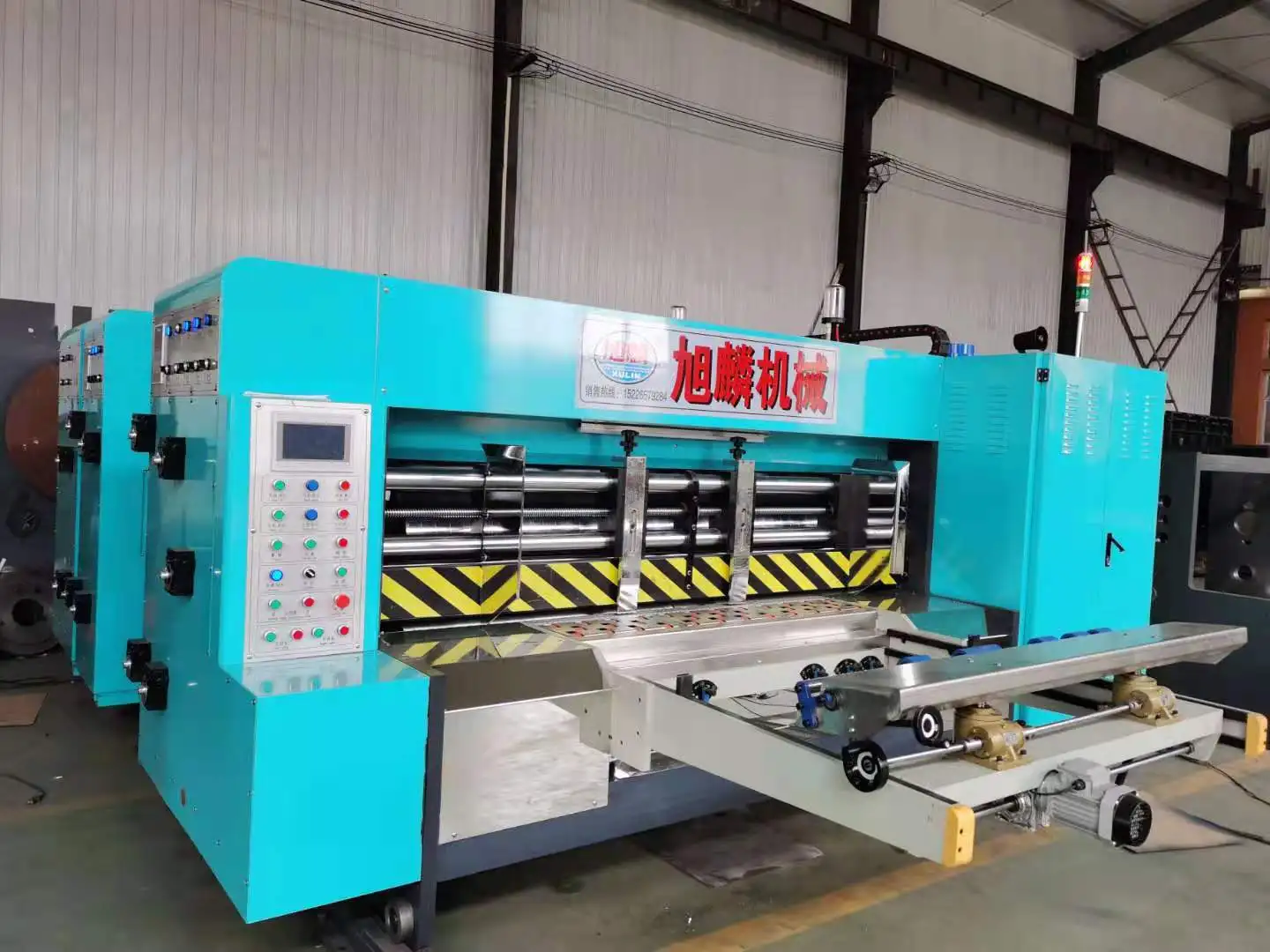

auto-die cutting slotting printing machine

Adopting the leading edge feeding method and equipped with the suction auxiliary system on the work table, the general bending
uneven cardboard can pass through smoothly.
The transmission gear is a helical gear transmission system.
Printing and slotting phase adjustment using electric digital 360 degree adjustment,save time and improve work efficiency.
Driven by variable frequency motor, users can adjust the speed in a certain range according to their needs.
The gap adjustment range of the pressing roller is large, suitable for three, five, seven layers of different thickness of
cardboard, and the printing handwriting is clear, beautiful patterns, accurate color.
The machine adopts electric detachable structure, the user can complete monochrome, two-color or multi-color printing separately
according to the different needs of the product, and easy to maintain, and has the function of pneumatic locking, separate
positioning, accurate, convenient and fast operation.
Continuous paper feeding function.
The function of stopping paper feeding when the stated number of sheets arrives.
Set the function of early warning when the stated number of sheets arrives.
Lack of paper stop feed function, anilox roller lifting at the same time, feed roll drop function, to ensure that each board is
not empty printing.
It has the function of cardboard test printing, the number of test printing sheets can be set.
Each group is provided with a liquid crystal phase controller, which can adjust the phase.
Plate changing function, can make the roller stop at the fixed position, hanging plate slot exposed, convenient for plate
changing.
Erasing one-key return function, this function can be used to remember the phase before erasing, and after erasing can make the
roller back to the position previously remembered.
Equipped with the function of rubber roller does not close to anilox roller and not inking, to prevent ink leakage.
Printing roller is electrically driven horizontally.






width of machine inside
2200mm
2600mm
2800
max.paper size
900*2000mm
1200*2400mm
1400*2600mm
max.printing size
900*1800mm
1200*2200mm
1400*2400mm
skip feeding paper
1100*2000mm
1400*2400mm
1600*2600mm
design speed(piece/min)
200
180
150
economic speed(piece/min)
80-180
80-160
80-130


Right elevation
Left elevation

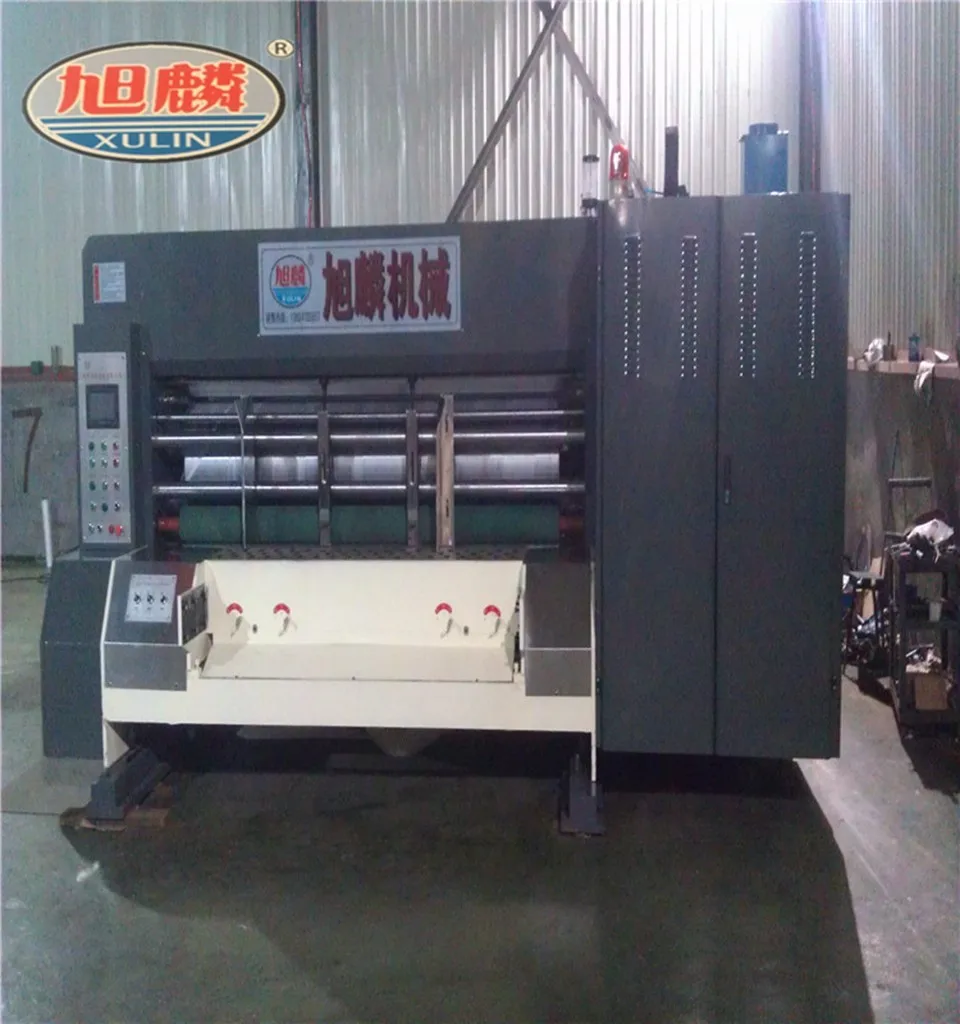

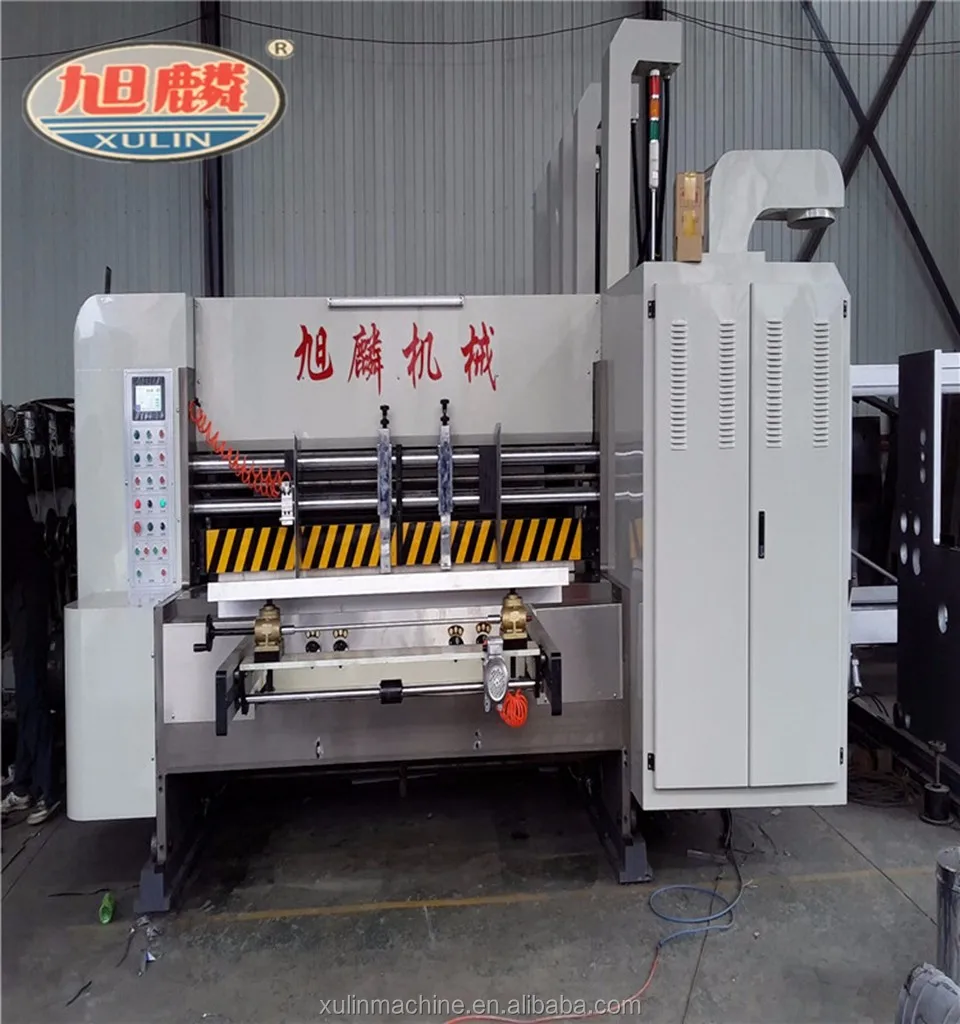

Front elevation
