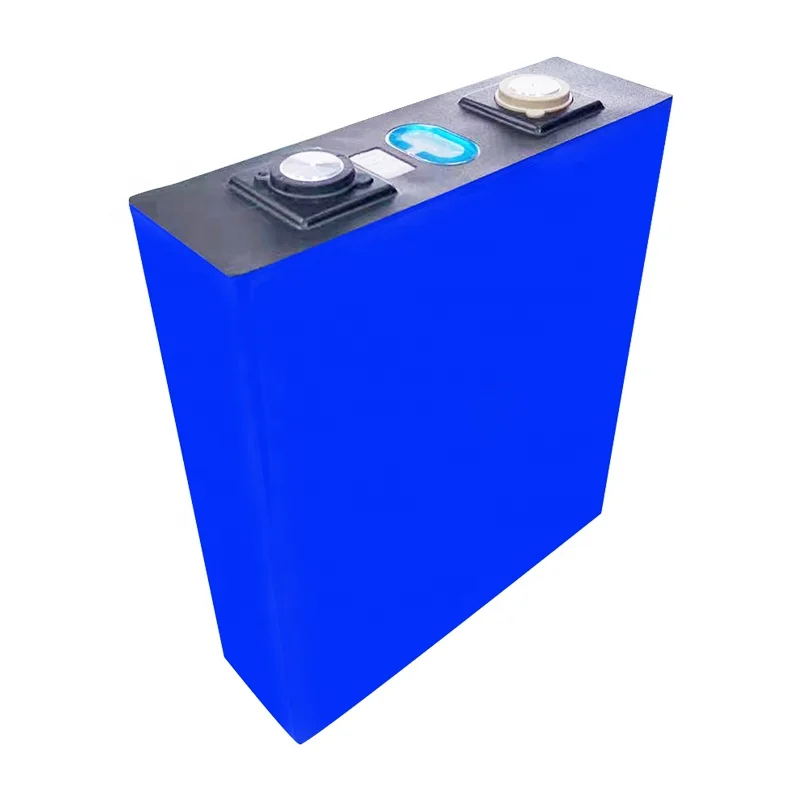

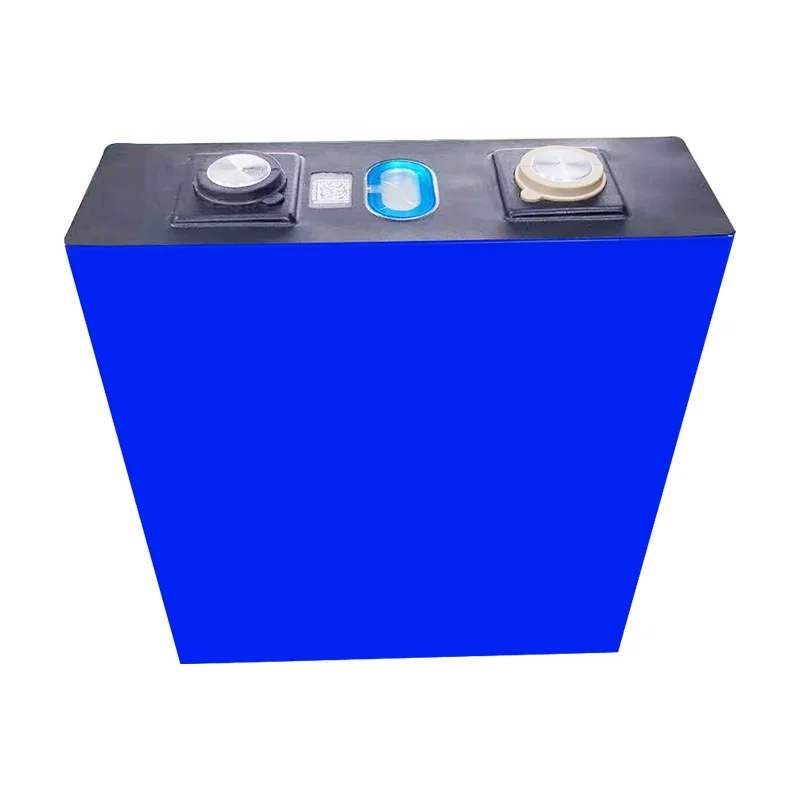

Catl Deep Cycle Lithium Iron Phosphate 3.2V 200 Ah LiFePo4 UPS Battery For Motorhome
- Category: >>>
- Supplier: Shenzhen Manyi New Energy Co. Ltd.
Share on (1600238285253):
Product Overview
Description
1. Original CATL LiFePo4 battery, Brand New A grade battery with clear QR code;
2. The capacity are all over 205Ah, the voltage are between 3.25v-3.30v, the internal resistance are between 0.15-0.25mΩ;
3. The production date are 2020-2021 year;

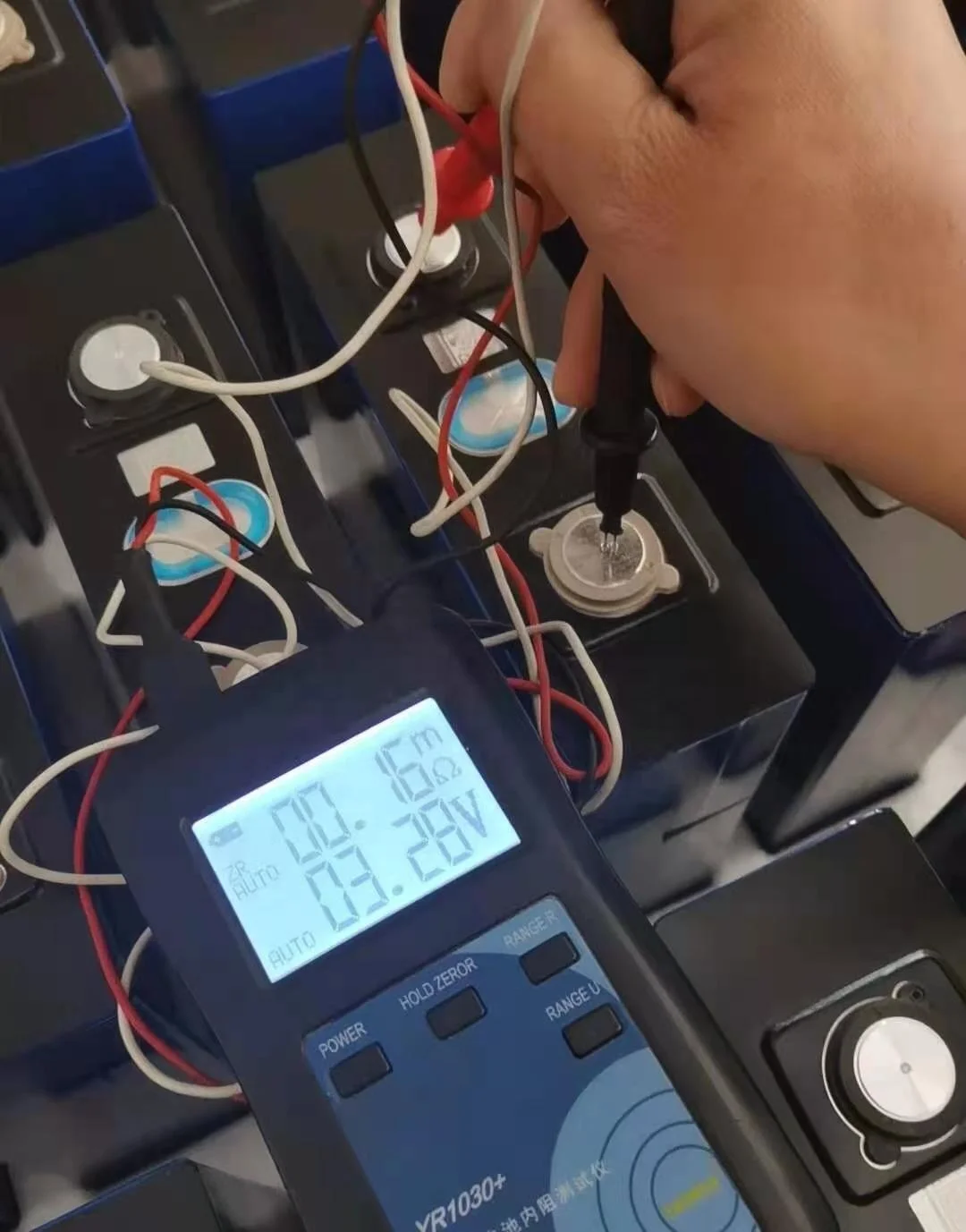

4. We will test all batteries of voltage and internal resistance for matching the batteries to ensure the good consistency; (If you need the testing video, pls. contact with us.)
Voltage:The deviation less than 0.01V;
5. The price is including the busbars, nuts and washers.
2. The capacity are all over 205Ah, the voltage are between 3.25v-3.30v, the internal resistance are between 0.15-0.25mΩ;
3. The production date are 2020-2021 year;
4. We will test all batteries of voltage and internal resistance for matching the batteries to ensure the good consistency; (If you need the testing video, pls. contact with us.)
Voltage:The deviation less than 0.01V;
Internal Resistance:The deviation less than 0.1mΩ;
5. The price is including the busbars, nuts and washers.
Product Paramenters
General Specification | Style | Prismatic Lifepo4 Battery | ||
Manufacturer | CATL | |||
Typical Capacity | 202Ah | |||
Typical Voltage | 3.2V | |||
Internal Resistance（1KHz） | ≤0.25mΩ | |||
Standard Charge/Discharge Current | 0.5C/0.5C | |||
Standard Charge/Discharge Cut-off Voltage | 3.65V/2.5V | |||
Max. Continuous Charge/Discharge Current | 1C/1C | |||
Cyclelife | 3500 Times | |||
Warranty | 3 Years | |||
Environmental | Charge Temperature | 0℃~55℃ | ||
Discharge Temperature | -22℃~55℃ | |||
Storage Temperature | -20℃~45℃( within 1 month) | |||
0℃~35℃( within 1 year) | ||||

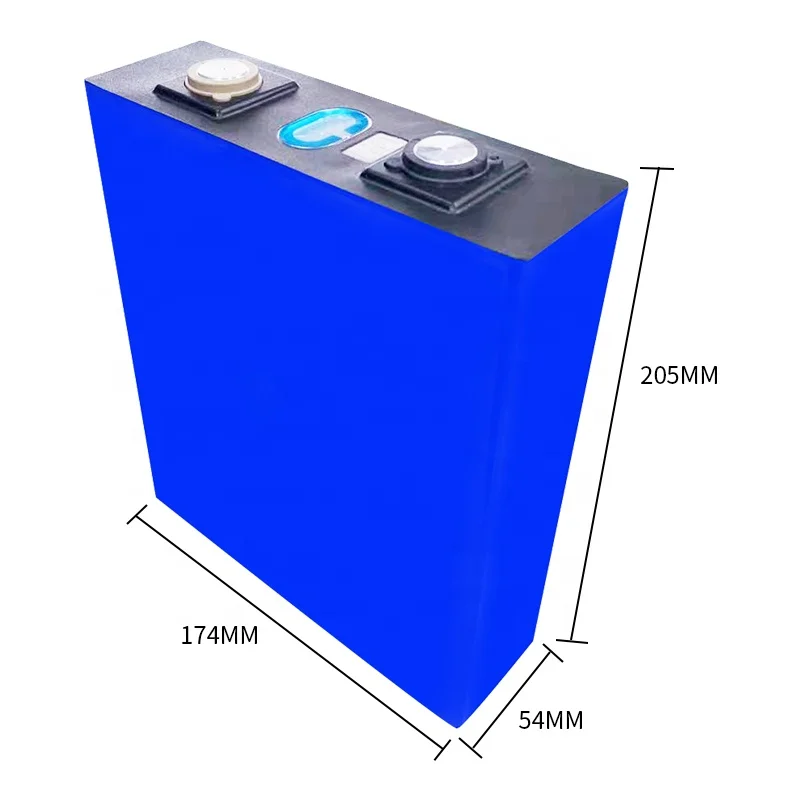

Dimension and Weight | Width | 173.7±0.3mm | ||
Thickness | 54±0.5mm | |||
Height（Total Height） | 204.8±0.5mm | |||
Height(Principal Height） | 200.2±0.5mm | |||
Central Distance of Positive and Negative Pole | 90.0±0.3mm | |||
Net Weight | 3.9±0.30kg | |||
