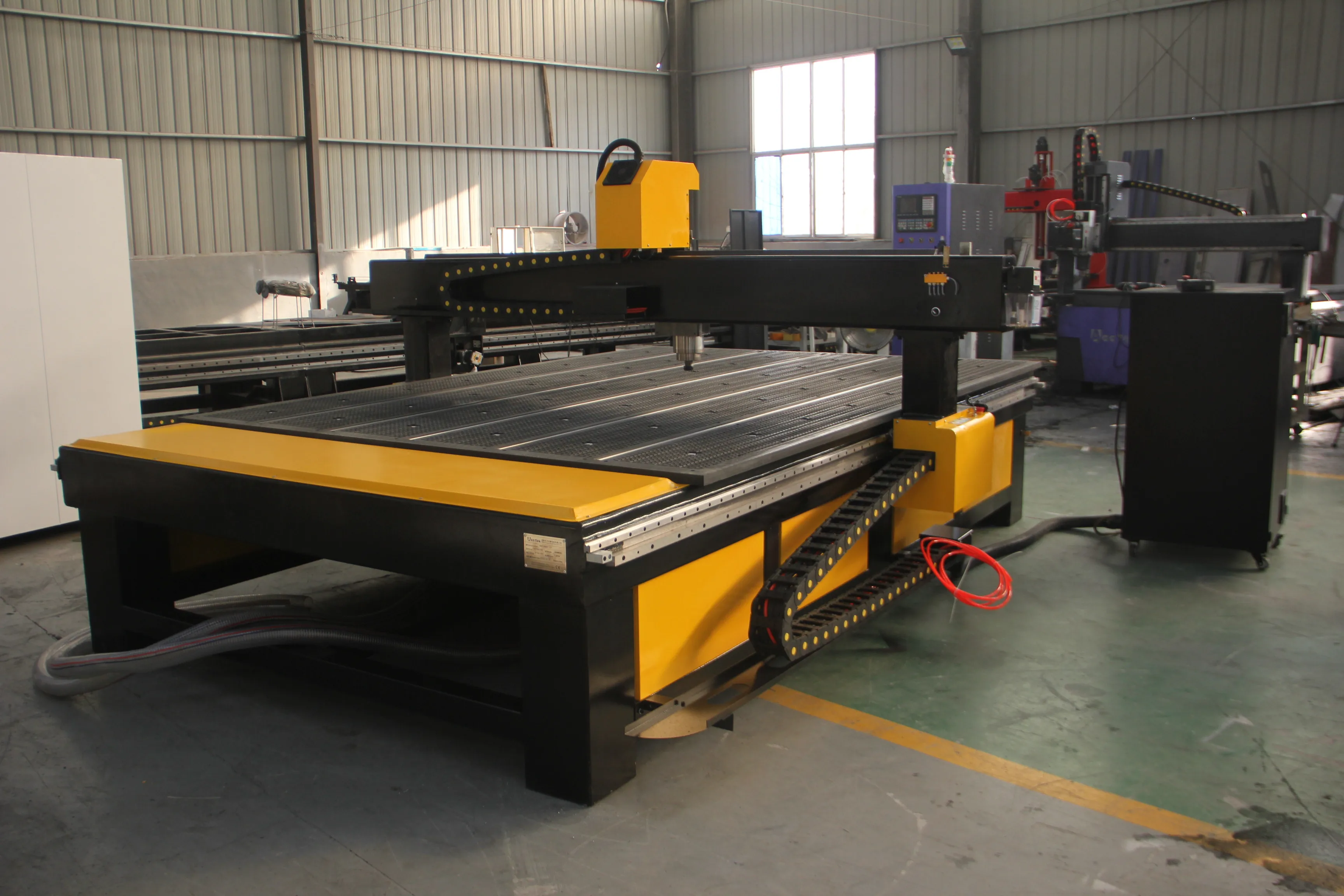

XingDuoWei/WeiHong NK105 NK260 DSP control system cnc router for wood/MDF/acrylic/aluminum
- Category: >>>
- Supplier: Acctek Machinery Co. Ltd (shandong)
Share on (1600238665080):
Product Overview
Description
Product Overview
XingDuoWei/WeiHong NK105 NK260 DSP control system cnc router for wood/MDF/acrylic/aluminum

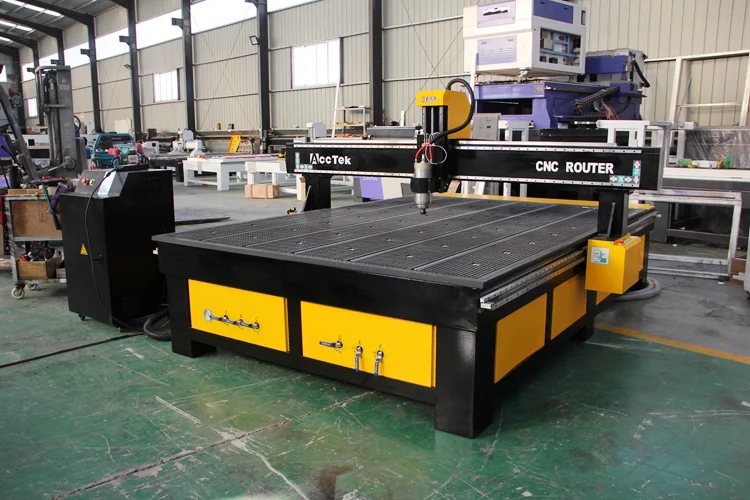

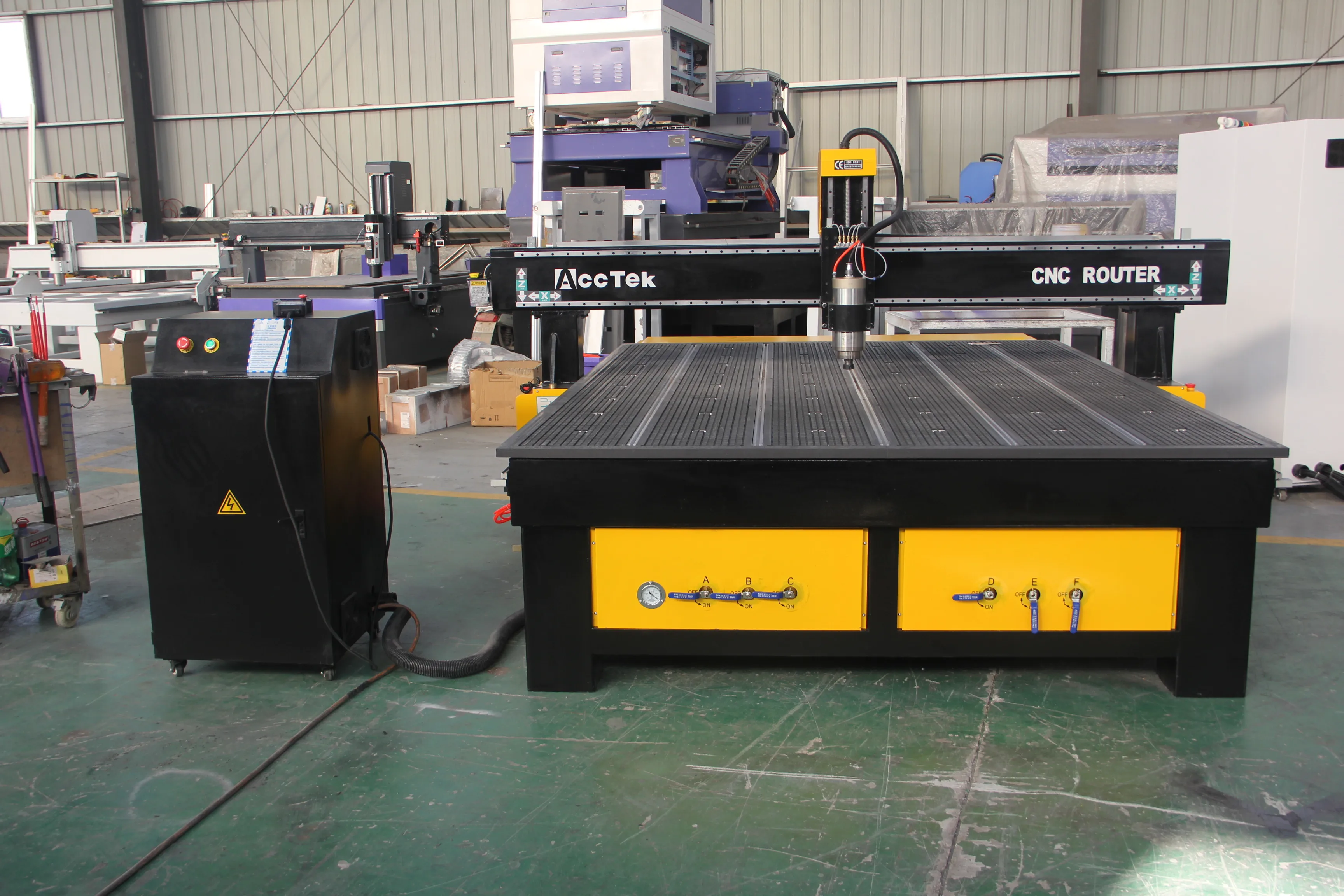

Machine features of CNC router machine
1.The machines' body is strong,rigid,high precision,reliable and durable.
2.Imported high-precision ball screw gap,smooth movement,to ensure that the machine tools high-precision.
3.Using well-known domestic brands of water-cooled brushless spindle,low noise,and strong cutting ability,to ensure the long time working.
4.High-performance driven motor to ensure that the machines high speed and accuracy.
5.Breakpoint specific memory,power outages continued carving,processing time forecast,and other functions to ensure that accidental processing
2.Imported high-precision ball screw gap,smooth movement,to ensure that the machine tools high-precision.
3.Using well-known domestic brands of water-cooled brushless spindle,low noise,and strong cutting ability,to ensure the long time working.
4.High-performance driven motor to ensure that the machines high speed and accuracy.
5.Breakpoint specific memory,power outages continued carving,processing time forecast,and other functions to ensure that accidental processing

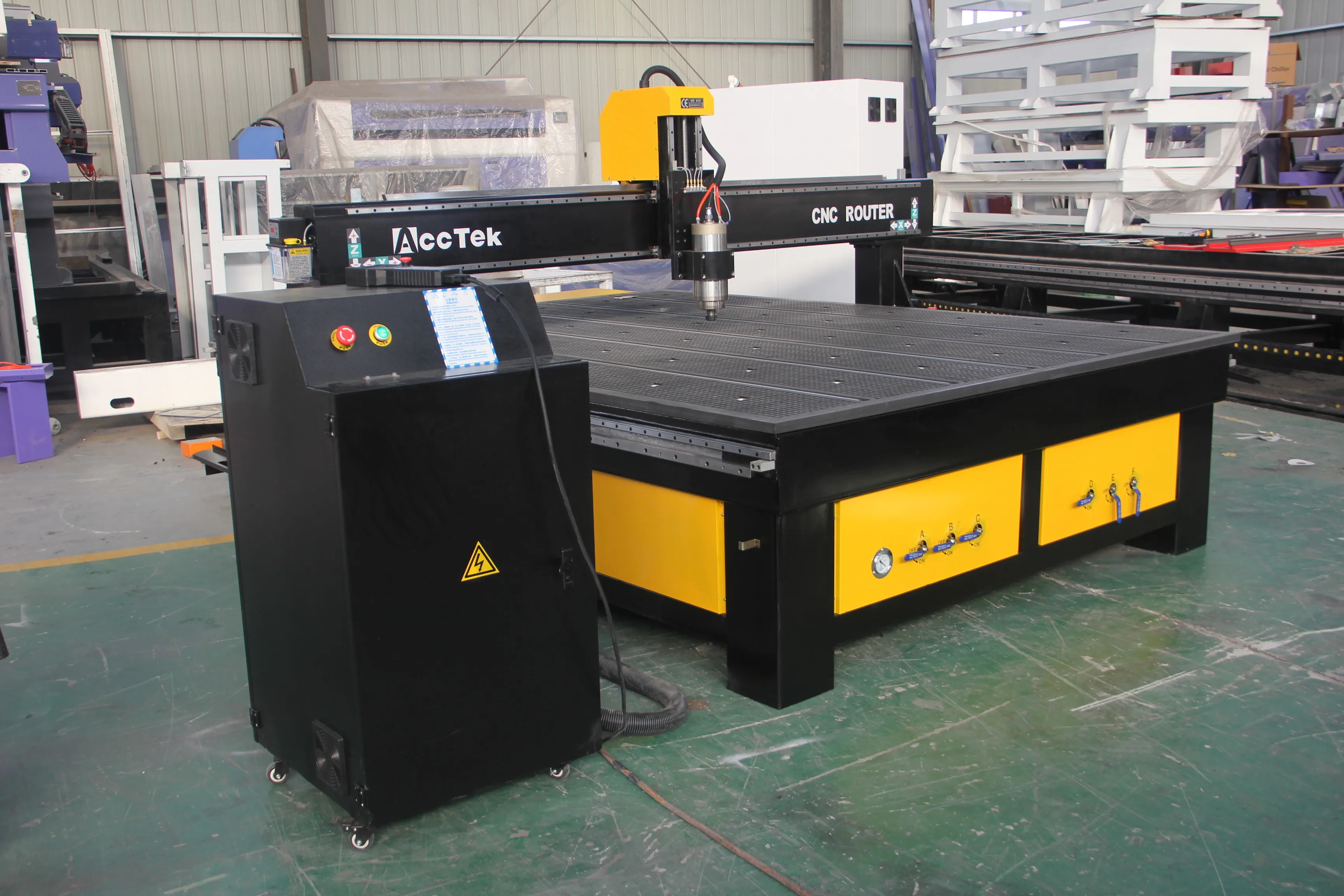

Product details show
Technicial data of CNC router machine
Model | AKM2030 | |
Working area | 2000×3000×200mm | |

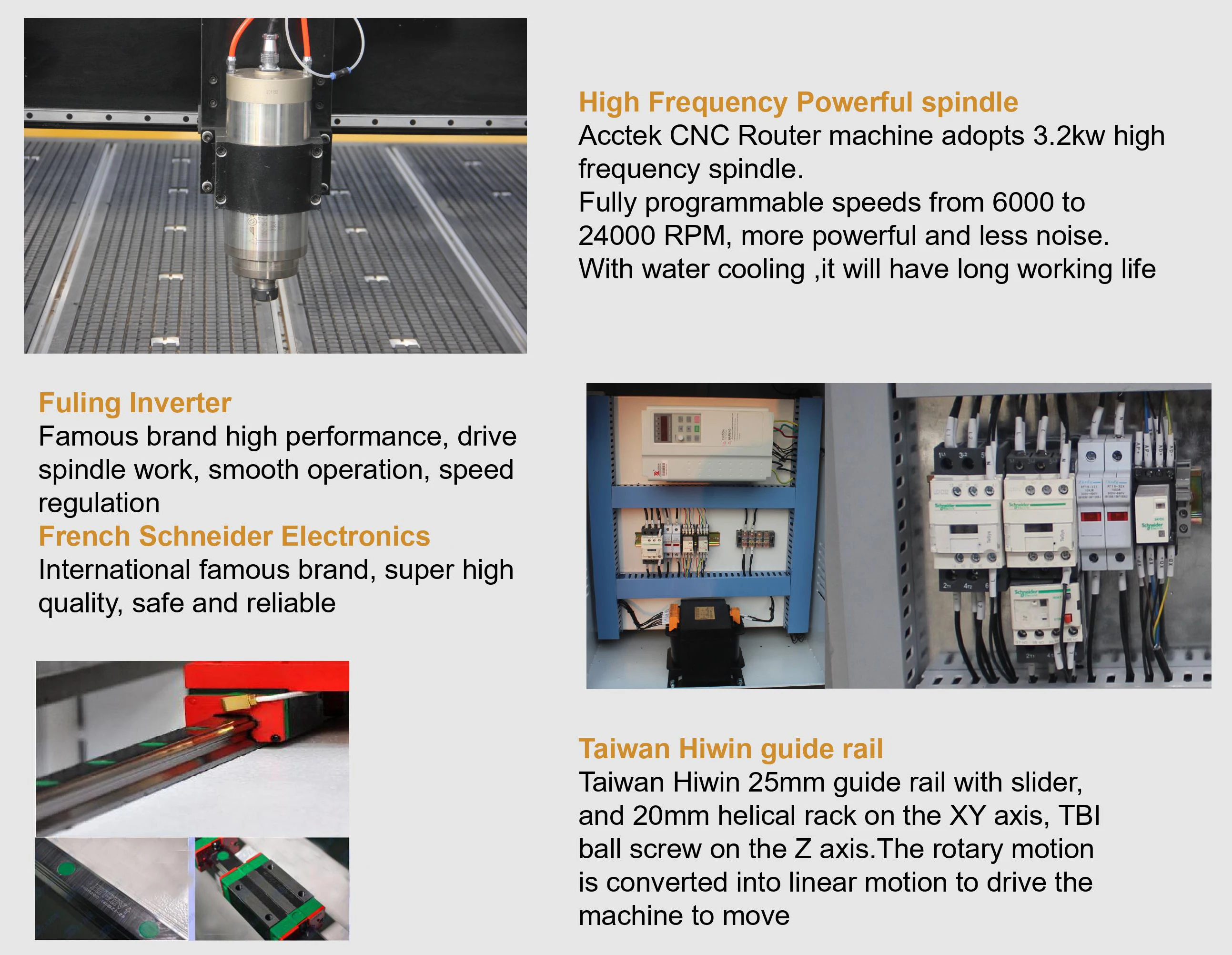

Spindle Motor | HQD 3.5KW air cooling spindle | |
Working Mode | Leadshine driver M860 and stepper motor 450B | |

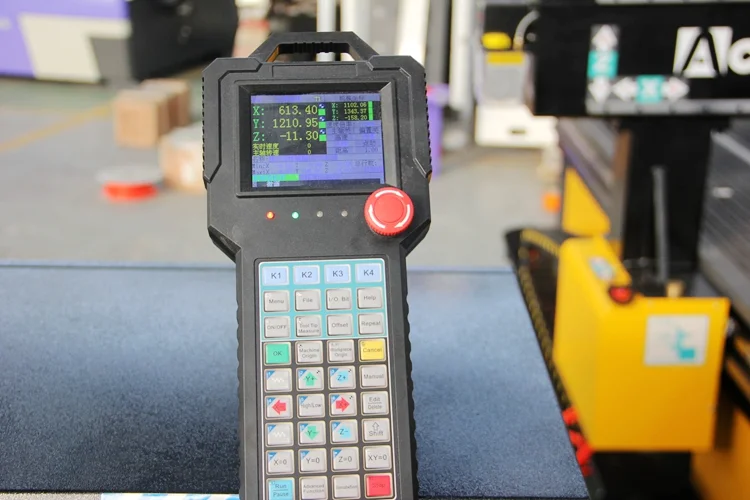

Control System | XINGDUOWEI DSP comtroller | |
Inverter | Fuling inverter | |
Drive Mechanism | Helical rack and pinion on x,y axis ,z axis Taiwan TBI ball screw | |
Rail guide | Taiwan HIWIN linear square guide rail 20No. | |
Table Surface | PVC T-slot table with clamping | |
Frame | Steel gantry, whole industrial class welding technology | |
Software | Artcam/Type3/Ucancam software | |
Limit switch | From Japan OMRON | |

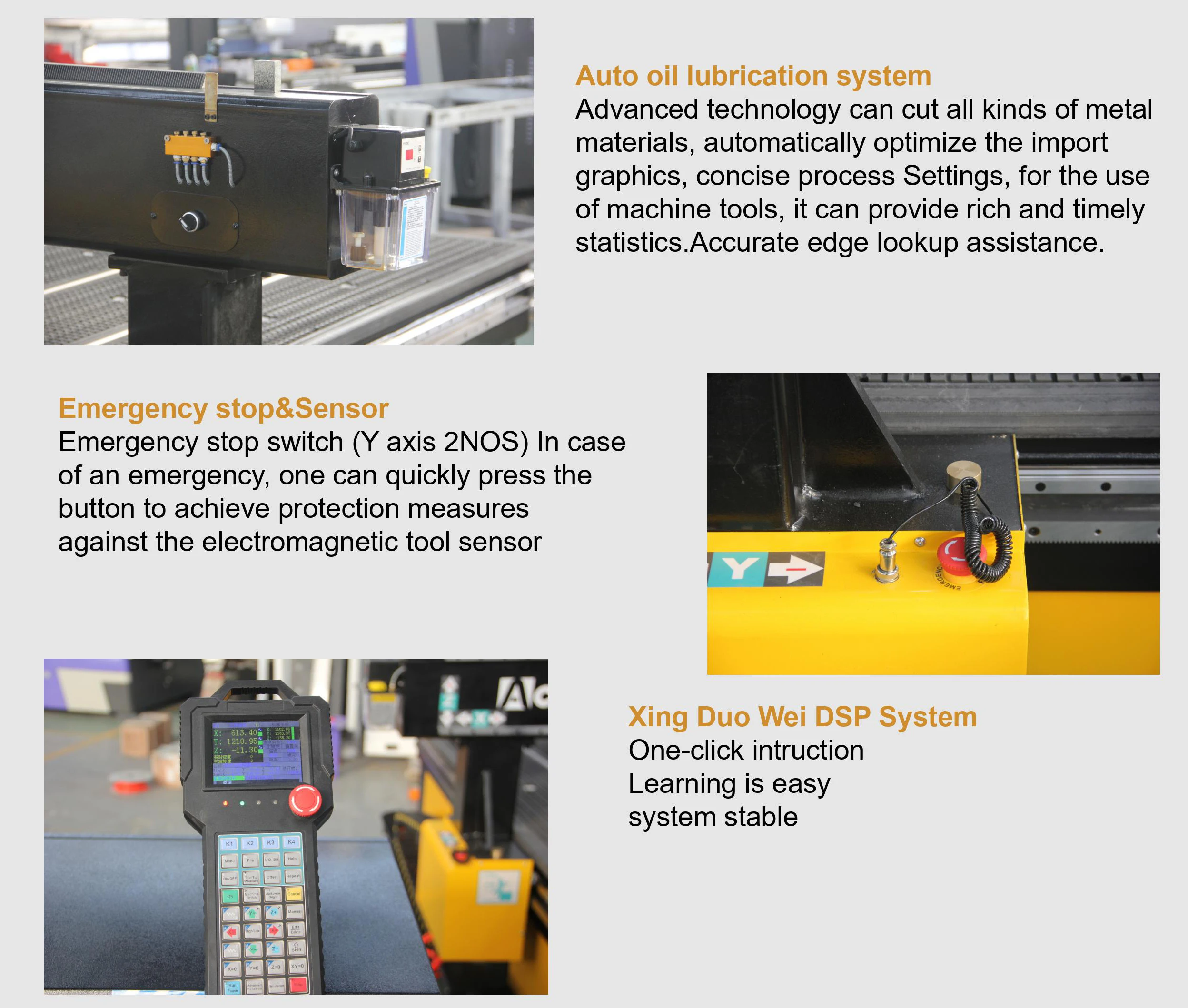

Lubrication System | Auto oil lubrication system | |
Z-axis setting | Z origin tool sensor | |
Technical Parameters: | ||
Motion Positioning Accuracy | ± 0.03/300mm | |
Repositioning Accuracy | ± 0.05mm | |
Max Motion Speed | 50,000mm/min | |
Max Engraving Speed | 30,000mm/min | |
Rotating Speed of Spindle | 24000RPM | |
Command language | G code, *.u00, *.plt | |
Working Environment | 0-45℃ | |
Operating Humidity | 5-95% | |
Operating Voltage | 3phase 380V±10% 50Hz(Can be customized) | |
Product application
1.Furniture Industry: The wood cnc router can be used to make lock holes or engrave patterns on solid wood doors, composite gates, cupboard doors, interior doors, sofa legs, headboards, antique furniture and other panel furniture.
2.Decoration Industry: The wood cnc router is applicable to engrave various decorative patterns on the surface of decorative paintings, screens, three-dimensional wave boards, and acoustic boards.
3.Musical Instrument Industry: The wood cnc router is suitable to engrave decorative patterns on the head of musical instruments, or to process the semi-finished guitars. It also can make three dimensional curved surfaces.
4.Mould Industry: The wood cnc router can make wood moulds, evaporated pattern casting moulds, food moulds, and other moulds.
5.Craft Industry: The wood cnc router is used to engrave decorative patterns on relief craftworks, pendants, automobile
accessories and other craftworks.
6.Advertising Industry: The wood cnc router is applied to cut or engrave patterns on acrylic. It also can make acrylic adsorption moulds, chest cards and various label plates.
2.Decoration Industry: The wood cnc router is applicable to engrave various decorative patterns on the surface of decorative paintings, screens, three-dimensional wave boards, and acoustic boards.
3.Musical Instrument Industry: The wood cnc router is suitable to engrave decorative patterns on the head of musical instruments, or to process the semi-finished guitars. It also can make three dimensional curved surfaces.
4.Mould Industry: The wood cnc router can make wood moulds, evaporated pattern casting moulds, food moulds, and other moulds.
5.Craft Industry: The wood cnc router is used to engrave decorative patterns on relief craftworks, pendants, automobile
accessories and other craftworks.
6.Advertising Industry: The wood cnc router is applied to cut or engrave patterns on acrylic. It also can make acrylic adsorption moulds, chest cards and various label plates.
Customer feedback& Our services
Guarantee | 12 months guarantee of the whole machine |
Software issue | Our technician is able to re-install or set up by remote for free |
Hardware issue | Main parts(excluding the consumables) shall be replaced/repaired free of charge if there is any problem during the warranty period. |
Support online | Our technician is able to teach you online to run the machine or eliminate the fault for free |
Training in AccTek factory | We are able to train your staff after placed order in our factory for free. |
On-site training (Recommended, the most effective way） | We are able to send technician to your workshop to do the installation and training. You will need bear the related costs（flight,visa,hotel,training costs, etc) |
PACKING&DELIVERY
Payment
1. We accept Western union, Money gram, TT, Trade assurance of Alibaba, and you can pay 30% in advance, 70% before
delivery.
delivery.
2. The machine will be produced after received your deposit.after the machine is ready, we will show you the machine
photos and the testing video.
photos and the testing video.
3. After you agree, please finish the balance.Finally.we arrange the delivery.
4. All thing is tested well,then we arrange the delivery.
Delivery
1.Outside package: Standard marine export plywood case .
2.Inner package:Stretch film and plastic film for humidity .
3.We can package according to your requests.
4. Its need about 15-20 days to produce the machine after get your deposit.
