Portable data collector wireless 4g rugged android 9.0 qr code scanner pda for Retail Industry

Share on:


Price:$135.00 - $185.00
Price in USD:Details

Quantity:


Product Overview

Description


Portable data collector wireless 4g rugged android 9.0 qr code scanner pda for Retail Industry (A version)



Product Description


PS: Dear all, price show on page is for T80 A version,if need B version or C version, plz inquiry us then we can quote price and draft order link for you accordingly, thanks!


A version without profession barcode scanner


B version with honeywell N4313 1D barcode scanner


C version with honeywell N3603/N6603 2D qr code scanner





POS TERMINAL (4).jpg




Details description:





1.Based on android 9.0 platform, user-friendly interface, and a long lifecycle that matches that of the


traditional T80.





2.Reduces user fatigue by offering all of the functionality needed in an easy -to-carry from factor.





3. Allows mobile workers to seamlessly interact with data in virtually any lighting condition.





4. Durable construction and sealing deliver reliable operation and maximize worker uptime.



5.Delivers full wireless coverage for applications inside and outside of the four walls,allowing   real-time access to critical data.





6.Delivers fast business transactions, allowing workers to complete multiple tasks quickly.





7.Provide  functions test demo and the SDK code very easy to developed your Application .





8.Application fieldsSupermarkets, clothing industry, Logistics/warehouse management, Police, Postal services, Urban management, Tobacco.





Specification for portable scanner pda T80
























































































































































PHYSICAL CHARACTERISTICS



Dimension and Weight



166 x 77.5x 22mm



Display and Touch Panel



4.5'' WVGA (480*854), 650000 colors Rugged dual touch capacitive touch panel



Power



Main battery: Li-ion, rechargeable, 4200mAh



Expansion Slot



2* PSAM (Optional): ISO7816 protocol , 1 SIM, 1 MicroSD (TF) slot



Interfaces

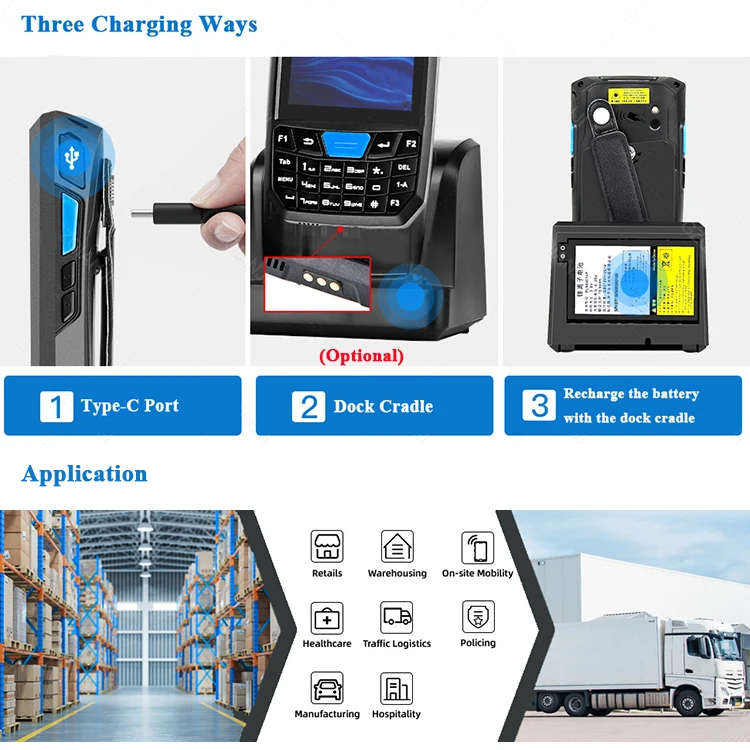

Type -C USB



Keypad



21 pcs soft silicon key



AC Adapter



Input: 100V-240V, 50-60Hz, 0.29A ,Output: 5V, 2A



PERFORMANCE CHARACTERSTICS



CPU



Cortex A-53 2.0 GHz quad-core



Storage



RAM+ROM: 2GB+16GB



Operating System



Android 9.0



USER ENVIRONMENT



Operating Temp.



 -20°C to 55°C



Storage Temp.



-25°C to 70°C



Humidity



5%RH - 95%RH non condensing



Drop Specifications



Multiple 1.5m drops to concrete across the operating temperature range



Sealing



IP66



Developing Environment



SDK



Software Development Kit



Language and Tool



Java,Eclipse / Android Studio



DATA COMMUNICATION



WWAN



4G:TDD -LTE (B38 ,B39,B40,B41) FDD-LTE (B1,B3)



3G:WCDMA 850/900/1700/1900/2100MHz



2G: GSM/dege/GPRS 850/900/1800/1900MHz



WLAN



IEEE802.11 a/b/g/n, 2.4G/5G dual-band, internal antenna



blue tooth



Support BT2.0 +EDR/3.0 +HS/4.1+HS,Transmission distance is 5-10m



GNSS



GPS/AGPS,  internal antenna



BARCODE READER(OPTIONAL)



1D Linear Scanner



Honeywell N4313


Symbol 955


Minde966



UPC/RAN,Code128 ,Code 39 ,code 93.Code11 ,Interleaved 2 of 5 ,Discrete 2 of 5 ,Chinese 2 of 5 ,Codabar ,MSI,RSS



2D imager scanner






Honeywell N6603


Honeywell N3603


Newland 3096



PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, Postal Codes, US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX). etc.



COLOR CAMERA



Resolution



8MP autofocus camera with flash



NFC (optional)



Frequency



13.56MHz



Protocol



ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.



ACCESSORIES



Standard



AC Adapter,,USB cable,Cradle (Optional)








Related Products


Recommand Popular products:















Company Information


POS TERMINAL (5).jpgPOS TERMINAL (7).jpgPOS TERMINAL (6).jpgPOS TERMINAL (8).jpg





FAQ





Q: Are you manufacturer?





A:Yes,we are manufacturer profession in thermal printer,pos machina,barcode scanner etc;





Q:Would you provide SDK for me?





A:Yes,we offer free SDK if order sample.





Q:What is the minimum order portable scanner pda?





A: one sample order is acceptable,if require OEM.We can confirm further.





Q:What the after sale service portable scanner pda?


retail industrial android pda


 a.Our all products will provide 1 year warranty.


 4g scanner


 b.if there is no Man-made problem,we will replace or repair for your freely.1% extra device and spare parts will   be provided when bulk order portable scanner pda


 retail industrial android pda


Q:How will you provide technical support?


A: 7*24 Online support. If necessary, on site support will be offered.





Q:What payment methods you accept?
A: T/T, Western Union, Paypal, Alibaba trade assurance, Cash etc
