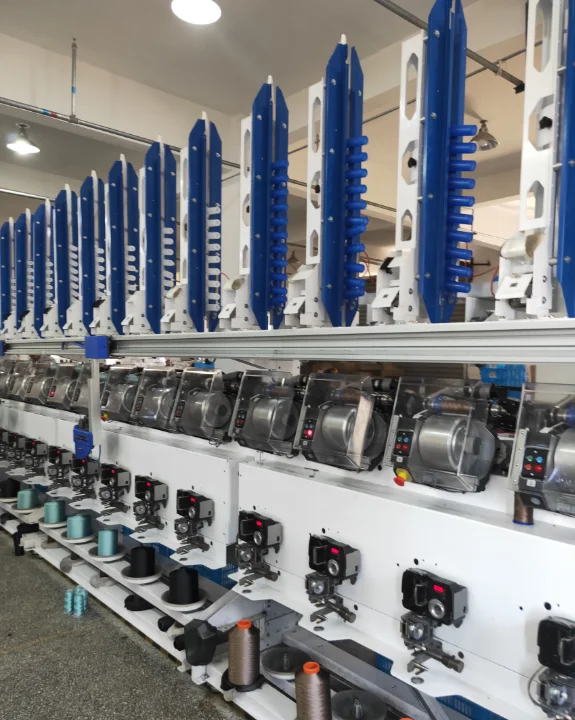

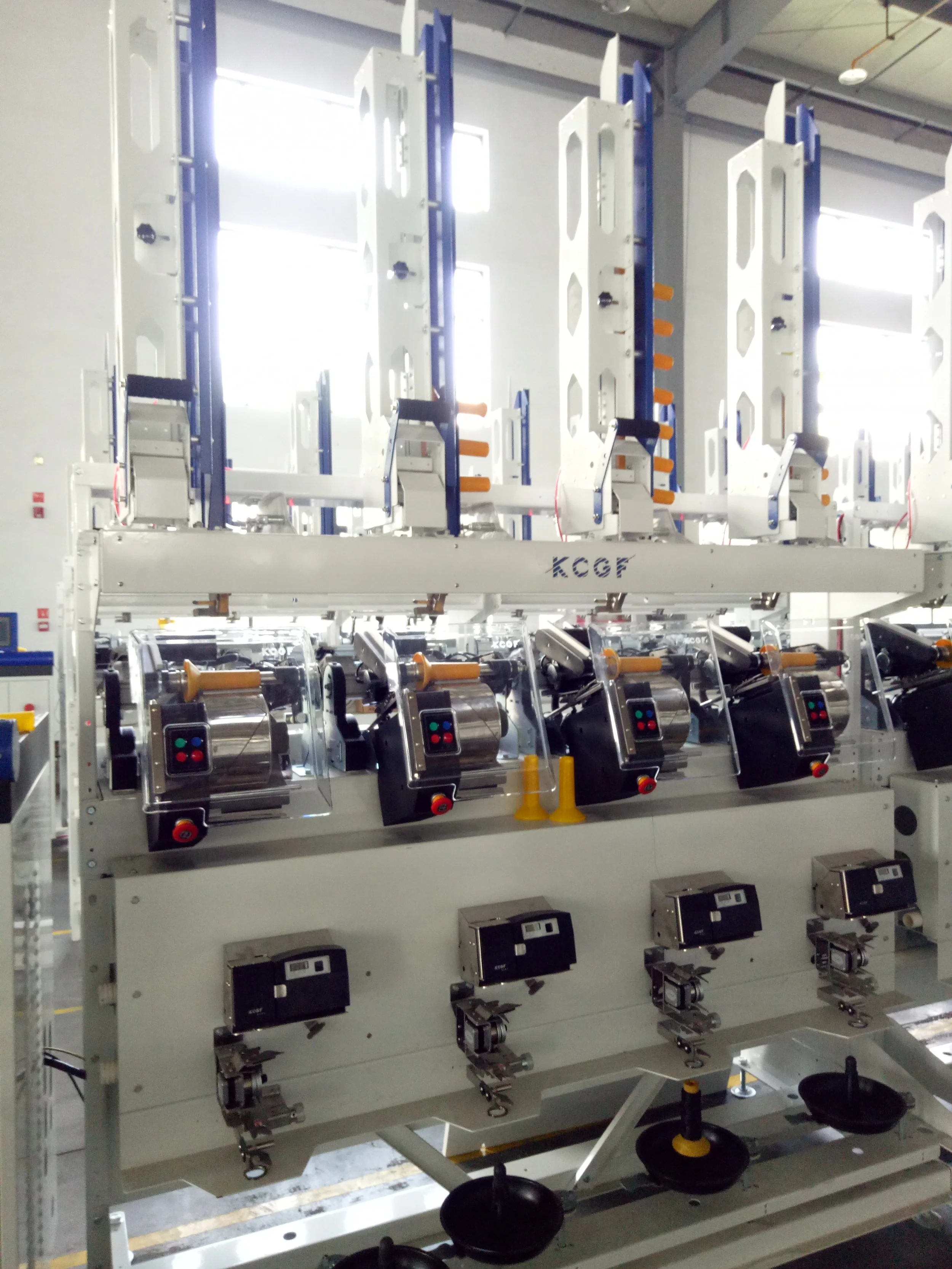

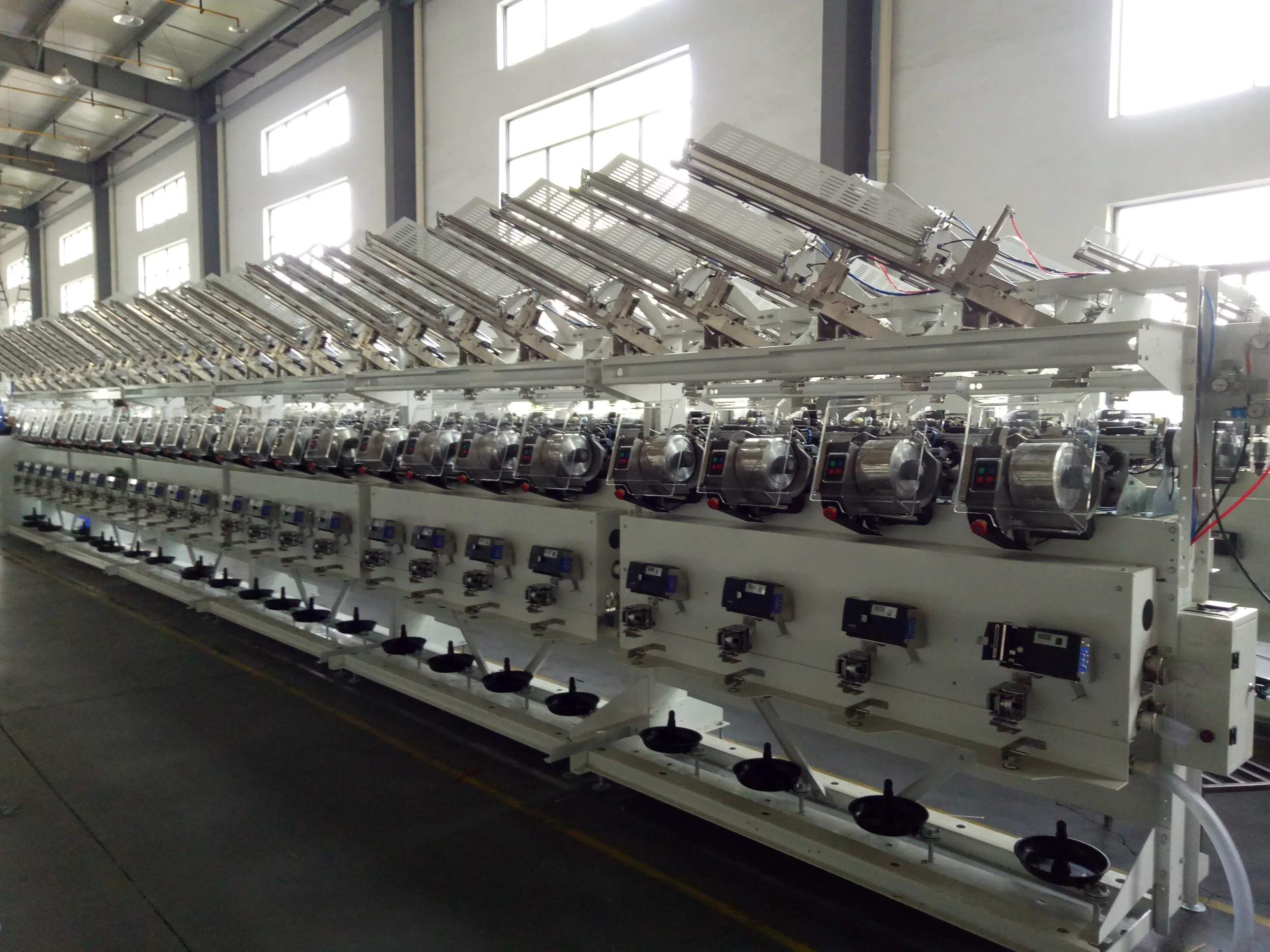

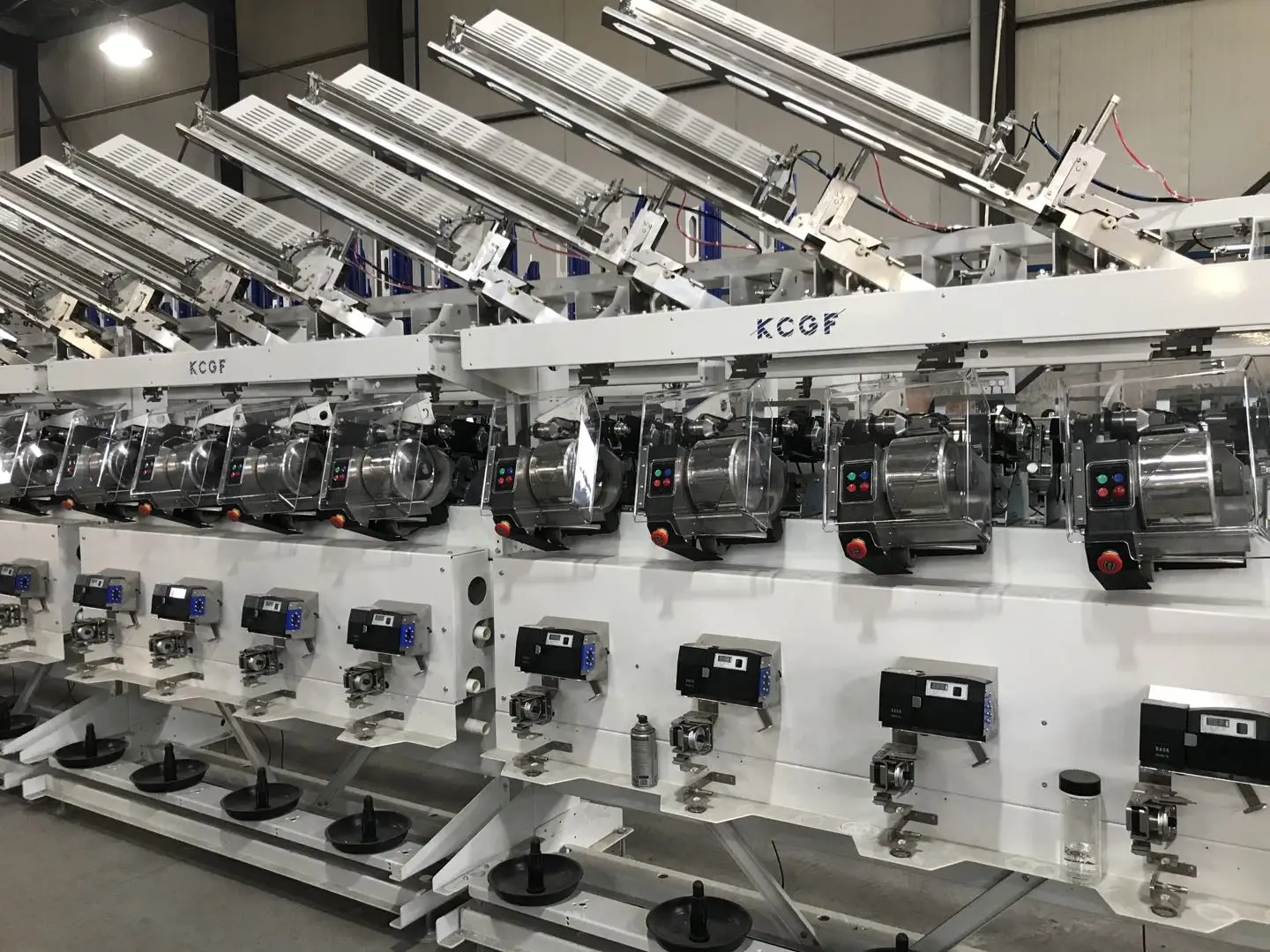

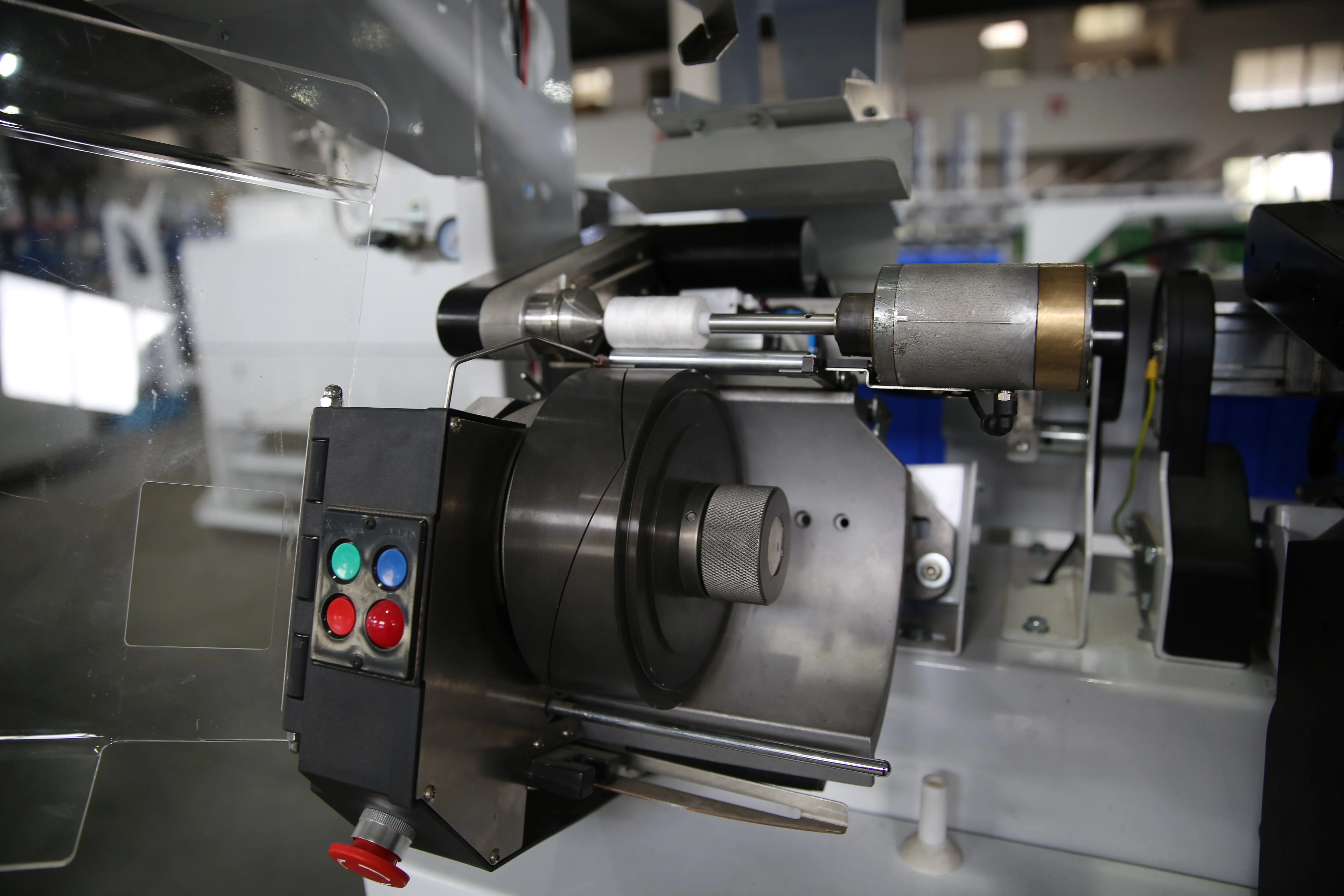

automatic bobbin winder machine KC522 filament winding machine motor winding machine price
- Category: >>>
- Supplier: Zhejiang Kaicheng Intelligent Machinery Co. Ltd.
Share on (1600239097003):
Product Overview
Description
Product Description
Used for A-tube, Y-tube (King-tube), cylinder tube production, be suitable for the production which need exchange a variety specifications.
Mainly suitable for winding of spun sewing thread、embroidery thread、corn spun、textured filament、industrial yarn、special yarn and etc.
Features
Intelligent and constant temperature oil feeding device, can stop automatically when out-of oil or oil shortage, and can follow the leaner speed to change the amount of oil supply automatically, which achieve accurate refueling and perfect ensure the oil amount.
Features
Intelligent and constant temperature oil feeding device, can stop automatically when out-of oil or oil shortage, and can follow the leaner speed to change the amount of oil supply automatically, which achieve accurate refueling and perfect ensure the oil amount.
Machine structure | Single side, single layer |
Spindle gauge | 460mm |
Min./Max. No. of spindles | 4/20 (Max. number of spindles per oil feeding system:20) |
Type of winding | Precision cross winding |
Take-up tubes | A tube:cones (cones with conicity from 3°30′ to 5°57′; cylindrical or cone king spool up to 2°; tip diameter ≥ 18mm） |
Traverse | Y tube: King spool (cylindrical or cone king spool up to 2°; tip diameter |
Linear speed | Up to 1100m/min (depend to the process parameters) |
Traverse | 76mm~152mm (± 3.5mm, depend on the tank size, there are certain limitations) |
Yarn count | Up to 3300D |
Take-up package diameter | Up to 105mm (85-105mm, depend on the tank size, there are certain limitations) |
OEM Service
Packaging &Transportation
Parking Details : Wooden Case and Pallet(according to customer's request)
Shipping Type : Ocean transportation
Port : Ningbo or Shanghai
Shipping Type : Ocean transportation
Port : Ningbo or Shanghai
Certifications
About us
Hot Products
Exhibition
FAQ
Q:Are you a factory?
A:We are a factory,about 2 hours from Shanghai.
Q:What is the payment term you can accept?
A:Usually we prefer T/T;but other payment term may be accepted by negotiation.
Q:How about the quality?
A:Our company is specialized in producing twisters and winders.Many of our technologies are up to the international advanced
level.
Q:Did you produce all pares of the machine?
A:We have the technology to produce the core component ,such as core control panel,system,motor,intelligent oil refueling
box,tension sensor,angular sensor,yarn break sensor and so on.
Q:Do the machines and accessories come with a warranty?
A:The machine and accessories are guaranteed for 1 year.
Q:Do you provide installation service?
A:If the buyer needs, we can provide technical personnel to its location for installation and debugging, during which the expenses
incurred by the technical personnel shall be borne by the buyer.
A:We are a factory,about 2 hours from Shanghai.
Q:What is the payment term you can accept?
A:Usually we prefer T/T;but other payment term may be accepted by negotiation.
Q:How about the quality?
A:Our company is specialized in producing twisters and winders.Many of our technologies are up to the international advanced
level.
Q:Did you produce all pares of the machine?
A:We have the technology to produce the core component ,such as core control panel,system,motor,intelligent oil refueling
box,tension sensor,angular sensor,yarn break sensor and so on.
Q:Do the machines and accessories come with a warranty?
A:The machine and accessories are guaranteed for 1 year.
Q:Do you provide installation service?
A:If the buyer needs, we can provide technical personnel to its location for installation and debugging, during which the expenses
incurred by the technical personnel shall be borne by the buyer.
