Customized WT20 Red Thoriated WL15 Gold Lanthanum WZ8 White Zirconiated Pure TIG Welding Tungsten Electrode
- Category: >>>
- Supplier: Changzhou Inwelt Welding Technology Co. Ltd.
Share on (1600239239706):
Product Overview
Description
Product Description

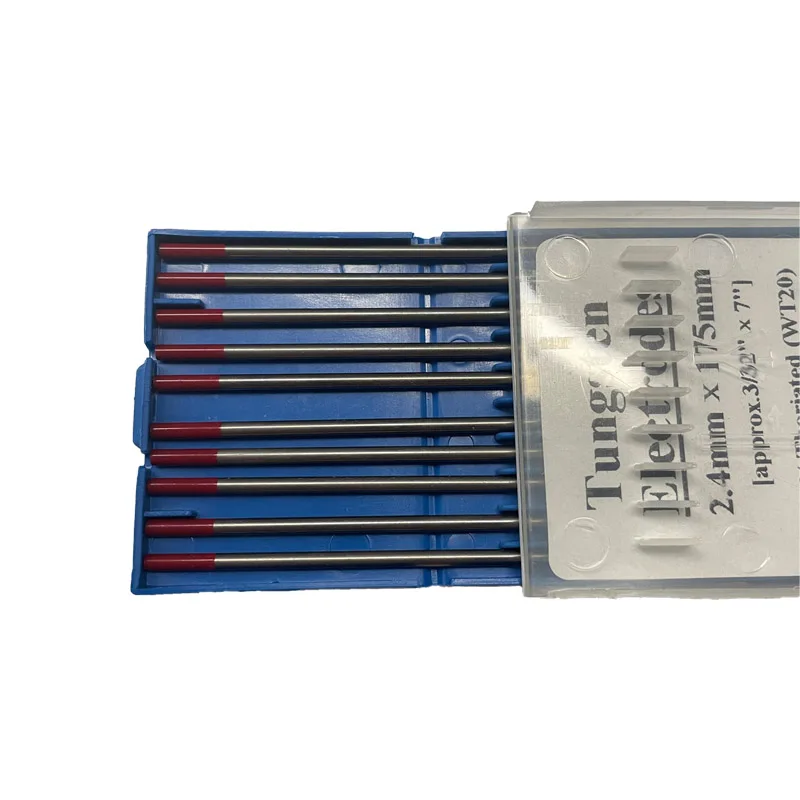

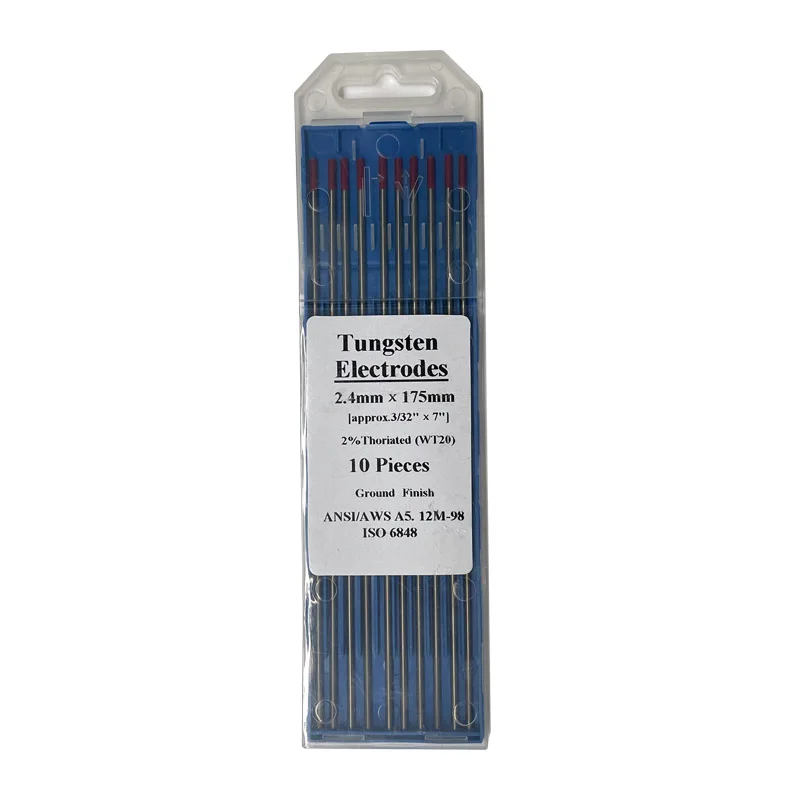

Factory High Quality 2% Thoriated WT20 1.0 1.6 2.0 2.4 Tungsten welding Electrode
Specification
Certification | CE, EN 26848, CCC |
Customized support | OEM |
Place of Origin | Jiangsu，China |
Brand Name | Inwelt |
Model Number | WT S |
Material | TUNGSTEN |
Operating Current | 80-400AMP |
Welding Current | 80-400AMP |
Operating Temperature | 2500℃ |
Application | tig welding torch |
Product Name | tungsten electrode |
Pakage | 10 pcs packed in a box |
Delivery time | shipped in 15 days after payment |
ThO2 content | 1.7-2.2% |
Tungsten electrode rod usage conditions
Aluminum plate welding conditions | ||||||||||||
Thickness （mm） | Tungsten rod diameter（mm） | Electrode diameter （mm） | Welding current （A） | Argon flow (L/min) | Number of welding layers | Welding speed (mm) | ||||||
1.0 | 1.0-1.6 | 0-1.6 | 50-60 | 6 | 1 | 300-400 | ||||||
1.6 | 1.6-2.3 | 0-1.6 | 60-90 | 6 | 1 | 250-300 | ||||||
2.3 | 1.6-2.3 | 1.6-2.3 | 80-110 | 6-7 | 1 | 250-300 | ||||||
3.2 | 2.3-3.2 | 2.3-3.2 | 100-140 | 7 | 1 | 250-300 | ||||||
4.0 | 3.2-4.0 | 2.6-4.0 | 140-180 | 7-8 | 1 | 230-280 | ||||||
5.0 | 3.2-4.0 | 2.6-4.0 | 170-220 | 7-8 | 1 | 230-280 | ||||||
Stainless steel welding conditions | ||||||||||||
0.6 | 1.0-1.6 | 0-1.6 | 20-40 | 4 | 1 | 450-500 | ||||||
1.0 | 1.0-1.6 | 0-1.6 | 30-60 | 4 | 1 | 400-450 | ||||||
1.6 | 1.6-2.3 | 0-1.6 | 60-90 | 4 | 1 | 350-400 | ||||||
2.3 | 1.6-2.6 | 1.6-2.6 | 80-120 | 4 | 1 | 300-350 | ||||||
3.2 | 2.3-3.2 | 2.3-3.2 | 110-150 | 5 | 1 | 300-350 | ||||||
4.0 | 2.3-3.2 | 2.6-4.0 | 130-180 | 5 | 1 | 250 | ||||||
5.0 | 2.6-4.0 | 3.2-5.0 | 150-220 | 5 | 1 | |||||||
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
