Richsecurity RZ 33B Normally Closed Magnetic Door Alarm Switch Rugged Plastic Recessed Magnetic Door Contact Sensor Switch
- Category: >>>
- Supplier: Shenzhen Rich Security Technology Co. Ltd
Share on (1600239287822):
Product Overview
Description
Recommend Products
Products Description

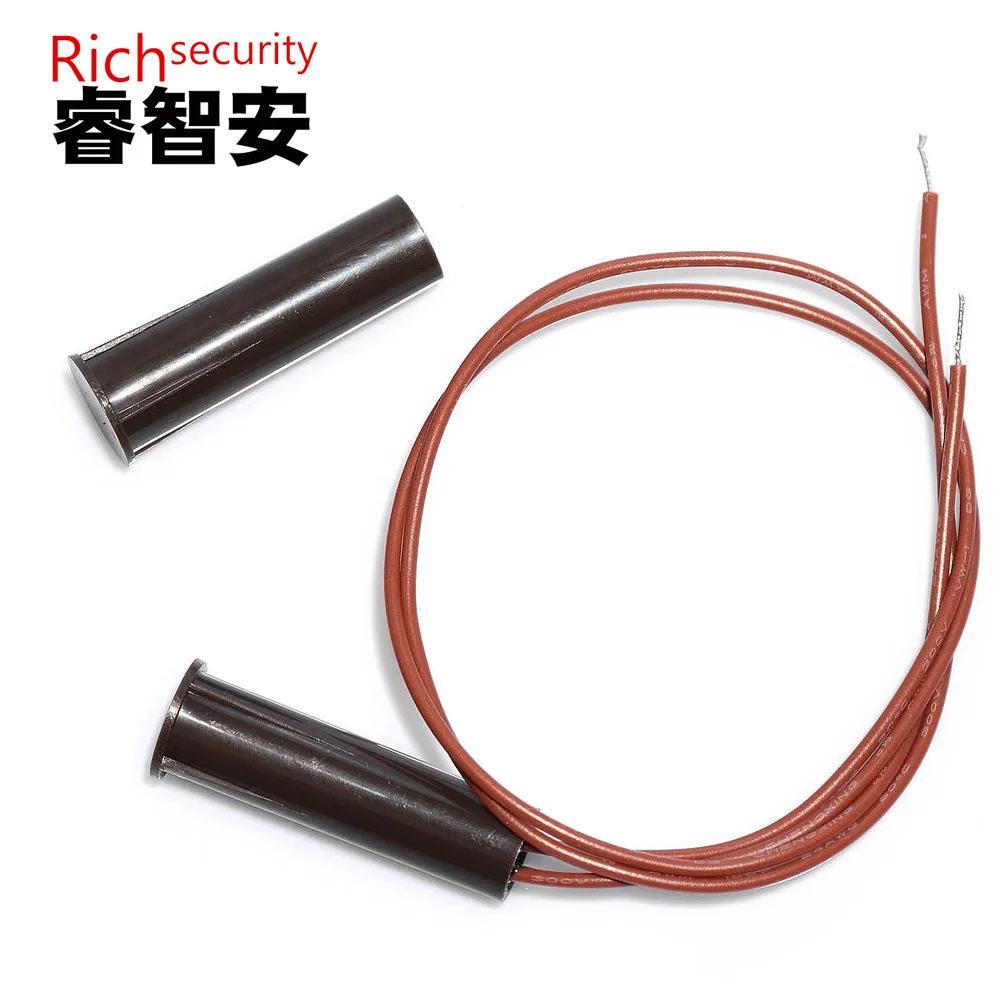

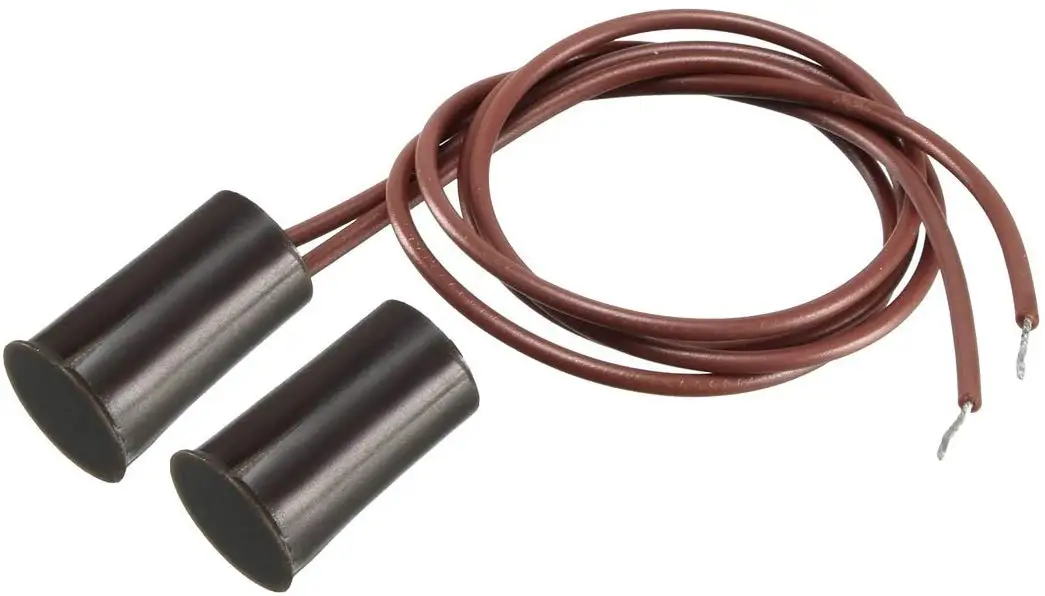

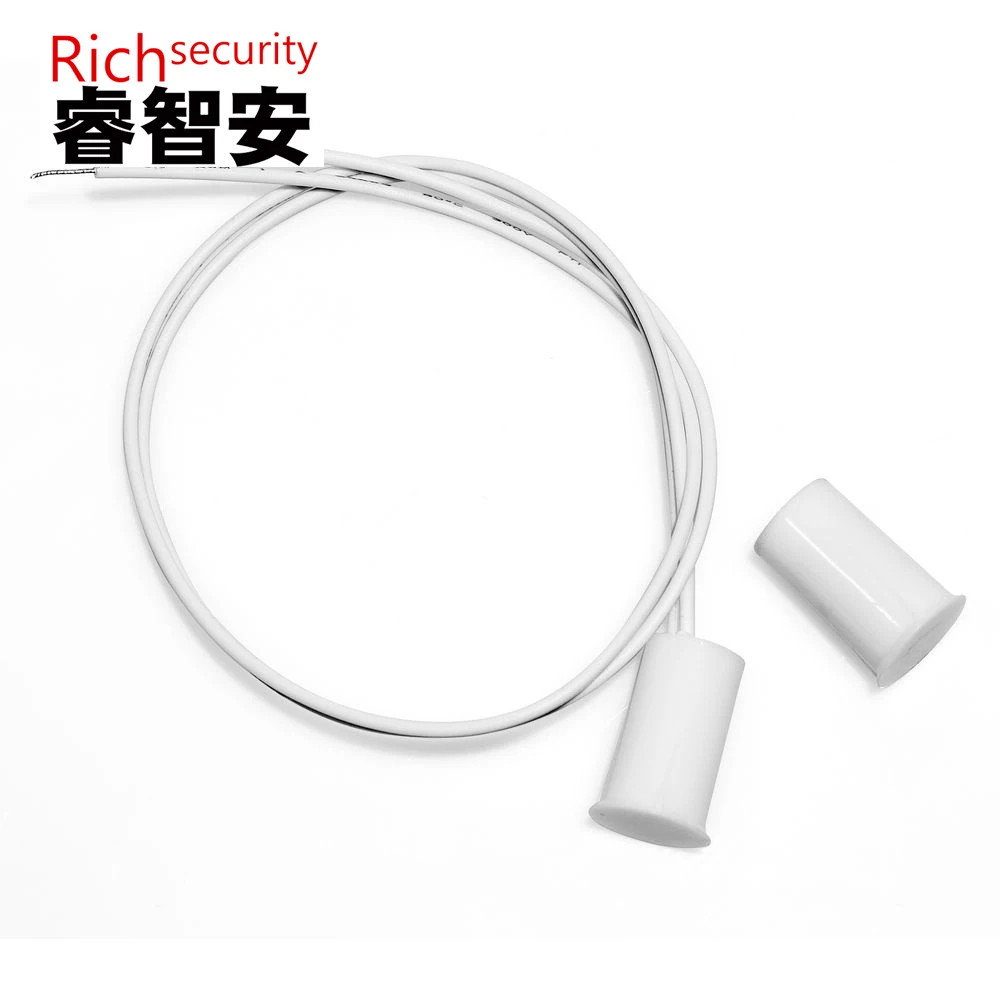

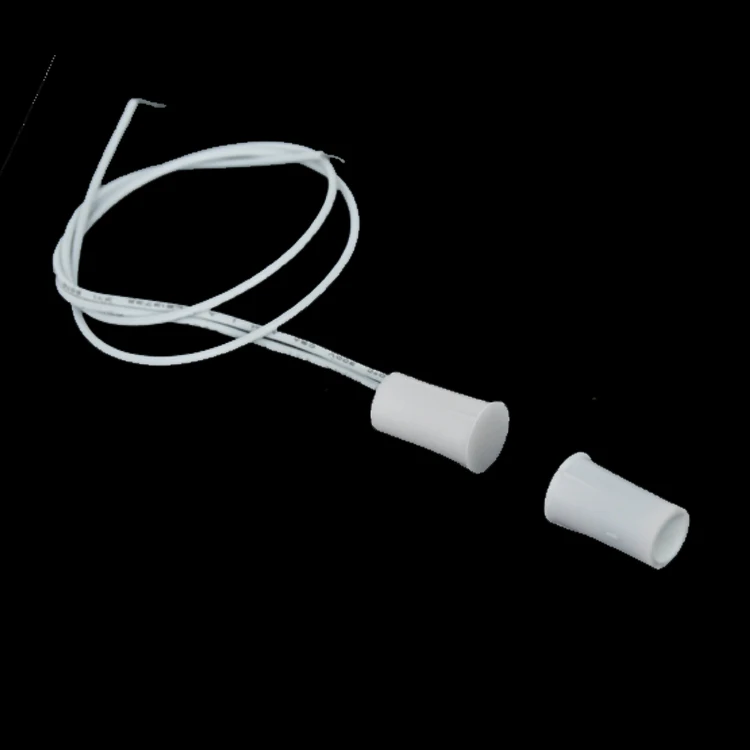

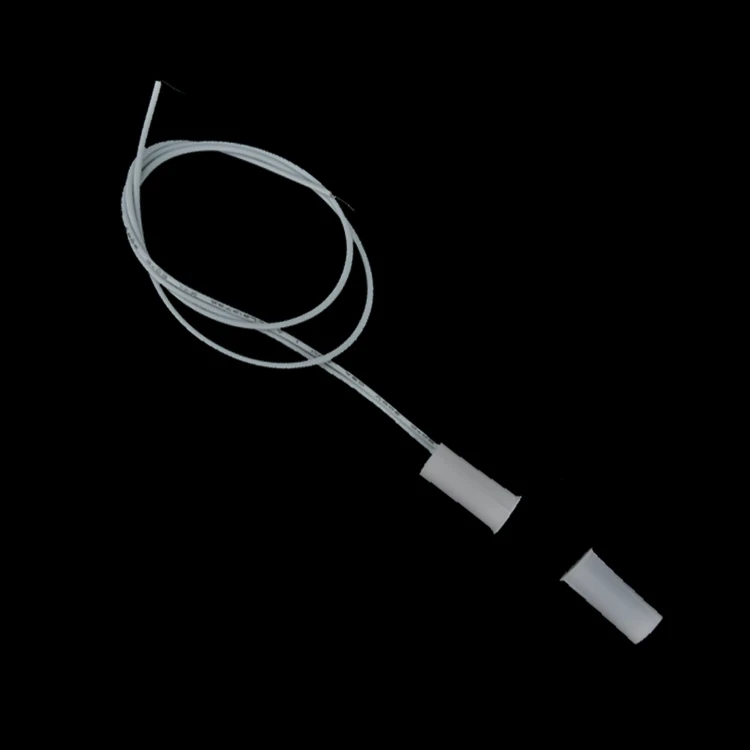

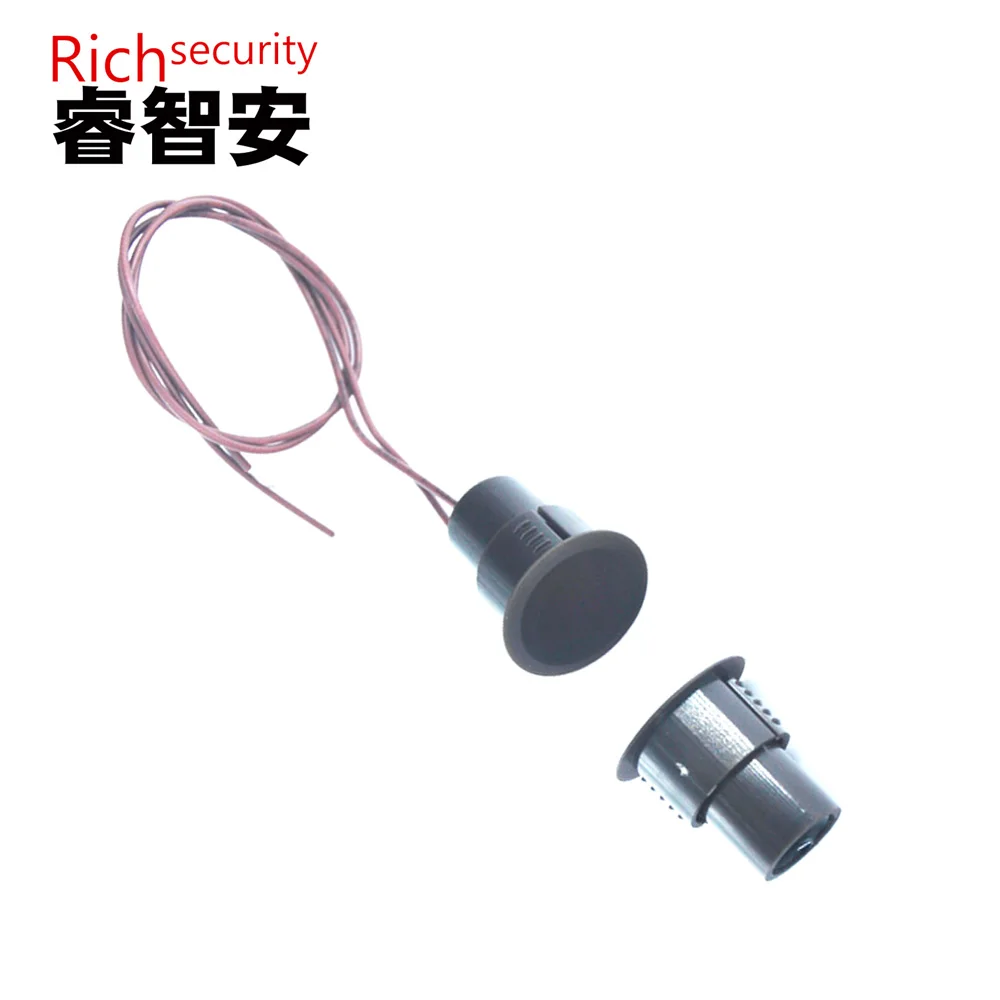

Richsecurity RZ-33B Normally Closed Magnetic Door Alarm Switch Rugged Plastic Recessed Magnetic Door Contact Sensor Switch
Side leads with #24AWG 450mm length
Longer leads on request
Reed Switch model: ORD1002
Switches or magnets available separately
Color: White, Brown
Longer leads on request
Reed Switch model: ORD1002
Switches or magnets available separately
Color: White, Brown
Product Paramenters
Part No. | Reed Form | Gap (mm) | MaximumInitial Contact Resistance (Ohm) | Maximum Contact Rating (W) | Maximum Switching Voltage (VDC) | Maximum Switching Current (A) |
RZ-323B N/C | N/O | 15-25 | 0.150 | 10 | 100 | 0.5 |
RZ-33B N/O | N/C | 15-25 | 0.150 | 3 | 30 | 0.2 |
RZ-33B COM | SPDT | 15-25 | 0.150 | 3 | 30 | 0.2 |
Product Name | RZ-33B Richsecurity Recessed Magnetic Door Contact Switch |
Housing Material | ABS/ Fireproof housing available |
Work Gap | 15-25mm(customized) |
Leads length | 450mm (customized) |
NC output form | 0.5A/5W/100V |
NO/COM output form | 0.2A/3W/30V |
Color | Brown White |

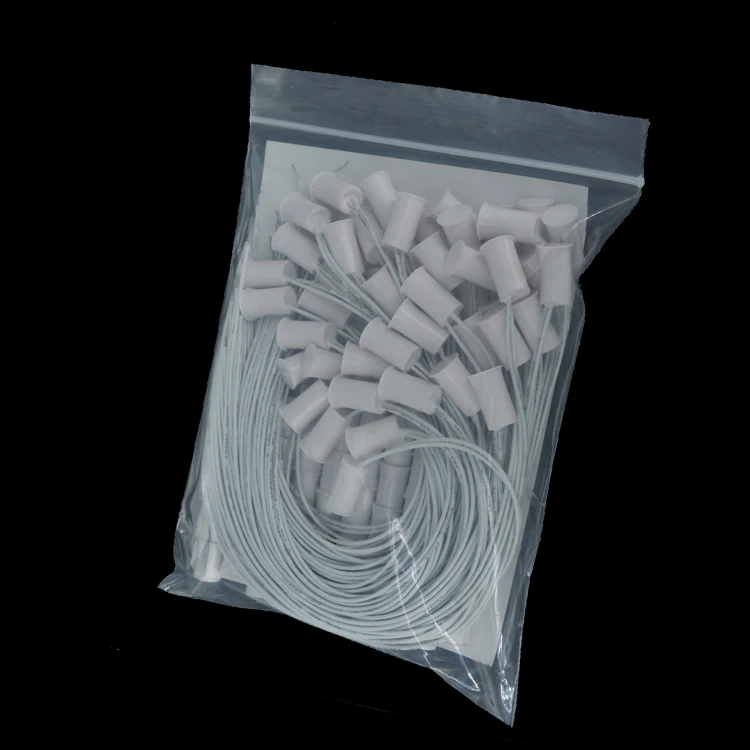

Packing | 40pcs/pag |
Details Images

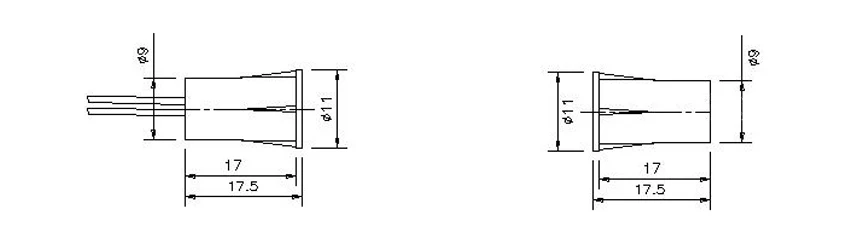

Product Dimension
Installation Instructions

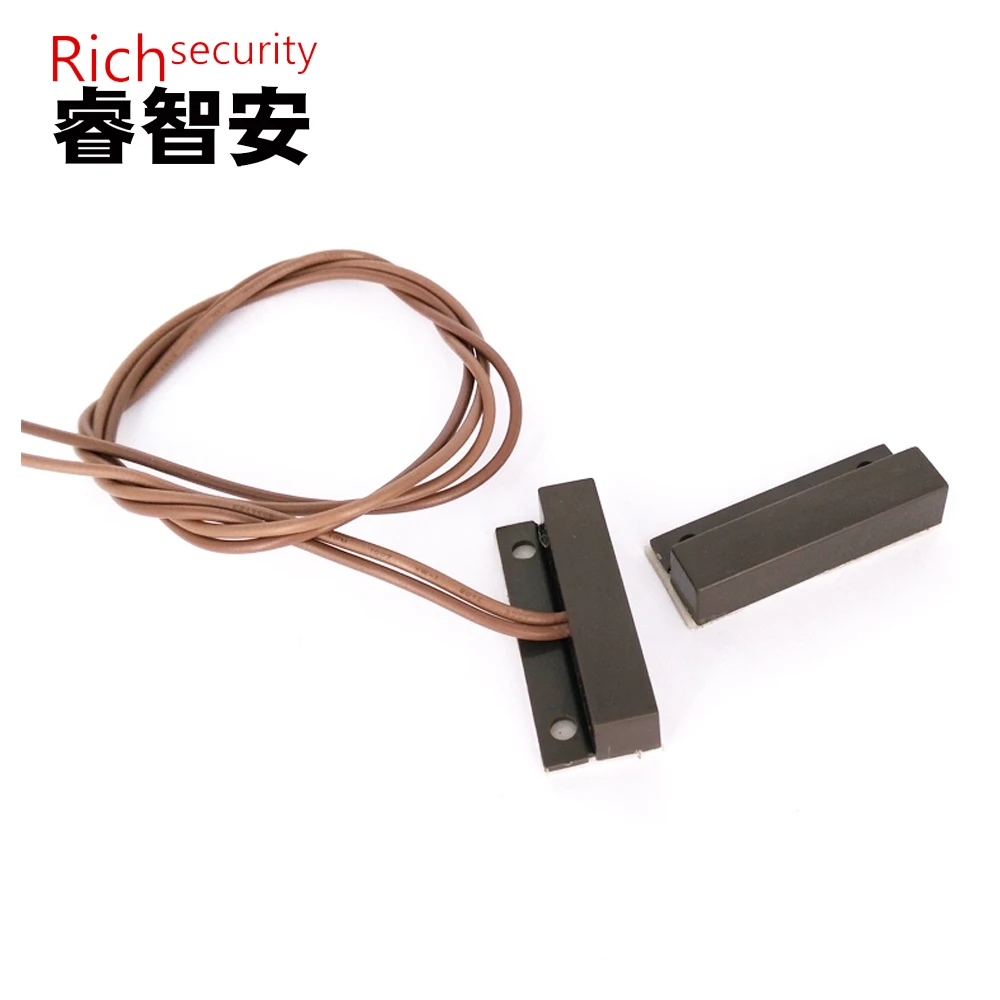

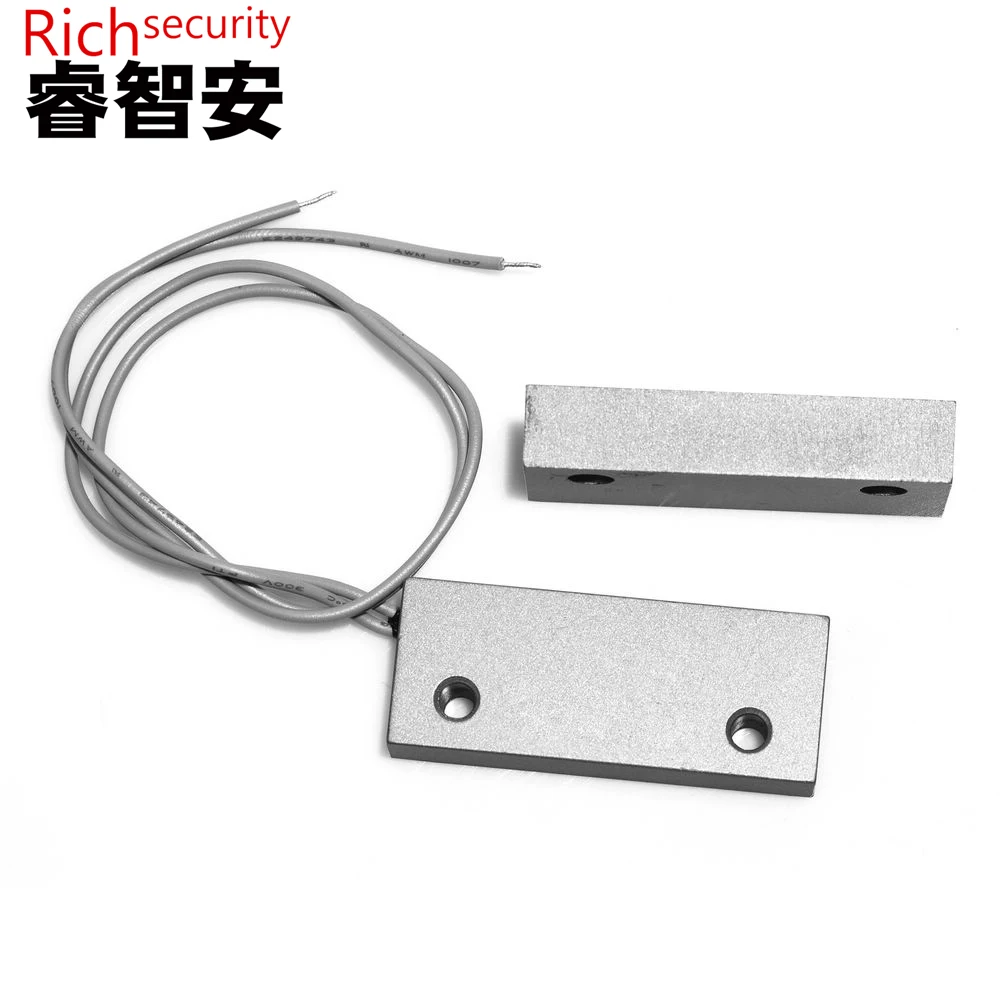

Surface Mounted Magnetic contact-----
1. The sensor part with cable fixes on the door frames; and the magnet part fixes on the moving door, normally on top, with screws.
2. When installing, the sensor part and magnet part should be parallel matching, or the operation distance will be affected.
3. The distance between the sensor and magnet should be as small as possible; when the distance is larger than the operation
distance, the product will be out of action.
4. If the magnet part fixes on the iron door or near some magnetic metal, magnetic contacts’ real operation distance will decrease
greatly. So the wooden door magnetic contacts are not suitable for iron door.
1. The sensor part with cable fixes on the door frames; and the magnet part fixes on the moving door, normally on top, with screws.
2. When installing, the sensor part and magnet part should be parallel matching, or the operation distance will be affected.
3. The distance between the sensor and magnet should be as small as possible; when the distance is larger than the operation
distance, the product will be out of action.
4. If the magnet part fixes on the iron door or near some magnetic metal, magnetic contacts’ real operation distance will decrease
greatly. So the wooden door magnetic contacts are not suitable for iron door.
Recessed Mounted Magnetic contact------
1. The sensor part with cable fixes on the iron door frames, the magnet part fixes on the moving door, normally on the side or on top, drilling installation.
2. When installing, the sensor part and magnet part should be parallel matching, or the operation distance will be affected.
3. The distance between the sensor and magnet should be as small as possible; when the distance is larger than the operation distance, the product will be out of action.
4. The iron door will decrease the contacts’ magnetic force, so iron door magnetic contacts with at lease 15mm operation distance is recommended.

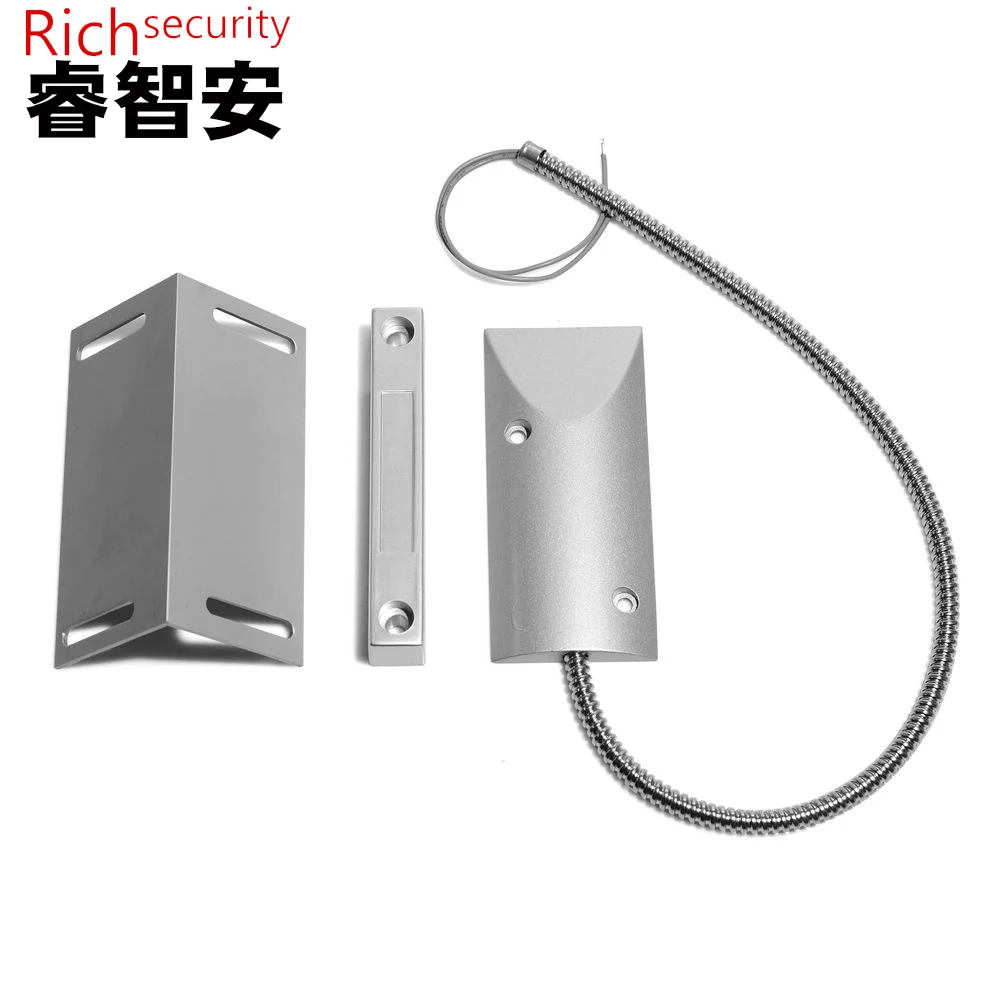

Roll Door Magnetic Contacts -----
1. The sensor part with cable fixes above or below the ground, the magnet side fixes underneath the moving door with screws.
2. When installing, the sensor part and magnet part should be parallel matching, or the operation distance will be affected.
3. The distance between the sensor and magnet should be as small as possible; when the distance is larger than the operation distance, the product will be out of action.
4. If the roll door gap is large, L-shaped bracket is recommended to adjust the operation distance.
1. The sensor part with cable fixes on the iron door frames, the magnet part fixes on the moving door, normally on the side or on top, drilling installation.
2. When installing, the sensor part and magnet part should be parallel matching, or the operation distance will be affected.
3. The distance between the sensor and magnet should be as small as possible; when the distance is larger than the operation distance, the product will be out of action.
4. The iron door will decrease the contacts’ magnetic force, so iron door magnetic contacts with at lease 15mm operation distance is recommended.
Roll Door Magnetic Contacts -----
1. The sensor part with cable fixes above or below the ground, the magnet side fixes underneath the moving door with screws.
2. When installing, the sensor part and magnet part should be parallel matching, or the operation distance will be affected.
3. The distance between the sensor and magnet should be as small as possible; when the distance is larger than the operation distance, the product will be out of action.
4. If the roll door gap is large, L-shaped bracket is recommended to adjust the operation distance.

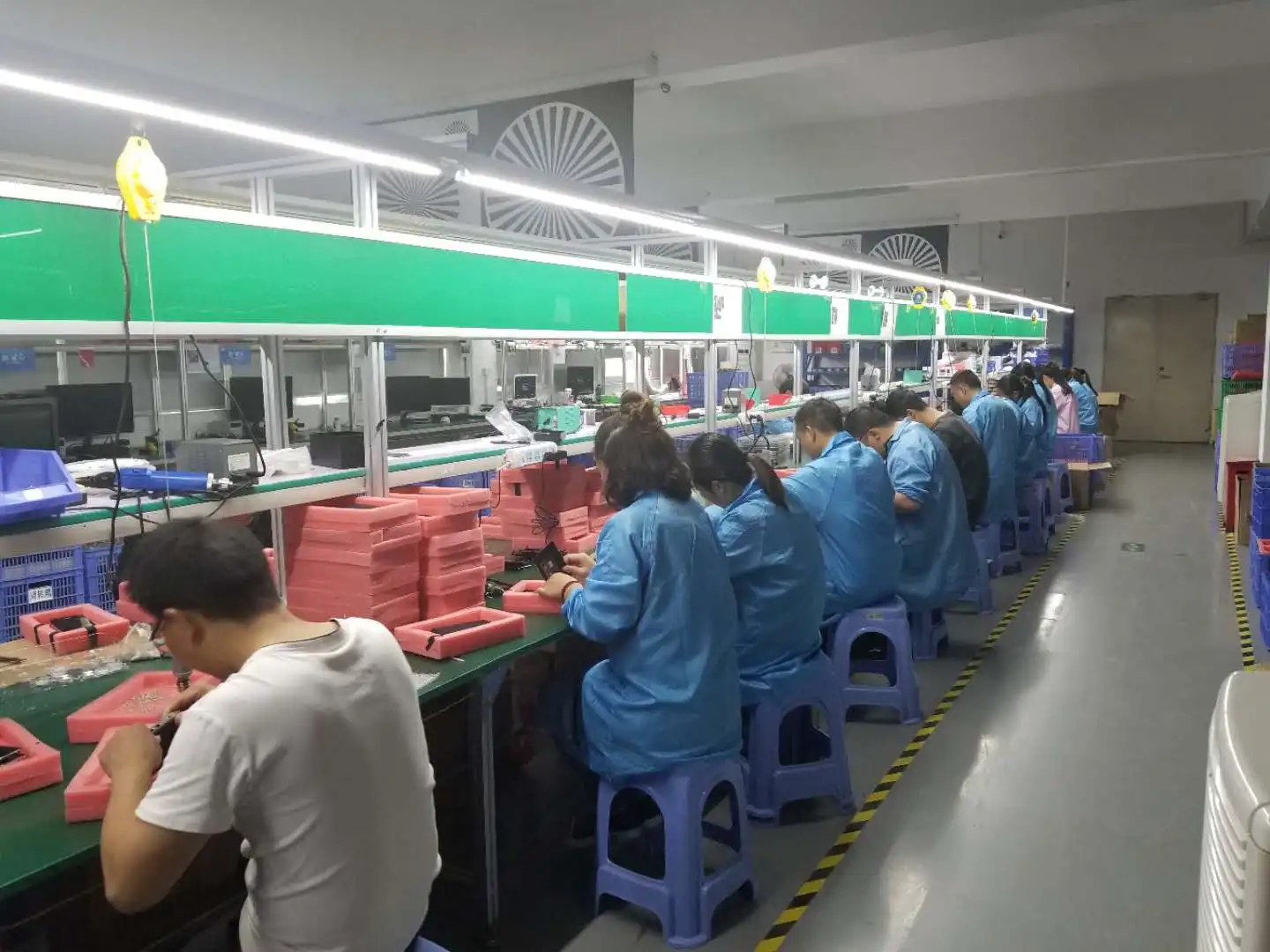

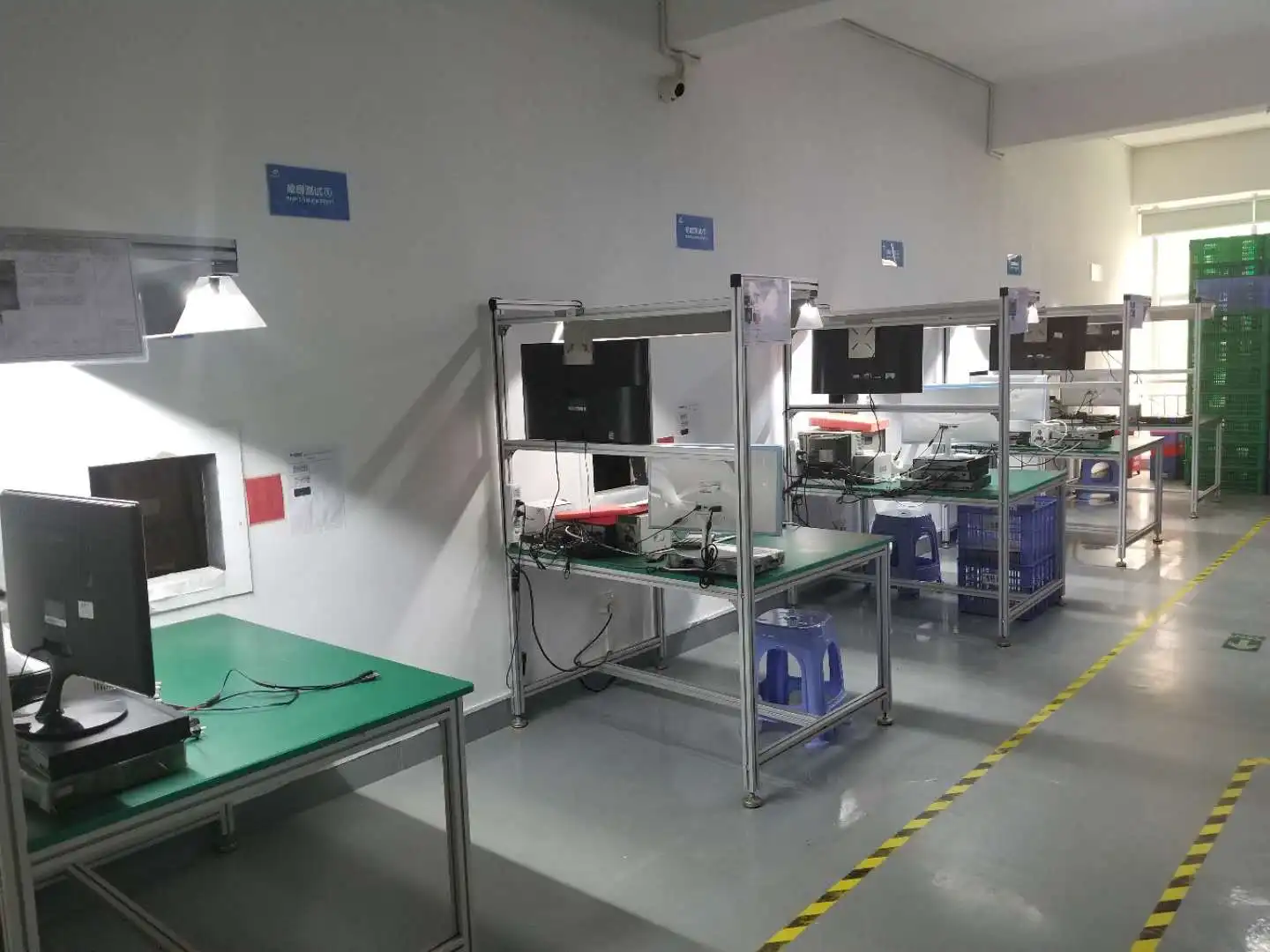

Company Profile
