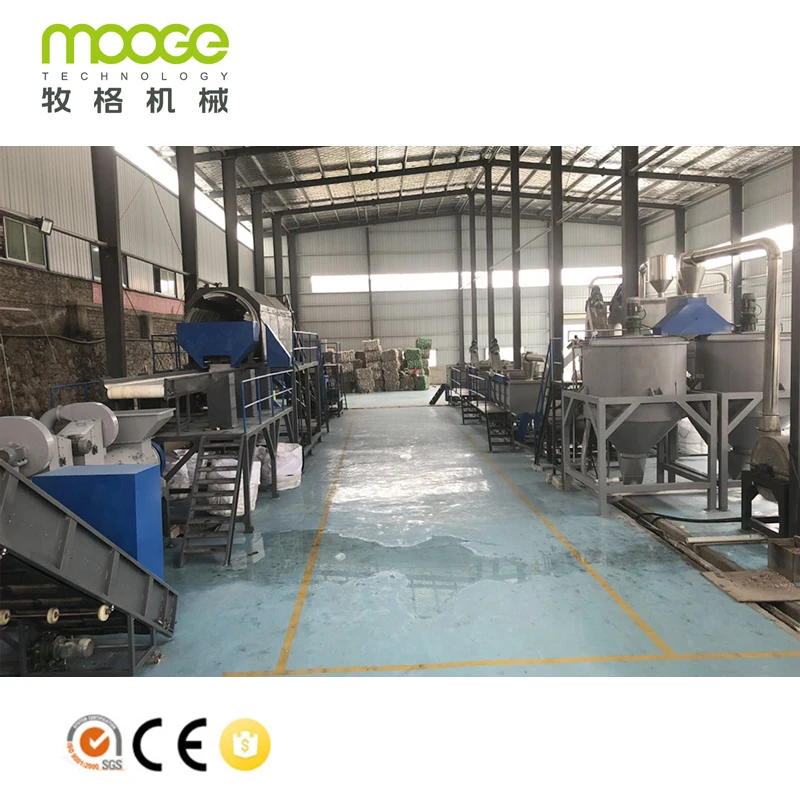

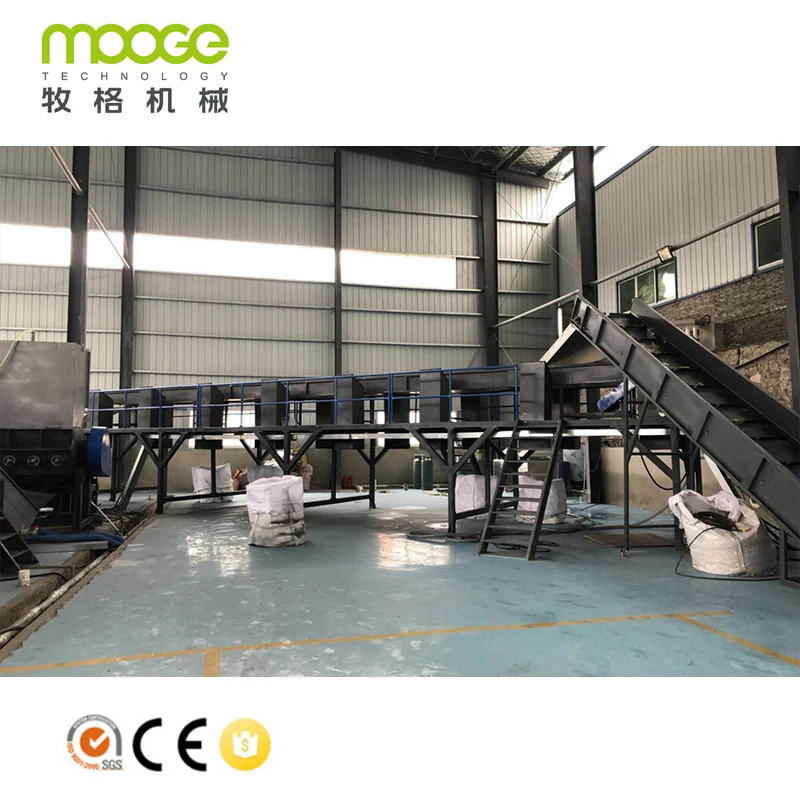

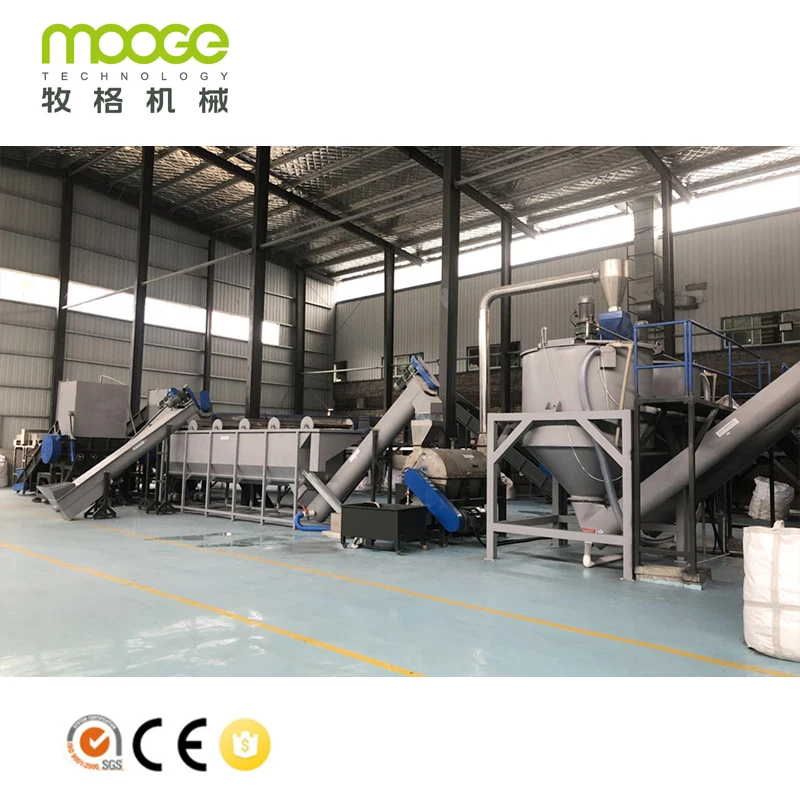

500 Kg/H Mineral Water Pet Plastic Bottle Crushing Washing Recycling Machine With Good Price
- Category: >>>
- Supplier: Jiangsu Mooge Machine Co. Ltd.
Share on (1600239506083):
Product Overview
Description
Products Description
MT-series plastic bottle recycling machine
it will be used to recycle pet bottle, water bottle, Sprite bottle, cola bottle, juice bottle, pet sheet, pet packing container, pet strap,pet film and so on.
According to the final usage of PET flakes, We supply 3 grade bottle flakes :
- Bottle to bottle grade, Food Standard
- Yarn/filament grade
- conventional grade
New R-Pet flakes Application:
New flakes can be make 2-d or 3-d pet fiber,filament yarn,pet strap,pet sheet ,pet film etc.
According to the final usage of PET flakes, We supply 3 grade bottle flakes :
- Bottle to bottle grade, Food Standard
- Yarn/filament grade
- conventional grade
New R-Pet flakes Application:
New flakes can be make 2-d or 3-d pet fiber,filament yarn,pet strap,pet sheet ,pet film etc.
Product Paramenters
Model | Capacity | Installed Power | Steam Use | Water Supply | Manpower | Area Required |
MT-500 | 500 kg/hr | 190 KW | Optional | 4-5 m3/hr | 4-6 Person | 60*5*5 m |
MT-1000 | 1000 kg/hr | 260 KW | Optional | 6-8 m3/hr | 8-10 Person | 80*8*5 m |
MT-2000 | 2000 kg/hr | 400 KW | Suggest Use | 10-15 m3/hr | 10-12 Person | 80*8*5 m |
MT-3000 | 3000 kg/hr | 600 KW | 80,000 Kcal | 20-30 m3/hr | 12-16 Person | 100*8*10 m |
MT-4000 | 4000 kg/hr | 800 KW | 100,000 Kcal | 30-40 m3/hr | 15-20 Person | 135*10*10 m |
MT-5000 | 5000 kg/hr | 1000 KW | 120,000 Kcal | 40-50 m3/hr | 15-20 Person | 135*10*10 m |
Product Video
Product Specification

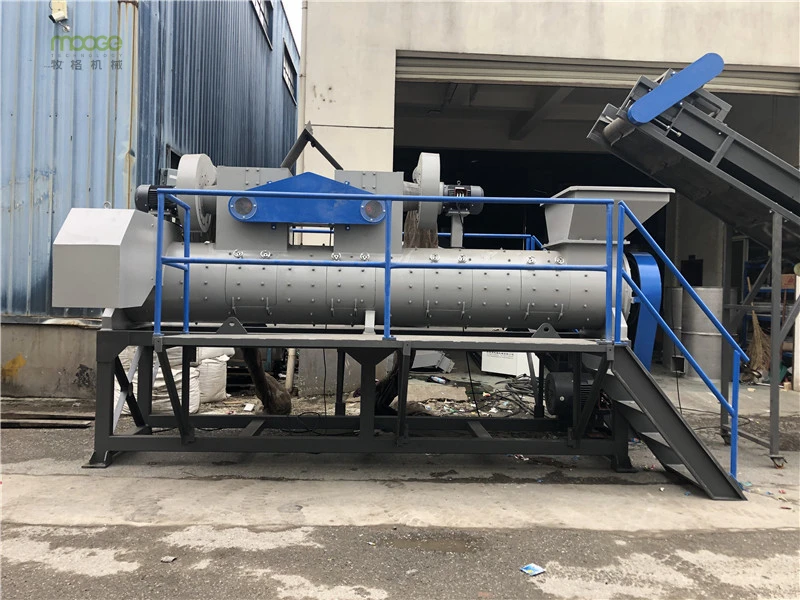

Label Remover Machine
it use to remove the labels from the bottle and separate label out
Rotary Blade made by germany import alloyed steel making for long time using,
The barrel designed with doors opening on it very easy to opening and maintenance
Bottom design with holes to drain out liquid which contained in the bottles

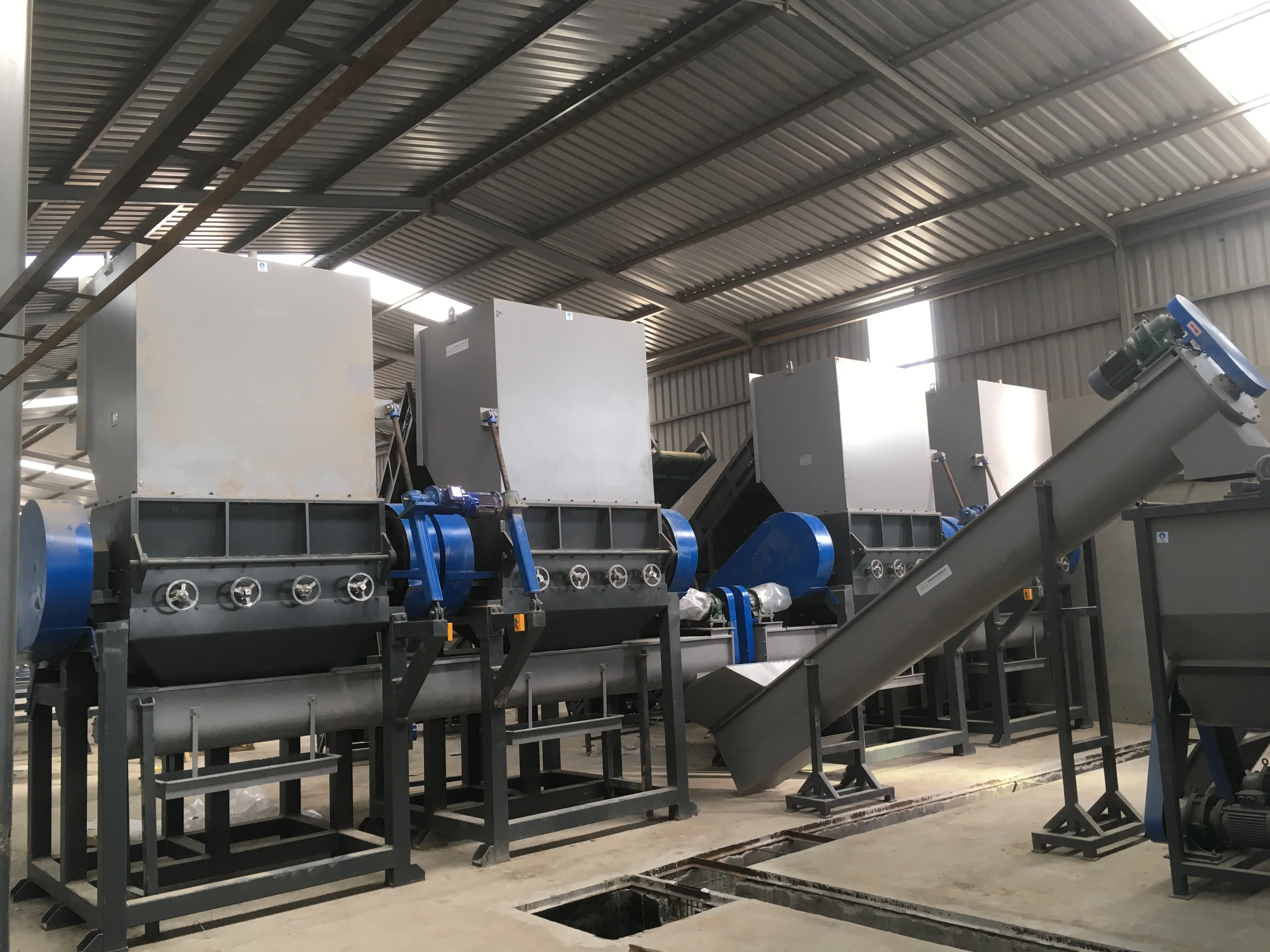

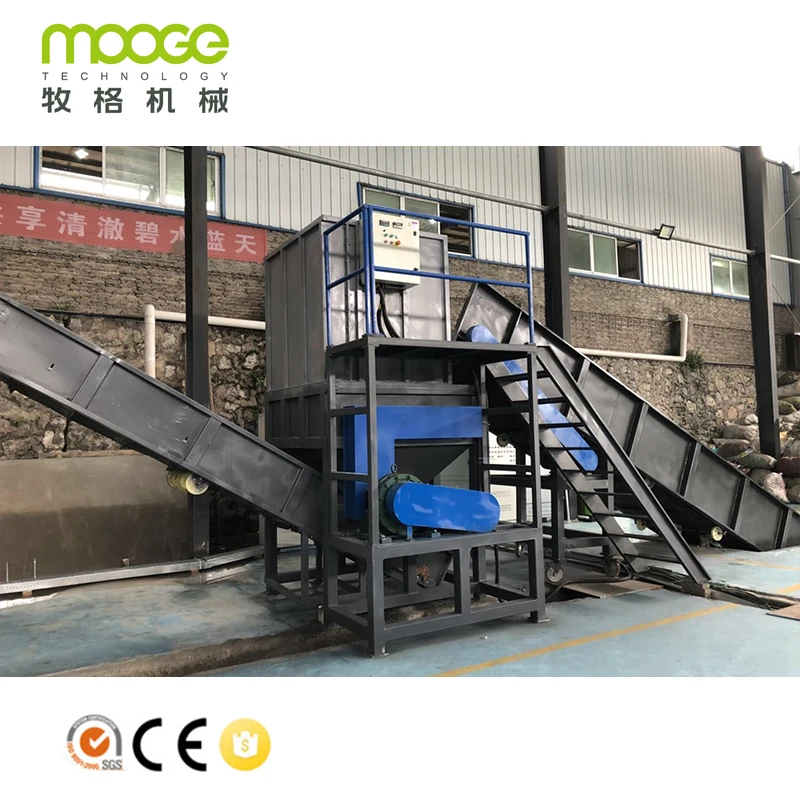

Crusher Machine
crushing the bottles to PET flakes,water pre-washing the dirty flakes ,cooling the blade
by 0.75kw motor open the chamber,it is easy for worker change the blade
Use D-2 blade for higher HRC,long time using (25-30 times grinder than other material),
we also can use DC-53 mateial,but the cost more higher
Bearing house is outside of the crusher chamber so no dirty goes inside for longer use.

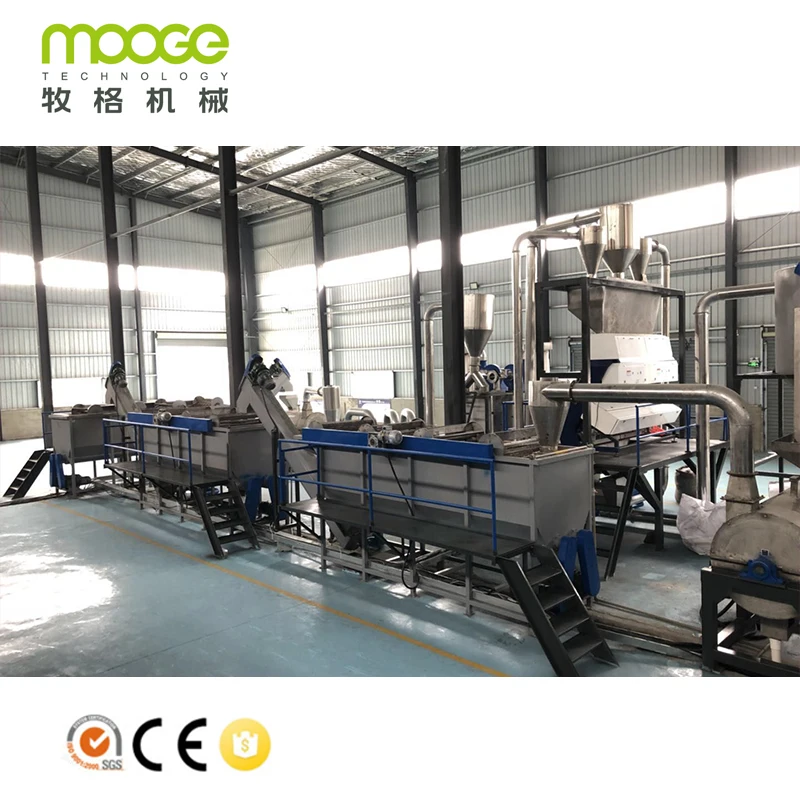

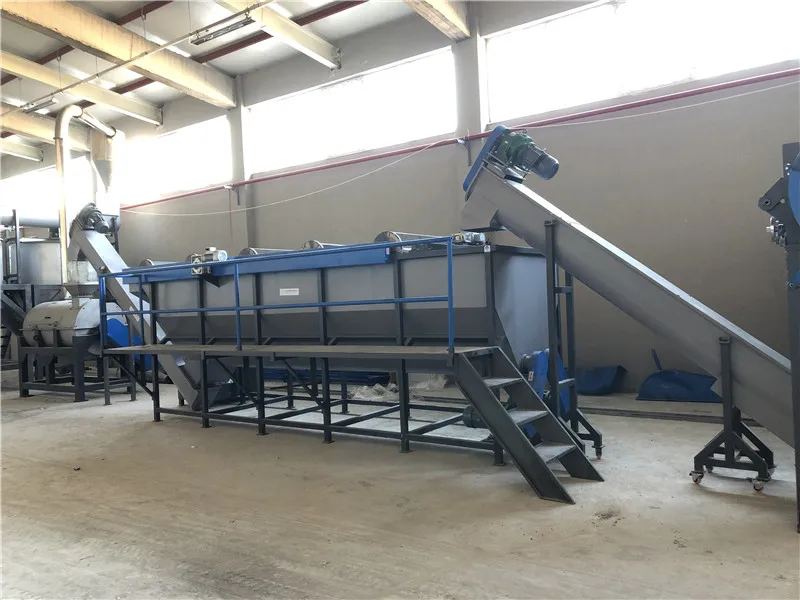

Float washing tank
washing pet bottle flakes and remover non-pet material with automatic rollerwashing pet bottle flakes and remover non-pet material with automatic roller

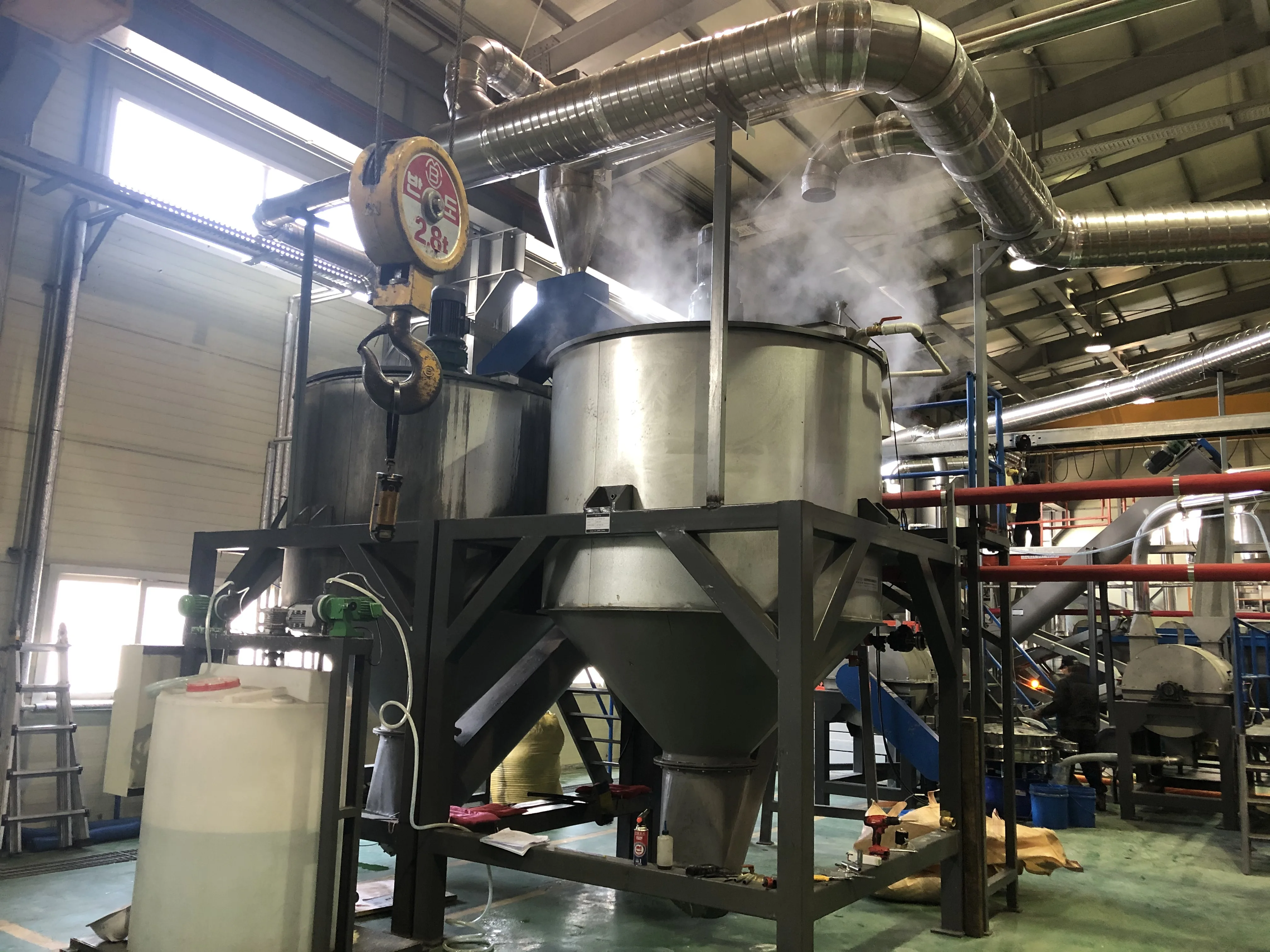

Hot Washing Tank
with hot water washing to remove oil/glue and other dirty from the flakes.
The tank made with insulation layer to save energy.
Feeding caustic soda/detergent to washing Its better Heating by steam
High speed friction dewatering machine
friction washing the material and its running with high speed can remove the dirty, dust, sand out with the dirty water
With water spray system to clean the mesh
With water spray system to clean the mesh

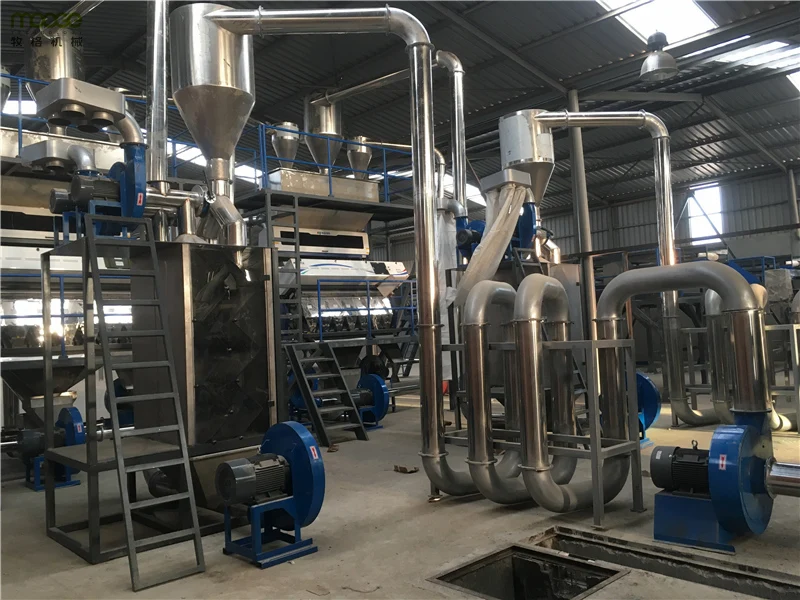

“Zig-zag” label separator
The Fin dust separator machine will remove the final labels from the flakes to guarantee the PVC content. Blower can be adjusted by invertor,With invertor to control the air flux of blower. Zig zag main chamber one set made by stainless steel,Chamber with plexiglass window to open and check inside

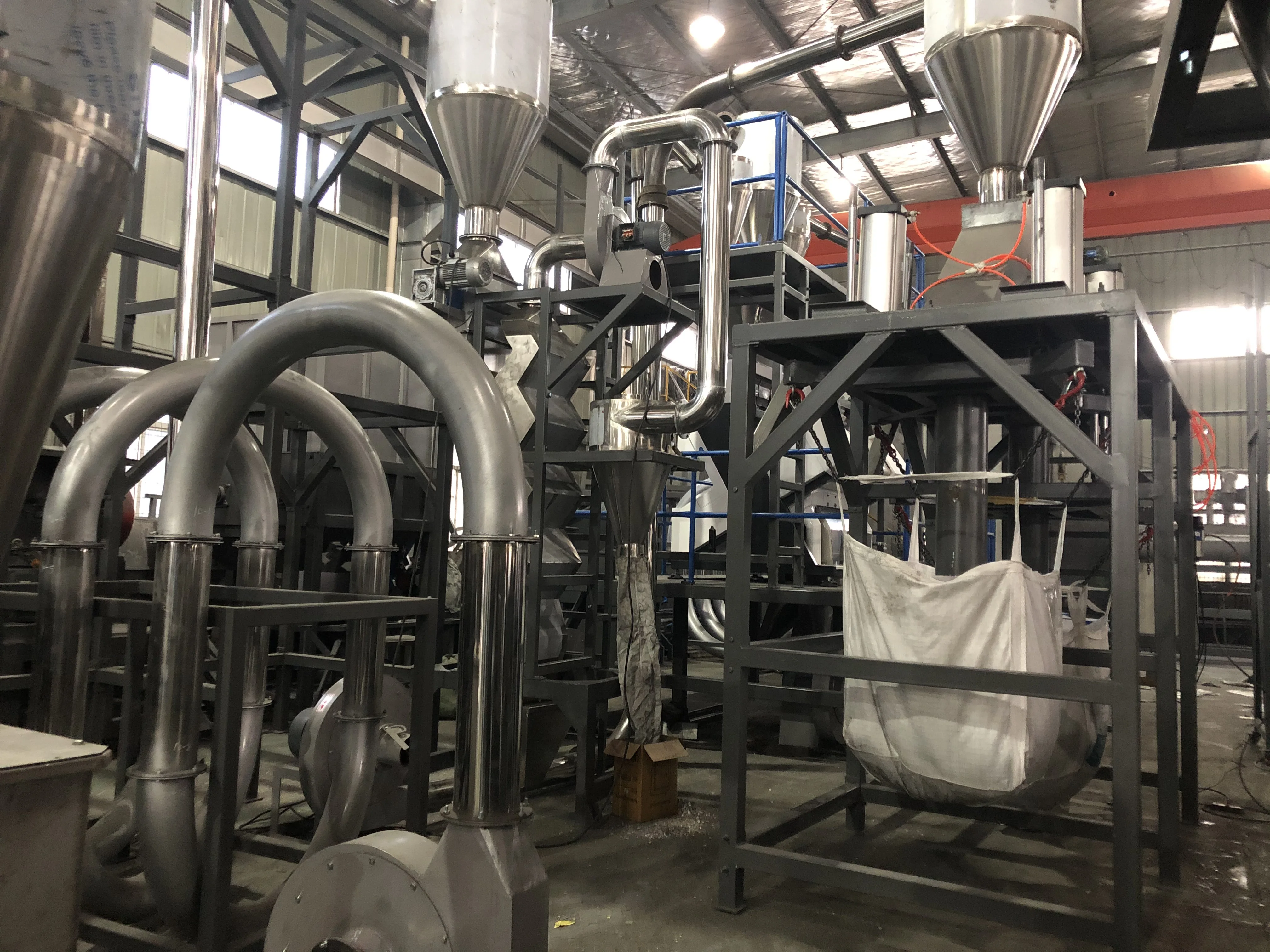

Pneumatic storage silo
Double station model, manually shift the material outlet Tee
with hooks holding the bags and with air cylinder up/down shaking when it packing, the up/down controlled by time controller
with hooks holding the bags and with air cylinder up/down shaking when it packing, the up/down controlled by time controller
