Product Description

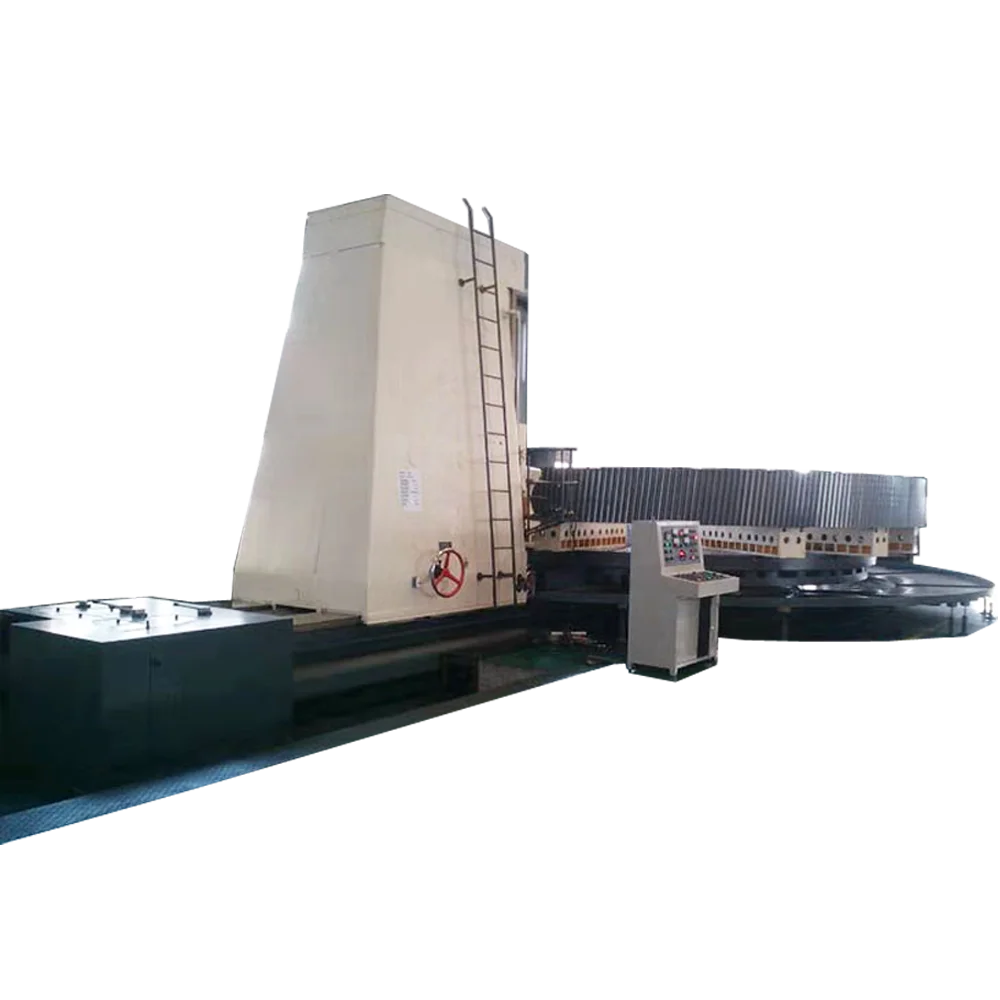

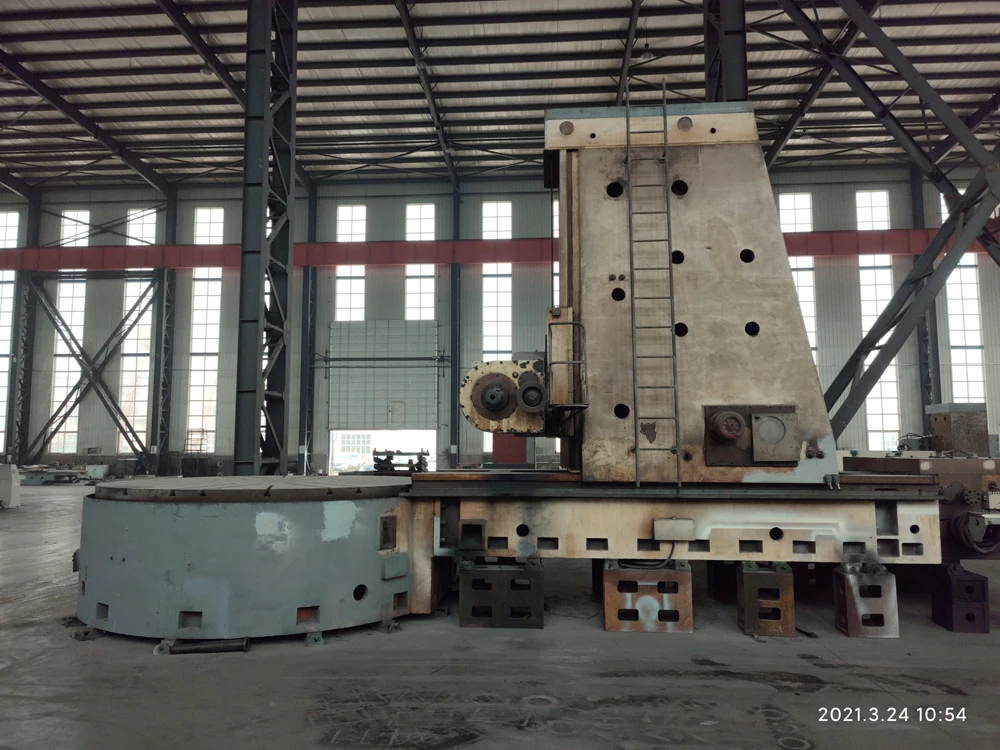

The machine is fixed by the working table, and the large column moves along the bed guide rail. The sliding board drives the hob box to feed vertically along the large column guide rail. It is mainly composed of the following parts: bed, large column, working table, transmission box, main tool holder, vertical lifting slide seat, cooling device, hydraulic device, additional supporting device, electrical control part, random accessories.




SPECIFICATION


YK31630-6
YK31800-6
YK311250-6
YK311650-6
Max. workpiece diameter
mm
6300
8000
12500
16500
Max. workpiece module
mm
42
42
50
50
Number of teeth
Any
Any
Any
Any
Max. tooth width
mm
1800
1800
1800
1800
Radial travel (X-axis)
mm
1200～4120
1450～5000
1500～7550
1500～9550
Tool post slide travel (Z-axis)
mm
645～2645
645～2645
645～2645
645～2645
Max. rotation angle of tool post (A-axis)
°
±45º
±45º
±45º
±45º
Max. installation diameter of hob
mm
450
450
550
550
Max. installation length of hob
mm
550
550
550
550
Max. tangential movement of the hob (Y-axis)
mm
490
490
490
490
Distance between hob center and worktable center
mm
1200～4120
1450～5000
1500～7550
1500～9550
Distance between hob center and worktable surface
mm
645～2645
645～2645
645～2645
645～2645
Hob speed
r/min
12～120
10～100
10～100
10～100
Max. speed of worktable
r/min
1
0.58
0.58
0.58
Worktable diameter
mm
3835
4400
4800
4800
Diameter of worktable center hole
mm
1200
2000
2000
2000
Tangential travel speed (Y-axis)
mm/min
1～3000
1～3000
1～3000
1～3000
Min. programming amount of CNC axes
mm
0.001
0.001
0.001
0.001
Main motor power
KW
75
115
115
115
Total power
KW
120
190
190
190
Machine net weight
Kg
98000
200000
245000
340000
Machine dimensions (LxWxH)
mm
11070X6635X5300
12300X7200X5300
13970X7600X5300
15970X7600X5300
Optional: 6 axis, 4 axis, 2 axis


Detailed Images

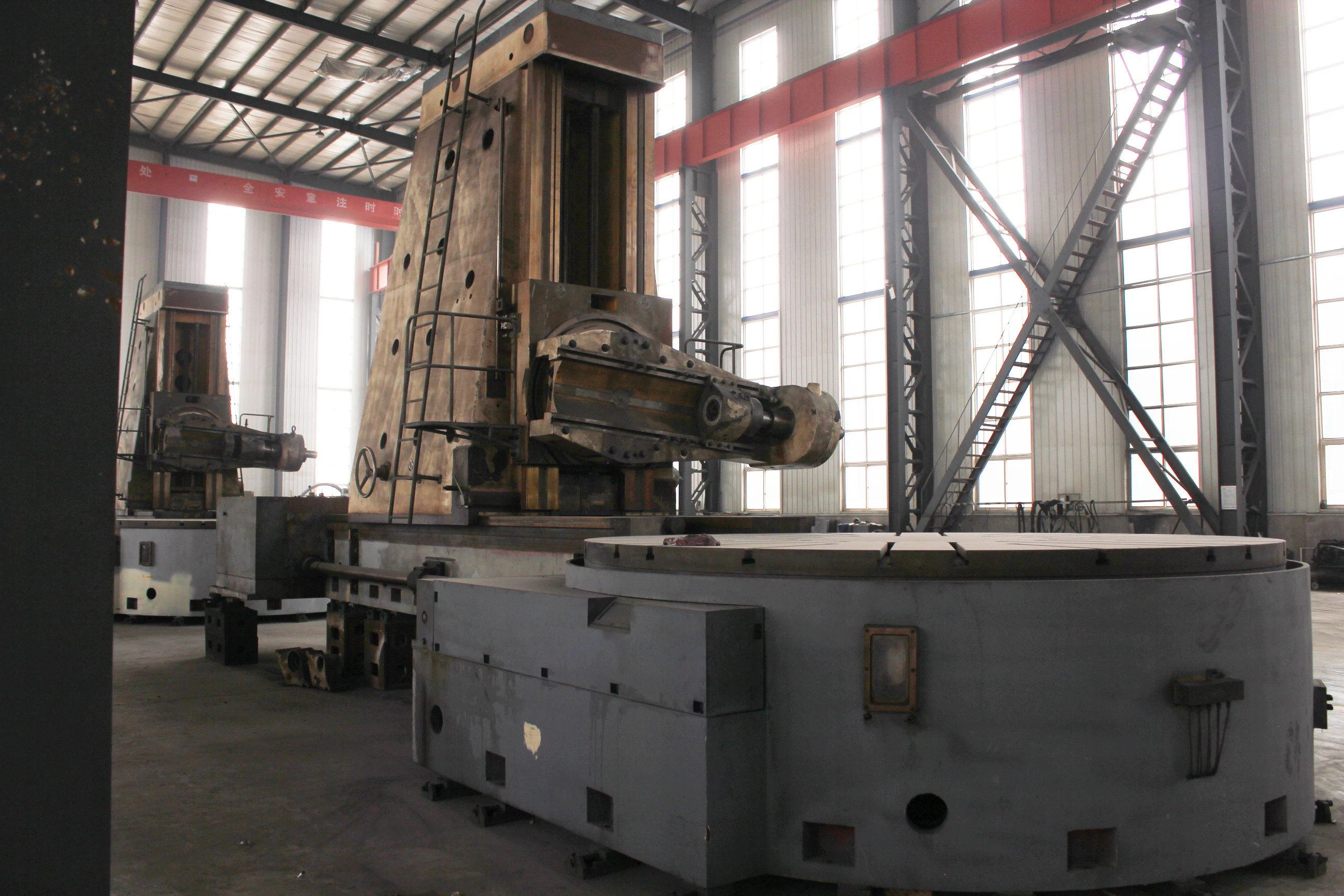

Worktable/Workbench
Base on workbench institutions by the workbench, the workbench, spindle unit.Workbench with: stop, inching and variable speed function.The workbench to withstand vertical load.Machine tool under the condition of environment temperature 0 to 40 degrees can work normally.

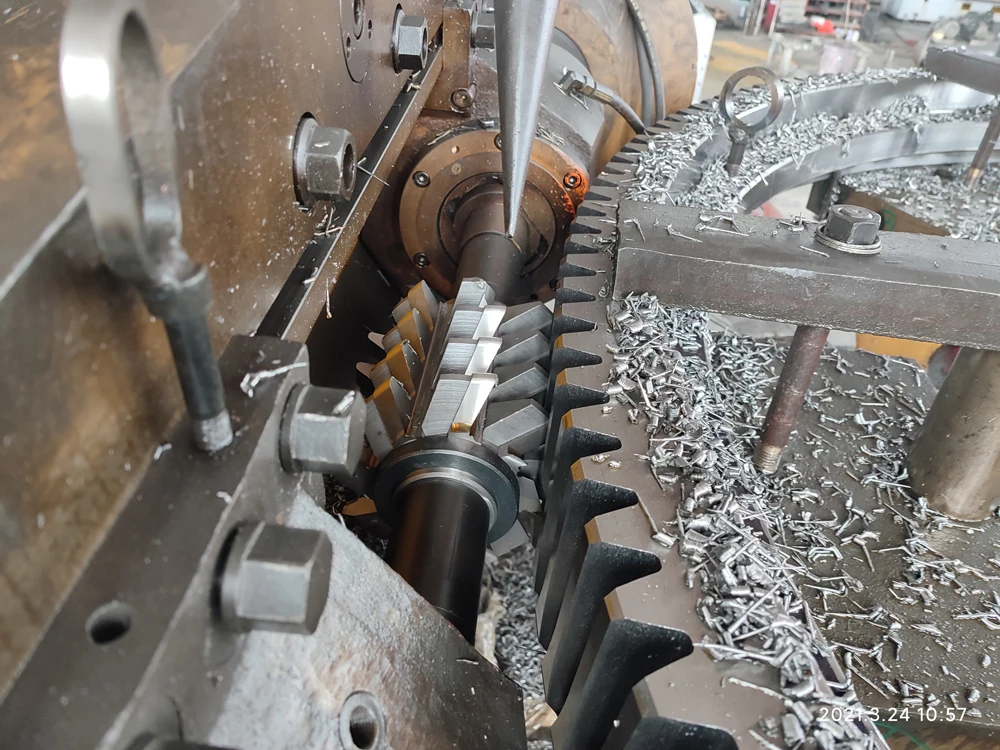

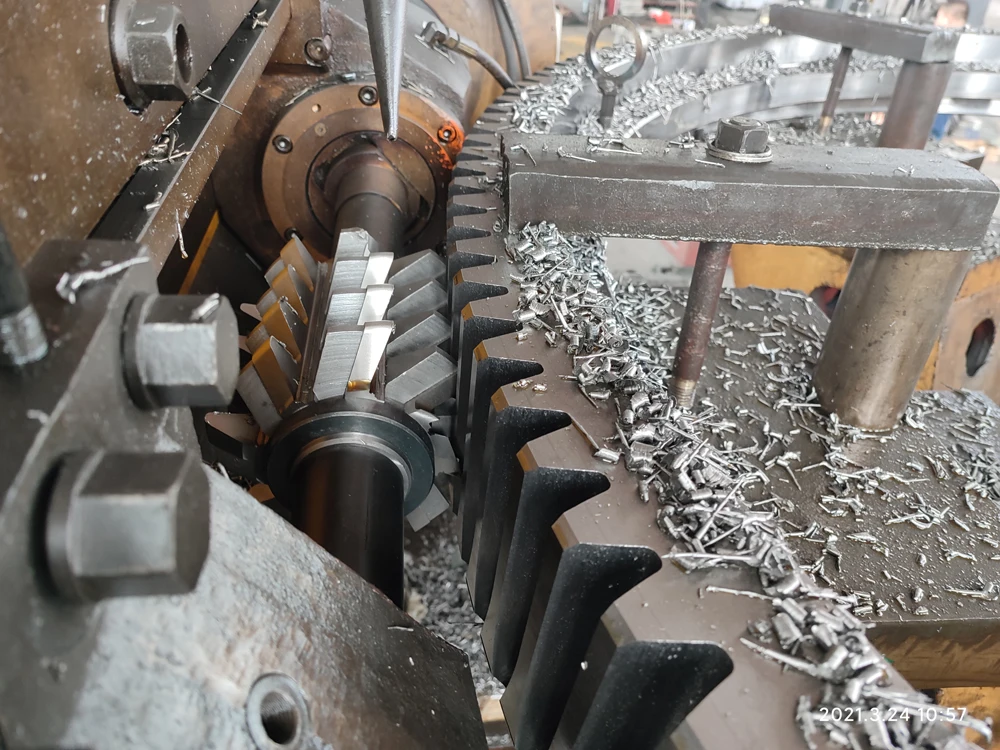

Hob carriage:
The hob holder is used to support the hob main shaft and drive the hob mounted on the main shaft to make vertical feed motion. The internal bearing adopts domestic famous or imported bearings with long life.

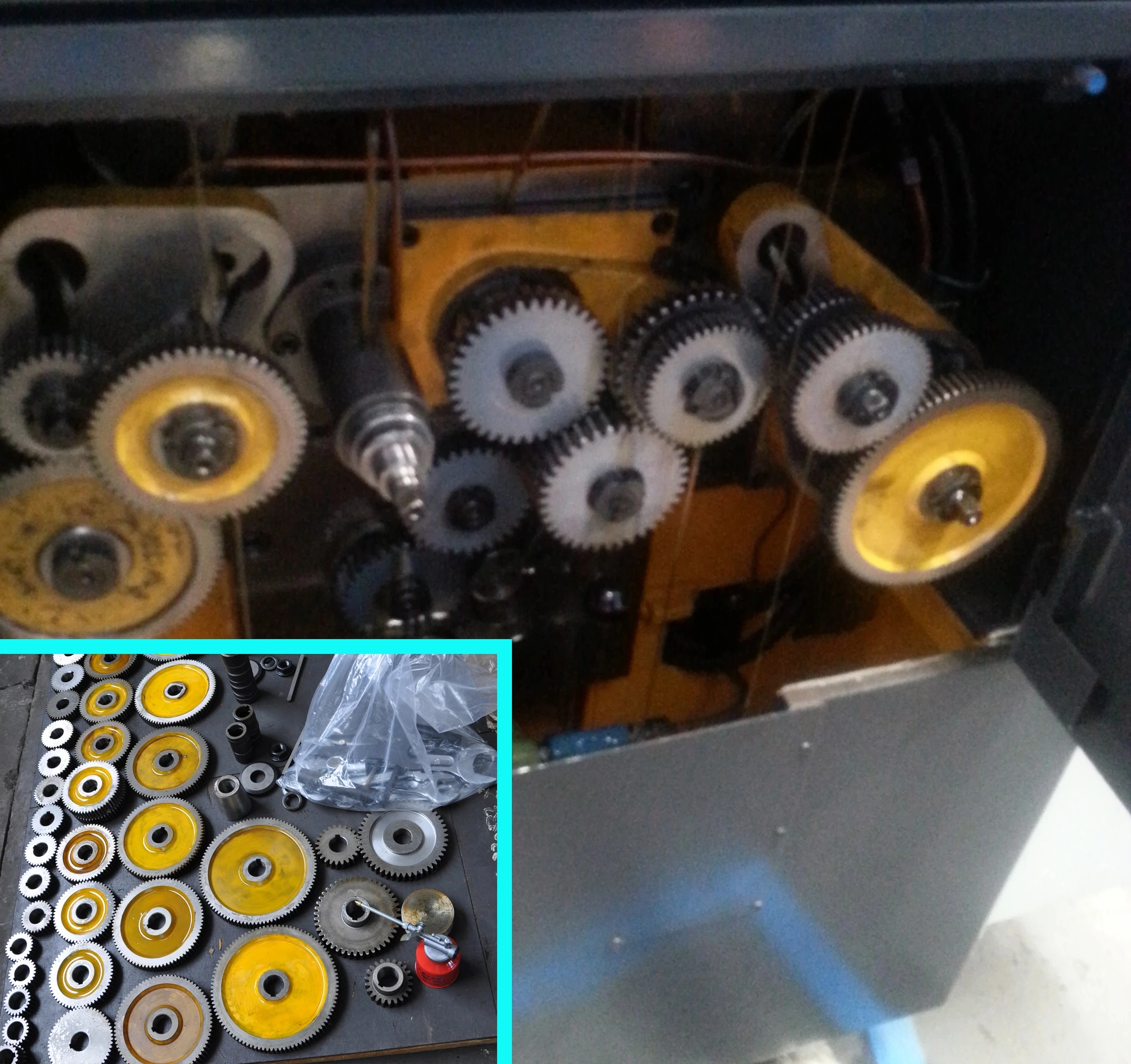

Change Gear:
The gear is selected from domestic high-quality suppliers, such as SMTCL or other well-known manufacturers. In addition, the combination of different hanging wheels will achieve the purpose of rolling out different gear forms.

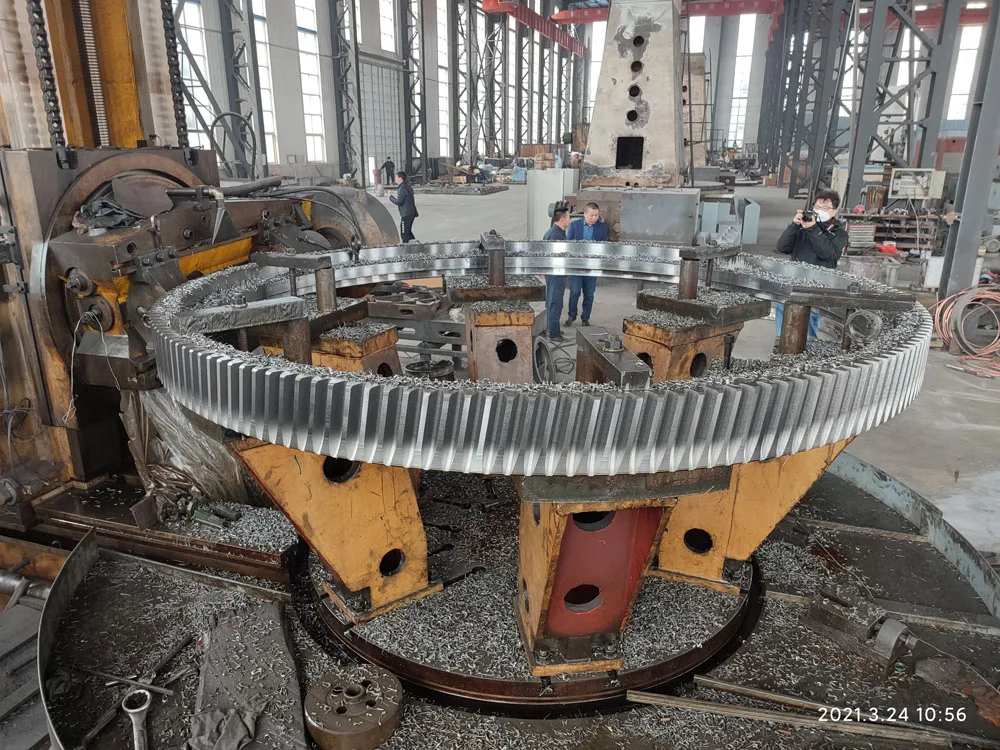

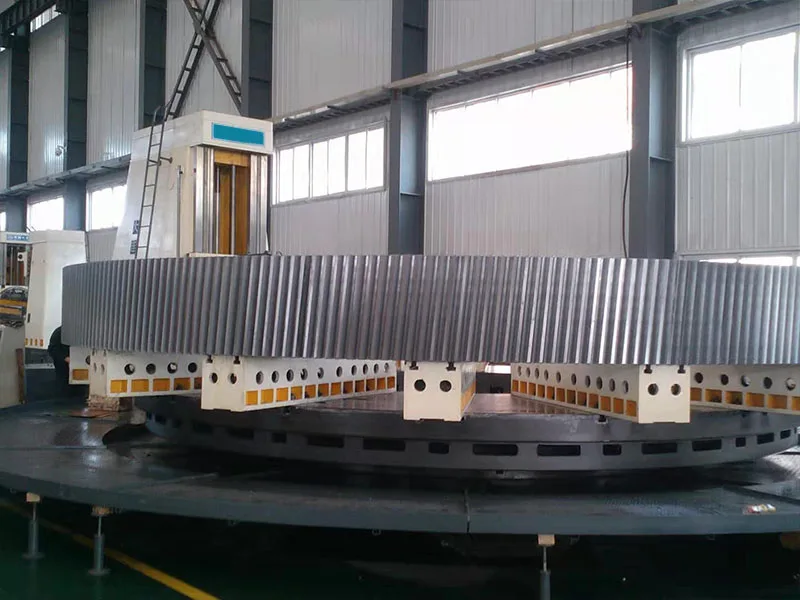

Machines Picture










Certificate




Packing&Shipping




Company Introduction


Dalian Dahui Machinery Equipment Co., Ltd. is a professional manufacturer and trading company engaged in the manufacturing and export of various types of machine tools such like: CNC Lathe Machine, Vertical Lathe Machine, Horizontal Lathe Machine, Boring Machine, Machining Center and their accessories. Since its establishment in 2009, its products have been exported to more than 20 countries and regions, including Italy, Sweden, Turkey, Russia, Saudi Arabia, the United Arab Emirates, Australia, and Mexico. With reliable product quality and meticulous after-sales service, it has won customers' trust and praise.




Our Services & Strength
Our service:
DMTC provides 7x24-hour online pre-sale service, engineer follow-up order service, and logistics operation service. With years of understanding of various markets, engineers who have toured various countries for a long time provide installation services. In addition, we can help customers successfully complete a series of services such as import clearance, thereby reducing customer costs in all aspects.

Our advantage:
Advantage 1: CE, ISO certification.
Advantage 2: Full production tracking.
Advantage 3: Engineers stationed in the factory guarantee the highest quality.
Advantage 4: More suppliers as alternatives, guarantee your lowest price.
Advantage 5: Sales staff who have been in the business for more than 10 years, answer your pre-sales / after-sales questions.
Advantage 6: Engineers traveling around the world to ensure after-sales service.
Advantage 7: OEM, ODM production, to meet customer needs in all aspects.
Advantage 8: 5% -10% deposit, giving you the greatest trust and the least pressure on funds.
Advantage 9: Low MOQ for only 1 unit.
Advantage 10: For small equipment (such as boring machines) guaranteed in-stock all year round.
