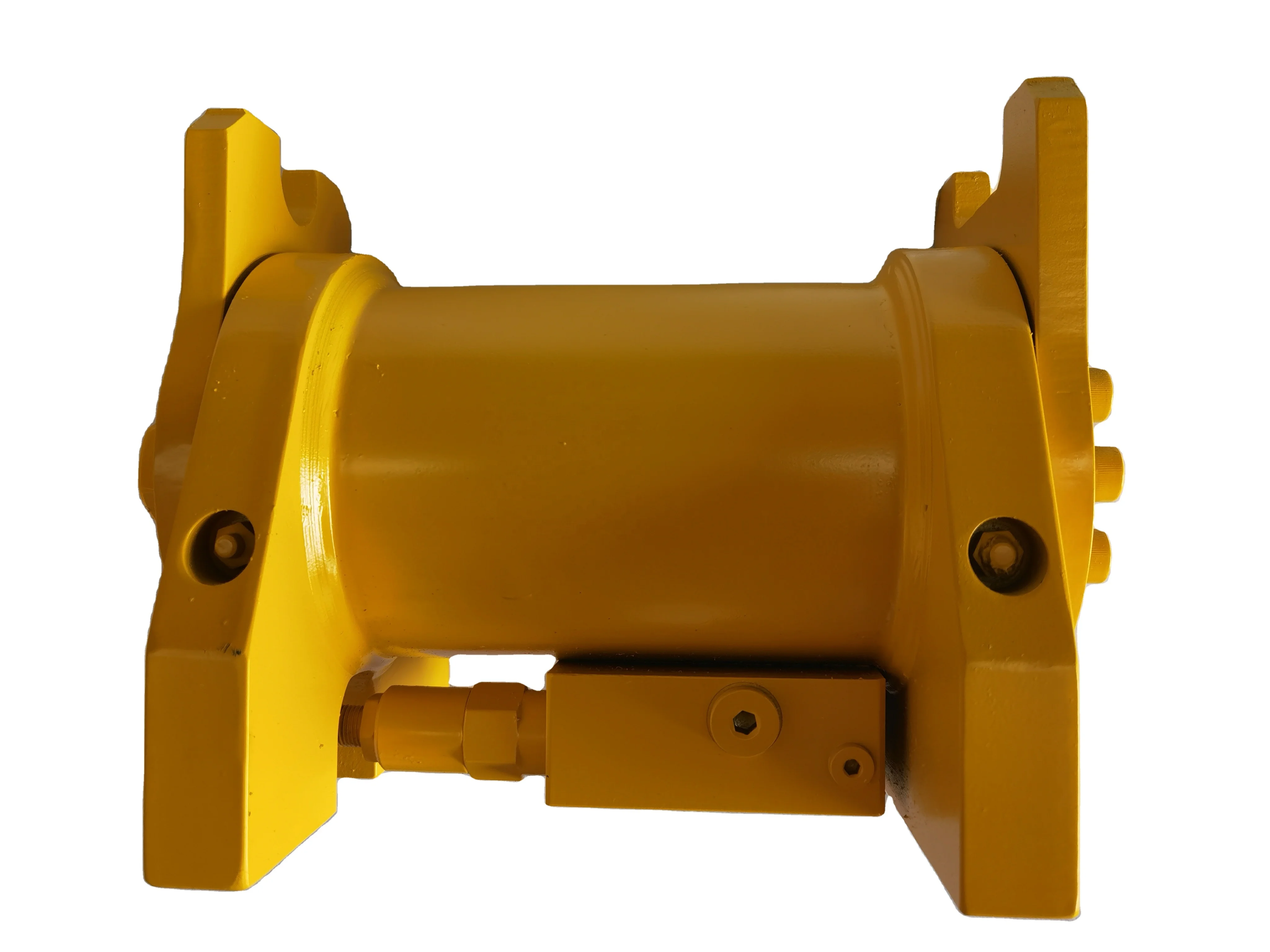

hydraulic rotary cylinder hydraulic tilt actuator for excavator turning device
- Category: Cylinders >>>
- Supplier: Weihai Diyi Hydraulic Machinery Co. Ltd.
Share on (1600239805751):
Product Overview
Description
PRODUCT SPECIFICATIONS
型号 Model | 适用最大机重 Max. Machine Weight | 重量 Approx. weight | 扭矩 Torque （Nm@210bar) | 保持扭矩 Holding Torque（Nm@210bar) | 倾斜角度 Total Tilt | 要求油流量 Displacement |
DYT05 | 3,970 lb (1,800 kg) | 55 lb (25 kg) | 8200 in-lb (930 Nm) | 20,000 in-lb (2260 Nm) | 180° | 0.8-1.5 gpm (3-6 l/min) |
DYT06 | 8,400 lb (3,800 kg) | 115 lb (52 kg) | 25,400 in-lb (2,870 Nm) | 64,300 in-lb (7,270 Nm) | 180° | 0.8-1.5 gpm (3-6 l/min) |
DYT07 | 15,000 lb (6,800 kg) | 185 lb (84 kg) | 39,000 in-lb (4,300 Nm) | 95,700 in-lb (10,800 Nm) | 180° | 1.5-3 gpm (6-12 l/min) |
DYT08 | 20,000 lb (9,100 kg) | 243 lb (110 kg) | 63,700 in-lb (7,350 Nm) | 152,700 in-lb (17,250 Nm) | 180° | 3-5 gpm (12-20 l/min) |
DYT09 | 28,700 lb (13,000 kg) | 401 lb (182 kg) | 88,670 in-lb (10,020 Nm) | 234,100 in-lb (26,450 Nm) | 134° | 6-7 gpm (24-28 l/min) |
DYT10 | 45,000 lb (20,000 kg) | 485 lb (220 kg) | 121,870 in-lb (13,770 Nm) | 234,100 in-lb (36,420 Nm) | 134° | 6-8gpm (24-32 l/min) |
DYT11 | 60,000 lb (27,000 kg) | 705 lb (320 kg) | 166,600 in-lb (18,830 Nm) | 423,400 in-lb (47,840 Nm) | 134° | 8-11gpm (32-44 l/min) |
DYT12 | 75,000 lb (35,000 kg) | 948 lb (430 kg) | 210,350 in-lb (23,770Nm) | 549,700 in-lb (62,110 Nm) | 134° | 9-13 gpm (36-52 l/min) |
Product Overview
Advantage of The Tilt Rotary Motor
1、Increase Productivity
2、Performing Multiple Function
3、Reliable Performance
PRODUCT SPECIFICATIONS
Load Damage Test
The liability weight is 600 kilograms
Test times 20000 times
1. Solid, compact, robust, safe and powerful
2. Integrated pressure relief valve prevents overload of the tilt motor
2. Integrated pressure relief valve prevents overload of the tilt motor
3. Low maintenance as a result of lubrication over the hydraulic oil of the grapple slewing gear
4. Size optimised for therespective machine classes
Weihai Diyi Hydraulic Machinery Co., LTD. is located in Weihai, Shandong Province, which is a professional manufacturer of
Hydraulic Rotary Actuators together with Research and development, manufacturing and sales. Our company was founded in 2016 and owns a high quality staff group. We insist on developing our business by the way of integrity, friendly, scientific philosophy and do our best to supply high quality products to our customers under the business philosophy of "pragmatic, rigorous, efficient, responsible". Products are being widely used in mining, infrastructure, offshore drilling industries and so on and won a favorable reputation by the reliable quality.
Hydraulic Rotary Actuators together with Research and development, manufacturing and sales. Our company was founded in 2016 and owns a high quality staff group. We insist on developing our business by the way of integrity, friendly, scientific philosophy and do our best to supply high quality products to our customers under the business philosophy of "pragmatic, rigorous, efficient, responsible". Products are being widely used in mining, infrastructure, offshore drilling industries and so on and won a favorable reputation by the reliable quality.
Certificates of honor and certification
FAQ
Q1. What is your hydraulic cylinder application?Construction Machinery
Metallurgy Machinery
Mining machinery
Hydraulic power project
Hydraulic Press Machinery
Marine Industry
Q2. What is the advantage about your company?
A2. Our company has professional team and professional production line.
Q3. Why should I choose your products?
A3. Our products are high quality and low price.
Q4. Any other good service your company can provide?
A4. Yes,we can provide good after-sale and fast delivery.
