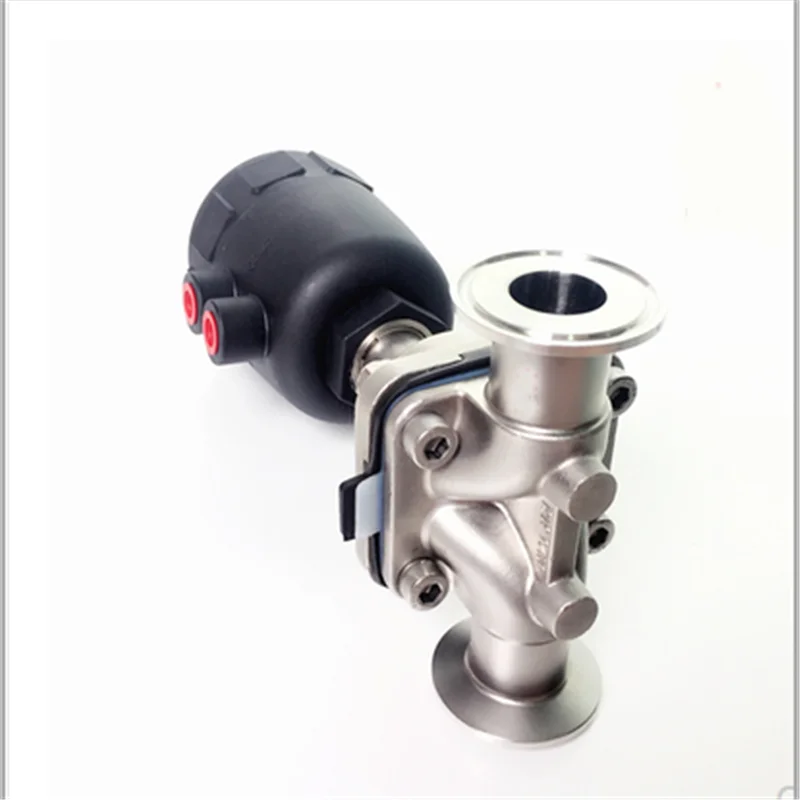

China Sanitary Pneumatic Clamped Diaphragm Valve

Share on (1600239889271):


Price:$10.00 - $30.00

Quantity:


Product Overview

Description



Product Description





                    PLEASE DO NOT LEAVE


         We have our own professional designers to meet any of your requirements.


                       Any size can be customized





Fenjun Fluid Equipment Co., a manufacturermainly produces stainless sanitary centrifugal pumps, valves, elbows, tee joints, concentric reducers, unions, clamps, terminals, manholes, sight glasses and other products.


Quality of its products has passed the test and certification of CE, 3A and organizations.


1














































Product Name




Clamp type,316L food grade diaphragm  valve with manually operated


Standard


GJB, DIN, BPE, GB, JIS, ISO, FB


Grade


SUS304, SUS316


Brade


Sangtians


Connection


Flange, Clamp, Weld, Thread (male or female), union or combination


Application


Sanitary, Food&Beverage,Pharmaceutical Industry machine


Operation


Pneumatic


Max Temperature


230℃


Max Pressure


10 Bar


Available Structure


Tee, U-type, Straight, Tank Bottom, Customization

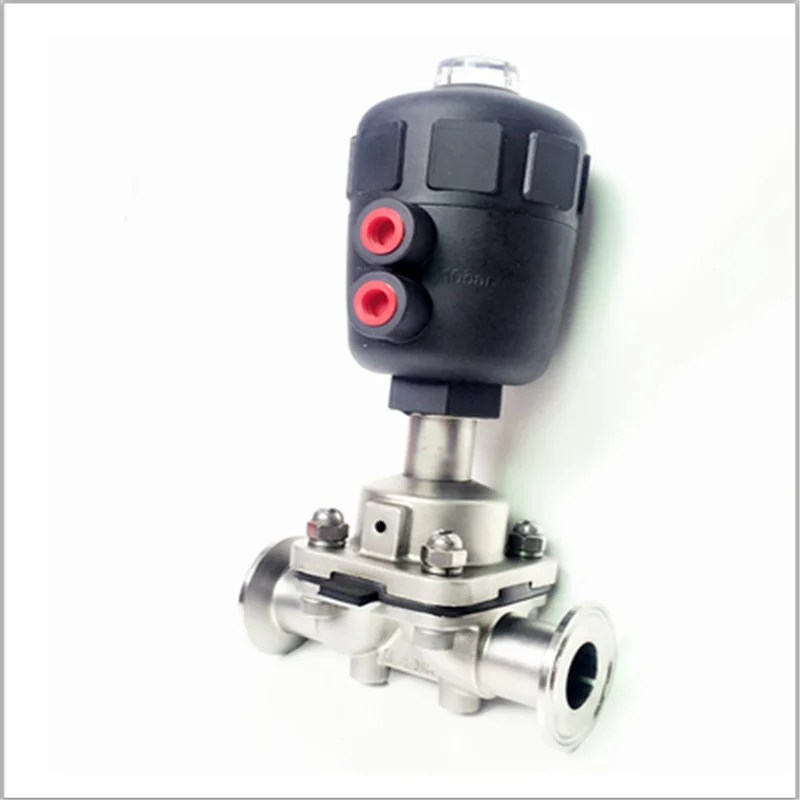

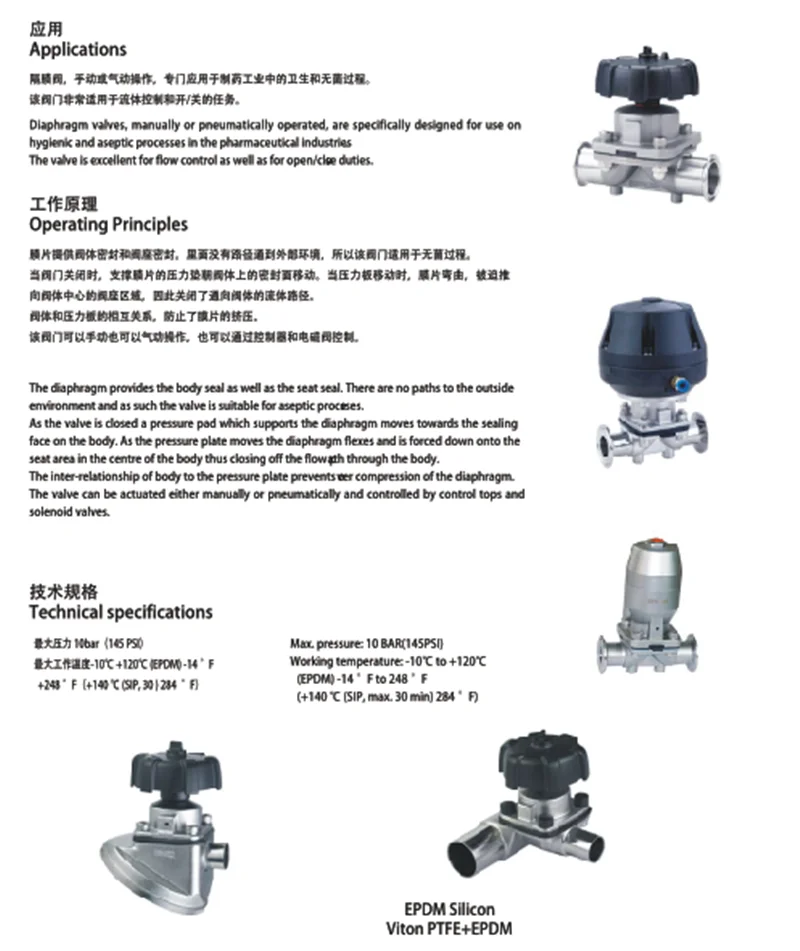

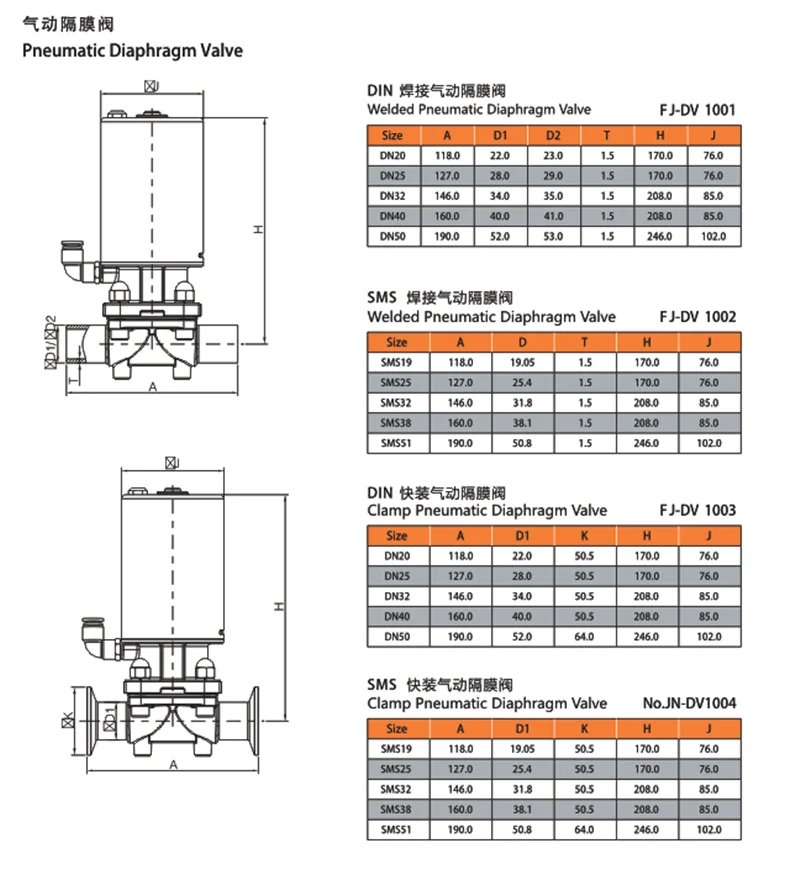

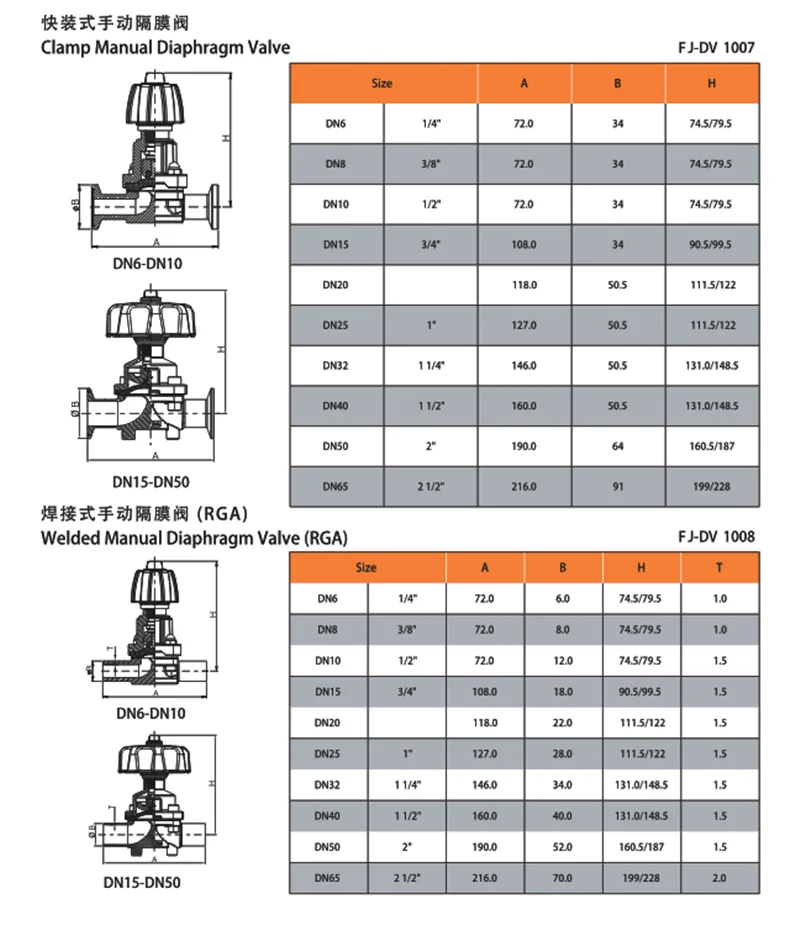

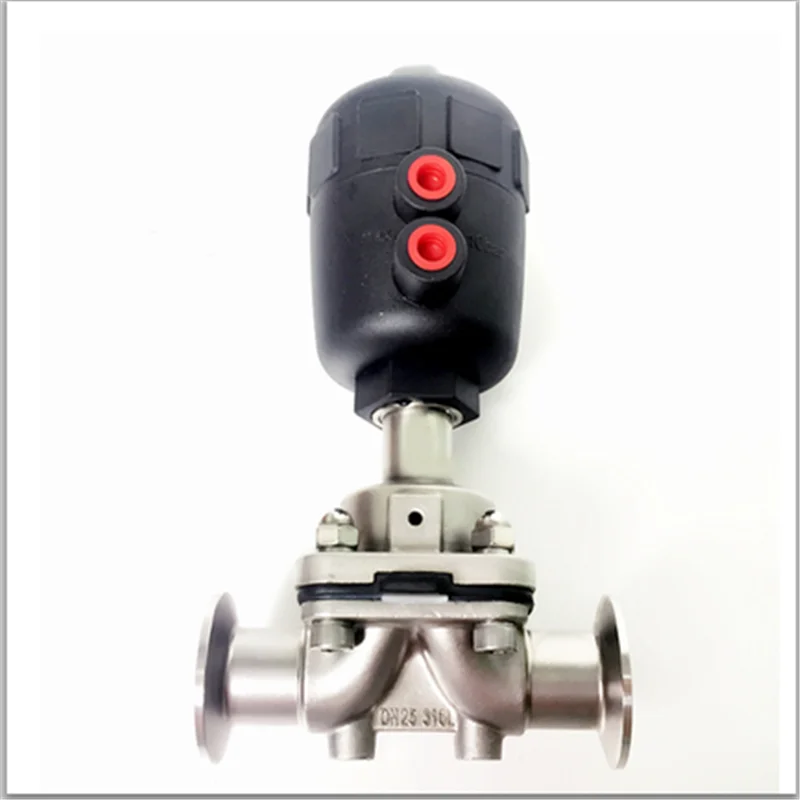

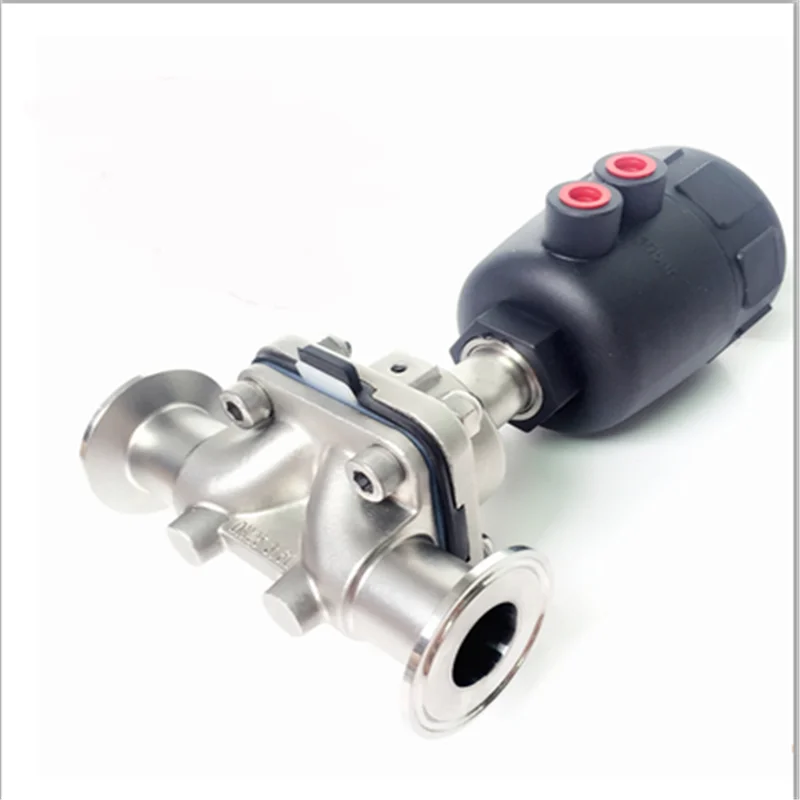

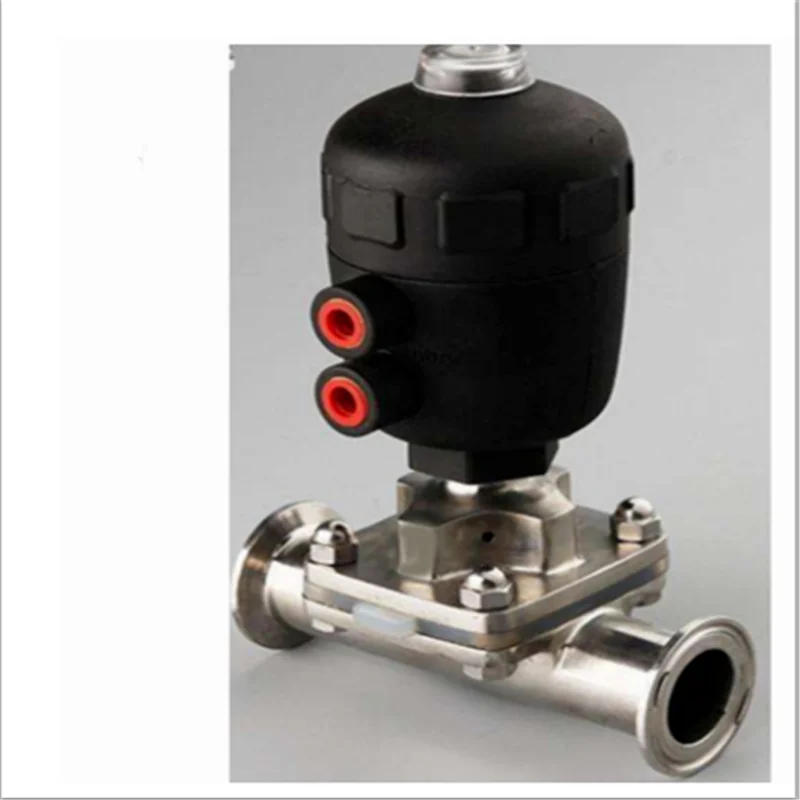

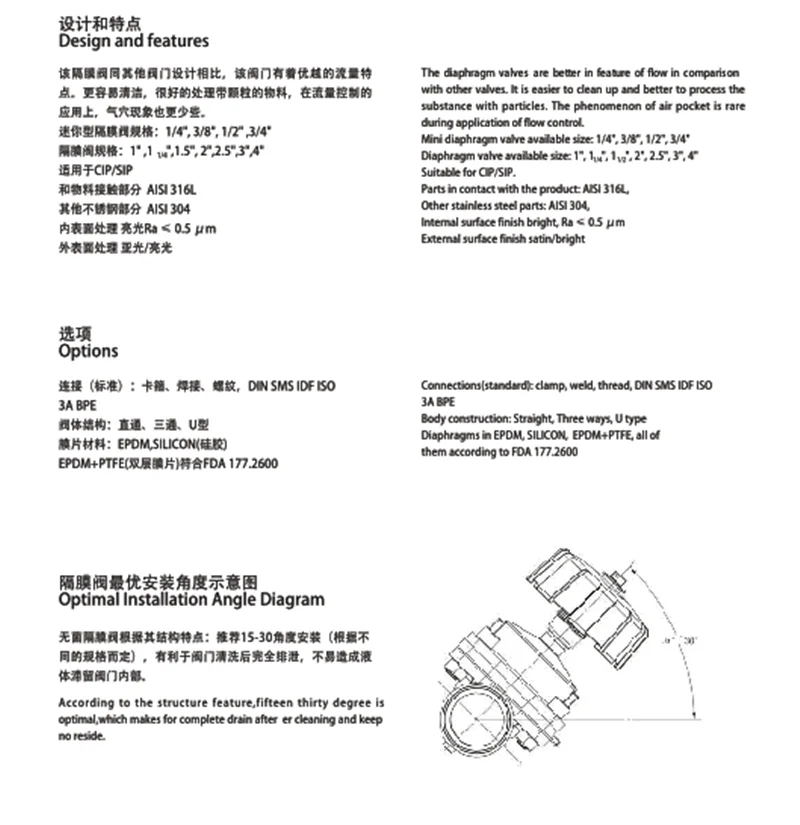

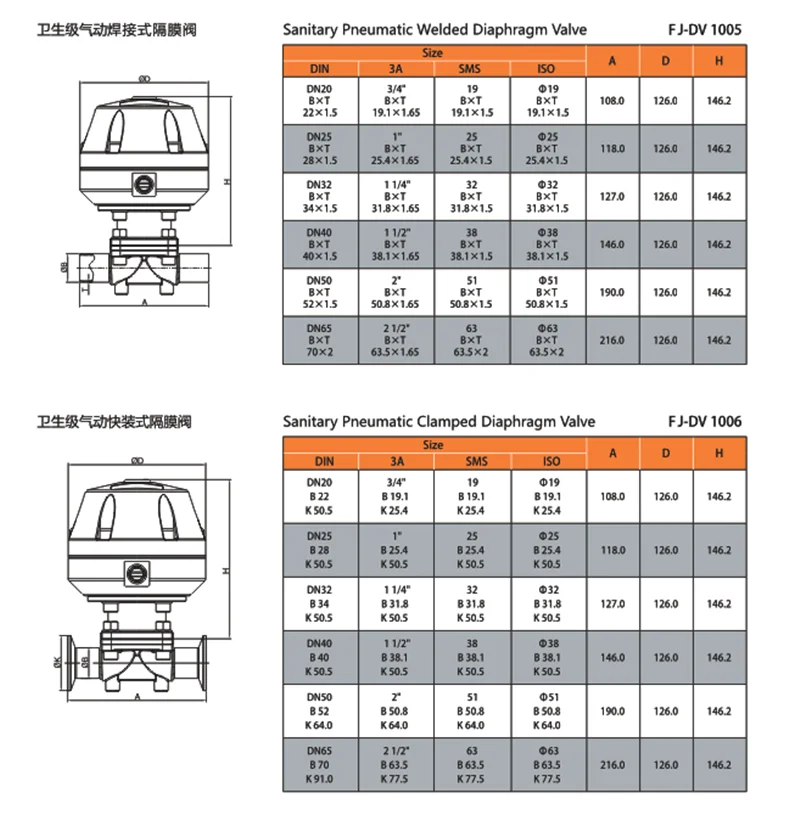

1.png2.png3.png4.png5.png11234





Packaging & Shipping


 800





Our Services


 service 2





Company Information


 company 1company 2company 3

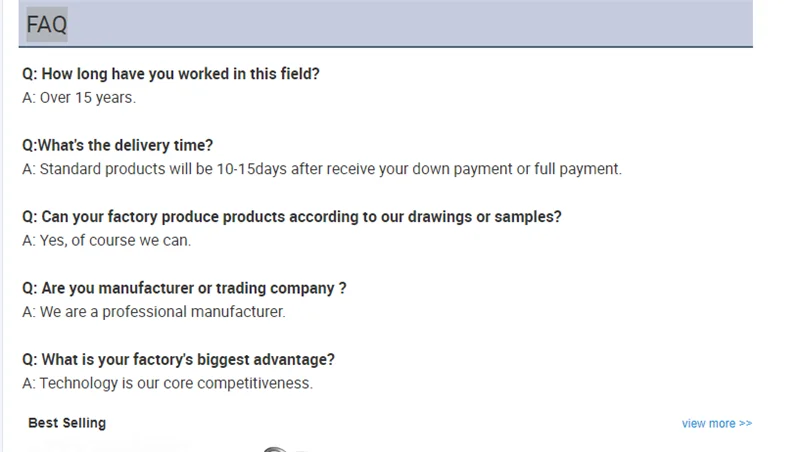

FAQ


 FAQ 1FAQ 2
