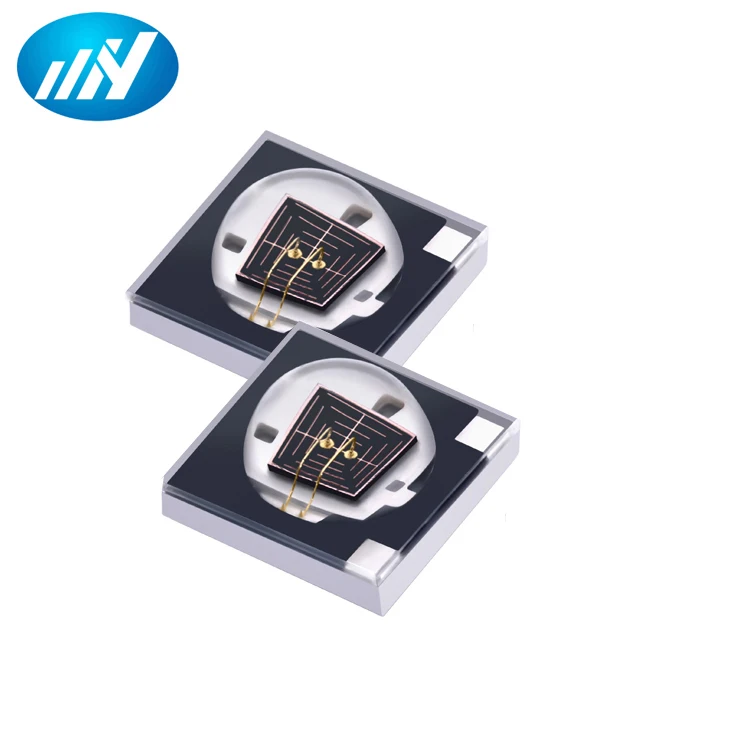

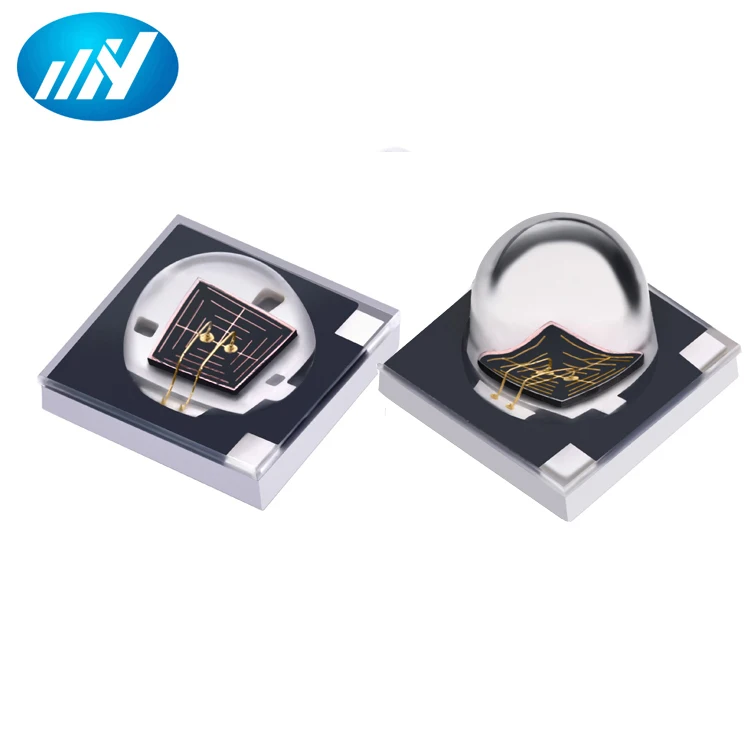

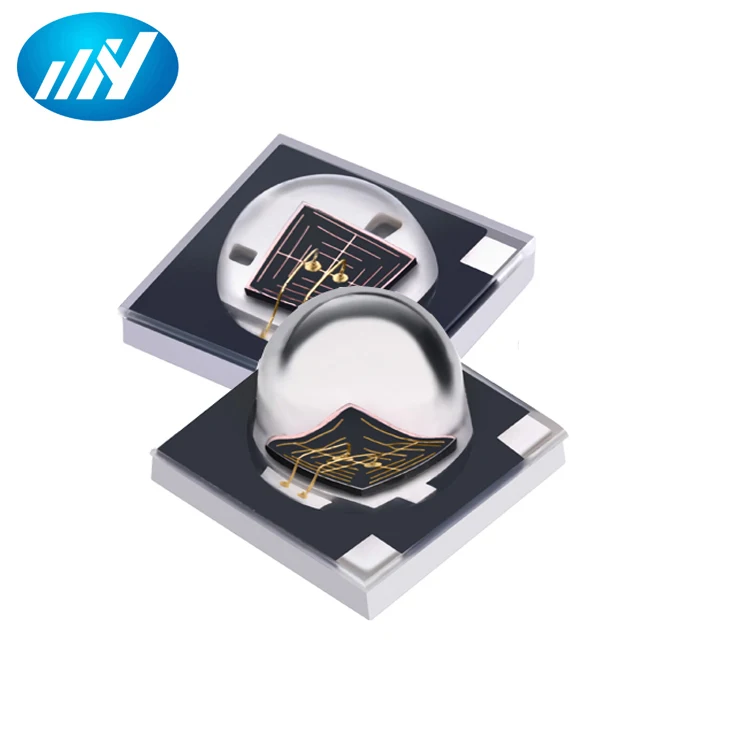

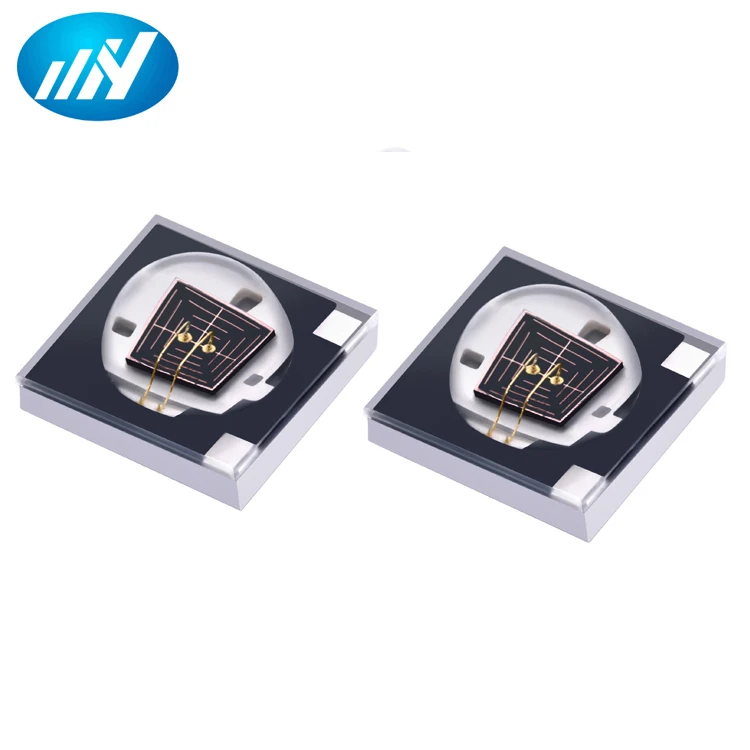

Высокая мощность 1 Вт 2 Вт 3 Вт 3535 850nm 810nm 880nm 940nm 980nm ИК светодиодов

Product Overview

Description

Order Code	Voltage (V)	Peak     Wavelength (nm)	Radiant   Power (mW)	Radiant Intensity (mw/sr)	Current (mA)	Half Width (nm)	Angle (0)
HYR35X43B365KN-D1	3.5-4.0	365-370	1500-2000	375	700	9	120
HYR35X43B380KN-D1	3.2-3.6	380-390	1800-2300	455	700	10	120
HYR35X43B395KN-D1	3.0-3.4	395-400	1700-1900	438	700	15	120
HYQ35G45N400KN-D1	3.0-3.4	400-410	1300-1500	355	700	17	120
HYQ35G45N410KN-D1	3.0-3.4	410-420	900-1100	346	700	17	120
HYQ35G45N420KN-D1	3.0-3.4	420-430	900-1100	324	700	16	120
HYQ35G45N430KN-D1	3.0-3.4	430-440	700-800	335	700	19	120
HYQ35R45N450KN-D1	3.0-3.4	450-460	700-800	341	700	20	120
HYQ35G45P460KN-D1	3.0-3.4	460-470	400-500	281	700	22	120
HYQ35G45P480KN-D1	3.0-3.4	470-490	800-1000	262	700	26	120
HYQ35G45P500KN-D1	3.0-3.4	495-505	300-400	235	700	25	120
HYQ35R45N520KN-D1	3.0-3.4	520-530	250-350	227	700	30	120
HYQ35G45P530KN-D1	3.0-3.4	530-540	300-400	236	700	30	120
HYQ35G45P545KN-D1	3.0-3.4	540-560	200-300	227	700	40	120
HYQ35F45N560KN-D1	3.0-3.4	555-575	80-100	300	700	40	120
HYQ35E42N580KN-D1	2.0-2.4	580-585	120-150	97	700	20	120
HYQ35E42P590KN-D1	2.0-2.4	590-600	100-130	85	700	20	120
HYQ35G42N600KN-D1	2.0-2.4	600-610	250-350	187	700	15	120
HYQ35E42P630KN-D1	2.0-2.4	620-640	400-500	461	700	15	120
HYQ35E42N660KN-D1	2.0-2.4	655-665	600-700	794	700	17	120
HYQ35G42N680KN-D1	2.0-2.4	670-690	700-800	774	700	20	120
HYQ35G42N700AB-D1	2.0-2.4	690-710	300-400	250	700	22	120
HYQ35E42N720AB-D1	1.8-2.2	720-730	800-1000	600	1000	22	120
HYQ35E42N730AB-D1	1.8-2.2	730-740	800-1000	600	1000	22	120
HYQ35L42N760AB-D1	1.6-2.0	760-780	500-700	390	700	24	120
HYQ35L42N780AB-D1	1.6-2.0	780-800	500-700	430	700	25	120
HYQ35L42N800AB-D1	1.4-1.8	800-820	500-700	450	700	32	120
HYQ35G42N820AB-D1	1.6-2.0	820-830	500-600	400	700	35	120
HYQ35E42N850AB-D1	1.4-1.8	840-860	850-1200	420	1000	35	120
HYQ35L42N880AB-D1	1.4-1.8	870-890	600-800	360	700	39	120
HYQ35L42N910AB-D1	1.4-1.8	900-920	800-1000	360	700	39	120
HYQ35G42N925AB-D1	1.4-1.6	920-930	600-800	330	700	39	120
HYQ35E42N940AB-D1	1.2-1.6	930-950	900-1100	380	1000	45	120
HYQ35L42N980AB-D1	1.2-1.6	960-980	700-900	340	700	52	120
HYQ35L42N1050AB-D1	1.0-1.4	1000-1100	600-700	200	1000	50	120
HYQ35G42P1200AB-D1	1.0-1.2	1200-1300	350-450	200	700	120	120
HYQ35L42P1350AB-D1	1.0-1.2	1300-1400	130-150	200	700	85	120
HYQ35L42P1450AB-D1	1.0-1.2	1450-1550	130-150	200	700	85	120
HYQ35G42P1500AB-D1	1.0-1.2	1500-1600	350-450	200	700	120	120
HYQ35G42P1600AB-D1	1.0-1.2	1600-1700	350-450	200	700	120	120

Warm Tip:The above parameters are for reference. Wavelength Angle, PCB can be customized according to requirements

 Applications

Our products are widely used in various applications such as medical, life science, industrial equipment, non-destructive testing, and analytical equipment.

Substance / Matter Analysis//Hyperspectral Imaging
Machine Vision //Sorting Units (by raw material, by colour, etc.)
Detection of Foreign Matter//Blood Oxygen Saturation Analysis
Endoscopic Procedures//Photo Dynamic Therapy
Instrument Diagnostics and Research Execution//Spectroscopy
