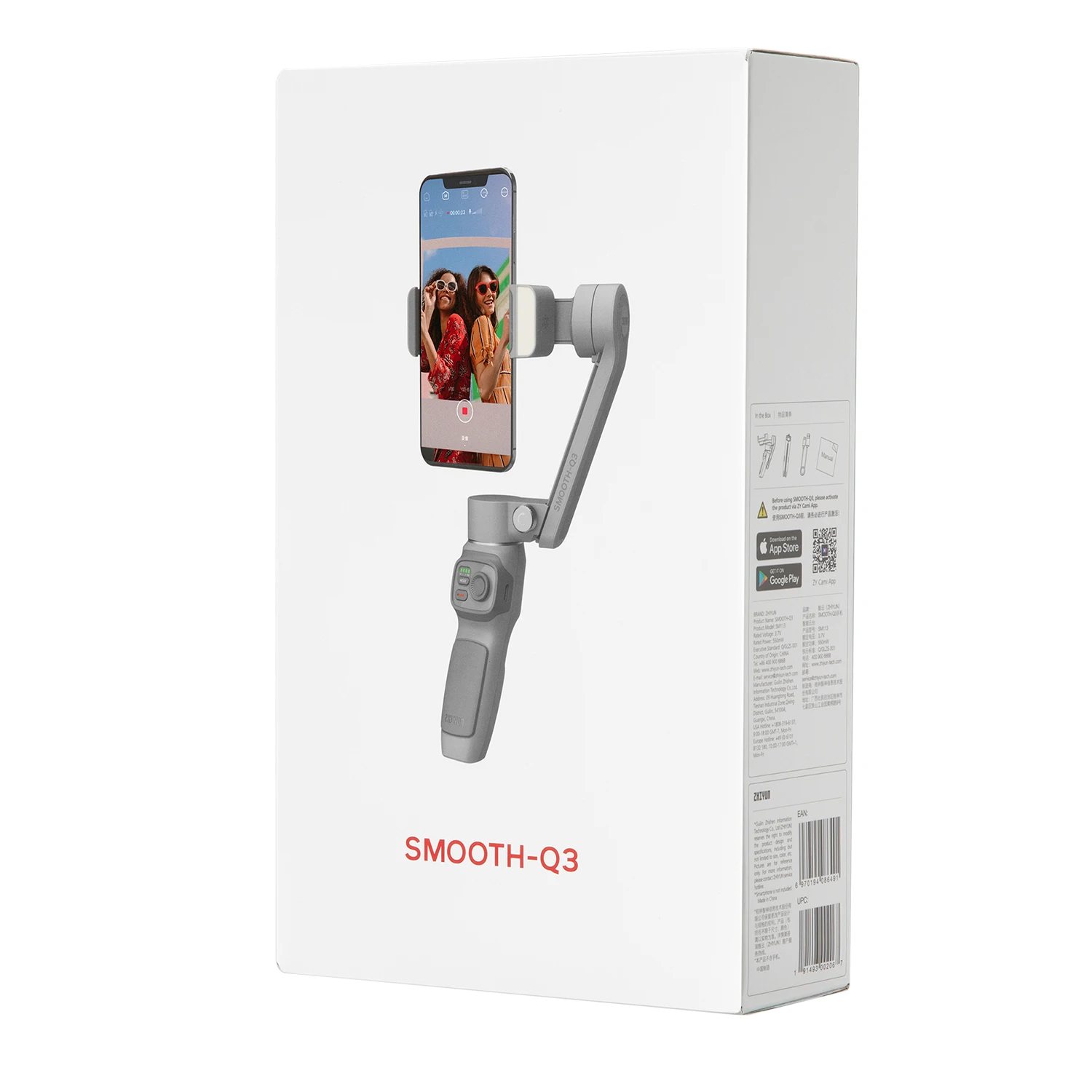

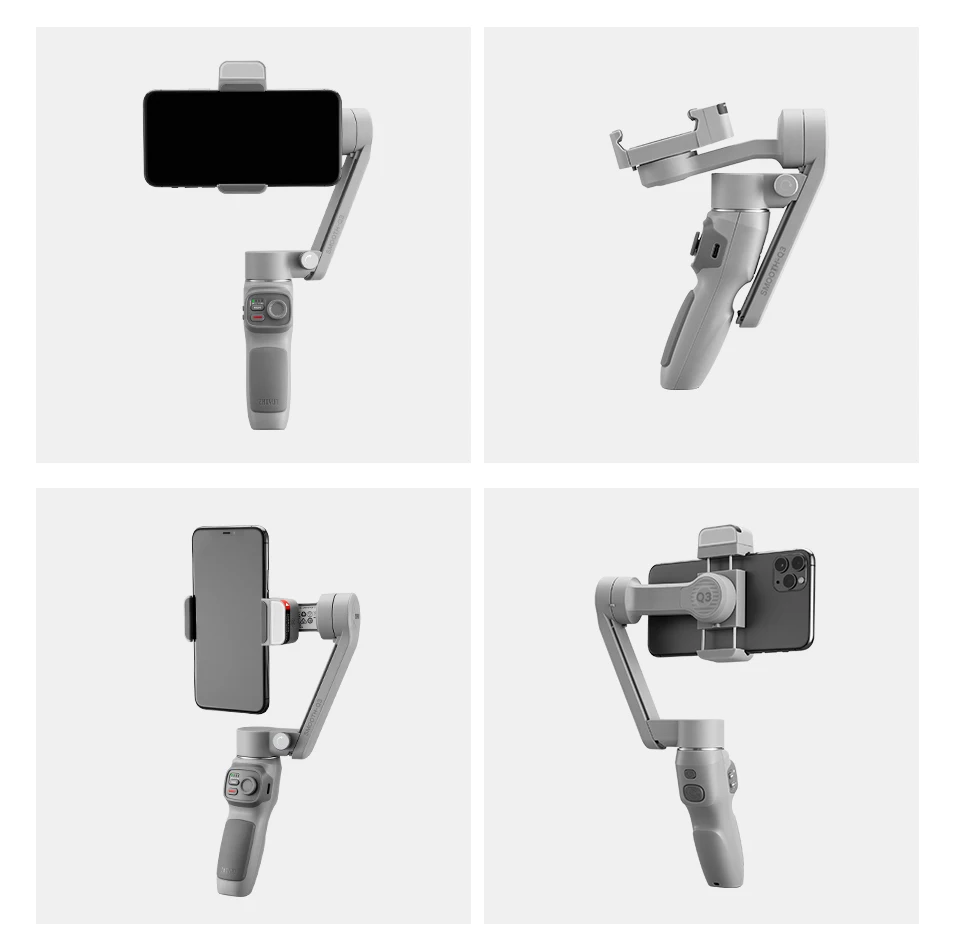

Newest Zhiyun Smooth q3 3 Axis Handheld Gimbal for iPhone 12 pro max for Samsung S8 S7 S5 / for Huawei Smartphones
- Category: Stabilizers >>>
- Supplier: Shenzhen Esky Technology Co. Ltd.
Share on (1600240159641):
Product Overview
Description

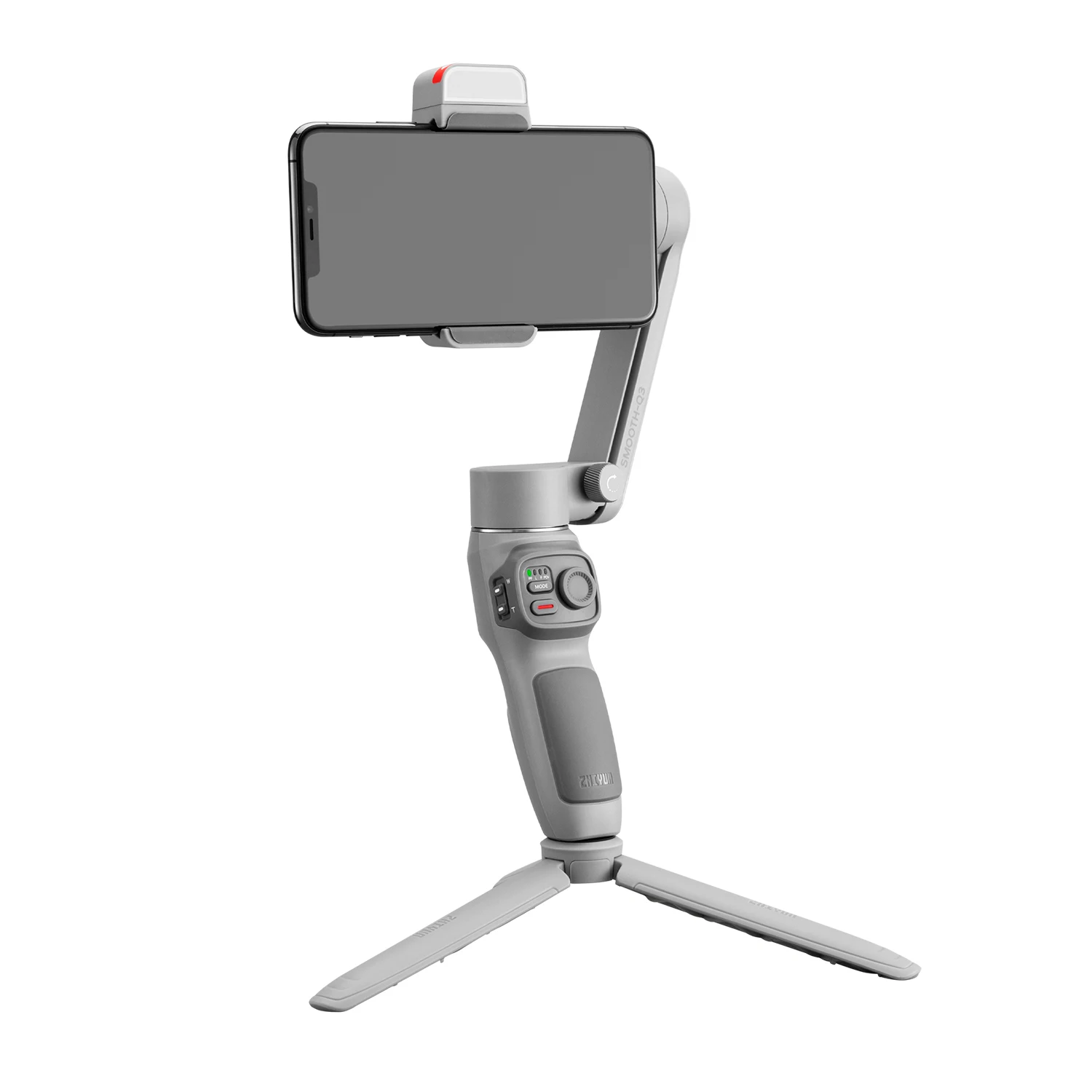

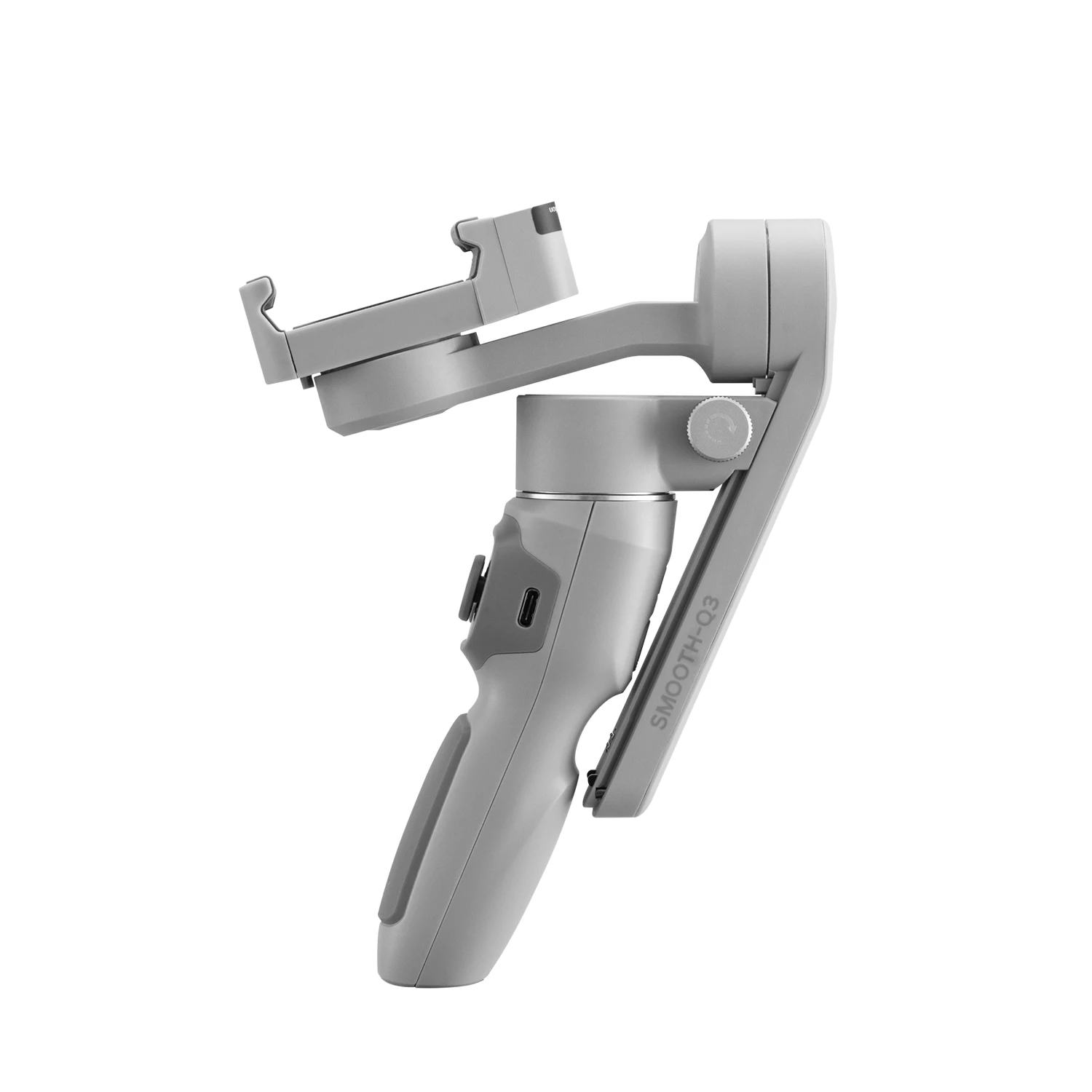

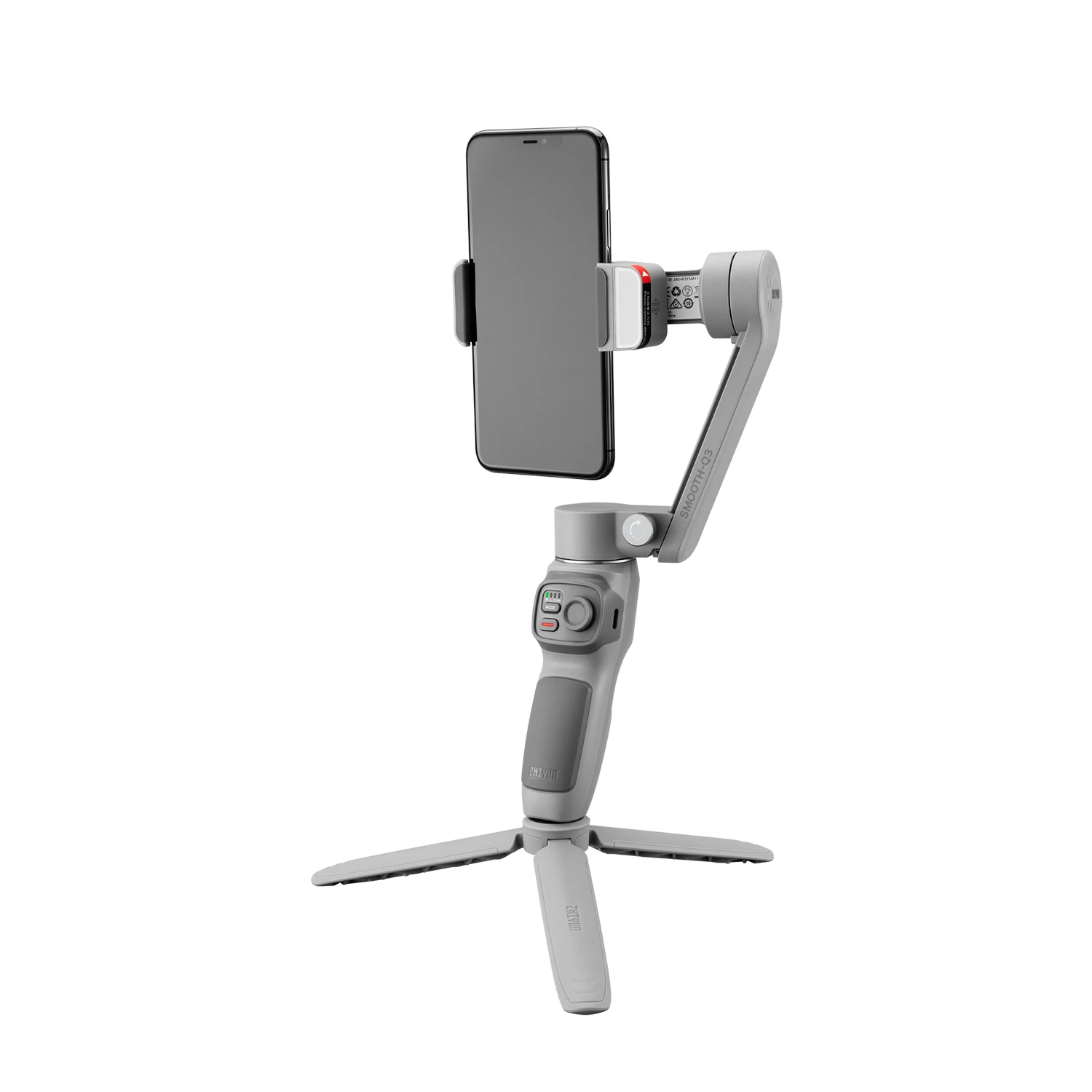

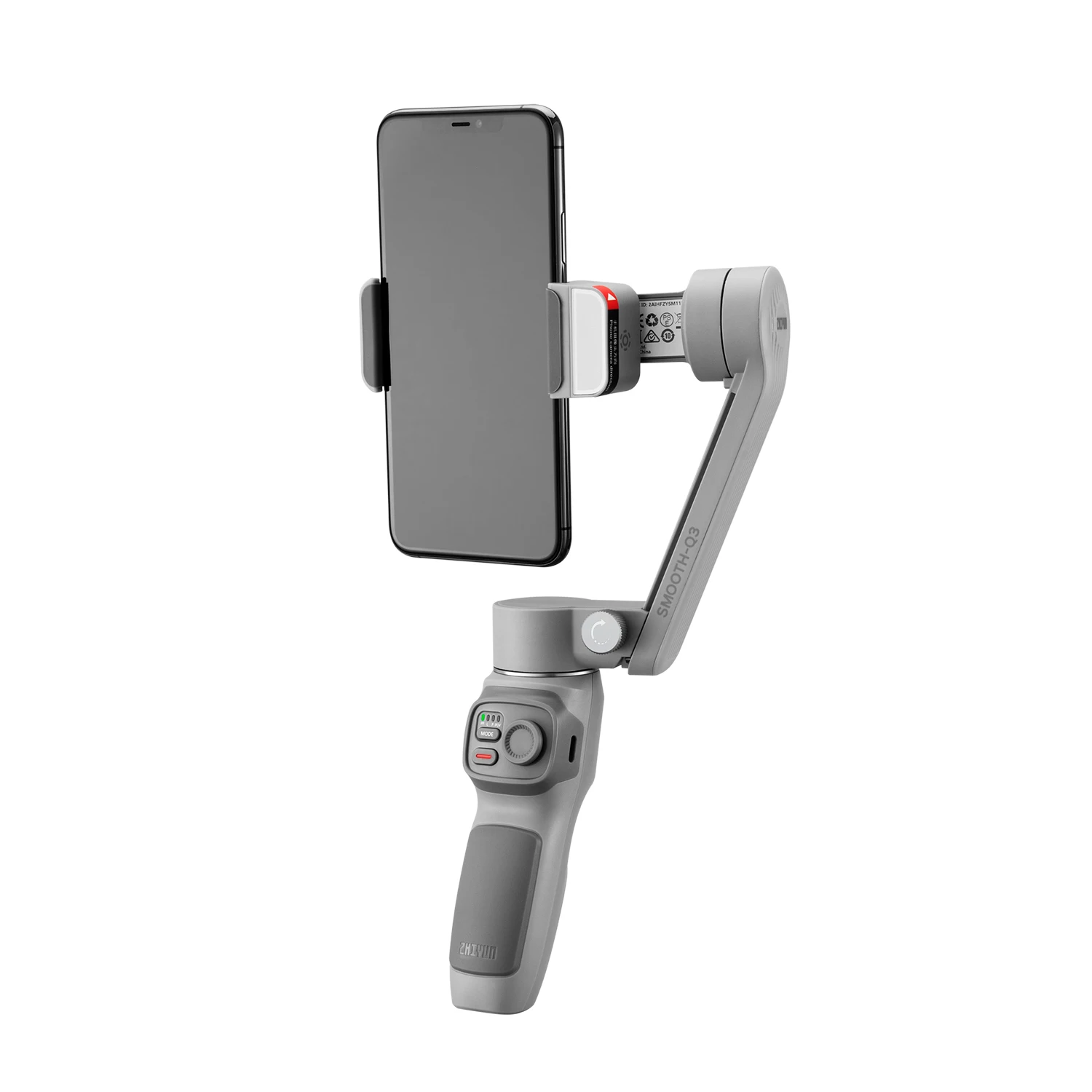

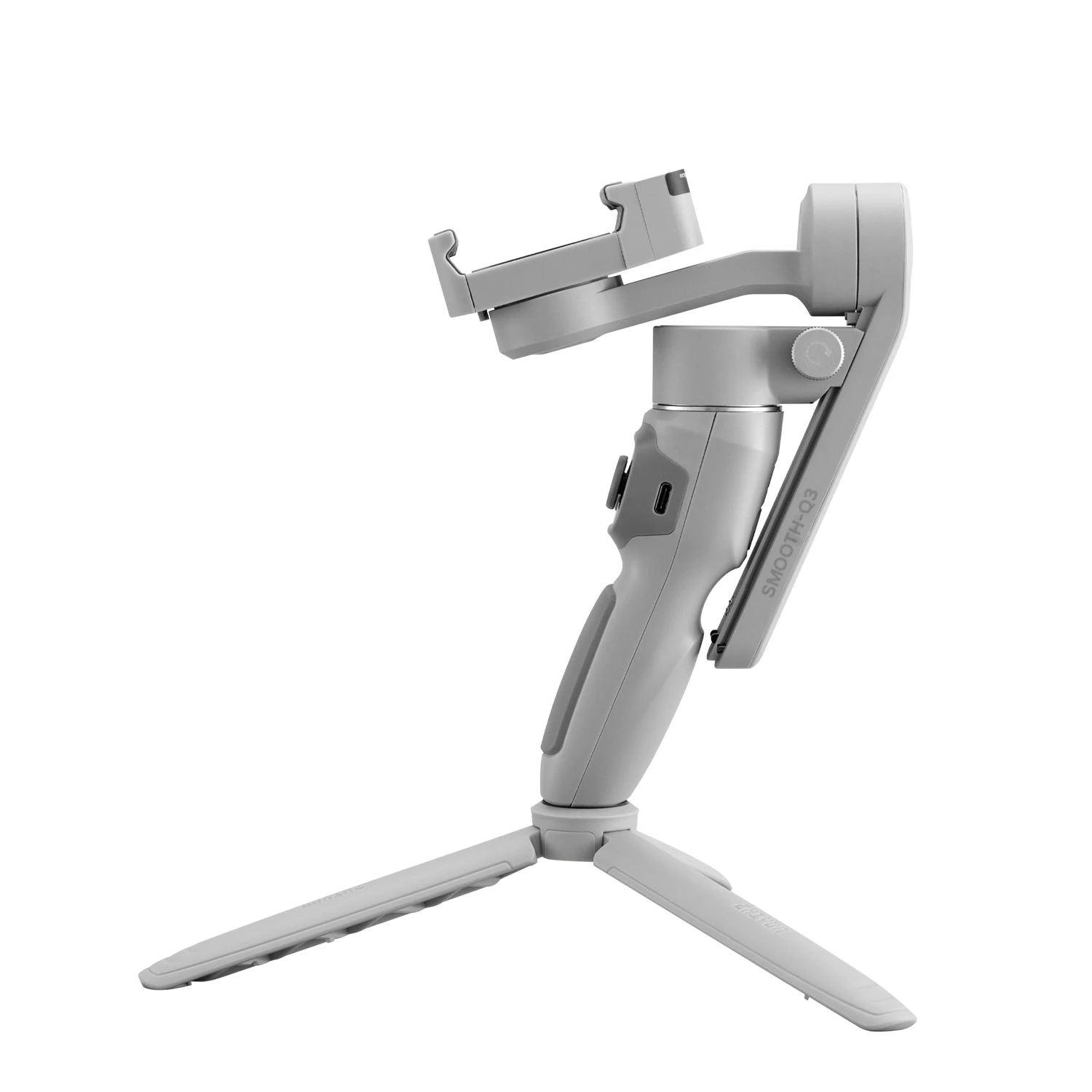

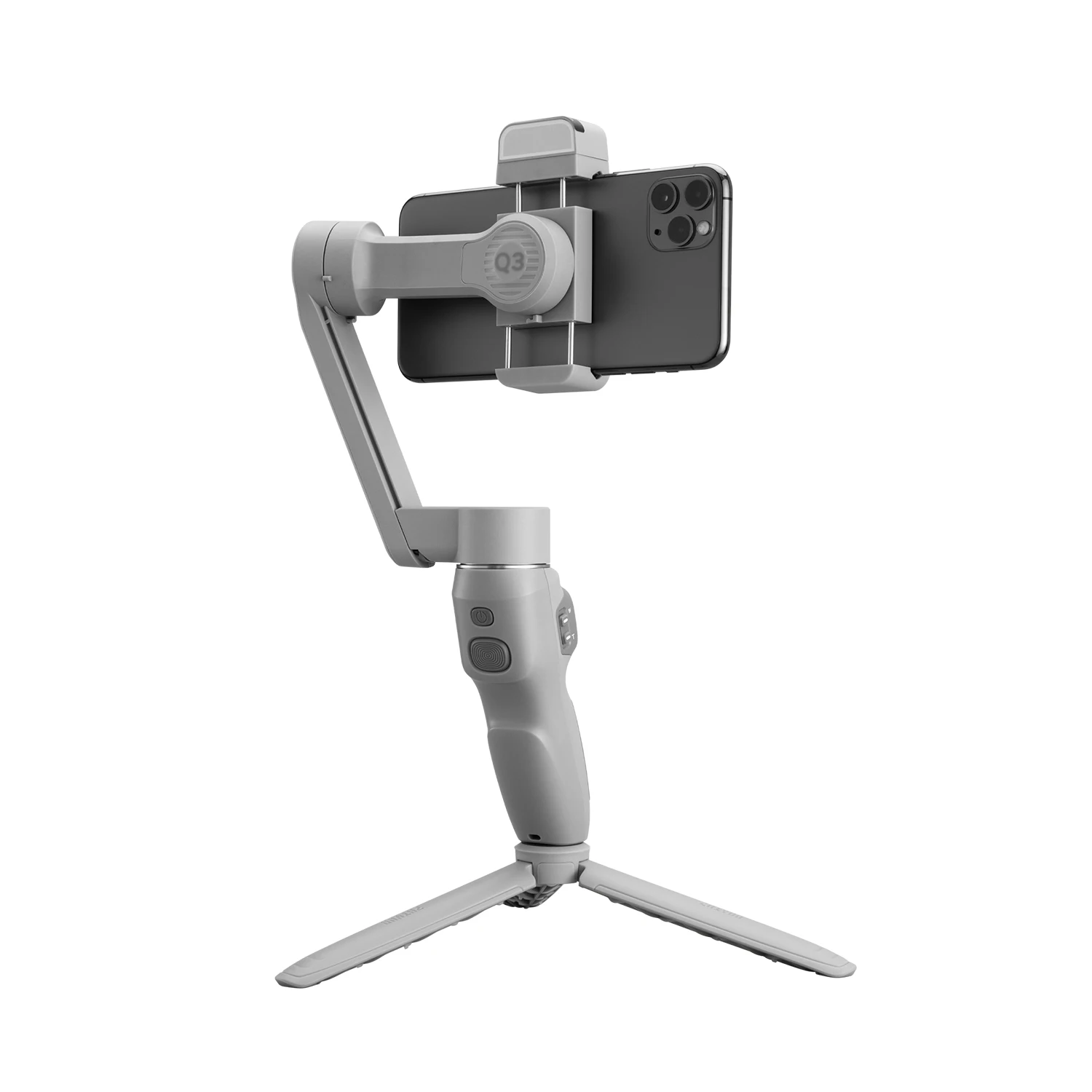

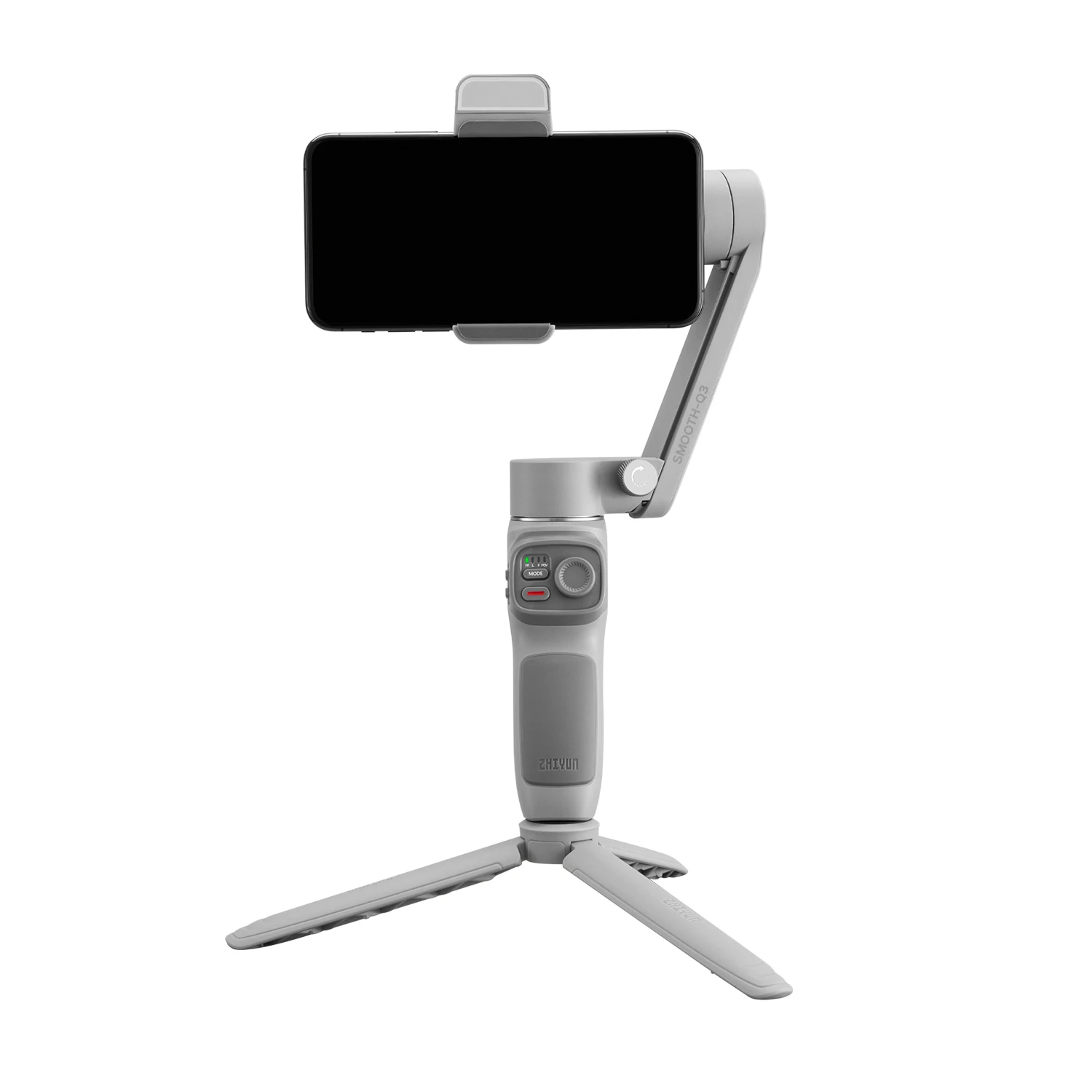

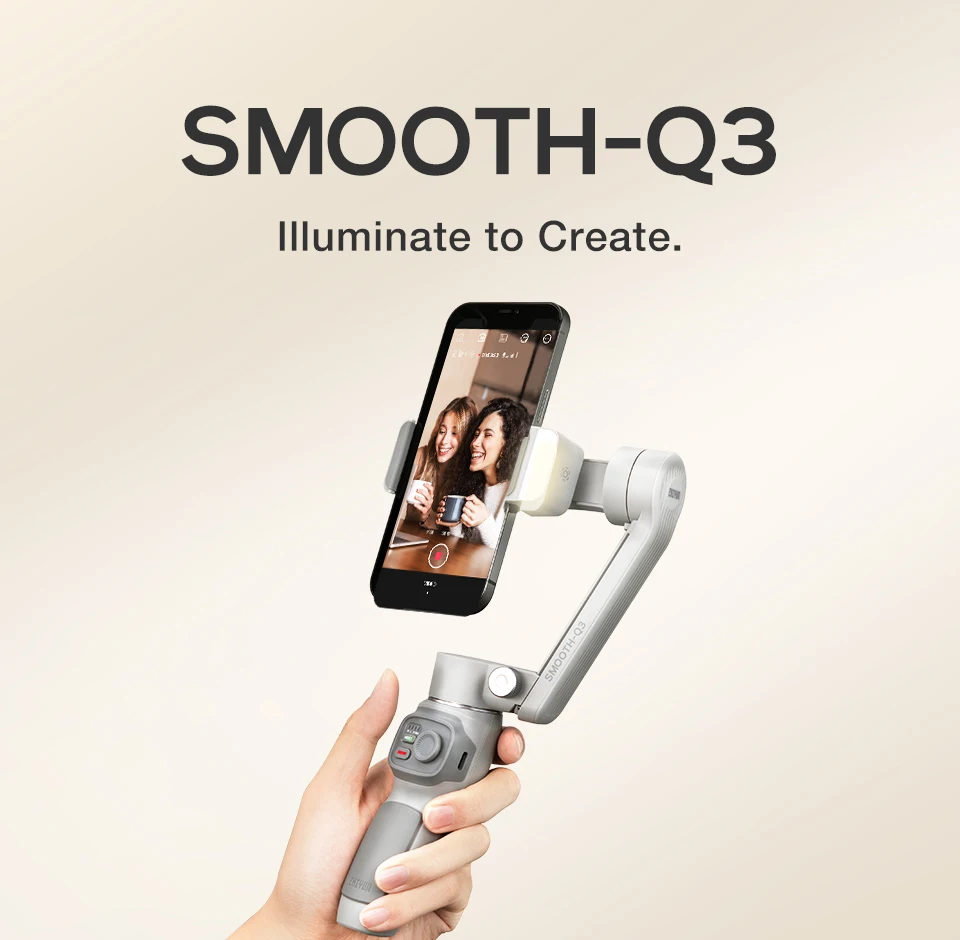

ZHIYUN Smooth Q3

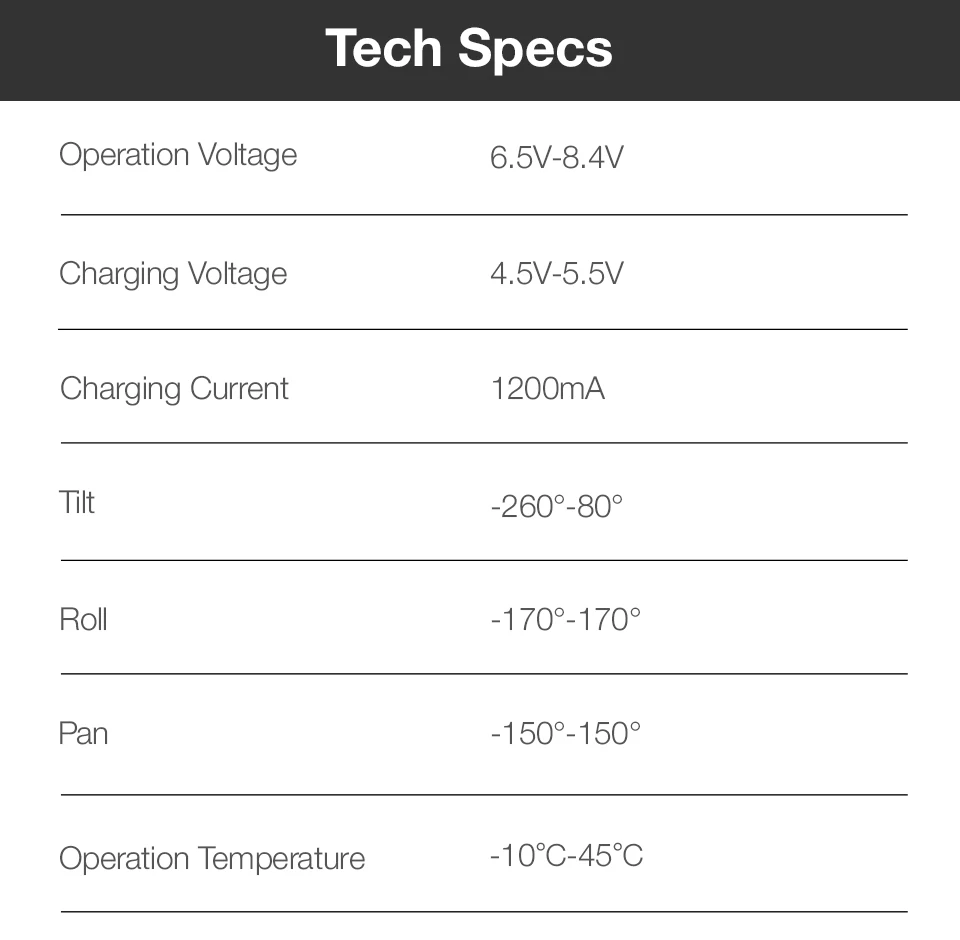

| Tech Specs. | ||||
| Item | Min. | Standard | Max. | Remark |
| Operation Voltage | 6.5V | 7.4V | 8.4V | |
| Operation Current | 70mA | - | 2500mA | |
| Charging Voltage | 4.5V | 5V | 5.5V | |
| Charging Current | - | - | 1200mA | |
| Output Voltage | - | - | - | |
| Output Current | - | - | - | |
| Following Deviation in Static State | ±0.01° | - | ±0.04° | |
| Following Deviation in Motion State | ±0.05° | ±0.1° | ±0.3° | |
| Tilt Mechanical Range | -260° | - | 80° | |
| Roll Mechanical Range | -170° | - | 170° | |
| Pan Mechanical Range | -150° | - | 150° | |
| Controllable Tilt Angle | - | - | - | |
| Controllable Roll Angle | - | - | - | |
| Controllable Pan Angle | - | - | - | |
| Operation Temperature | -10℃ | 25℃ | 45℃ | |
| Charging Temperature | 0℃ | 25℃ | 40℃ | |

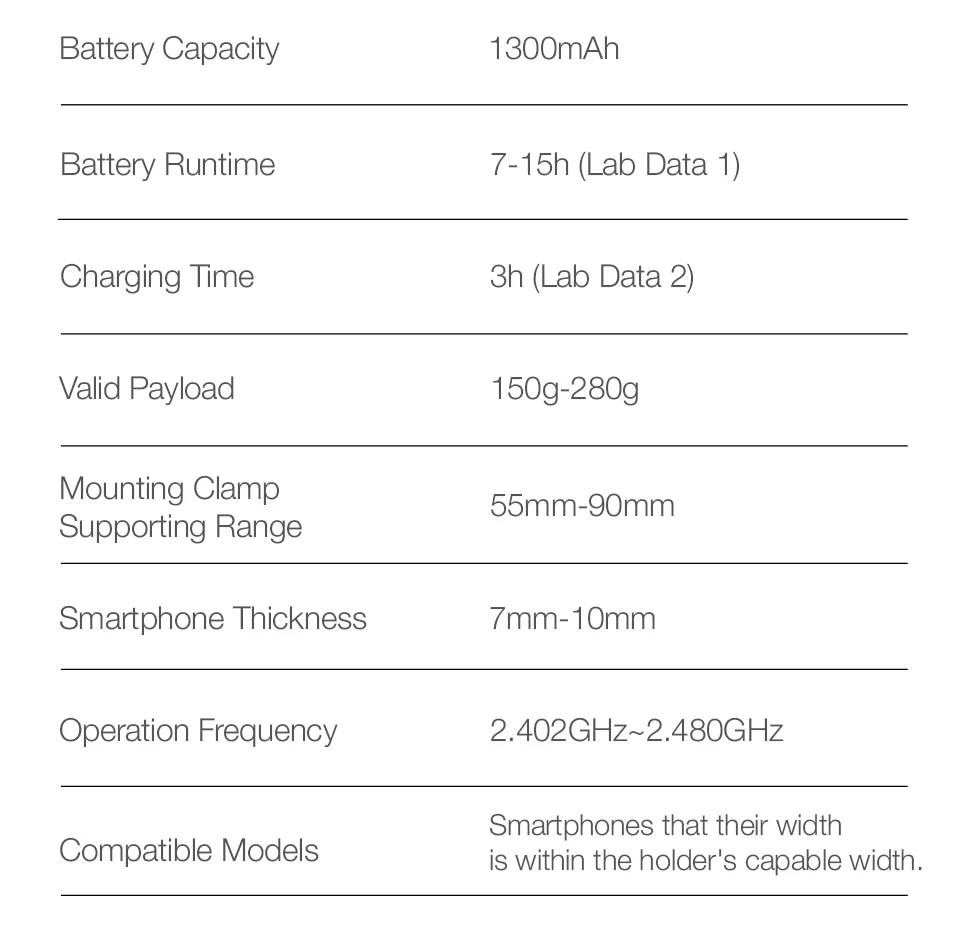

| Battery Capacity | - | 1300mAh | - | |
| Battery Runtime | - | 7h | 15h | Lab Data 1 |
| Charging Time | - | 3h | - | Lab Data 2 |
| Valid Payload | 150g | - | 280g | |
| Mounting Clamp Supporting Range | 55mm | - | 90mm | |
| Smartphone Thickness | 7mm~10mm | |||
| BT | BT .2 | |||
| Equivalent isotropically radiated power(EIRP) | <3dBm | |||
| Operation Frequency | 2.402GHz~2.480GHz | |||
| Compatible Models | Smartphones that their width is within the holder's capable width. | |||

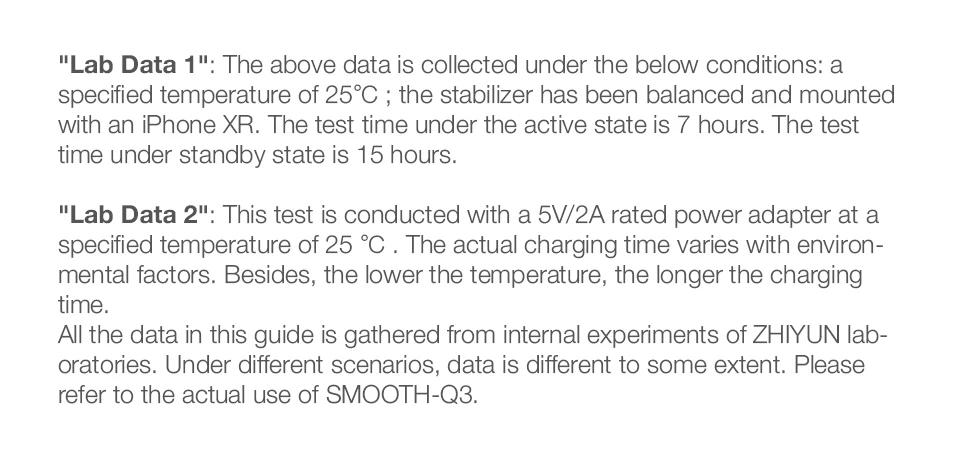

| "Lab Data 1": The above data is collected under the below conditions: a specified temperature of 25℃ ; the stabilizer has been balanced and mounted with an iPhone XR. The test time under the active state is 7 hours. The test time under standby state is 15 hours. "Lab Data 2": This test is conducted with a 5V/2A rated power adapter at a specified temperature of 25 ℃ . The actual charging time varies with environmental factors. Besides, the lower the temperature, the longer the charging time. All the data in this guide is gathered from internal experiments of ZHIYUN laboratories. Under different scenarios, data is different to some extent. Please refer to the actual use of SMOOTH-Q3. | ||||
