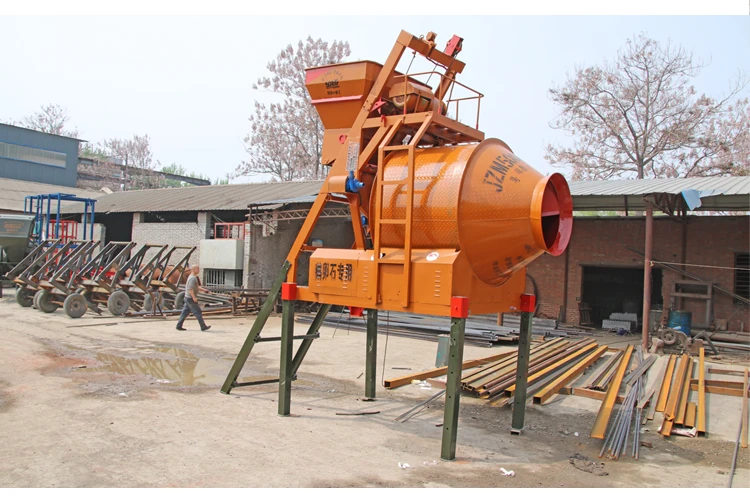

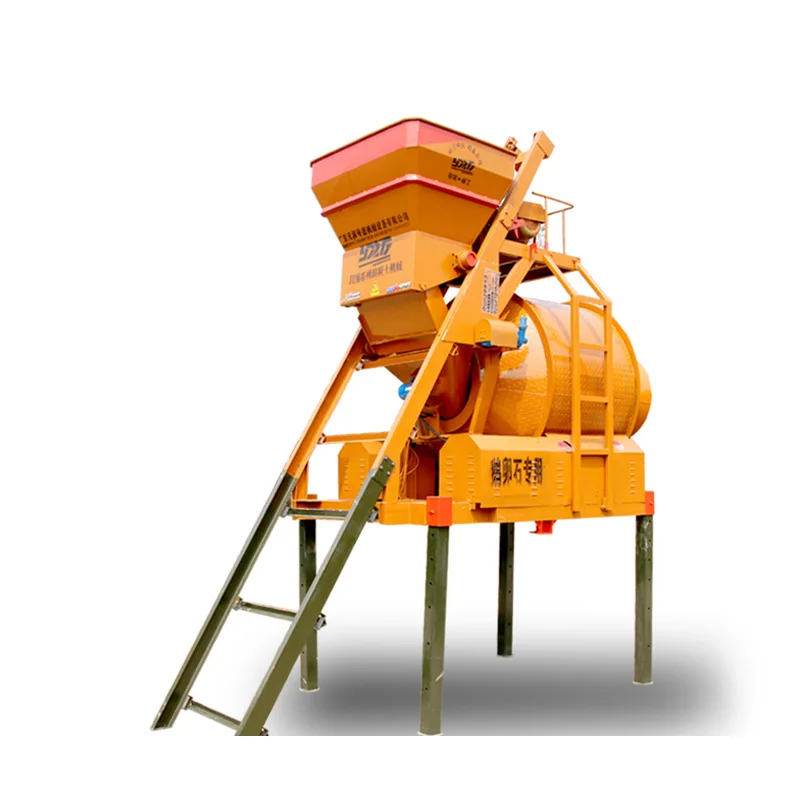

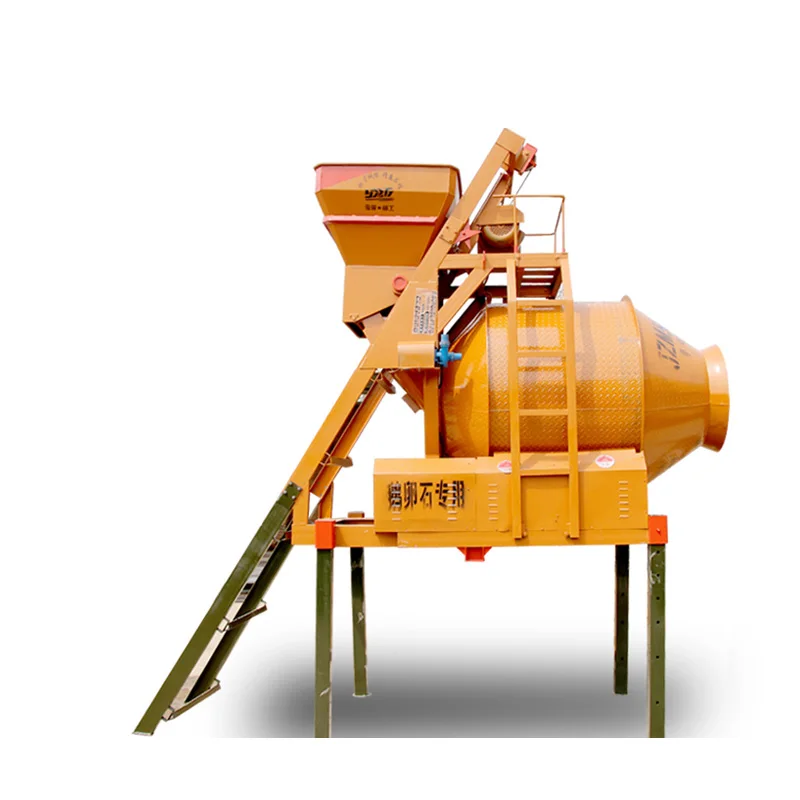

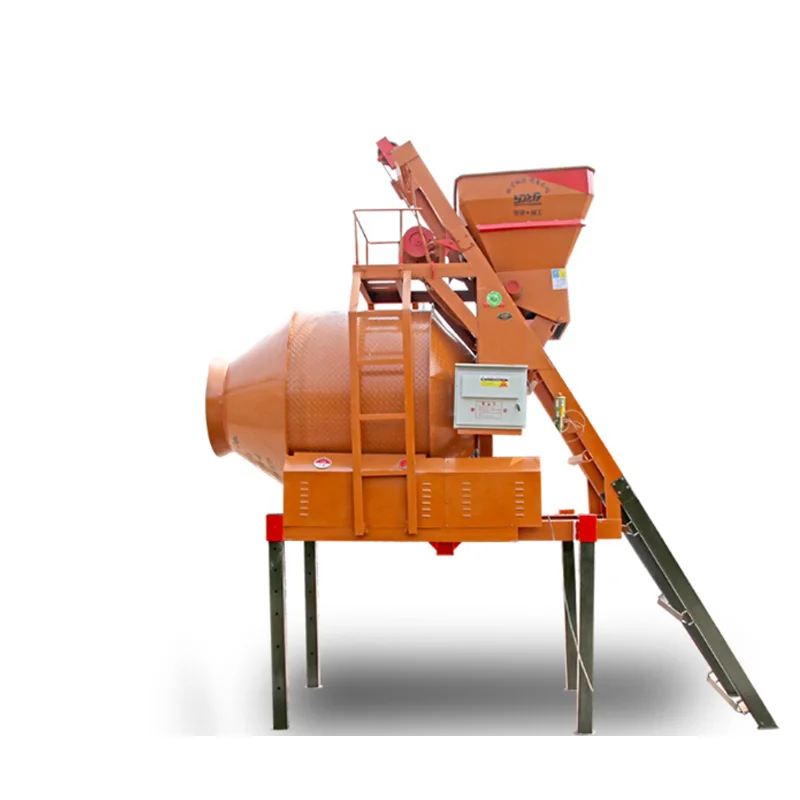

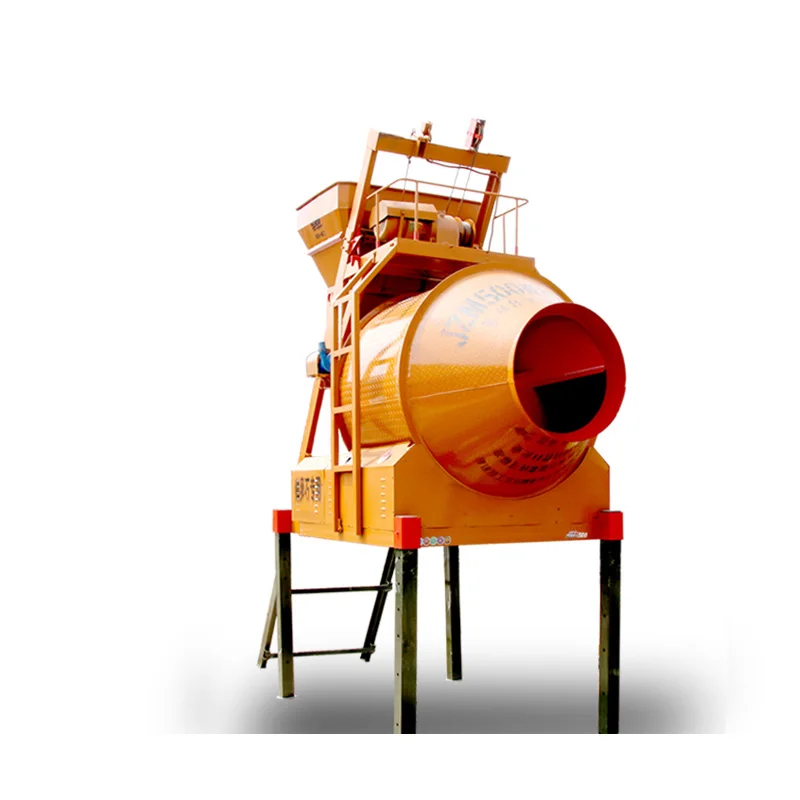

Hot Selling jzm 350 electric motors gearbox concrete mixer JZM350 low noise self loading concrete mixer/mini concrete mixer

Product Overview

Description

Product advantages

1. Friction roller

Special rubber roller friction design, compared with ring gear drive, it is not easy to slip,;

2. Low noise, low energy consumption

Compared with the ring gear driven drum mixer, the noise is smaller, the energy consumption is lower, and the operation is more stable;

3. Advanced technology

Imported CNC machining center, strict quality control, excellent quality;

4. Good mixing quality

Reasonable design, compact structure and good mixing effect.

		SPECIFICATIONS FOR JZC350 CONCRETER MIXER
Model		JZC350	JZC400	JZC500	JZC750
Working performance	Discharge capacity	350L	400L	500L	750L
	Feed capacity	560L	650L	800L	1200L
	productivity	10-14m3/h	18-28m3/h	14-18m3/h	20-22m3/h
	speed	14r/min	14r/min	13r/min	13r/min
	Maximum aggregate size	60mm	60mm	60-80mm	60-80mm
Motor	Stirring motor	5.5KW	7.5KW	11KW	15KW
	listing motor	5.5KW	7.5KW	5.5KW	7.5KW
	Pump motor	0.55KW	0.75KW	0.75KW	1.1KW
Dimension		2766*2140*3000mm	3850*2200* 2850mm	5226*2200* 5460mm	6116*2056* 6060mm
Total weight		1950kg	1950kg	3100kg	4200kg



Common problem

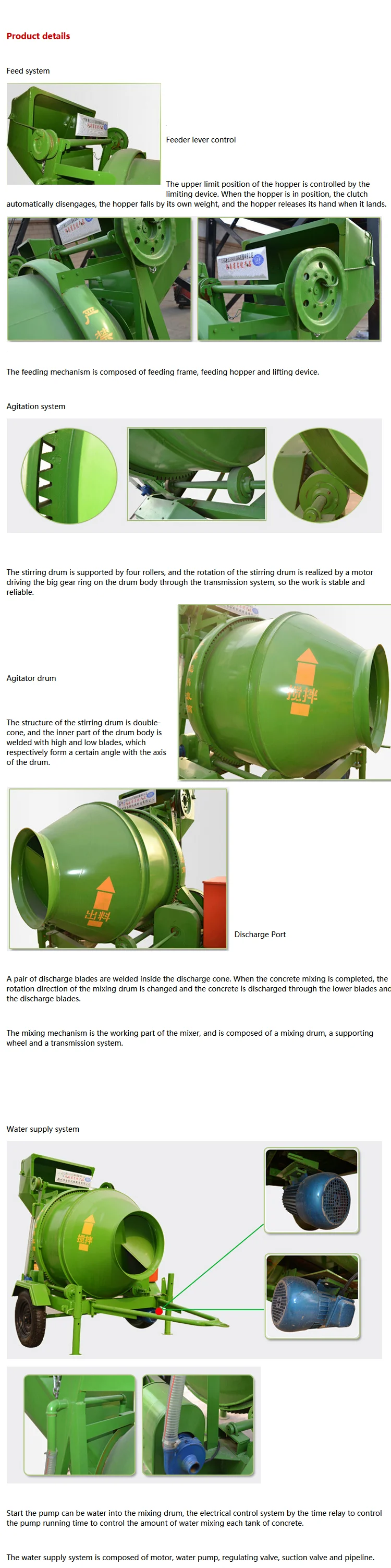

1, How does the mixing mechanism of JZC concrete mixer constitute and work?
A: the mixing mechanism is the working part of the mixer, which is composed of mixing drum, supporting wheel and transmission system. The structure of the mixing drum is biconical, and the drum is welded with high and low blades, which form a certain angle with the axis of the mixing drum. With the rotation of the mixing cylinder, the blade makes the material rise and fall, at the same time, it makes the axial reciprocating stirring, so the stirring is strong and the effect is good. The mixing time of general building concrete is about 35s-45s.
A pair of discharge blades are welded inside the discharge cone of the shaking drum. When the concrete is mixed, the rotation direction of the mixing drum is changed, and the concrete is discharged from the discharge cone through the low blades and discharge blades.
The mixing drum is supported by four supporting wheels. The rotation of the mixing drum is realized by the motor driving the big gear ring installed on the cylinder through the transmission system. The operation is reliable. The forward and reverse rotation of the mixing drum is realized by the motor reversing.
2, How to test run JZC concrete mixer?
Answer: the new mixer or the repaired and transferred mixer should be installed and run in according to the following requirements before use.
