Chinese Manufacturer High Speed Multi Cutters Spiral Paper Tube Core Making Machine
- Category: >>>
- Supplier: Henan Xing Tu Machinery Equipment Co. Ltd.
Share on (1600240745809):
Product Overview
Description

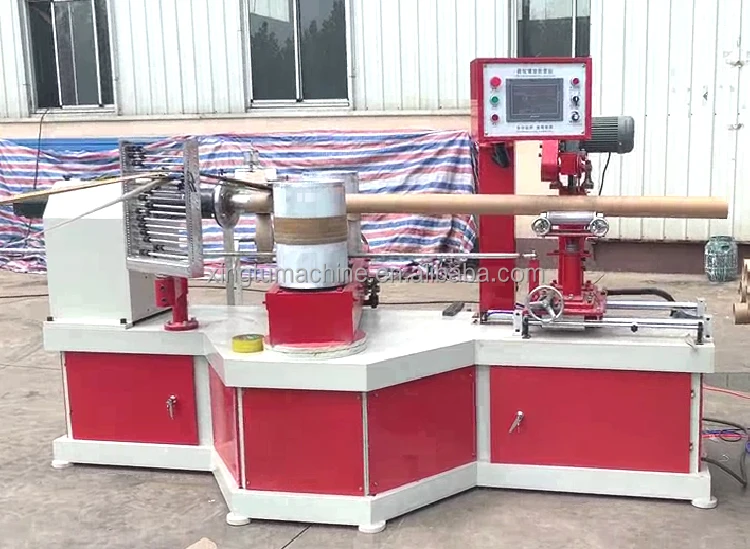

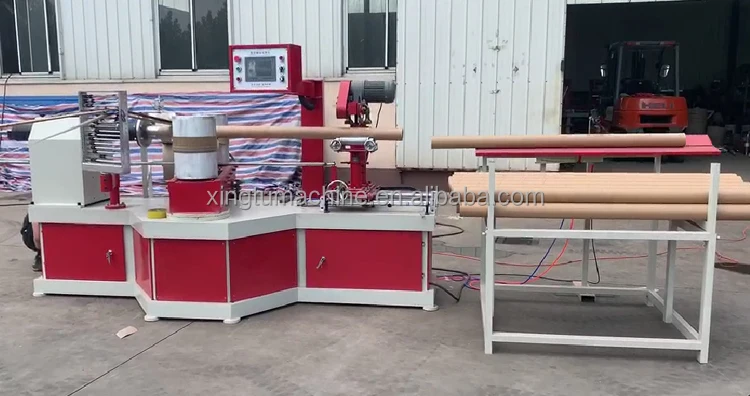

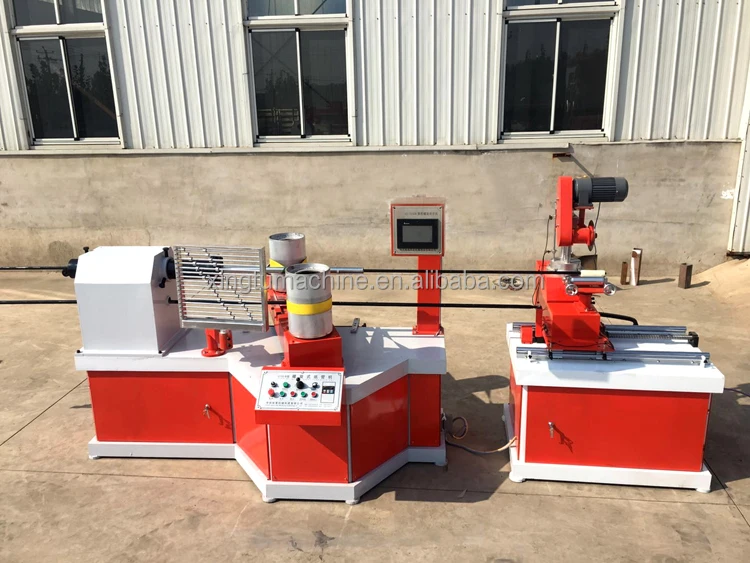

Chinese Manufacturer High Speed Multi Cutters Spiral Paper Tube Core Making Machine
Product Description
Brief Introduction:
This machine can make paper cores from kraft paper roll. The paper roll have been cut into with small width. This machine can coat glue on paper and rotate it into paper core.The design concept is simple, compact and stable.

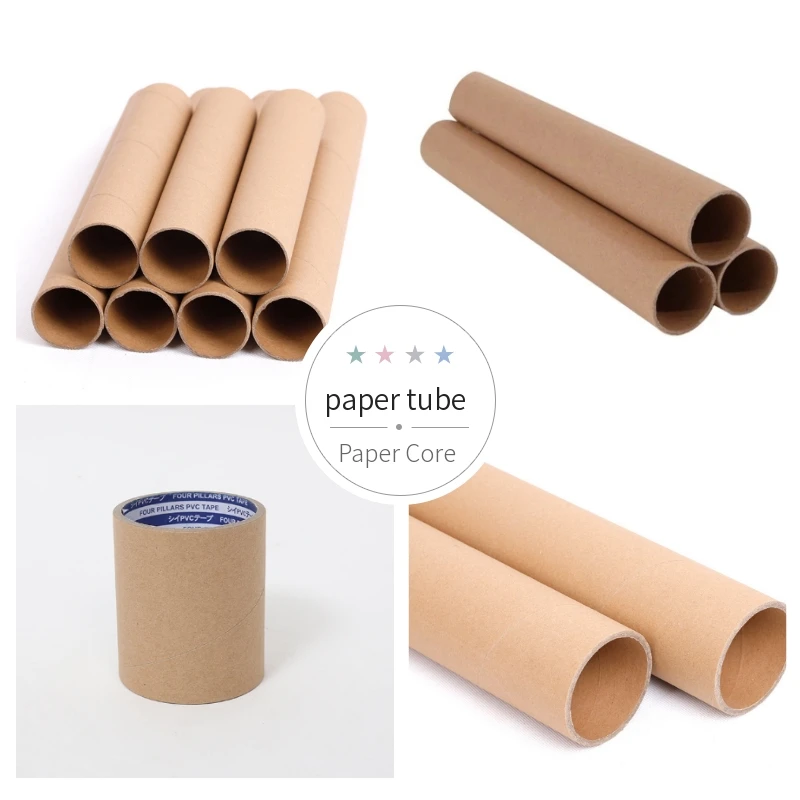

Finished product: all kinds of household paper tubes, packaging paper tubes, various small paper core tubes.
Features:
1. The main body is made of thick and heavy steel plate after CNC cutting and welding, the frame is stable and not easy to deform, and the vibration is small.
2. The main drive adopts hard tooth surface full oil bath chain drive, low noise, low heat, high speed and large torque.
3. The main motor adopts vector type high torque frequency converter for speed regulation.
4. The PLC control system is adopted to improve the cutting response speed, and the cutting length control is more accurate than before.
5. Equipped with a new type of operation panel and large-size color touch screen man-machine interface operation
Specification
Paper Layer | 3-16 |
Max Diameter of Paper Core | 150mm |
Min Diameter of Paper Core | 20mm |
Max Wall Thickness | 8mm |
Min Wall Thickness | 1mm |
Winding Head | Double Heads Single Belt |
Cutting System | Single Round Knife Cutting |
Gluing Way | Single/Double Side Gluing |
Operator | 1-2 person |
Working Speed | 3-20m/min |
Voltage | 380V 3P (Can Be Customized) |
Dimension Of Main Machine | 2800mm×1800mm×1950mm |
Weight | 1500kg |
Main Power | 5.5KW |
Packing & Delivery

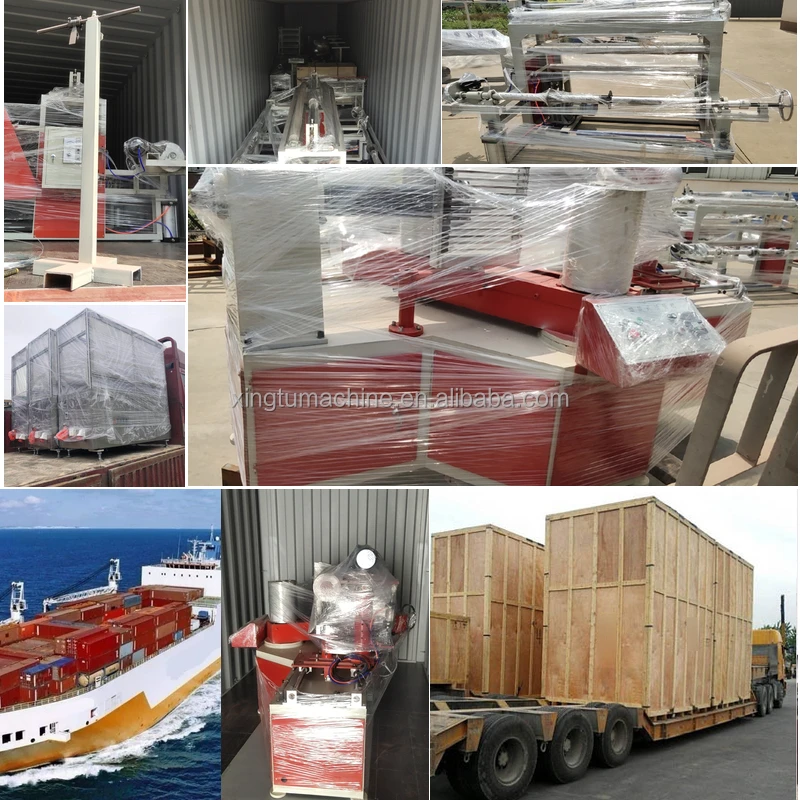

1. The paper core tube making machine will be packed with waterproof film and wooden box. The standard export package will ensure secure delivery of the machine.
2. The core tube making machine can be delivered by sea, by truck or by rail.
3. The normal delivery time is 35 days after we received advanced payment. It also depends on your order quantity.
2. The core tube making machine can be delivered by sea, by truck or by rail.
3. The normal delivery time is 35 days after we received advanced payment. It also depends on your order quantity.

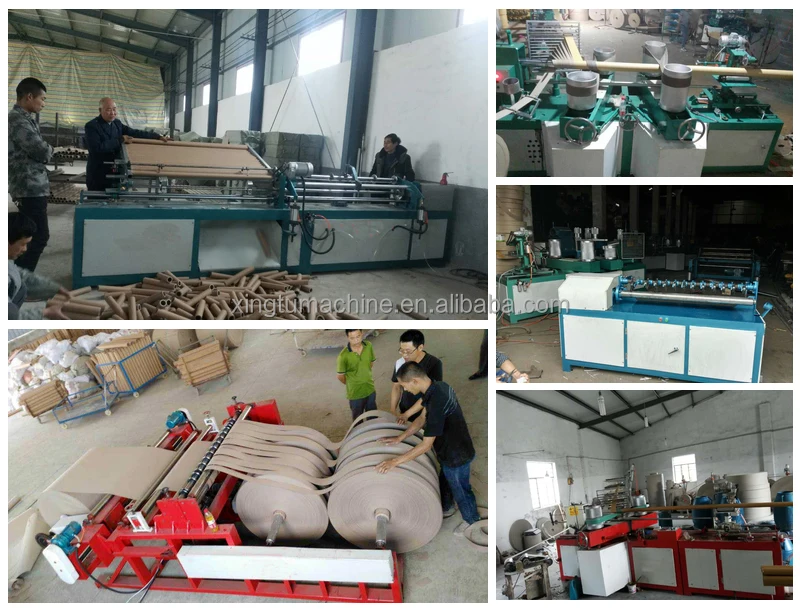

Company Profile
HENAN XINGTU MACHINERY EQUIPMENT CO., LTD, located in Zhengzhou city, Henan province, China, is a leading professional and reliable machine manufacturer and whole solution supplier. We can supply whole solution for toilet tissue paper processing machine, plastic and paper straw production line. In the process of production, we always put the quality of products in the top position. High quality machinery and professional services also helped us win high praise from our customers domestic and overseas. Our machinery equipments have been sold to many cities in china and also exporting to many countries around the world, such as Europe, Africa, Australia, Nigeria, Ghana, Egypt, Saudi Arabia, Russia, Brazil, Pakistan, India and so on. We also establish good strategic cooperation with local distributors and agents.
We have a professional engineer team and skillful workers with rich experience.We constantly innovate and use advanced production technology and equipment. All these factors have greatly improved our productivity. In addition, precision production equipment ensures the accuracy and high quality of our machinery.
Our business philosophy is Integrity, cooperation and win-win.
Please send your requirements to us by email or phone calls and we will reply you immediately.
Please send your requirements to us by email or phone calls and we will reply you immediately.
Service
Pre and After Sale Service:
1. All customers’questions will be answered within 24 hours. You can ask for the detailed quotation, machine pictures or vedios by chatting online with us or sending us inquiry.2. As a one-stop machine supplier, we can provide you all the necessary equipments for your paper core tube making factory. We can also assist you to purchase the raw material.
3. After you received the paper making machine, we will send you the installation vedios of each part and provide online installation guide service. Engineers overseas service is also available.
4. All machines have one year guarantee except the quick-wear part. We promise free lifelong technical support.
FAQ
1. Can I make different sizes of paper core with this machine?
Yes, you can make paper cores in different diameters and thichness by adjusting the machine settings.
2. Do you supply other paper core making machines, like paper core cutting machine?
Yes, we can provide you the complete paper core production line with all necessary machines and equipment. If you need the jumbo roll kraft paper, we can help you to make a purchase from local suppliers.
Regarding to the paper core cutting machine, if you need detailed quotation, please send us inquiry below!
3. What kind of machine do you sell?
We supply the following machines:
Yes, you can make paper cores in different diameters and thichness by adjusting the machine settings.
2. Do you supply other paper core making machines, like paper core cutting machine?
Yes, we can provide you the complete paper core production line with all necessary machines and equipment. If you need the jumbo roll kraft paper, we can help you to make a purchase from local suppliers.
Regarding to the paper core cutting machine, if you need detailed quotation, please send us inquiry below!
3. What kind of machine do you sell?
We supply the following machines:
(1) Toilet paper roll making and packing machines
(2) Napkin tissue paper making and packing machines
(3) Paper core tube making machines
(4) Drinking straws making and packing machines
4. Do you accept L/C?
Yes. You can choose to pay by cash, TT, L/C or other ways.
If you pay by TT, the advance payment will be 30%, and the rest should be paid before delivery.
4. Do you accept L/C?
Yes. You can choose to pay by cash, TT, L/C or other ways.
If you pay by TT, the advance payment will be 30%, and the rest should be paid before delivery.
If You Are Interested In Paper Core Tube Making Machine, Please Send Us Inquiry Below!
